Toyota Lexus RX350/450H(Nap

2009-01 → 2015-10 · chassis GGL1#,GYL1# · catalogue 523420 · United States

Supported model Data version 2016-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Lock & Handle

14 part groups · 2 illustrations

Illustrations

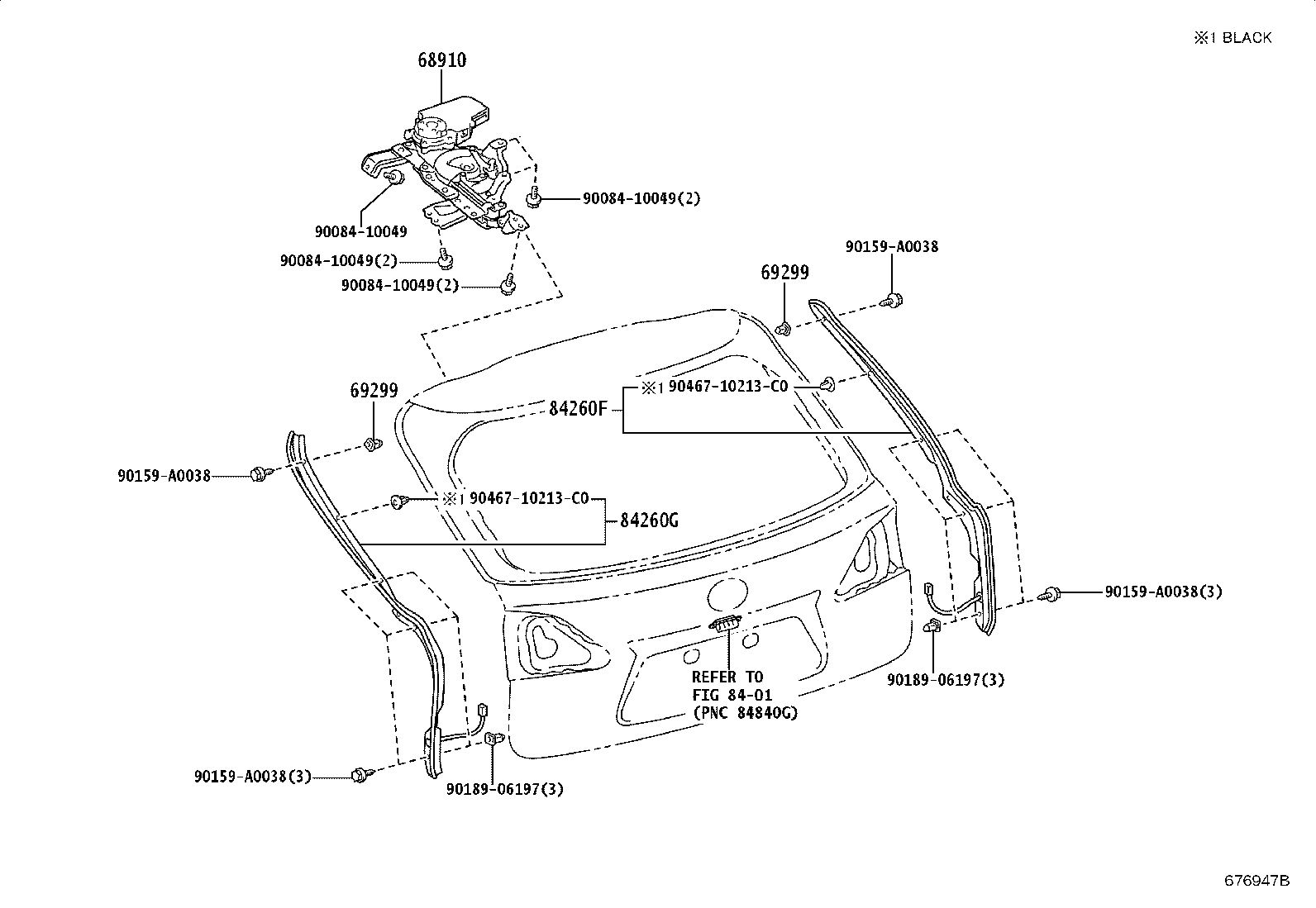

Figure 675889C 675889C 2009-01 → — Figure 676947B 676947B 2009-01 → —

Part groups

PNCDescription
68810C Hinge Assy, Back Door, RH
68820B Hinge Assy, Back Door, LH
68910 Unit Assy, Power Back Door
68945 Bracket, Back Door Damper Stay, Upper RH
68946 Bracket, Back Door Damper Stay, Upper LH
68950C Stay Assy, Back Door, RH
68957B Bracket, Back Door Stay, Lower
68960 Stay Assy, Back Door, LH
69299 Grommet, Back Door Handle
69321 Cover, Back Door Lock
69350P Lock Assy, Back Door, W/Courtesy Lamp Switch
69430C Striker Assy, Back Door Lock
84260F Sensor Assy, Power Back Door, RH
84260G Sensor Assy, Power Back Door, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
