Toyota Lexus RX350/450H(Nap
2009-01 → 2015-10 · chassis GGL1#,GYL1# · catalogue 523420 · United States
Supported model
Data version 2016-03
Battery & Battery Cable
29 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|

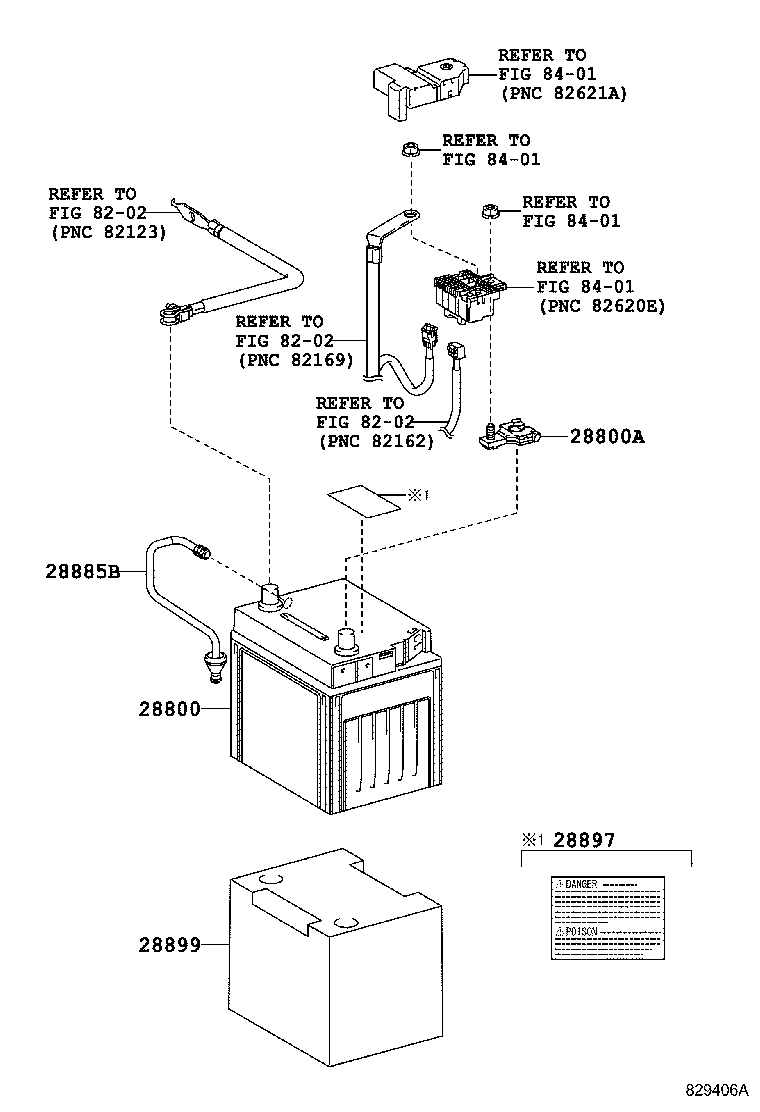

| 28800 | Battery |
| 28800A | Terminal, Battery Positive |
| 28800D | Cover, Connector(FOR BATTERY TERMINAL) |
| 28800J | Terminal, Battery Negative |
| 28885B | Hose, Battery |
| 28897 | Plate, Battery Caution |
| 28898 | Plate, Battery |
| 28899 | Insulator, Battery |

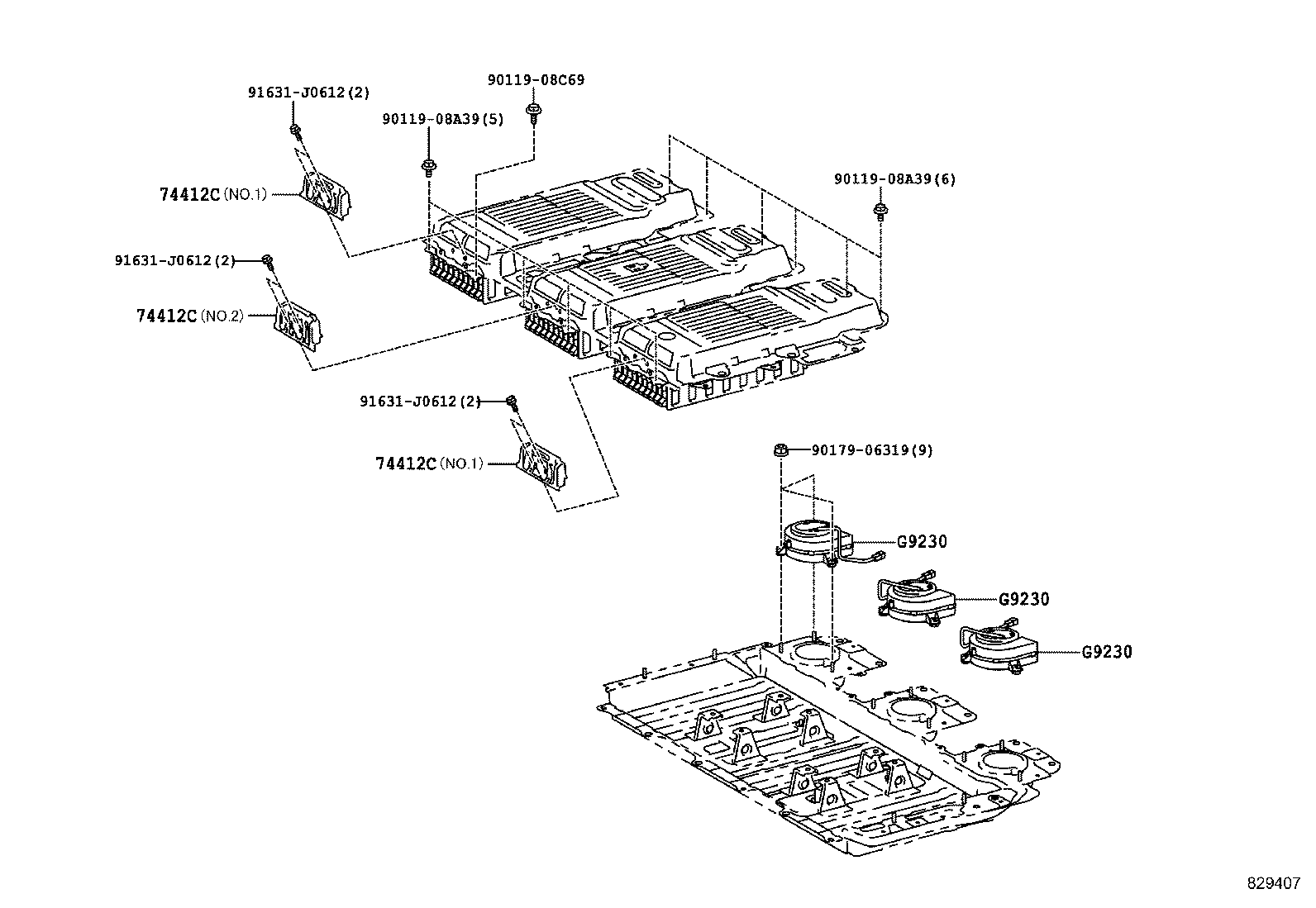

| 74412C | Duct, Battery Carrier |
| 74417A | Bracket, Battery Carrier |
| 74449A | Packing, Battery, NO.2 |
| 74458A | Lid, Battery Cover, NO.1 |
| 82284D | Wire, Earth |
| 82685E | Plate, Service Plug Caution |
| 89892A | Sensor, Battery Voltage |
| G3829A | Fuse, Electric Vehicle |
| G3830A | Plug Assy, Electric Vehicle Battery |
| G3834 | Grip, Service Plug |
| G9230 | Blower Assy, Battery Cooling |
| G9279 | Label, Battery Caution, NO.4 |
| G9282 | Thermistor, Hybrid Battery |
| G9288 | Label, Battery Charging Notice |
| G9295B | Striker, Battery Cover Lock |
| G92T7 | Cover, Hybrid Battery Bus-bar Block, NO.1 |
| G92X1 | Wire, Hybrid Battery Pack, NO.1 |
| G92X2 | Wire, HV Battery Pack, NO.2 |
| G92Y2 | Cable, HV Battery Pack, NO.2 |
| G92Z0 | Block Assy, HV Battery Junction |

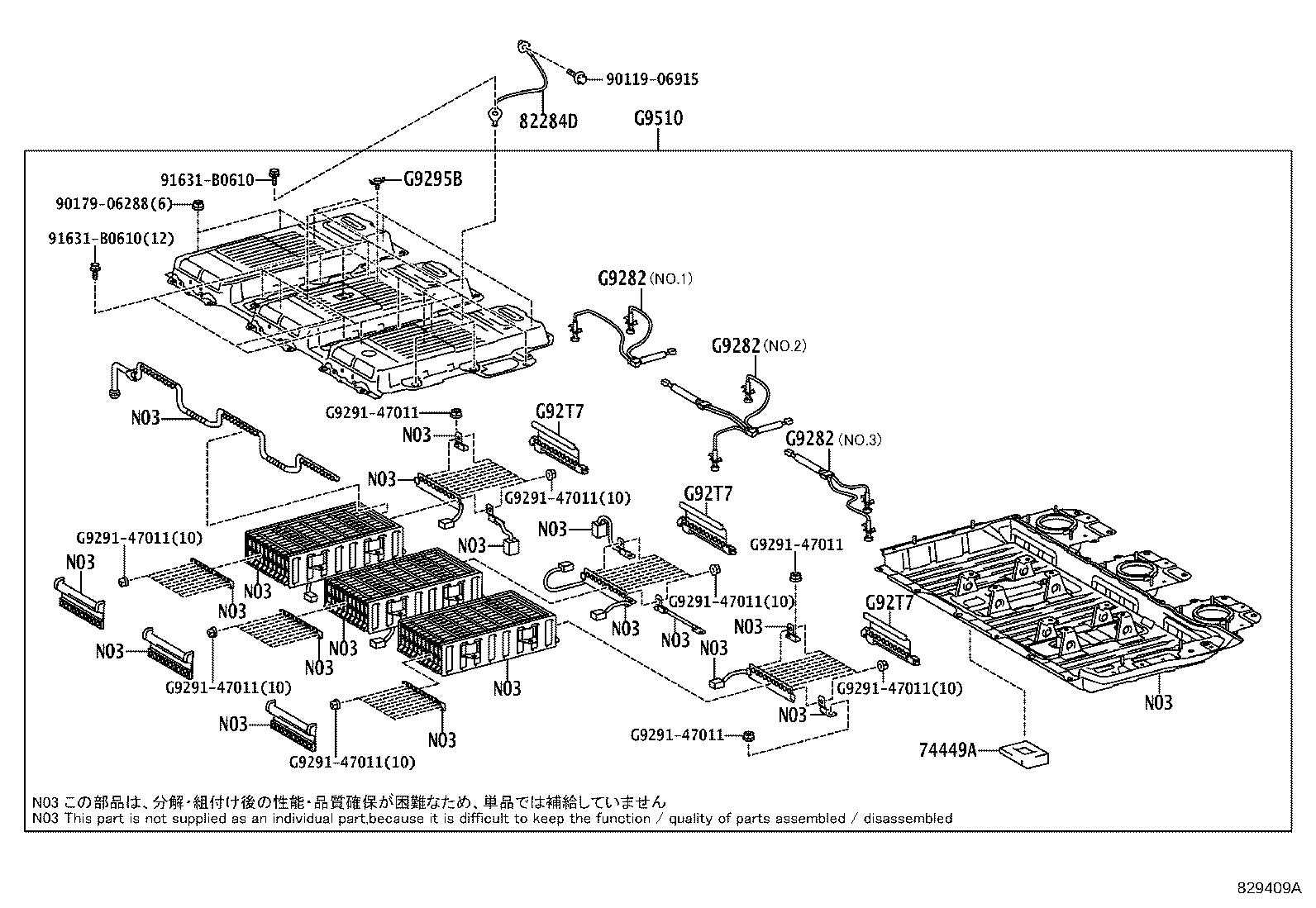

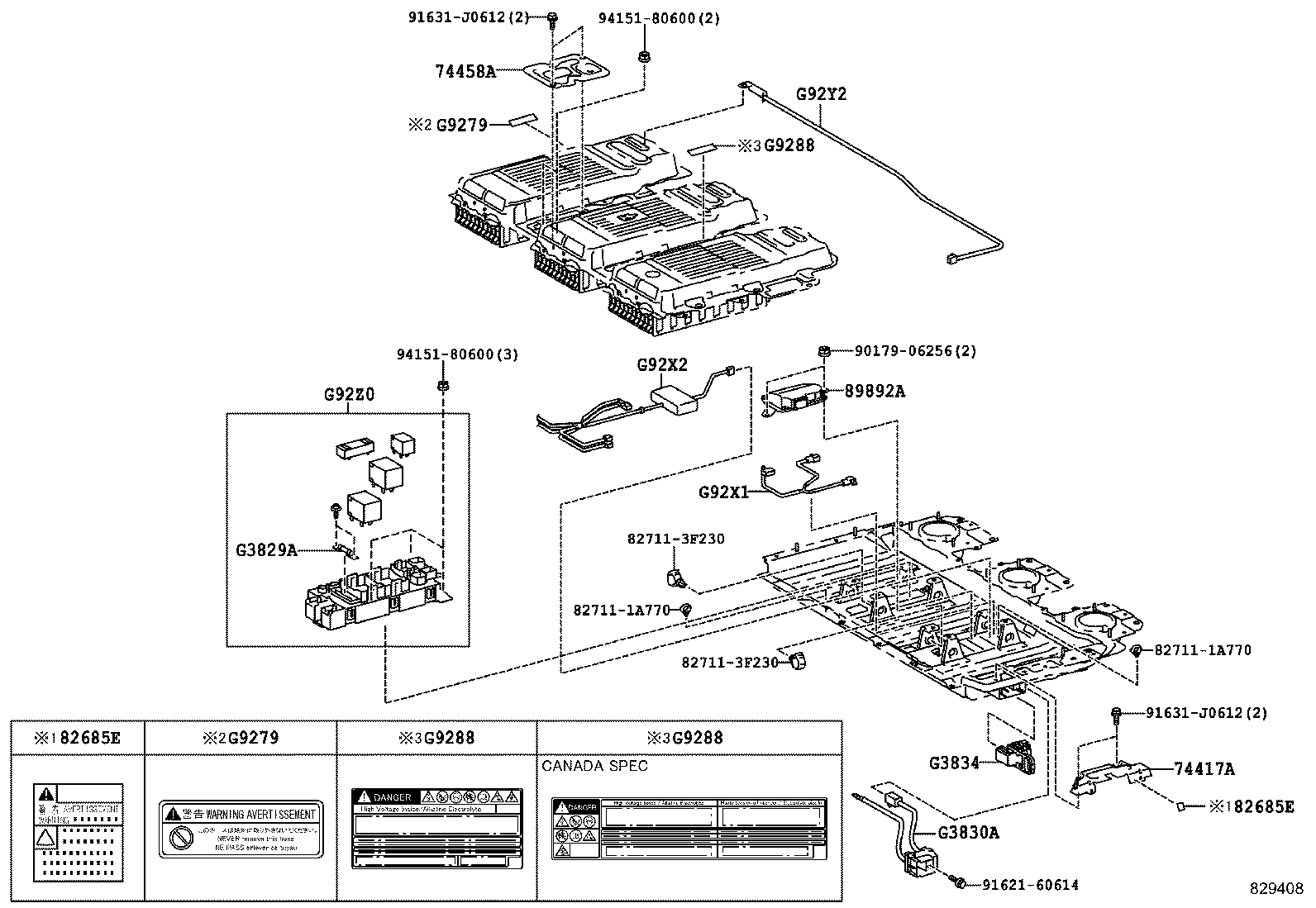

| G9510 | Battery Assy, HV Supply |
