Toyota Lexus RX350/450H(Nap
2009-01 → 2015-10 · chassis GGL1#,GYL1# · catalogue 523420 · United States
Supported model
Data version 2016-03
Electronic Fuel Injection System

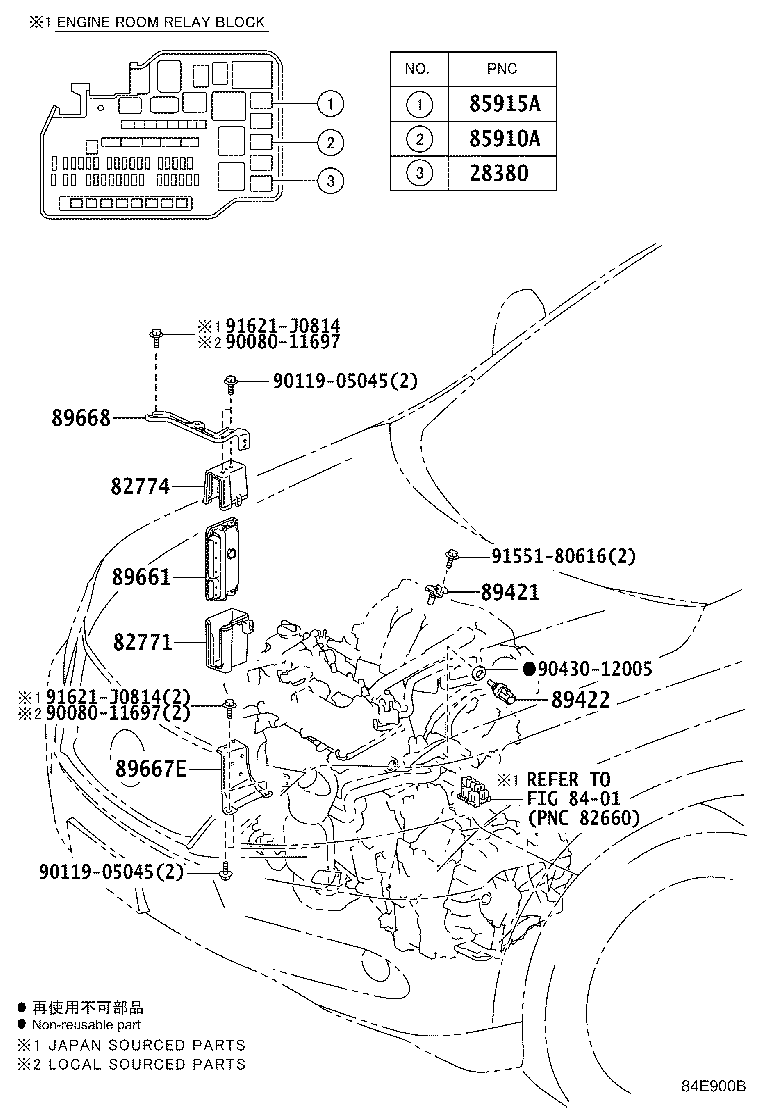

10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 28380 | Relay Assy, Fuel Pump |
| 82771 | Box, Engine Room Ecu |
| 82774 | Cover, Engine Room Ecu |
| 85910A | Relay Assy, Circuit Opening (FOR EFI) |
| 85915A | Relay, Main |
| 89421 | Sensor Assy, Vacuum (FOR E.F.I.) |
| 89422 | Sensor, Water Temperature (FOR E.F.I.) |
| 89661 | Computer, Engine Control |
| 89667E | Bracket, Engine Control Computer, NO.1 |
| 89668 | Bracket, Engine Control Computer, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
