Toyota Lexus RX350/450H(Nap

2009-01 → 2015-10 · chassis GGL1#,GYL1# · catalogue 523420 · United States

Supported model Data version 2016-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

15 part groups · 7 illustrations

Illustrations

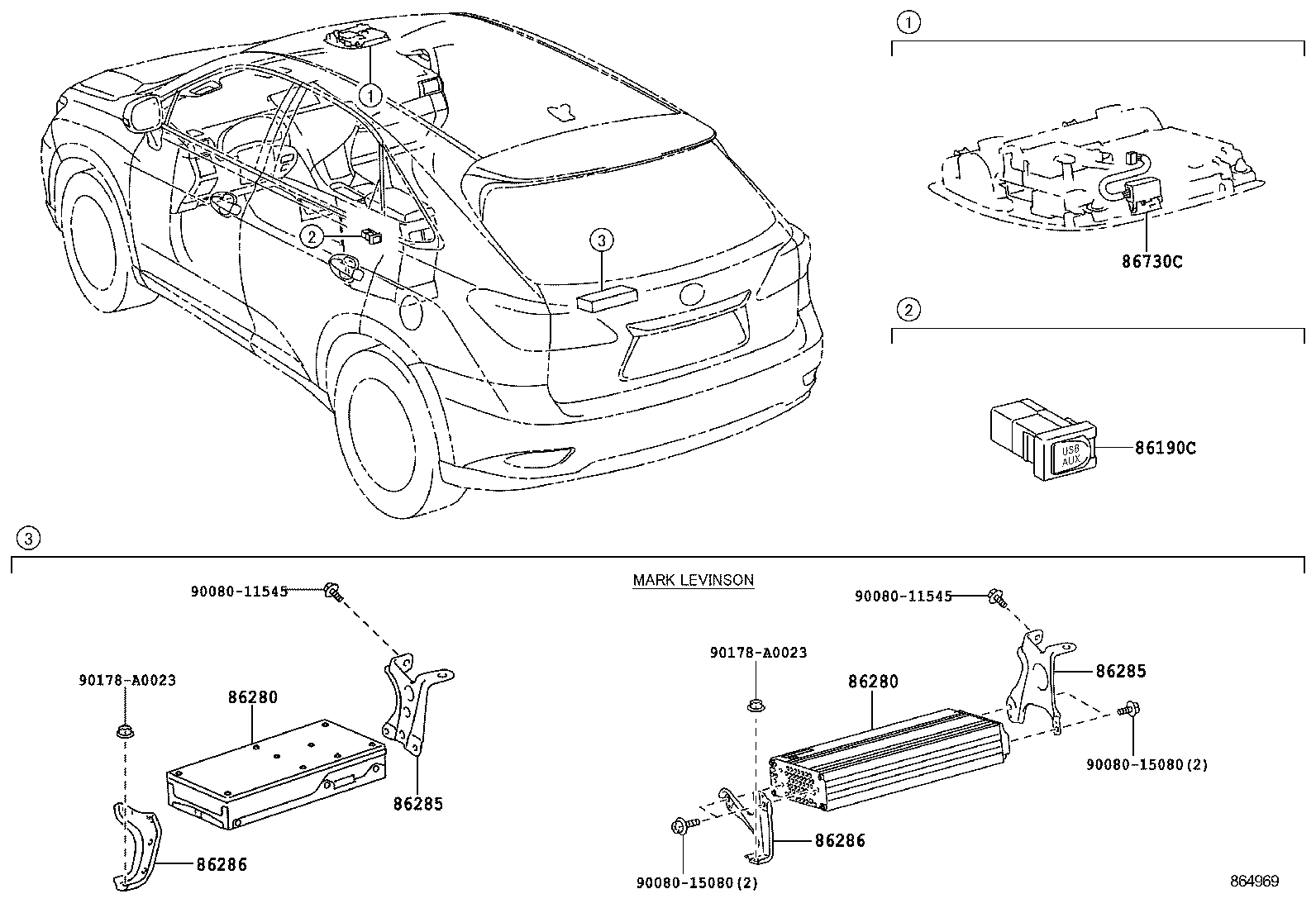

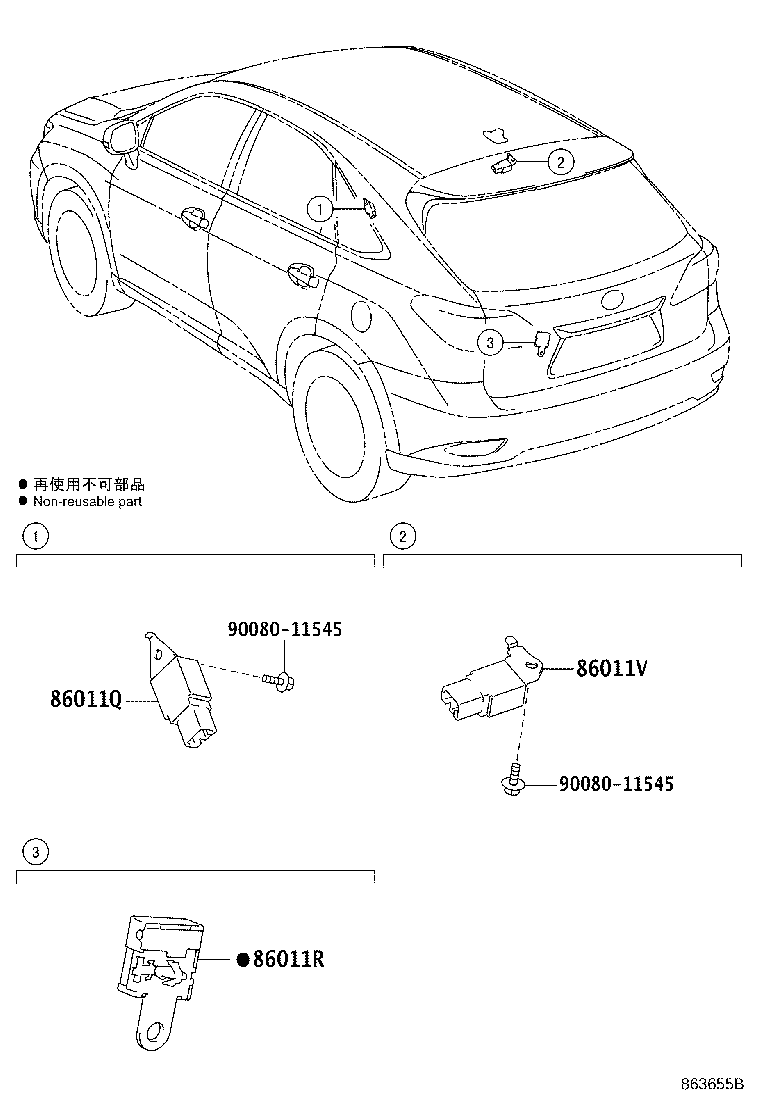

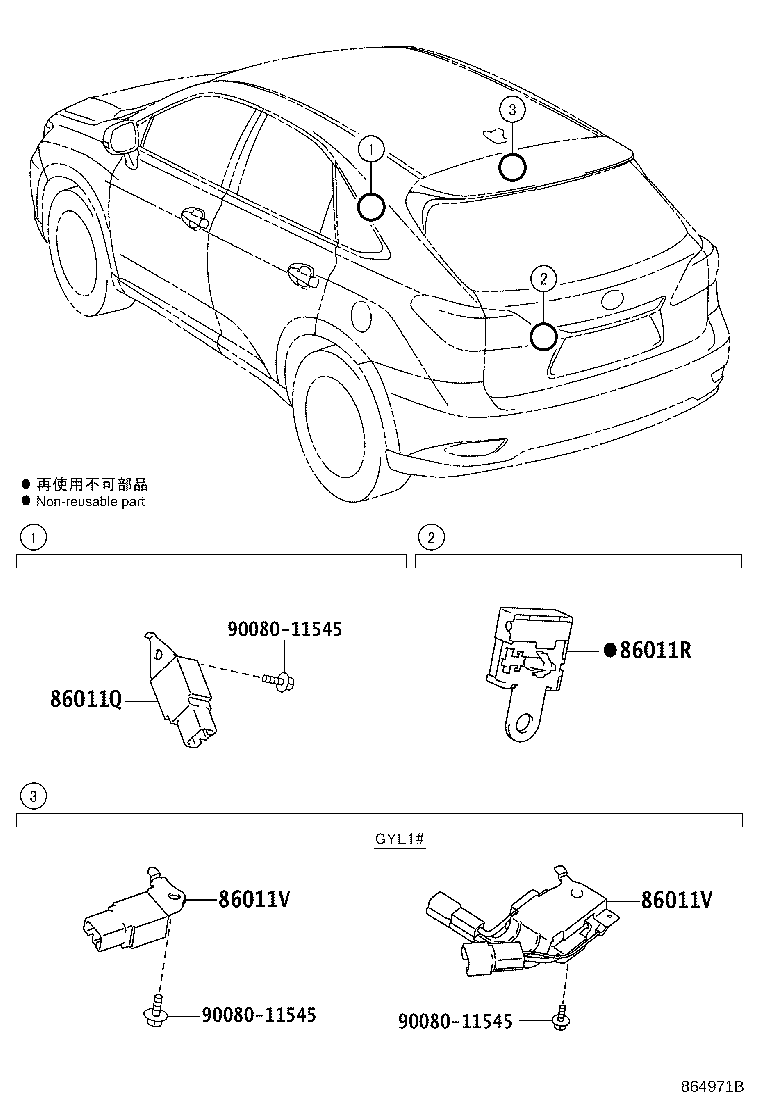

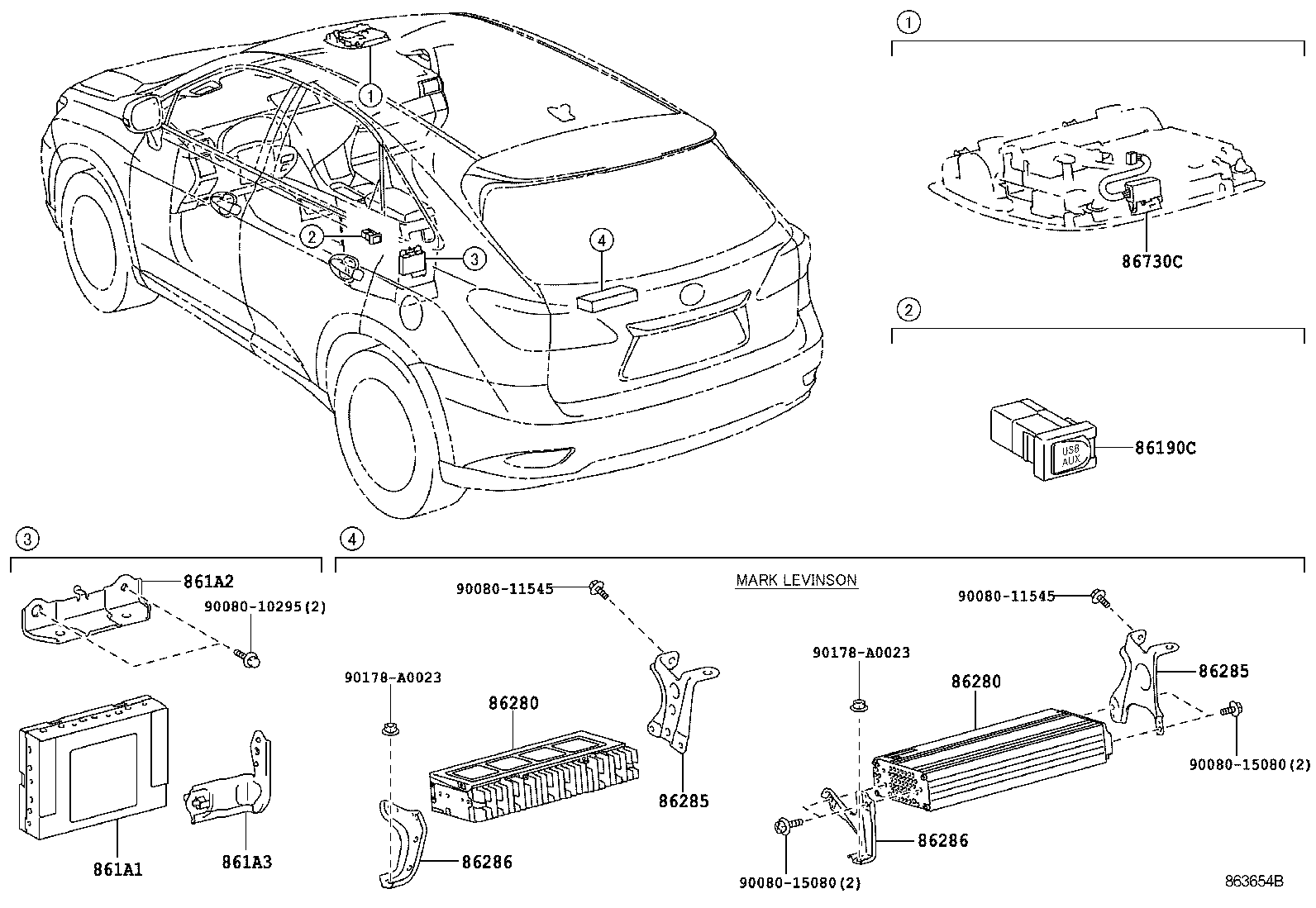

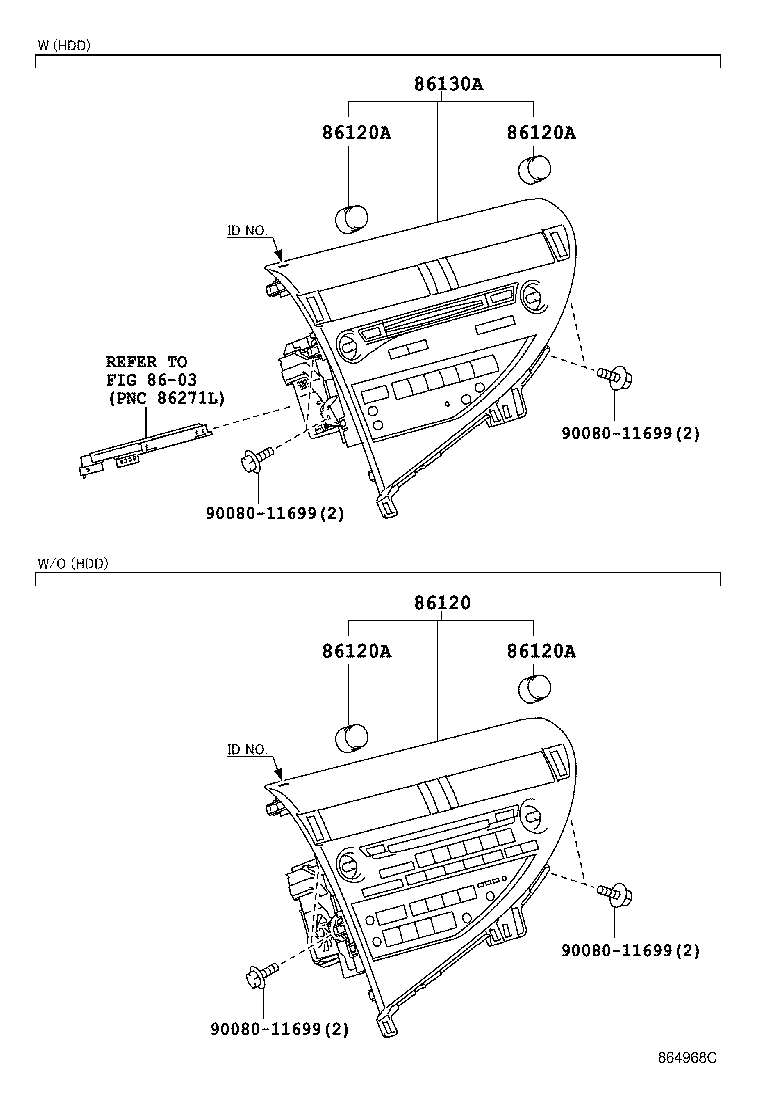

Figure 863652B 863652B 2009-01 → 2012-04 Figure 863654B 863654B 2009-01 → 2012-04 Figure 863655B 863655B 2009-01 → 2012-04 Figure 864968C 864968C 2012-04 → — Figure 864970 864970 2012-04 → — Figure 864969 864969 2012-04 → — Figure 864971B 864971B 2012-04 → —

Part groups

PNCDescription
86011Q Condenser, Radio Setting
86011R Condenser, Radio Setting
86011V Condenser, Radio Setting
86120 Receiver Assy, Radio
86120A Knob, Radio Receiver Switch
86130A Receiver Assy, Multi-media Module
86190C Adapter Assy, Stereo Jack, NO.1
861A1 Computer, Multi-media Interface
861A2 Bracket, Multi-media Interface, NO.1
861A3 Bracket, Multi-media Interface, NO.2
86203 Wire, Radio
86280 Amplifier Assy, Stereo Component
86285 Bracket, Amplifier, NO.1
86286 Bracket, Amplifier, NO.2
86730C Microphone Assy, Telephone
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
