Toyota Lexus RX350/450H(Nap
2009-01 → 2015-10 · chassis GGL1#,GYL1# · catalogue 523420 · United States
Supported model
Data version 2016-03
Camera & Rear Monitor Display
14 part groups · 4 illustrations
Part groups

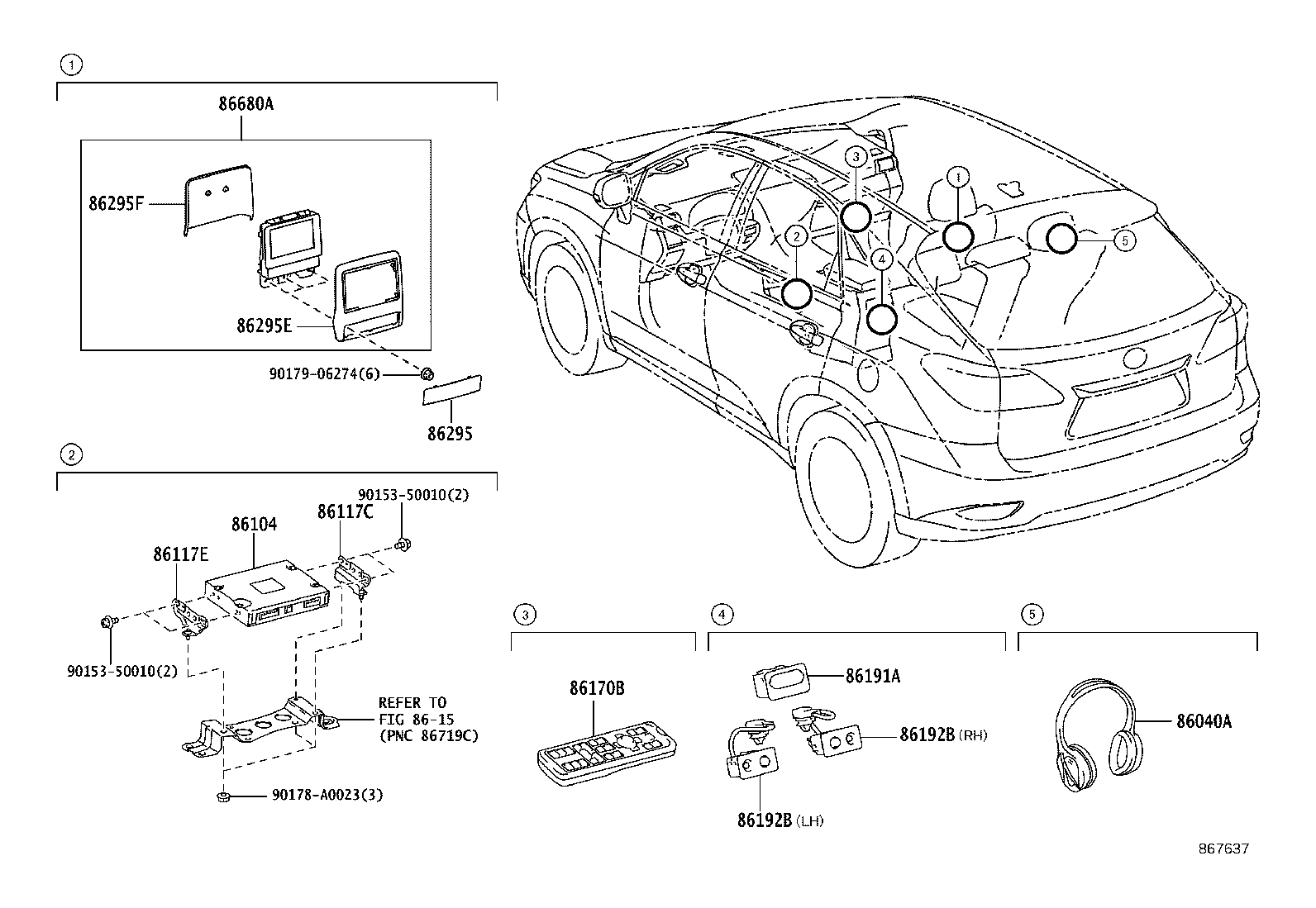

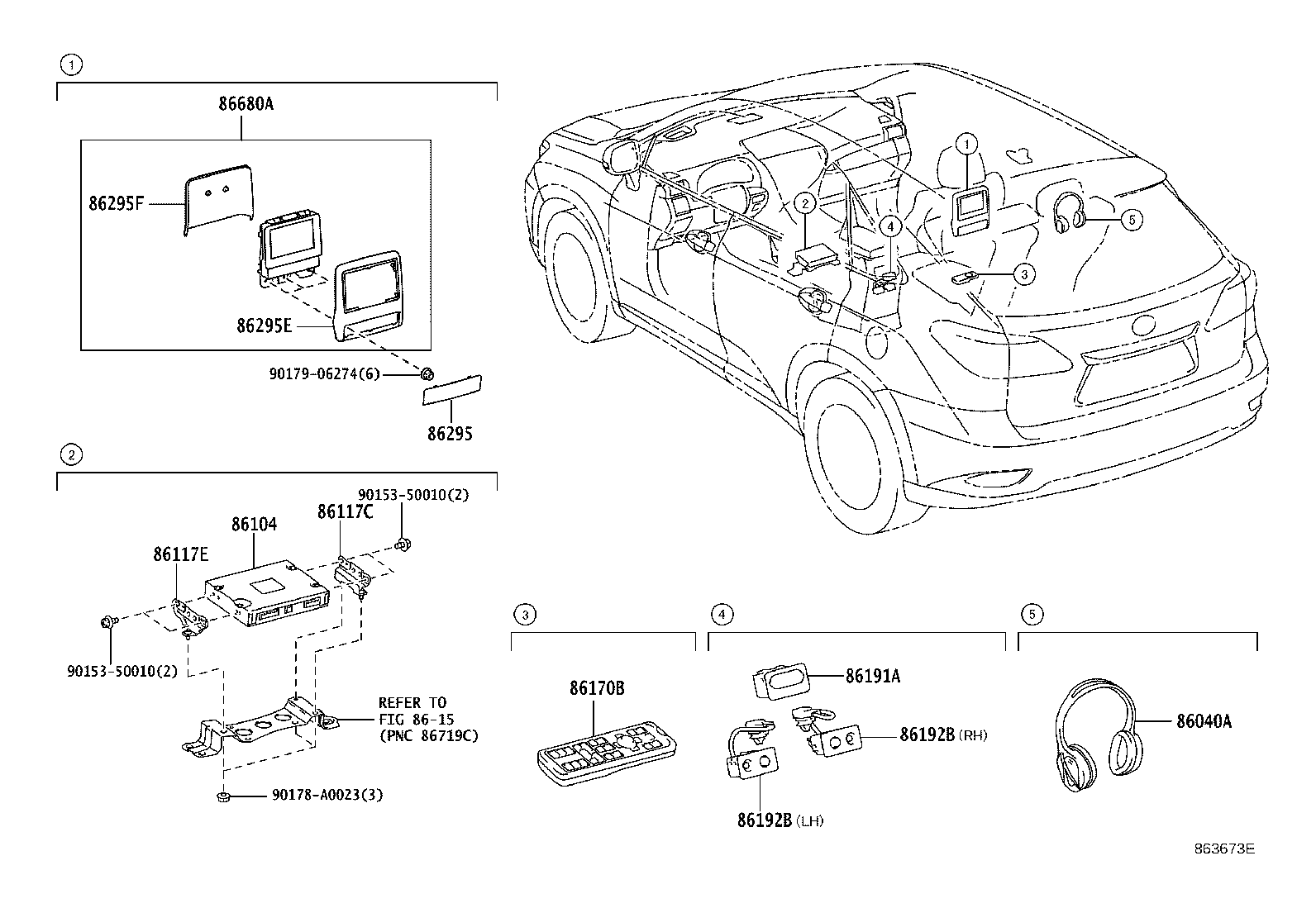

| PNC | Description |
|---|---|
| 86040A | Headphone Assy, Stereo |
| 86104 | Controller Sub-assy, Multi-display |
| 86117C | Bracket, Multi-display Controller, NO.2 |
| 86117E | Bracket, Multi-display Controller, NO.3 |
| 86170B | Switch & Volume Assy, Television |
| 86191A | Terminal, Video(VIDEO ADAPTER) |
| 86192B | Terminal, Headphone |
| 86295 | Base, Television |
| 86295E | Base, Television, NO.2 |
| 86295F | Base, Television, NO.3 |
| 86680A | Display Assy, Television |
| 86790C | Camera Assy, Television, Side |

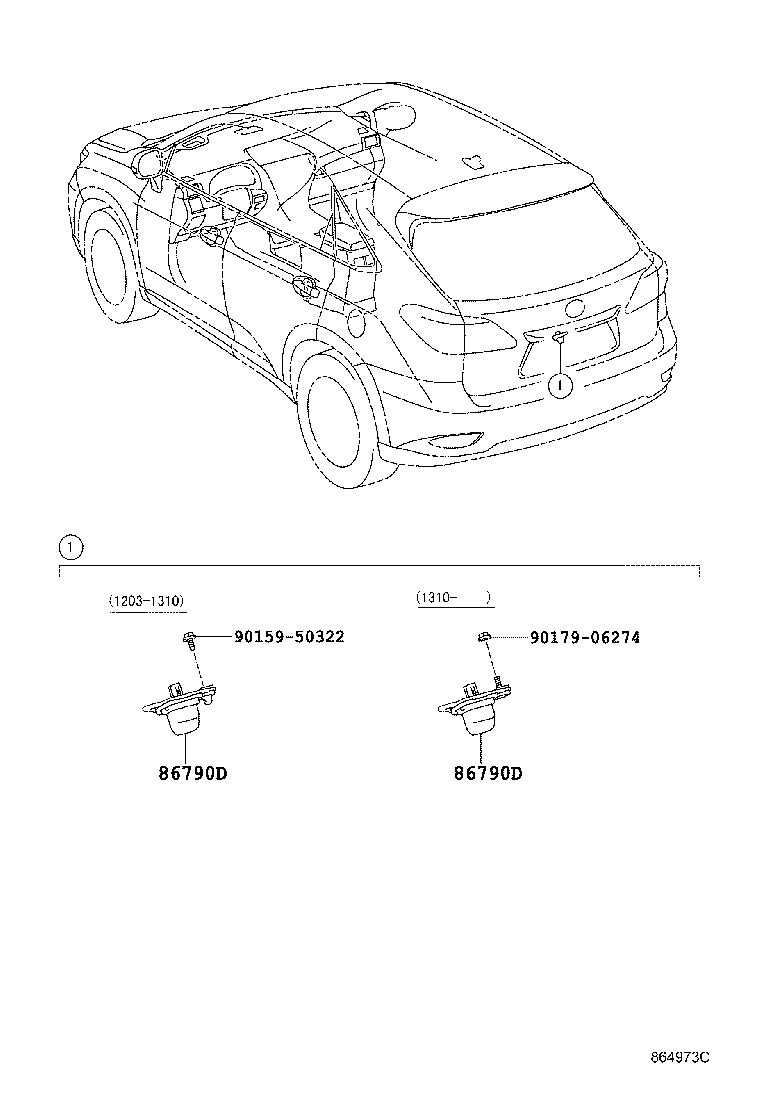

| 86790D | Camera Assy, Television, RR |
| 86792C | Computer, Parking Assist |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
