Toyota Lexus RX350/450H(Nap

2009-01 → 2015-10 · chassis GGL1#,GYL1# · catalogue 523420 · United States

Supported model Data version 2016-03

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

9 part groups · 3 illustrations

Illustrations

Figure 87A515A

87A515A 2009-01 → 2012-04

Figure 87C920A

87C920A 2012-04 → —

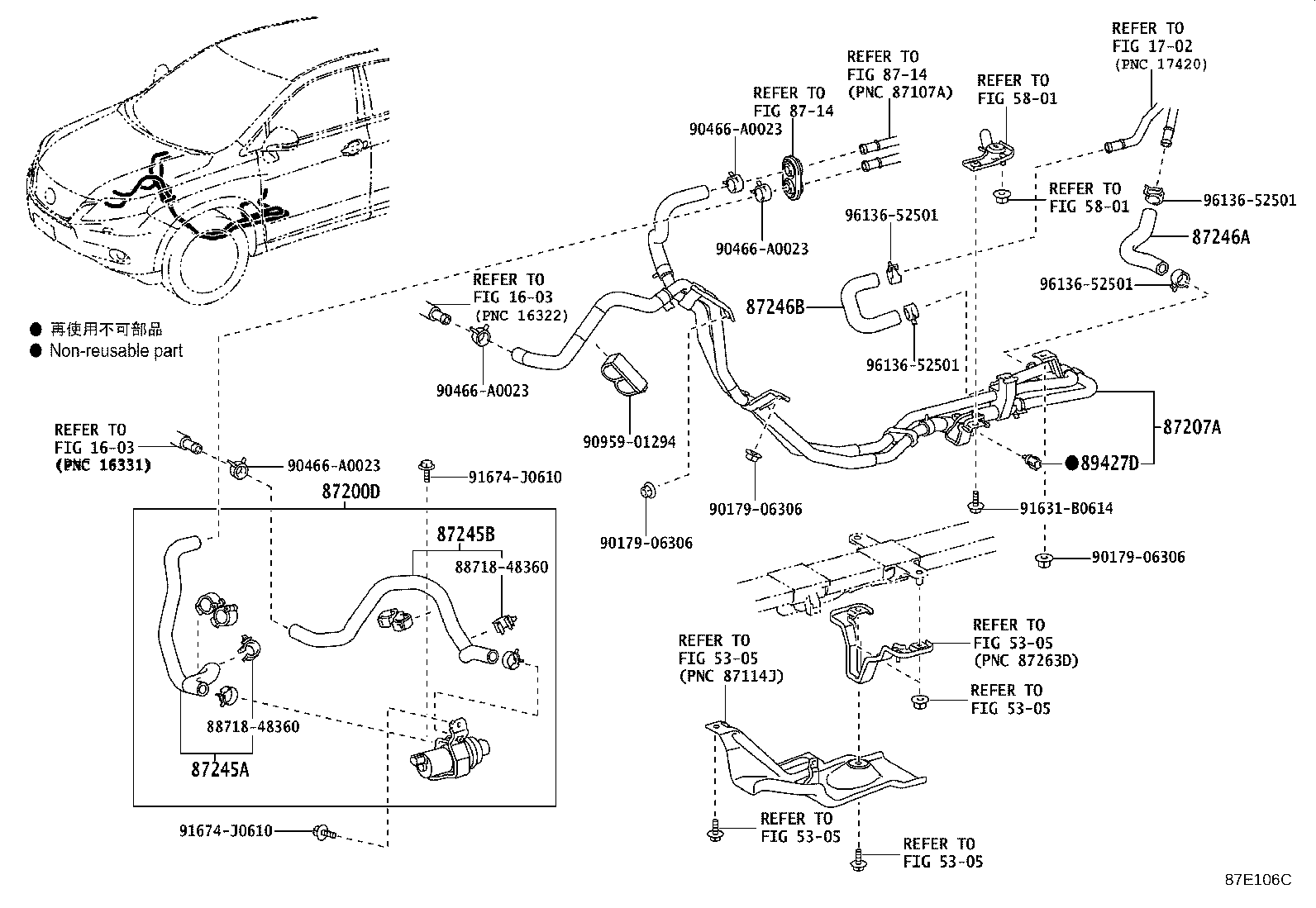

Figure 87E106B

87E106B 2014-03 → —

Part groups

PNC	Description
87200D	Accessory Assy, Heater
87207A	Pipe & Hose Sub-assy, Water A
87245	Hose, Heater Water, Inlet
87245A	Hose, Heater Water, Inlet A
87245B	Hose, Heater Water, Inlet B
87246	Hose, Heater Water, Outlet
87246A	Hose, Heater Water, Outlet A
87246B	Hose, Heater Water, Outlet B
89427D	Switch, Temperature

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
