Toyota Lexus RX350/450H(Nap

2009-01 → 2015-10 · chassis GGL1#,GYL1# · catalogue 523420 · United States

Supported model Data version 2016-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

15 part groups · 3 illustrations

Illustrations

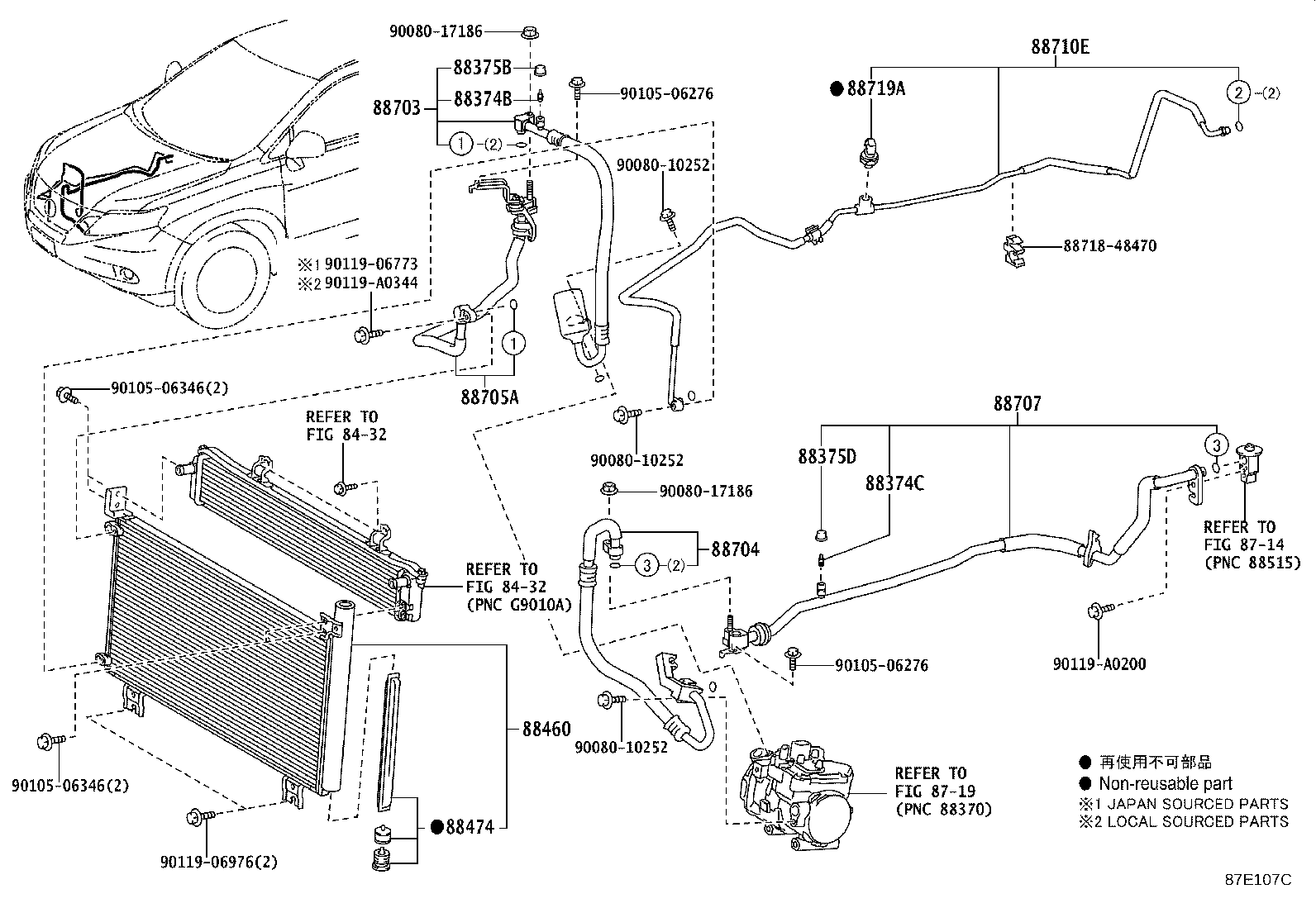

Figure 87A516I 87A516I 2009-01 → — Figure 87E107C 87E107C 2014-03 → — Figure 87E103B 87E103B 2009-01 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88460 Condenser Assy, Cooler
88467 Cushion, Cooler Condenser, NO.1
88467A Cushion, Cooler Condenser, NO.2
88474 Dryer, Cooler
88482B Cap, Cooler NO.1
88703 Hose Sub-assy, Discharge
88704 Hose Sub-assy, Suction
88705A Tube Sub-assy, Discharge
88707 Pipe Sub-assy, Suction
88710E Tube & Accessory Assy, Air Conditioner
88719A Sensor, Air Conditioner Pressure
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
