Toyota Lexus RX450H/350(Nap

2015-10 → present · chassis GGL2#,GYL2# · catalogue 523430 · United States

Supported model Data version 2019-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 8 illustrations

Illustrations

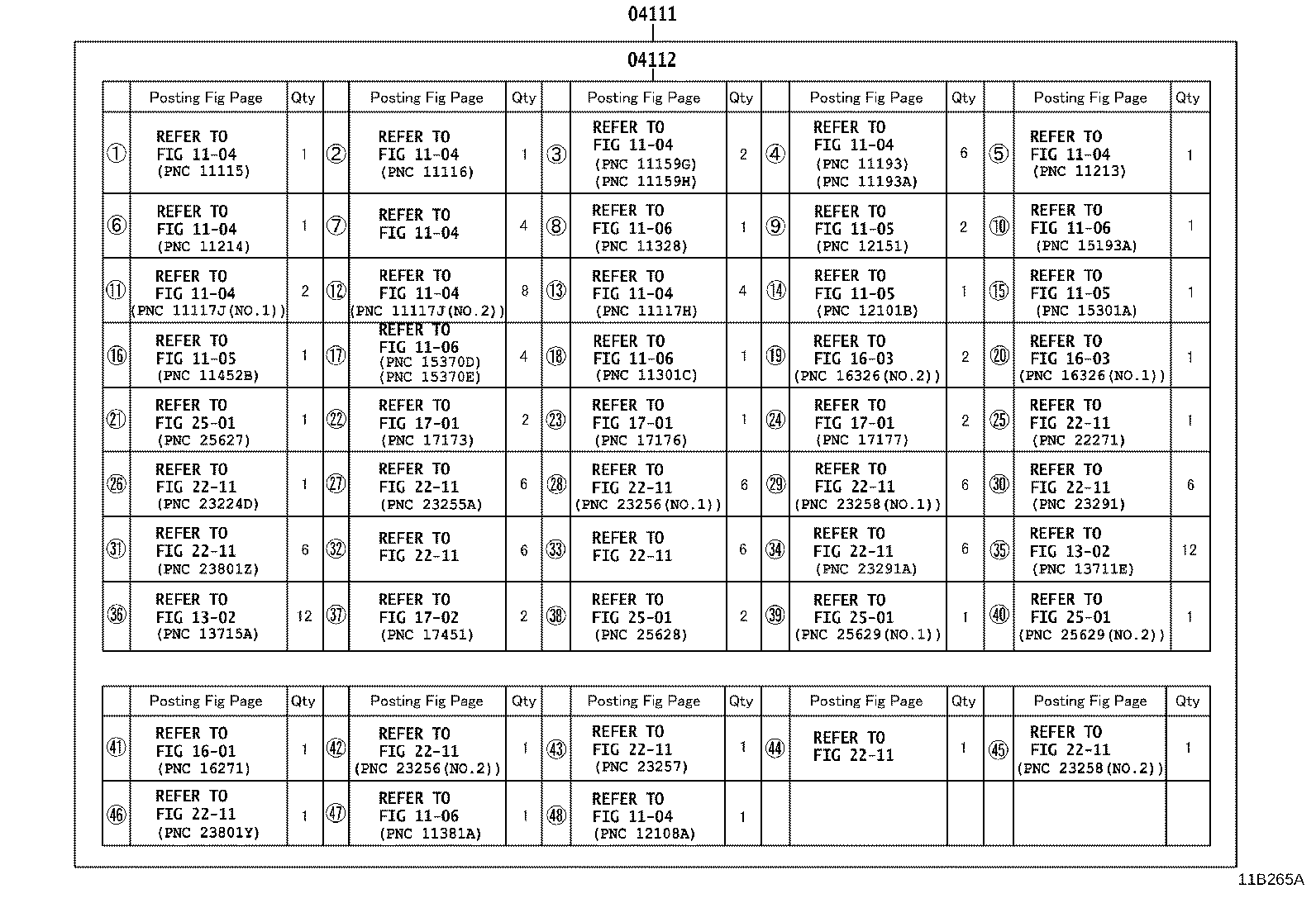

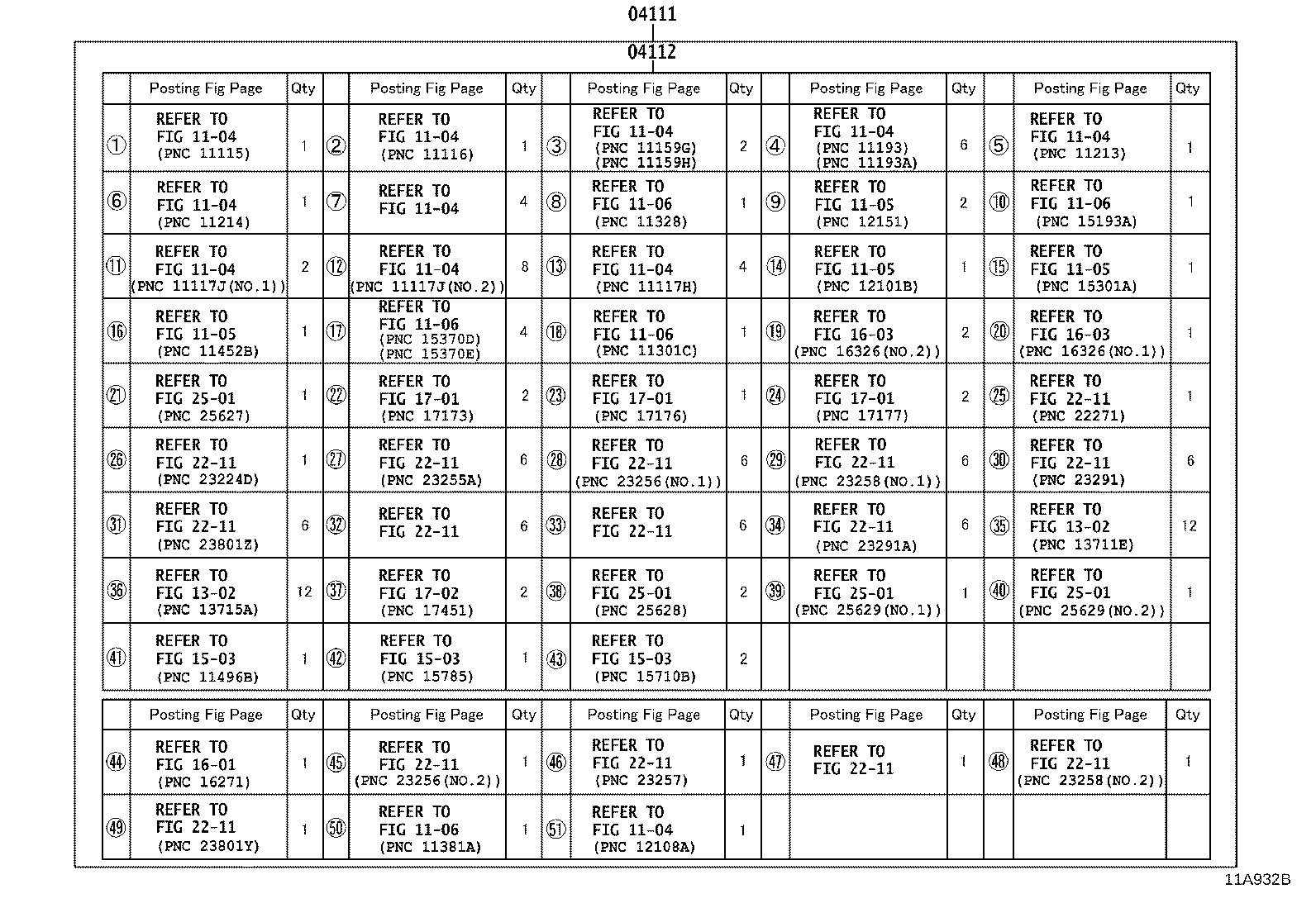

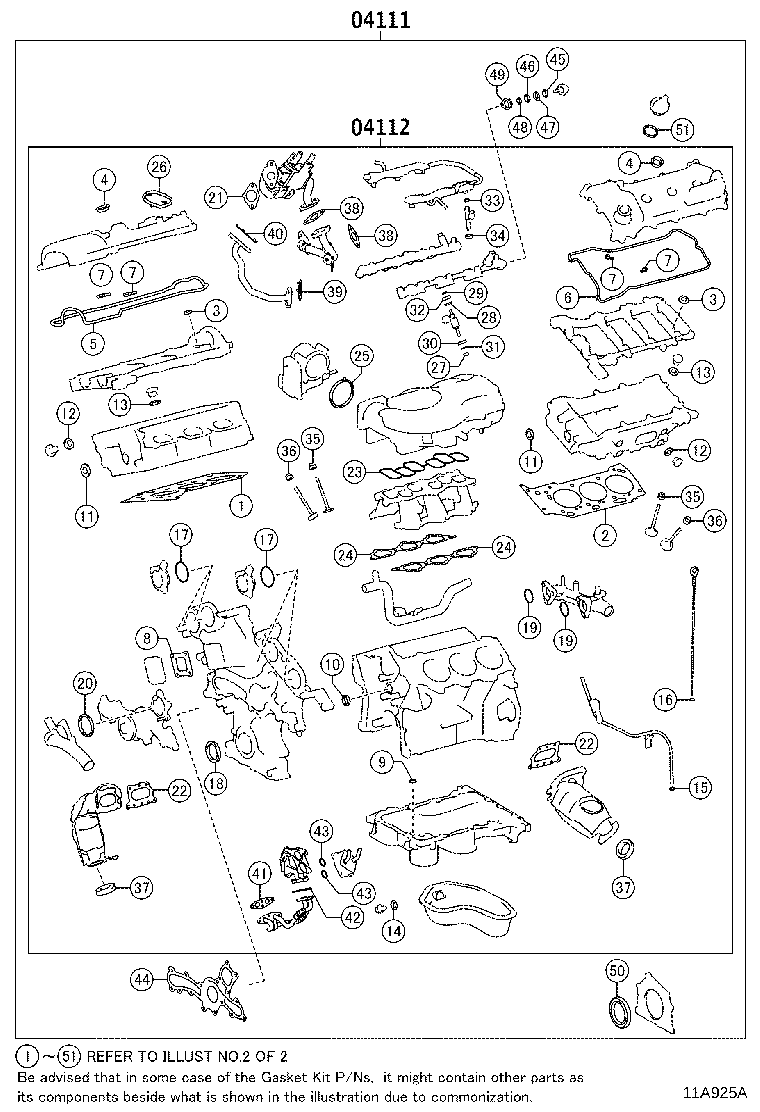

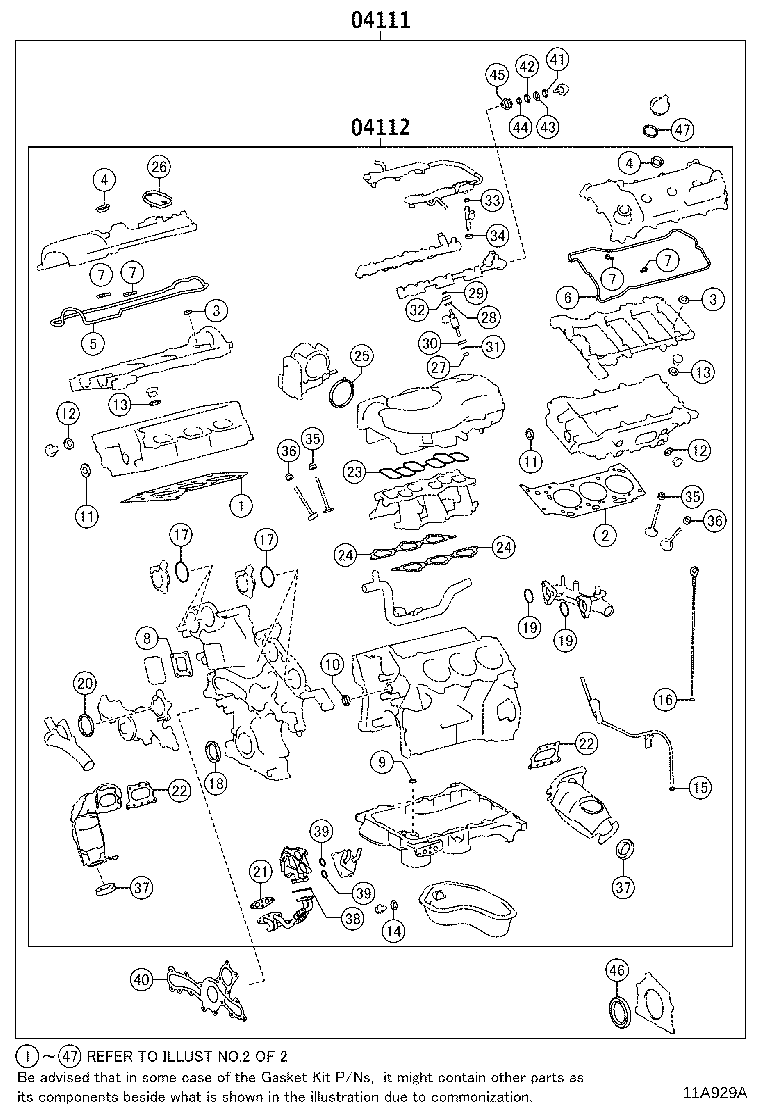

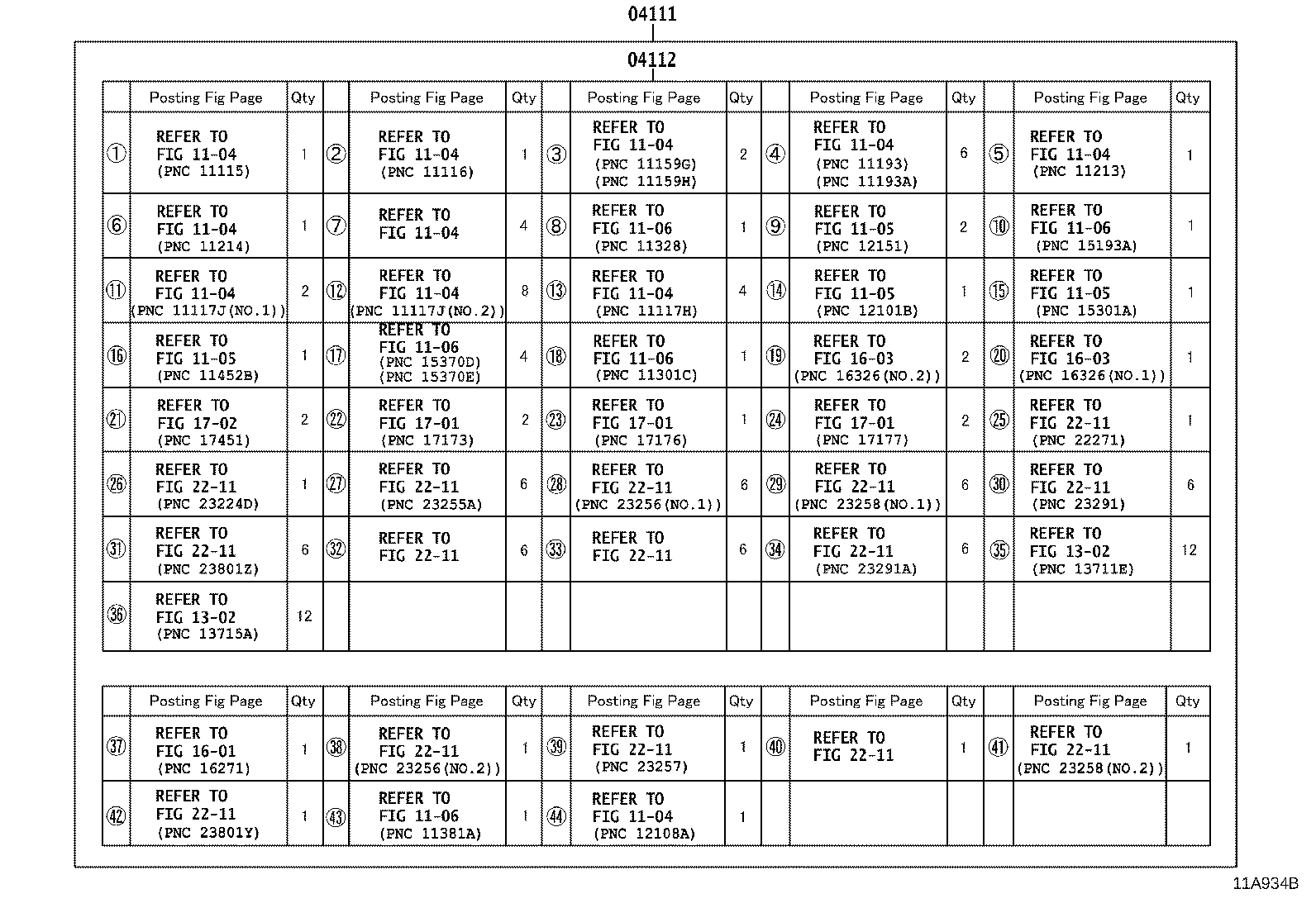

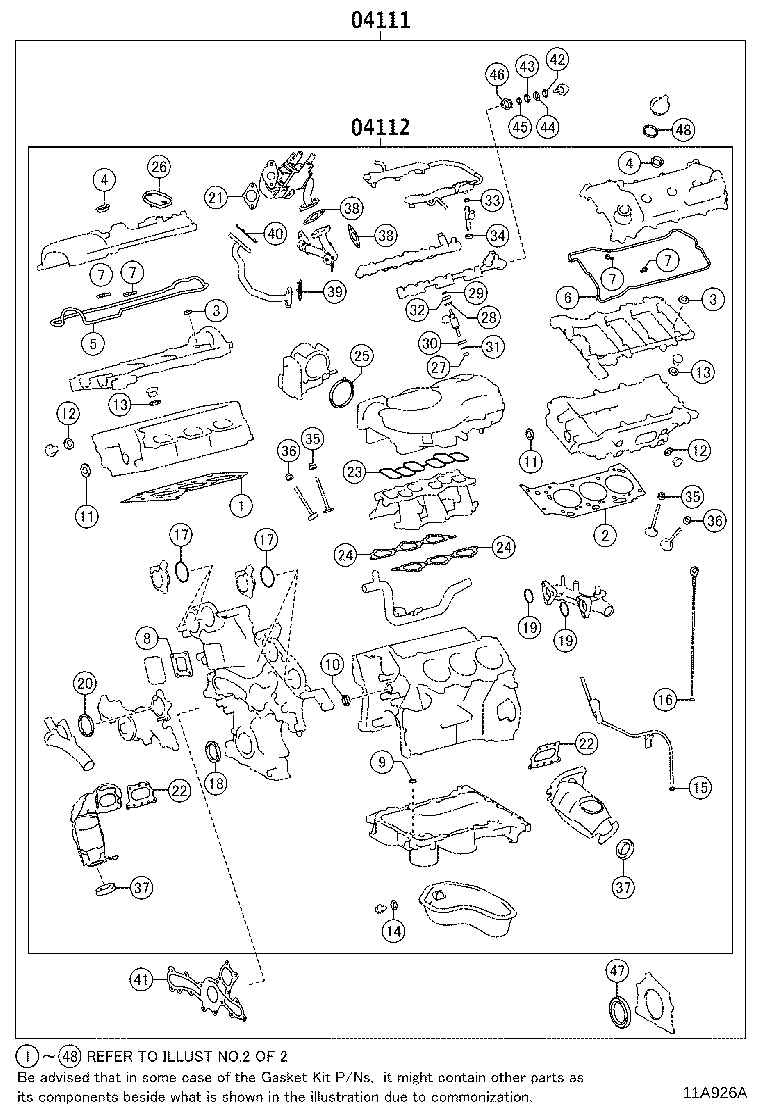

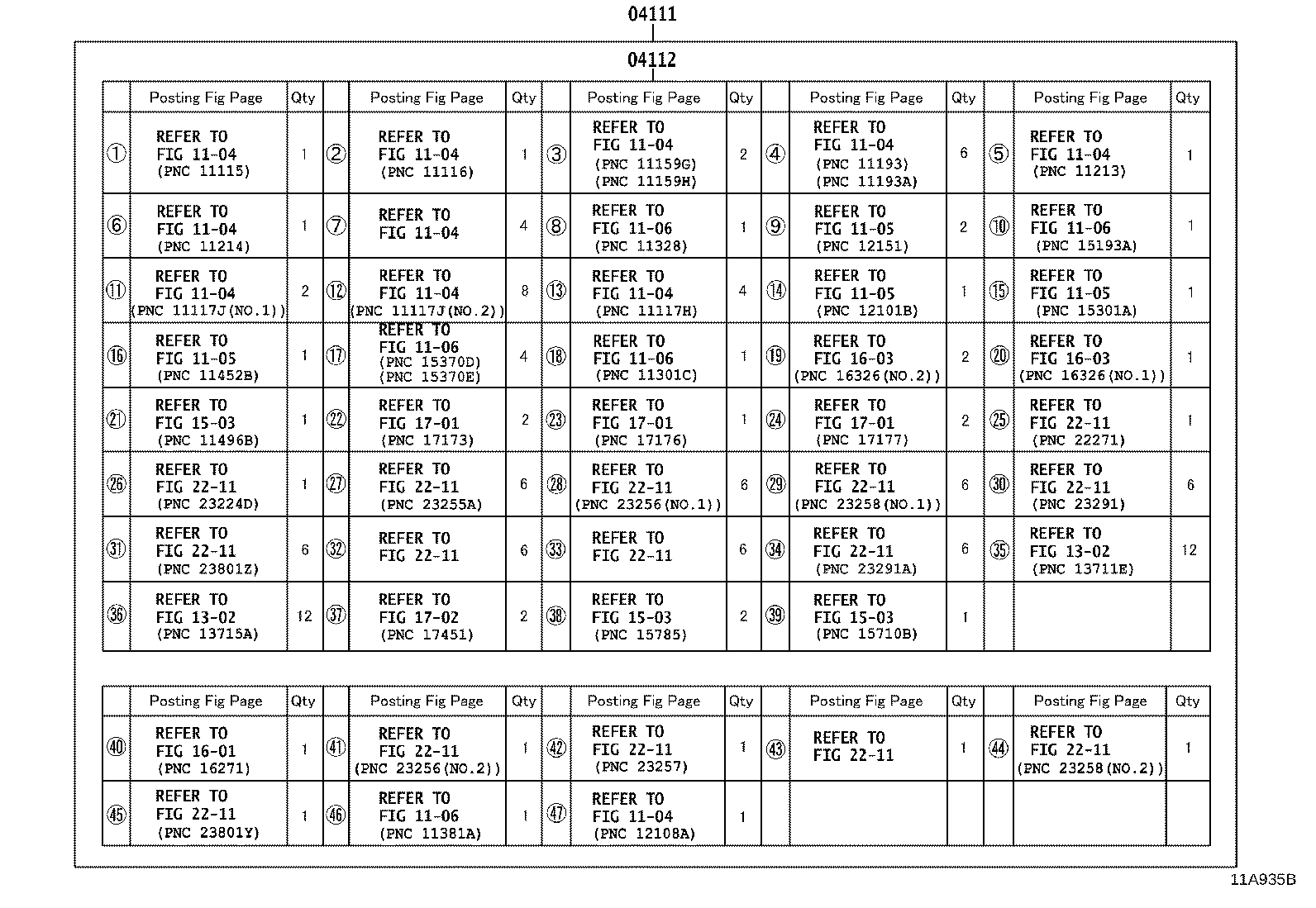

Figure 11A927B 11A927B 2015-10 → — Figure 11A929A 11A929A 2015-10 → — Figure 11A926A 11A926A 2015-10 → — Figure 11A925A 11A925A 2015-10 → — Figure 11A934B 11A934B 2015-10 → — Figure 11A935B 11A935B 2015-10 → — Figure 11B265A 11B265A 2015-10 → — Figure 11A932B 11A932B 2015-10 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
