Toyota Lexus RX450H/350(Nap
2015-10 → present · chassis GGL2#,GYL2# · catalogue 523430 · United States
Supported model
Data version 2019-08

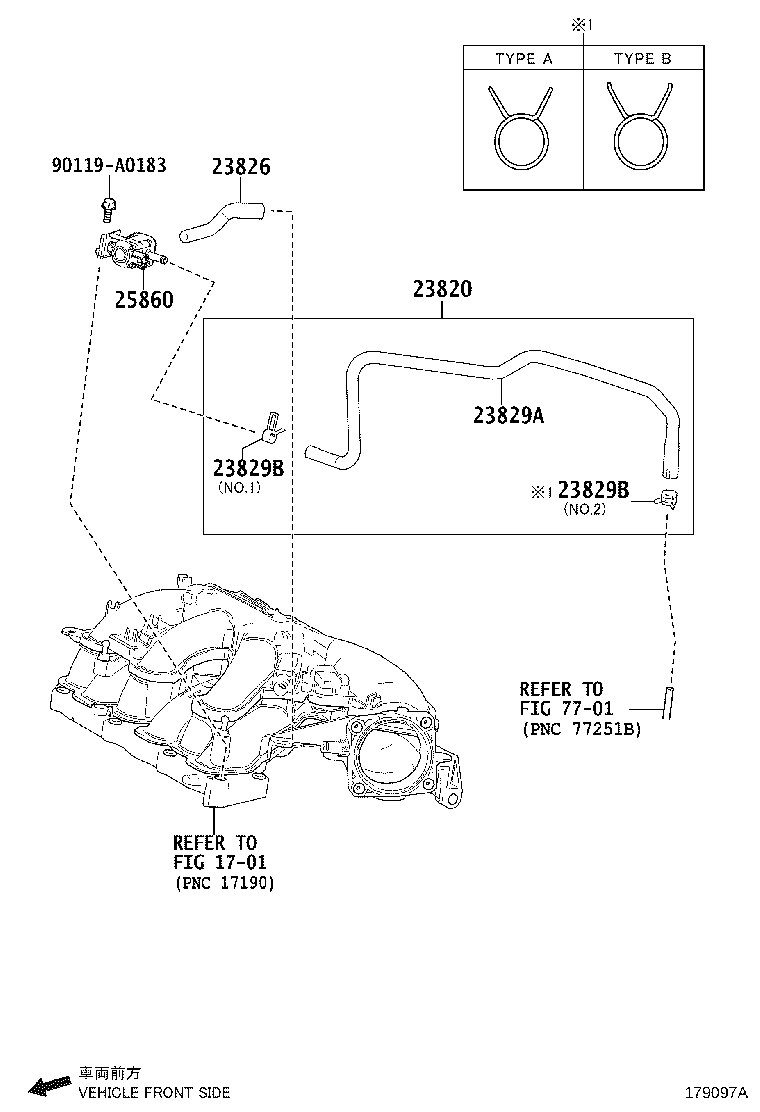

Vacuum Piping
11 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 17308B | Hose Sub-assy, Vacuum |
| 17308C | Clamp(FOR VACUUM HOSE) |
| 17361M | Tube, Air |
| 17362A | Tube, Air, NO.2 |
| 23820 | Hose Assy, Fuel Vapor Feed |
| 23826 | Hose, Fuel Vapor Feed, NO.1 |
| 23829A | Hose, Fuel Vapor Feed |
| 23829B | Clip(FOR FUEL VAPOR FEED HOSE) |
| 25860 | Valve Assy, Vacuum Switching, NO.1 |
| 25860A | Valve, Vacuum Switching, NO.1 |
| 25860D | Valve Assy, Vacuum Switching, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
