Shift Lever & Retainer

11 part groups · 2 illustrations

Illustrations

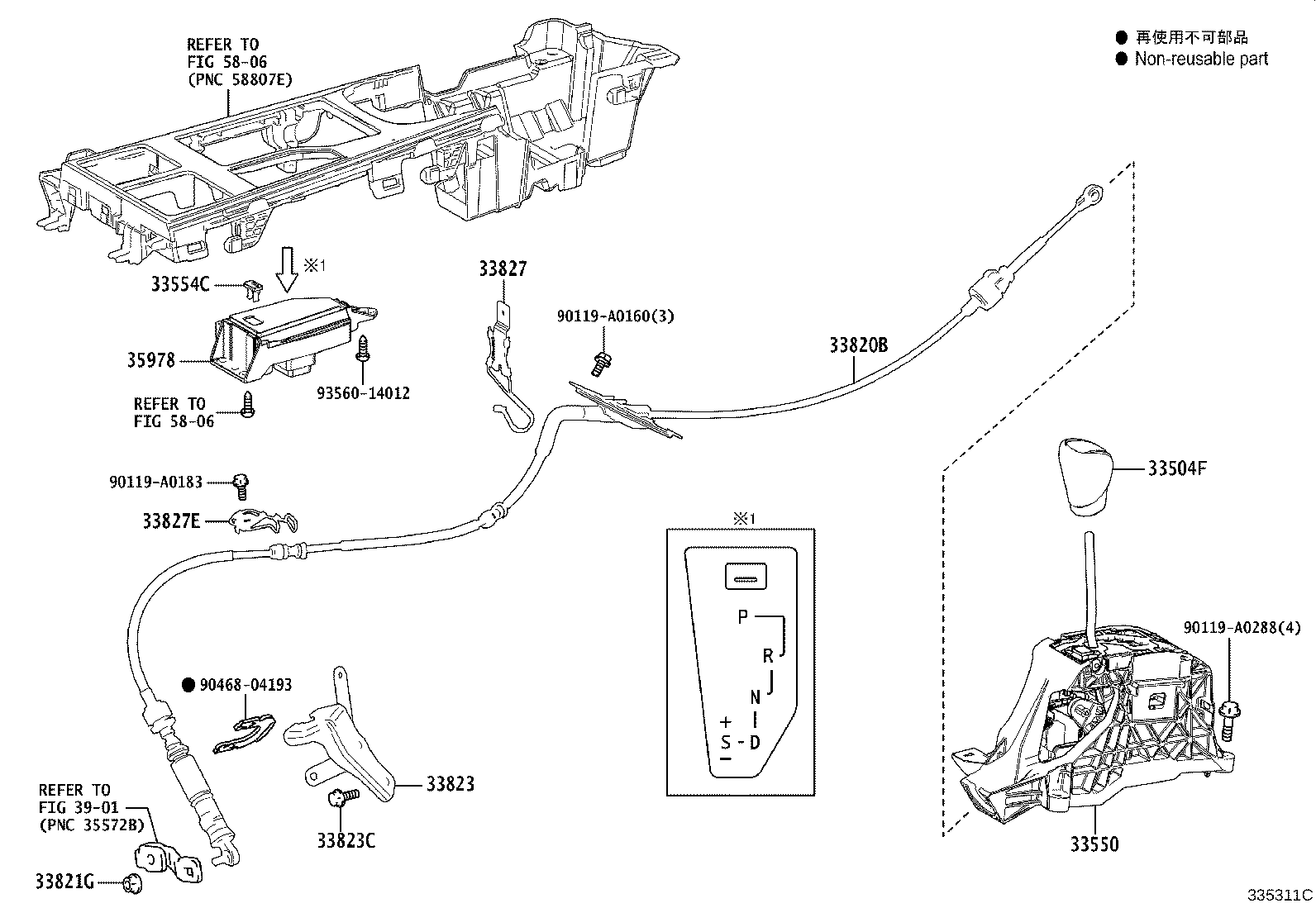

Figure 335310C 335310C 2015-10 → — Figure 335311C 335311C 2015-10 → —

Part groups

PNCDescription
33504F Knob Sub-assy, Shift Lever
33550 Floor Shift Assy, Transmission
33554C Cover, Shift Lock Release Button
33820B Cable Assy, Transmission Control
33821G Nut (FOR TRANSMISSION CONTROL CABLE)
33823 Bracket, Transmission Control Cable, NO.1
33823C Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET)
33826A Bracket, Transmission Control Cable, NO.2
33827 Bracket, Transmission Control Cable, NO.3
33827E Bracket, Transmission Control Cable, NO.2
35978 Indicator, Shift Position
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
