Oil Cooler & Tube (ATM)

14 part groups · 6 illustrations

Illustrations

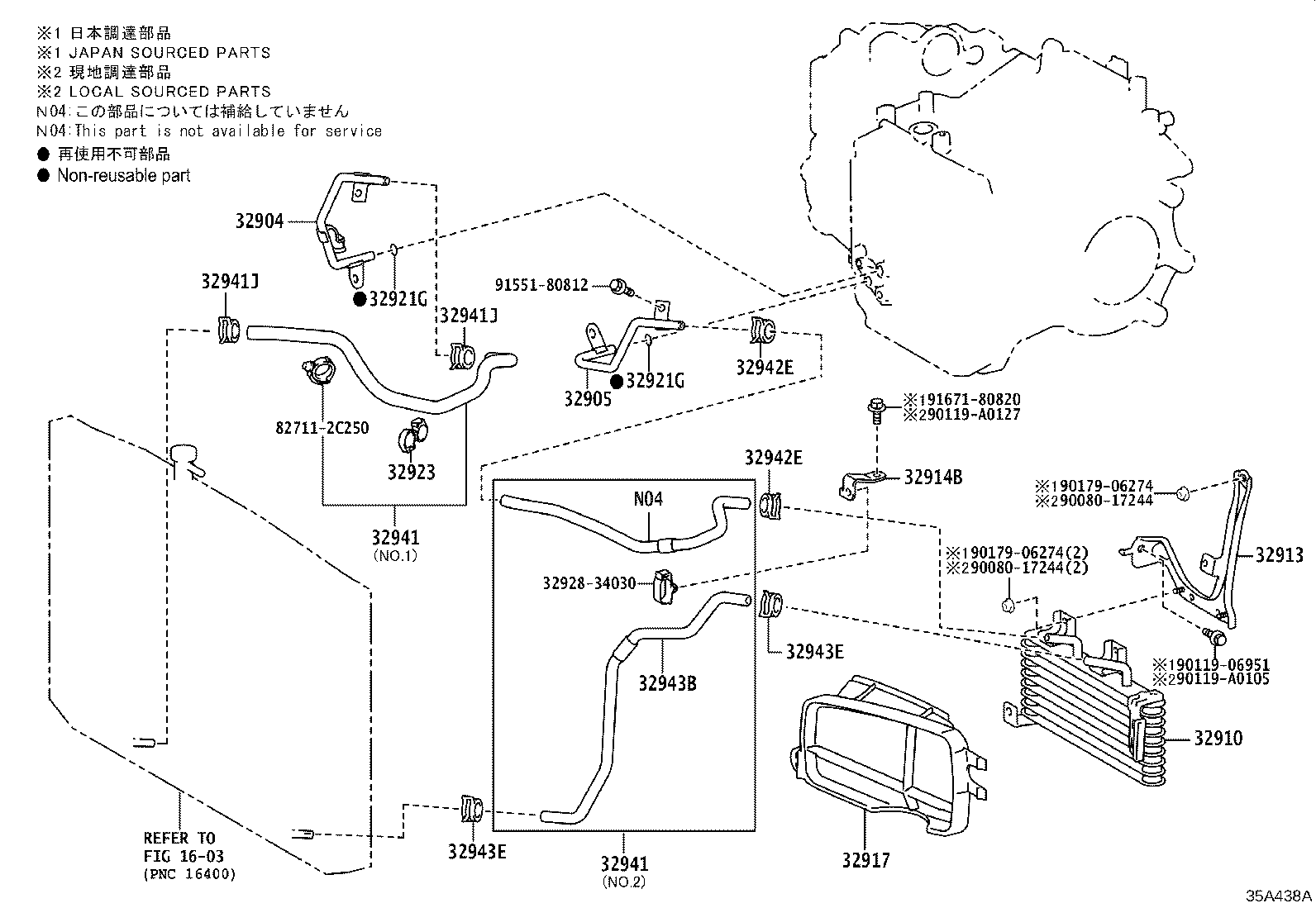

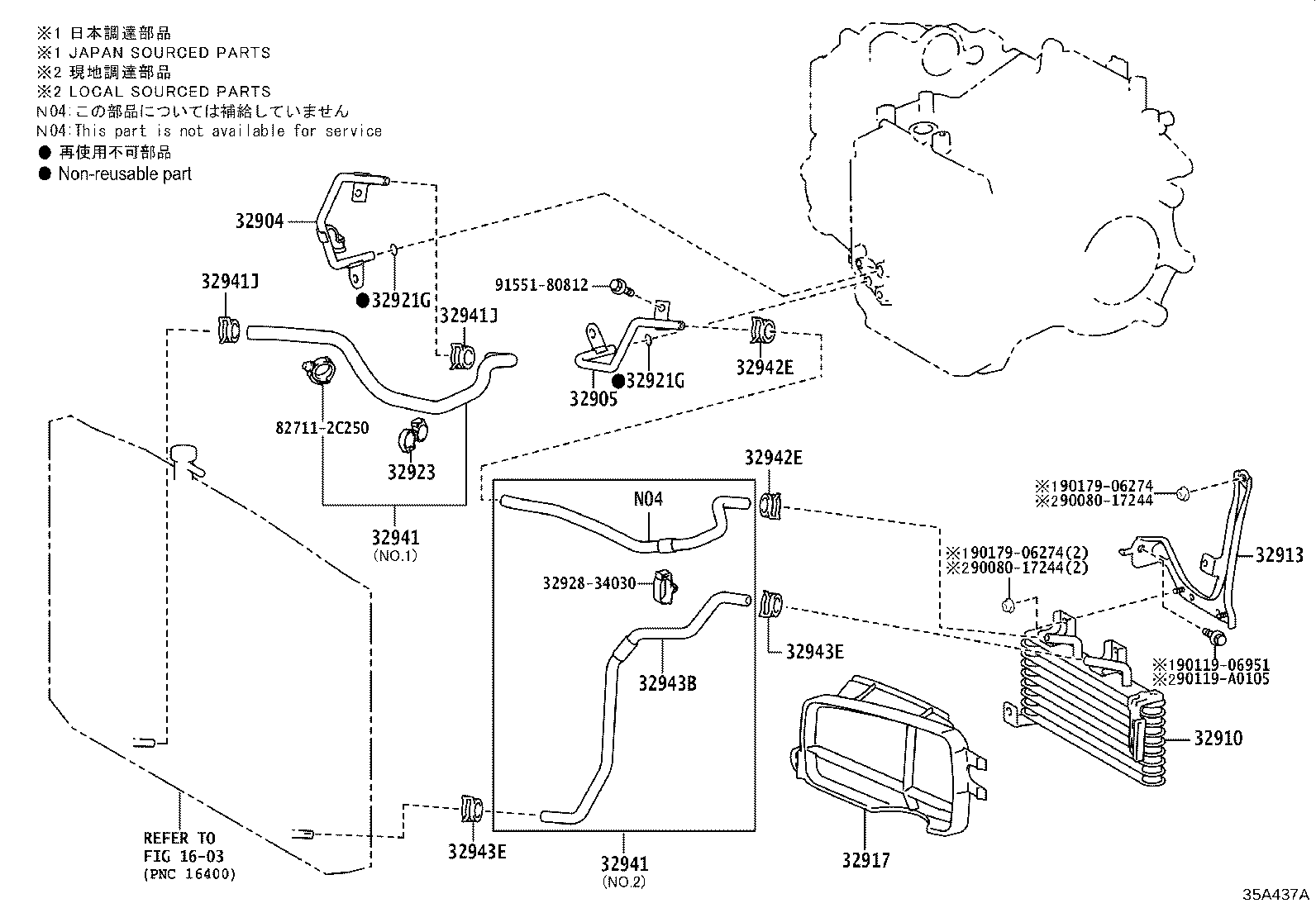

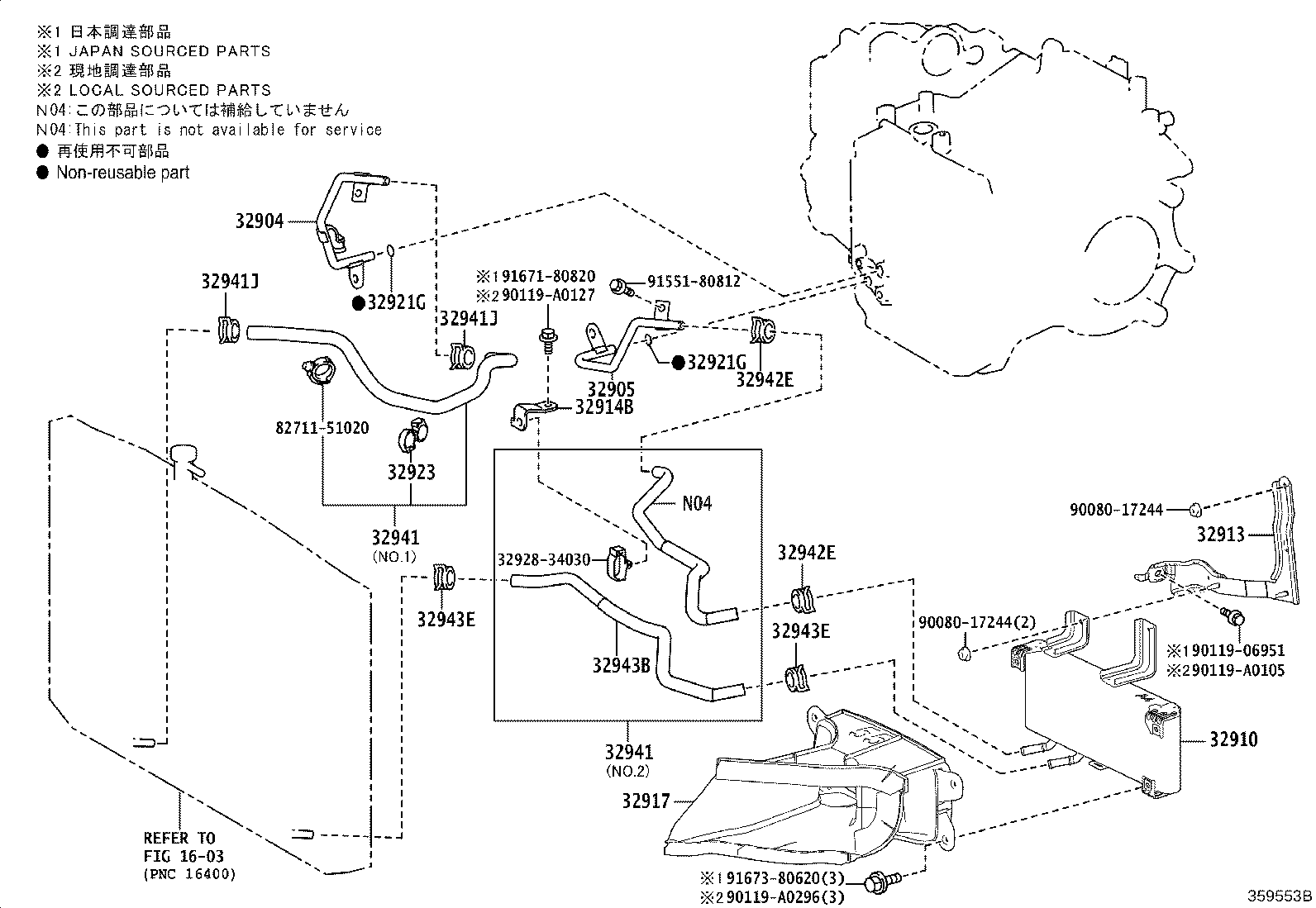

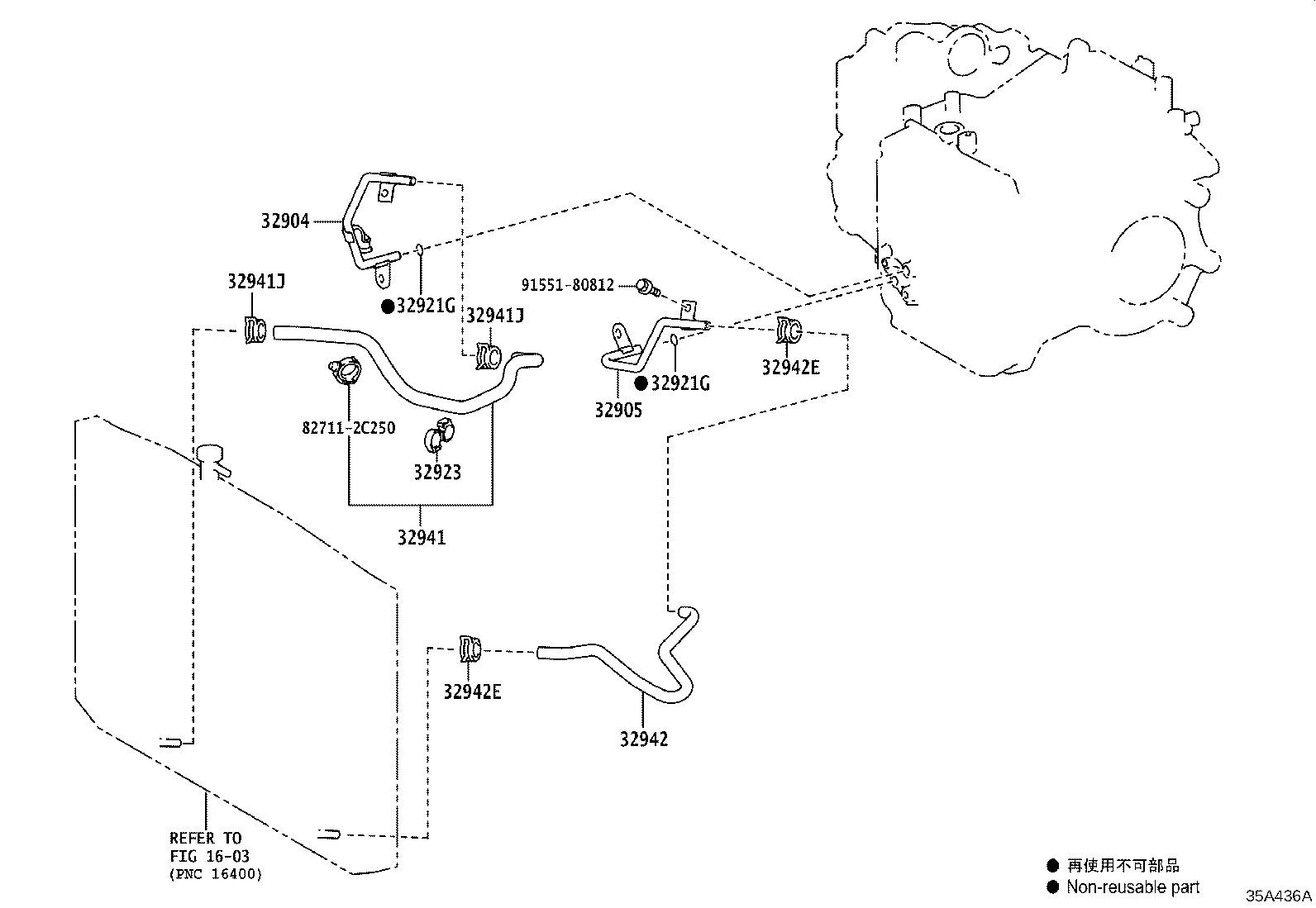

Figure 359551C 359551C 2015-10 → 2019-09 Figure 35A437A 35A437A 2019-09 → — Figure 359552B 359552B 2015-10 → 2019-09 Figure 35A436A 35A436A 2019-09 → — Figure 359553B 359553B 2015-10 → 2019-09 Figure 35A438A 35A438A 2019-09 → —

Part groups

PNCDescription
32904 Tube Sub-assy, Oil Cooler Inlet, NO.1
32905 Tube Sub-assy, Oil Cooler Outlet, NO.1
32910 Cooler Assy, Oil
32913 Bracket, Oil Cooler
32914B Stay, Transmission Oil Cooler
32917 Duct, Transmission Oil Cooler Air
32921G Ring, O(FOR OIL COOLER TUBE UNION)
32923 Clamp, Automatic Transmission Oil Cooler Tube
32941 Hose, Oil Cooler Inlet, NO.1
32941J Clip, NO.1(FOR OIL COOLER HOSE)
32942 Hose, Oil Cooler Outlet, NO.1
32942E Clip, NO.2(FOR OIL COOLER HOSE)
32943B Hose, Transmission Oil Cooler
32943E Clip, NO.3(FOR OIL COOLER HOSE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
