Toyota Lexus RX450H/350(Nap

2015-10 → present · chassis GGL2#,GYL2# · catalogue 523430 · United States

Supported model Data version 2019-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

13 part groups · 5 illustrations

Illustrations

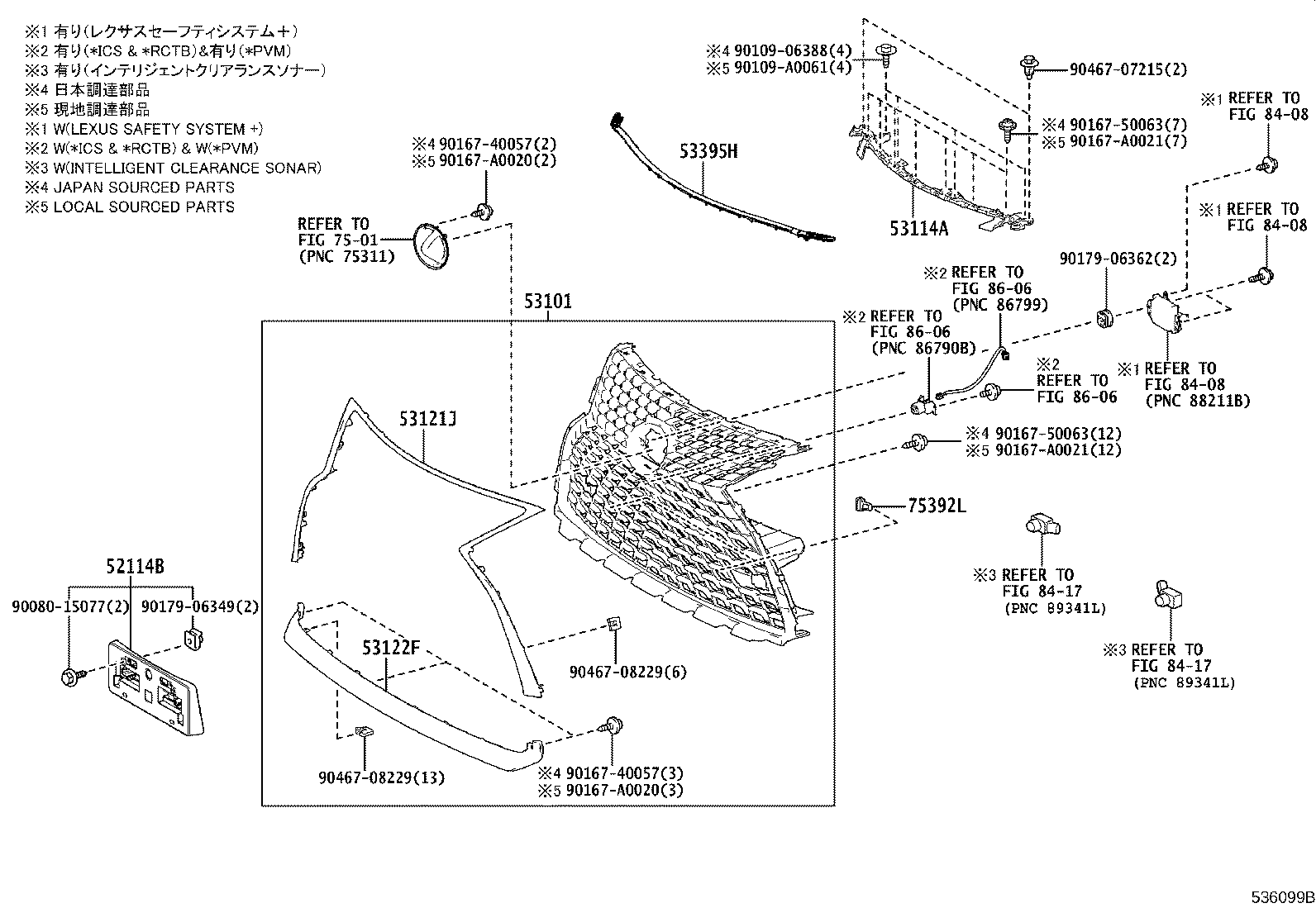

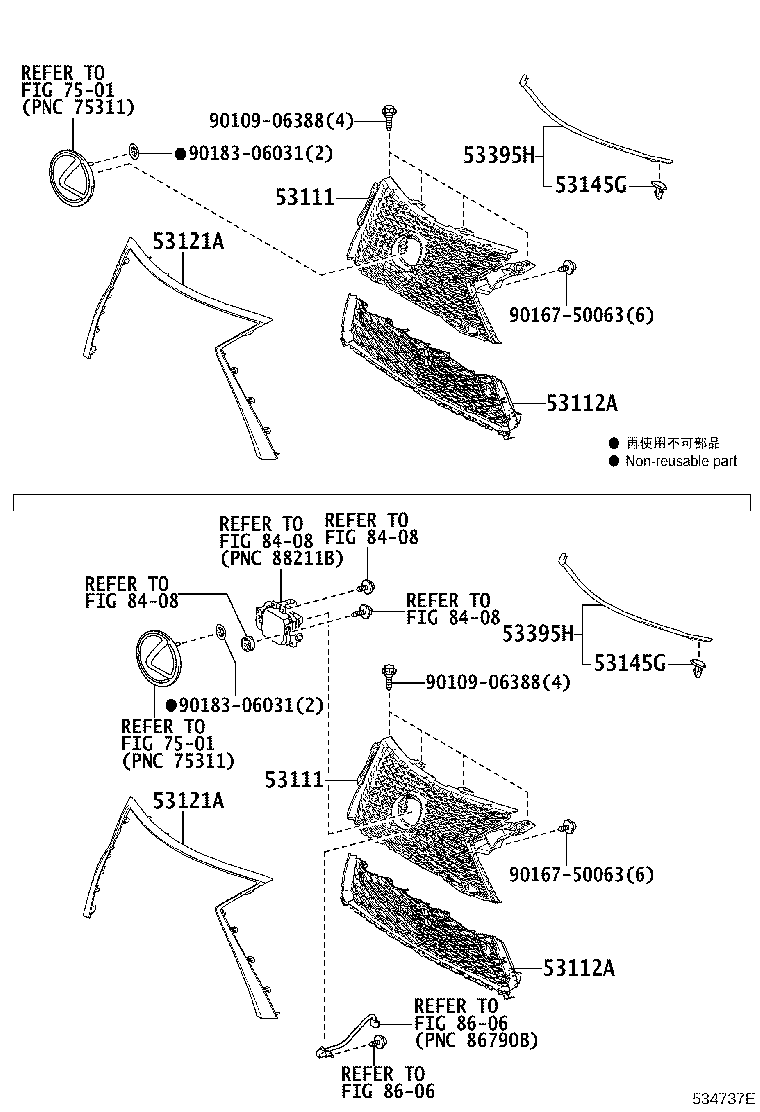

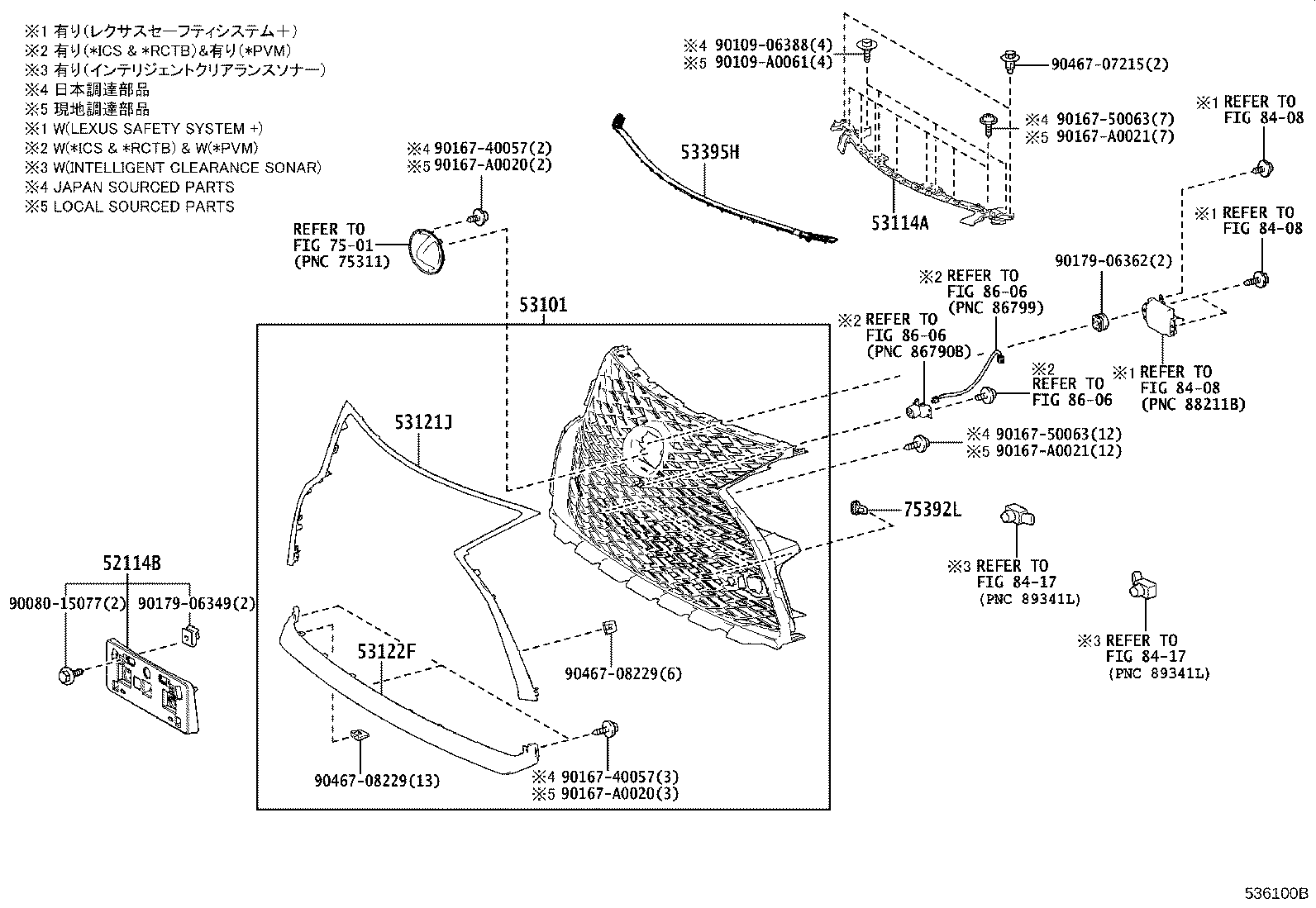

Figure 534736D 534736D 2015-10 → 2019-09 Figure 534737E 534737E 2015-10 → 2019-09 Figure 534737E 534737E 2016-08 → 2019-09 Figure 536099B 536099B 2019-09 → — Figure 536100B 536100B 2019-09 → —

Part groups

PNCDescription
52114B Bracket, Front Bumper Extension Mounting
53101 Grille Sub-assy, Radiator
53111 Grille, Radiator
53112A Grille, Radiator, Lower
53114A Grille, Radiator, Inner
53121A Moulding, Radiator Grille
53121J Moulding, Radiator Grille, NO.1
53122A Moulding, Radiator Grille, Lower
53122F Moulding, Radiator Grille, NO.2
53145G Clip, Radiator Grille
53395H Seal, Hood TO Radiator Grille
75392L Retainer, Outside Moulding
89C48G Retainer, Ultrasonic Sensor, Front Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
