Toyota Lexus RX450H/350(Nap
2015-10 → present · chassis GGL2#,GYL2# · catalogue 523430 · United States
Supported model
Data version 2019-08

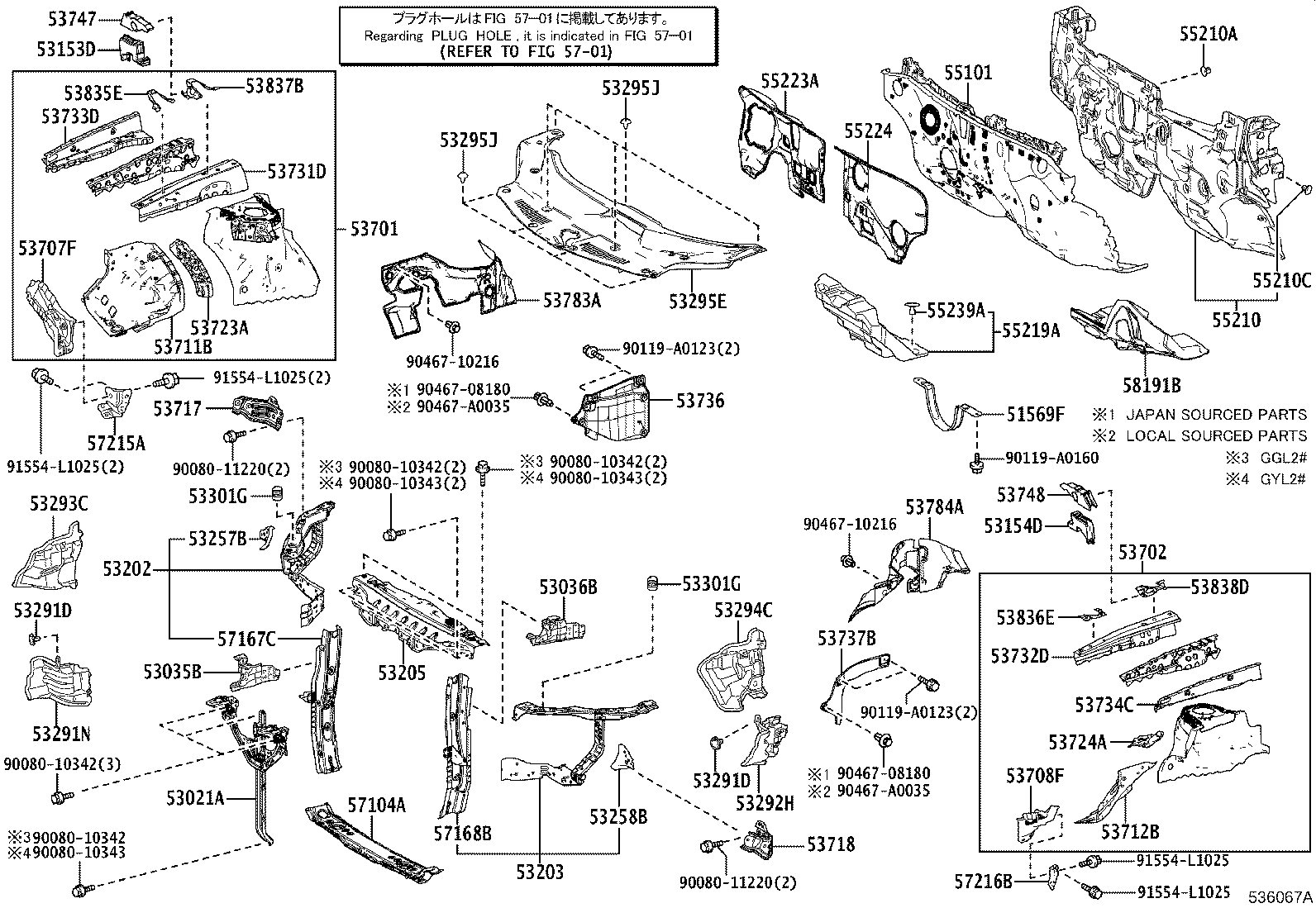

Front Fender Apron & Dash Panel
58 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 51569F | Guard, Propeller Shaft |
| 53021A | Moulding Sub-assy, Radiator Grille |
| 53035B | Bracket Sub-assy, Headlamp Mounting, RH |
| 53036B | Bracket Sub-assy, Headlamp Mounting, LH |
| 53153D | Guide, Radiator Grille Side Air, RH |
| 53154D | Guide, Radiator Grille Side Air, LH |
| 53201 | Support Sub-assy, Radiator |
| 53202 | Support Sub-assy, Radiator, RH |
| 53203 | Support Sub-assy, Radiator, LH |
| 53205 | Support Sub-assy, Radiator, Upper |
| 53257B | Bracket, Radiator Support TO Front Fender |
| 53258B | Bracket, Radiator Support TO Front Fender, LH |
| 53291D | Clip, Radiator Support TO Frame |
| 53291N | Seal, Radiator Support TO Frame, RH |
| 53292H | Seal, Radiator Support TO Frame, LH |
| 53293C | Deflector, Radiator Side, RH |
| 53294C | Deflector, Radiator Side, LH |
| 53295E | Seal, Cool Air Intake Duct |
| 53295J | Clip, Cool Air Intake Duct Seal |
| 53301G | Cushion, Hood Bumper |
| 53701 | Apron Sub-assy, Front Fender, RH |
| 53702 | Apron Sub-assy, Front Fender, LH |
| 53707F | Gusset Sub-assy, Front Fender Apron, Lower RH |
| 53708F | Gusset Sub-assy, Front Fender Apron, Lower LH |
| 53711B | Apron, Front Fender, Front RH |
| 53712B | Apron, Front Fender, Front LH |
| 53717 | Plate, Fender Apron, RH |
| 53718 | Plate, Fender Apron, LH |
| 53723A | Reinforcement, Front Spring Support, RH |
| 53724A | Reinforcement, Front Spring Support, LH |
| 53731D | Member, Front Apron TO Cowl Side, Upper RH |
| 53732D | Member, Front Apron TO Cowl Side, Upper LH |
| 53733D | Member, Front Apron TO Cowl Side, Lower Front RH |
| 53734C | Member, Front Apron TO Cowl Side, Lower Front LH |
| 53736 | Seal, Front Fender Apron, RH |
| 53737B | Seal, Front Fender Apron, LH |
| 53747 | Plate, Air Sealed, RH |
| 53748 | Plate, Air Sealed, LH |
| 53783A | Insulator, Apron Front Fender, RH |
| 53784A | Insulator, Apron Front Fender, LH |
| 53835E | Brace, Front Fender TO Apron, RH |
| 53836E | Brace, Front Fender TO Apron, LH |
| 53837B | Bracket, Front Side Panel, NO.2 |
| 53838D | Bracket, Front Side Panel, NO.2 LH |
| 55101 | Panel Sub-assy, Dash |
| 55210 | Insulator Assy, Dash Panel |
| 55210A | Clip |
| 55210C | Clip |
| 55219A | Packing, Dash Panel Hole Cover |
| 55223A | Insulator, Dash Panel, Outer |
| 55224 | Insulator, Dash Panel, Outer LH |
| 55239A | Plate, Dash Panel Insulator, NO.3 |
| 57104A | Member Sub-assy, Front Cross |
| 57167C | Gusset, Front Crossmember Side, RH |
| 57168B | Gusset, Front Crossmember Side, LH |
| 57215A | Bracket, Body Mounting, NO.3 RH |
| 57216B | Bracket, Body Mounting, NO.3 LH |
| 58191B | Footrest, Front Floor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
