Toyota Lexus RX450H/350(Nap
2015-10 → present · chassis GGL2#,GYL2# · catalogue 523430 · United States
Supported model
Data version 2019-08

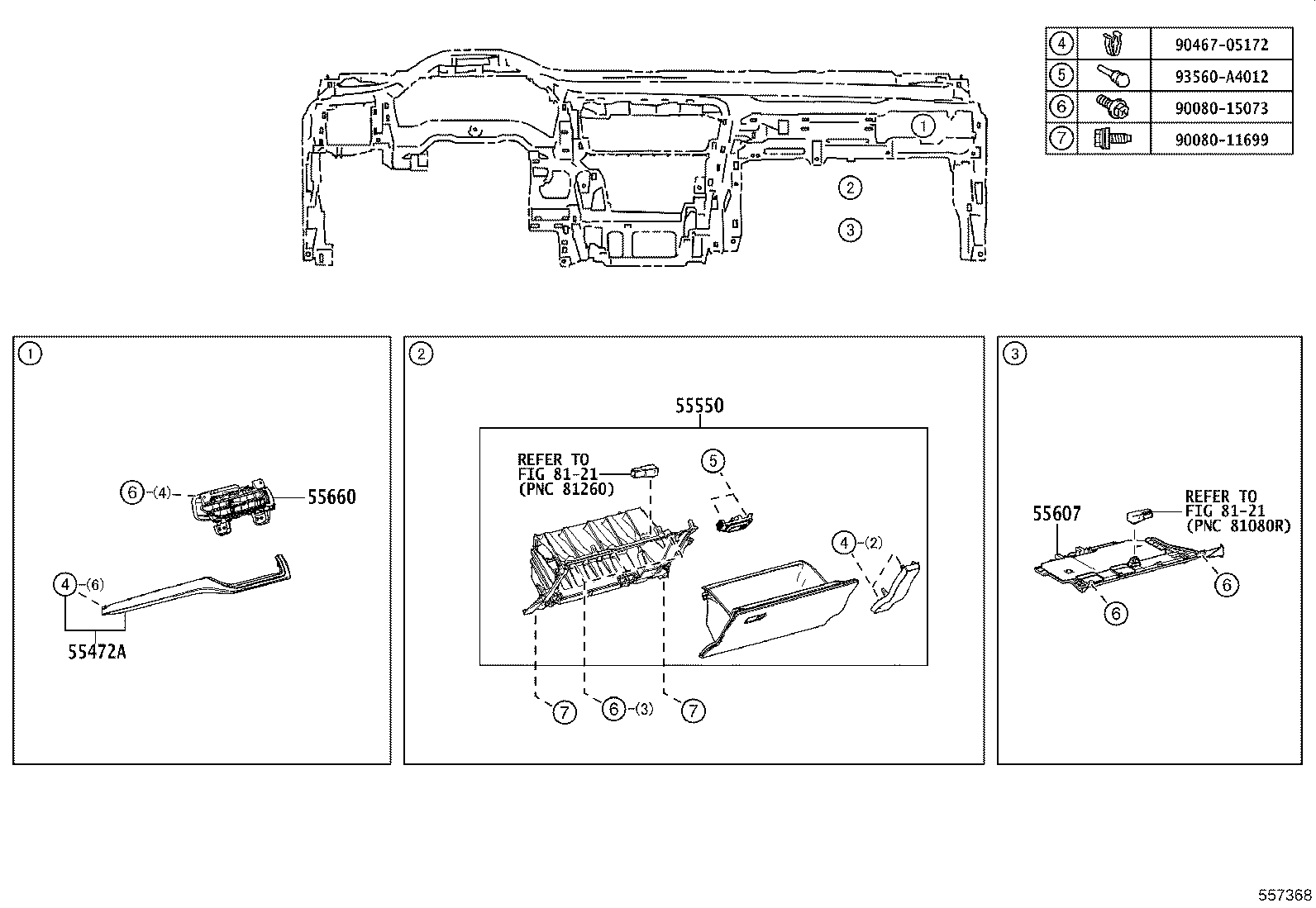

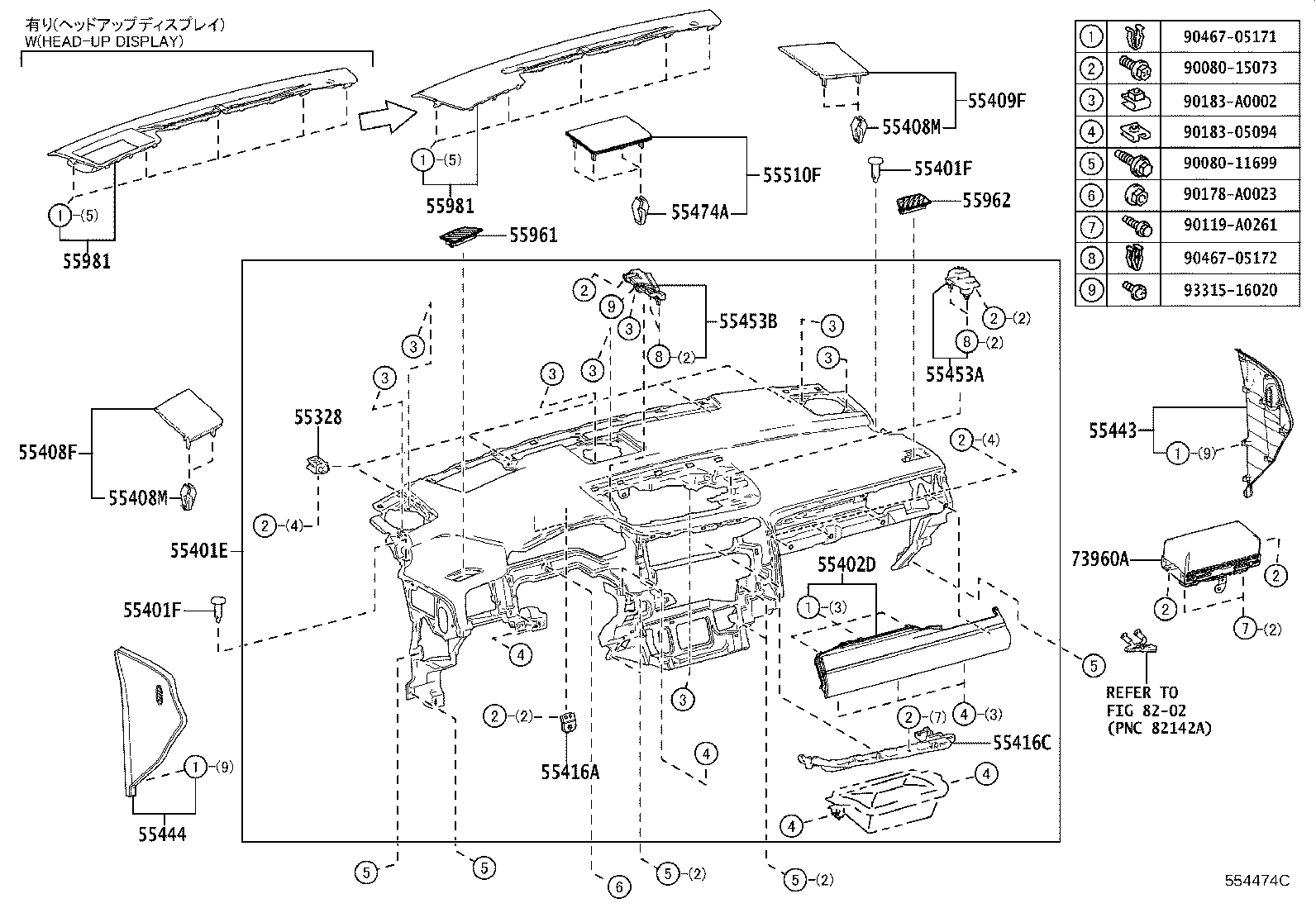

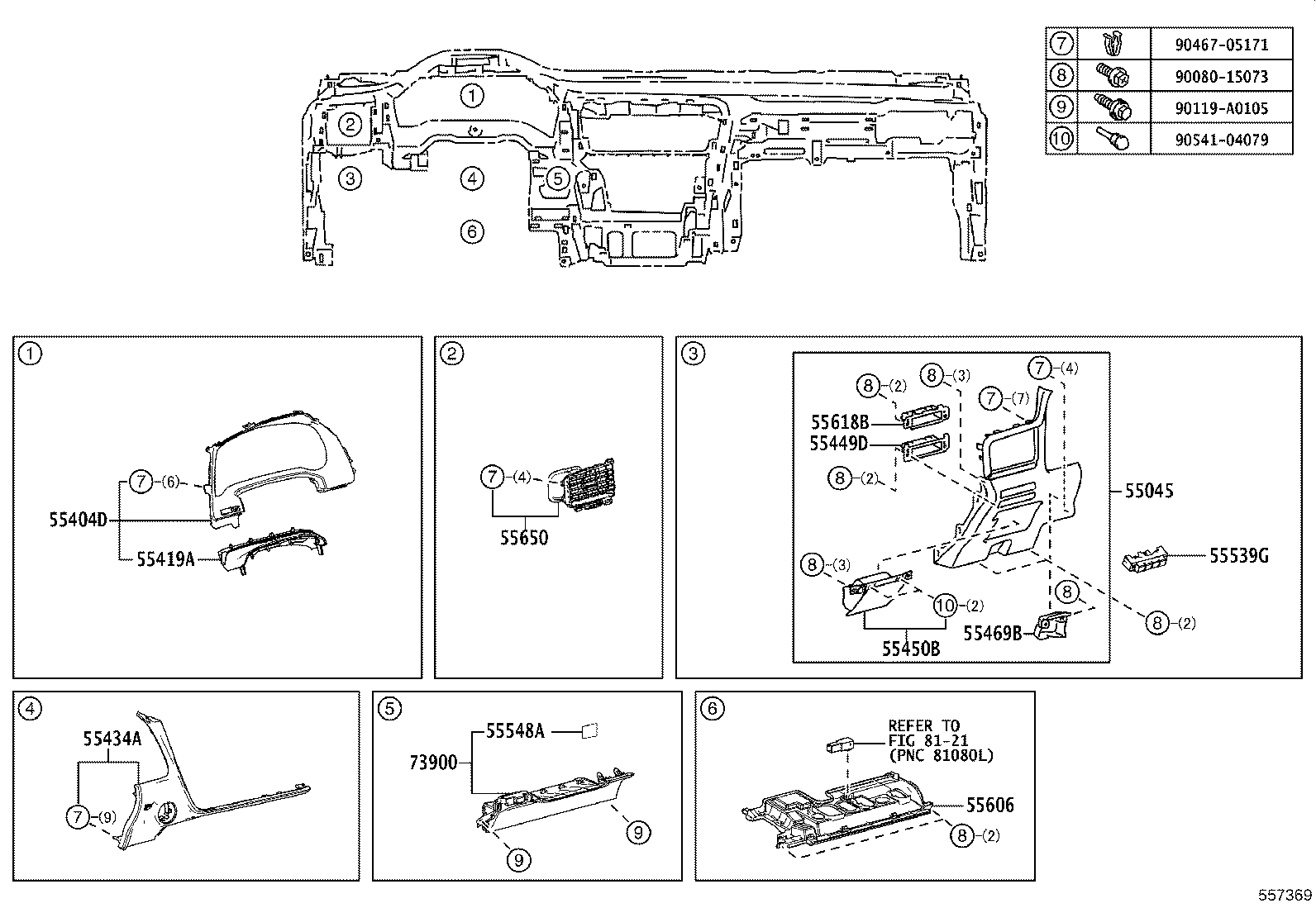

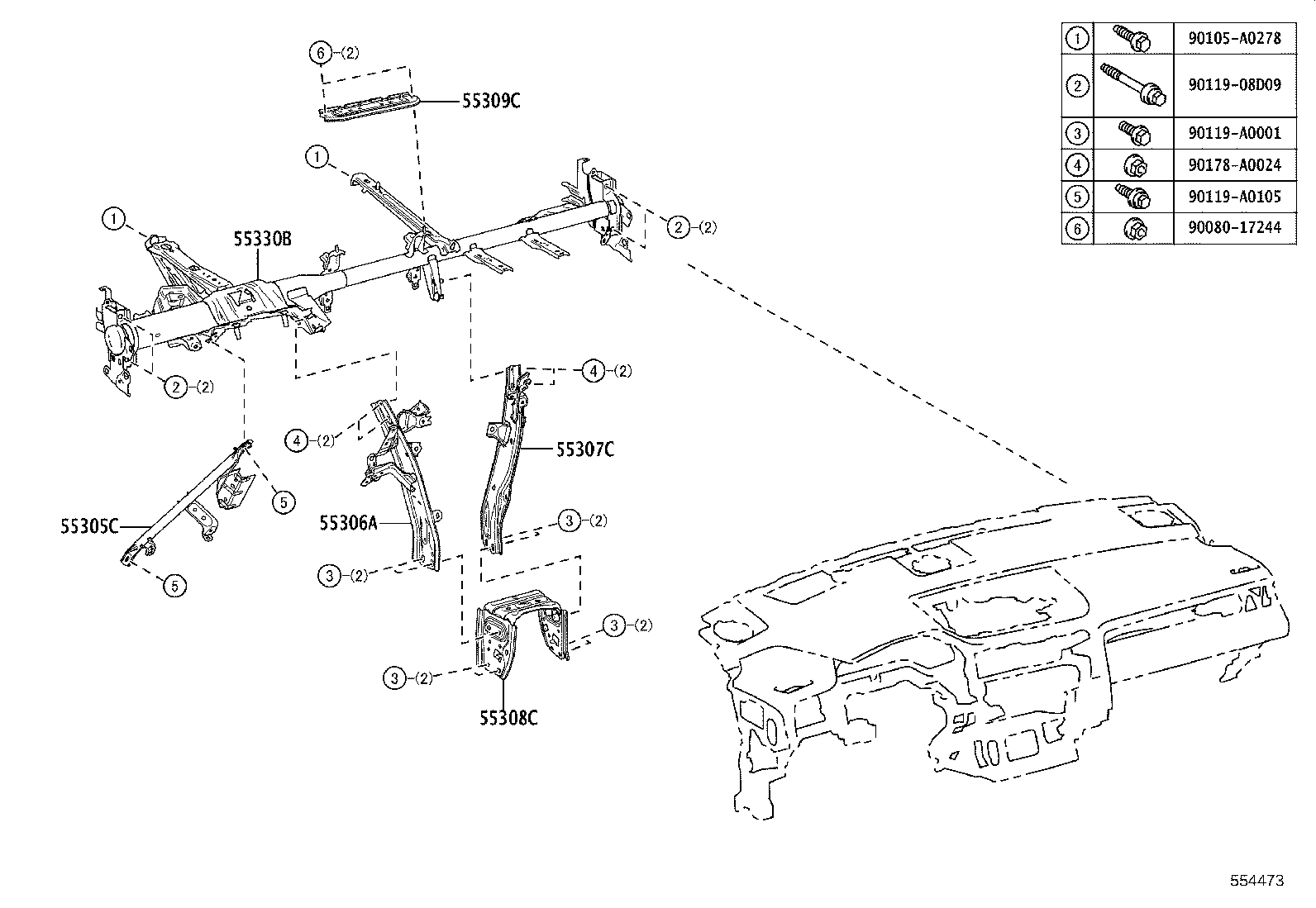

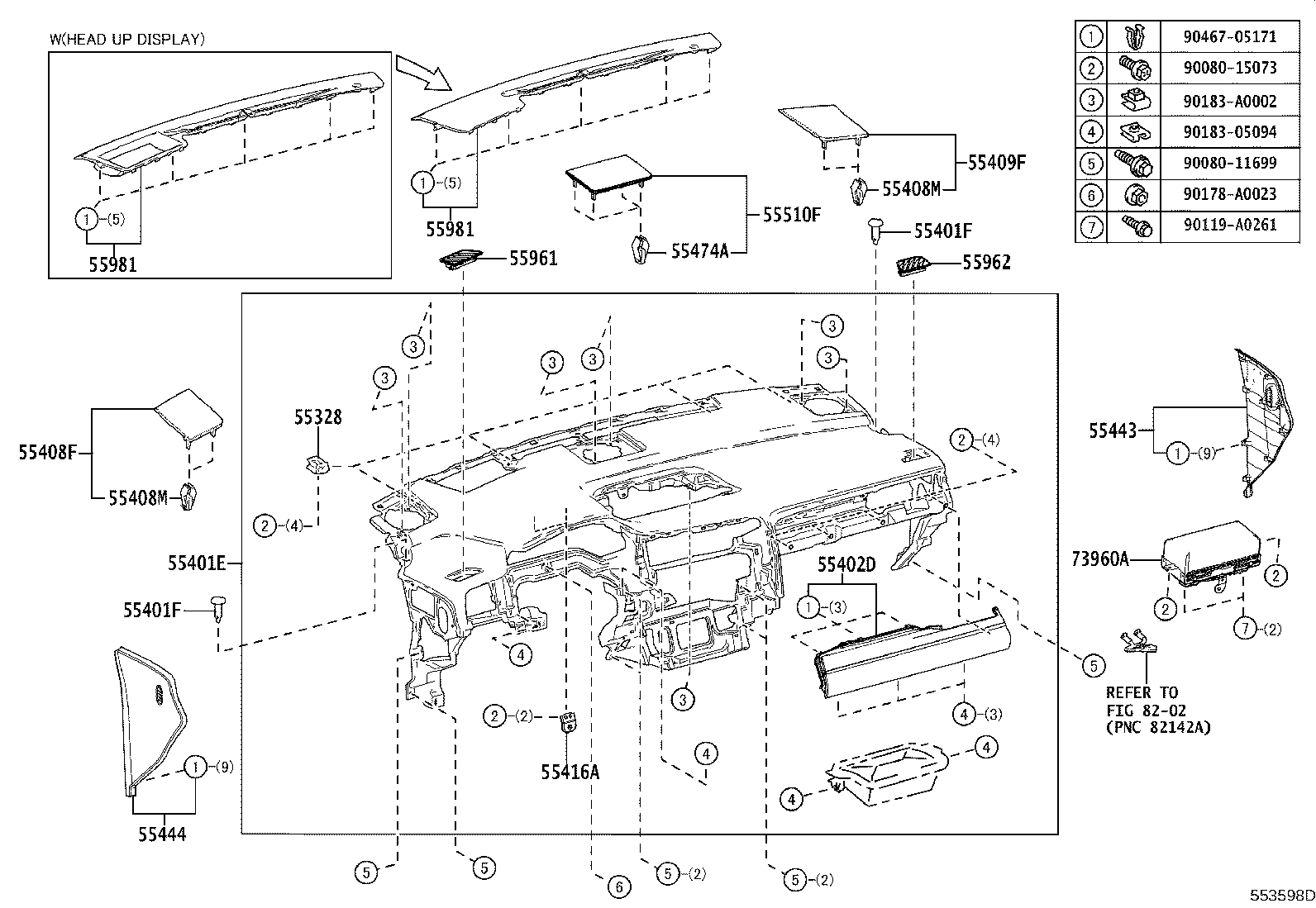

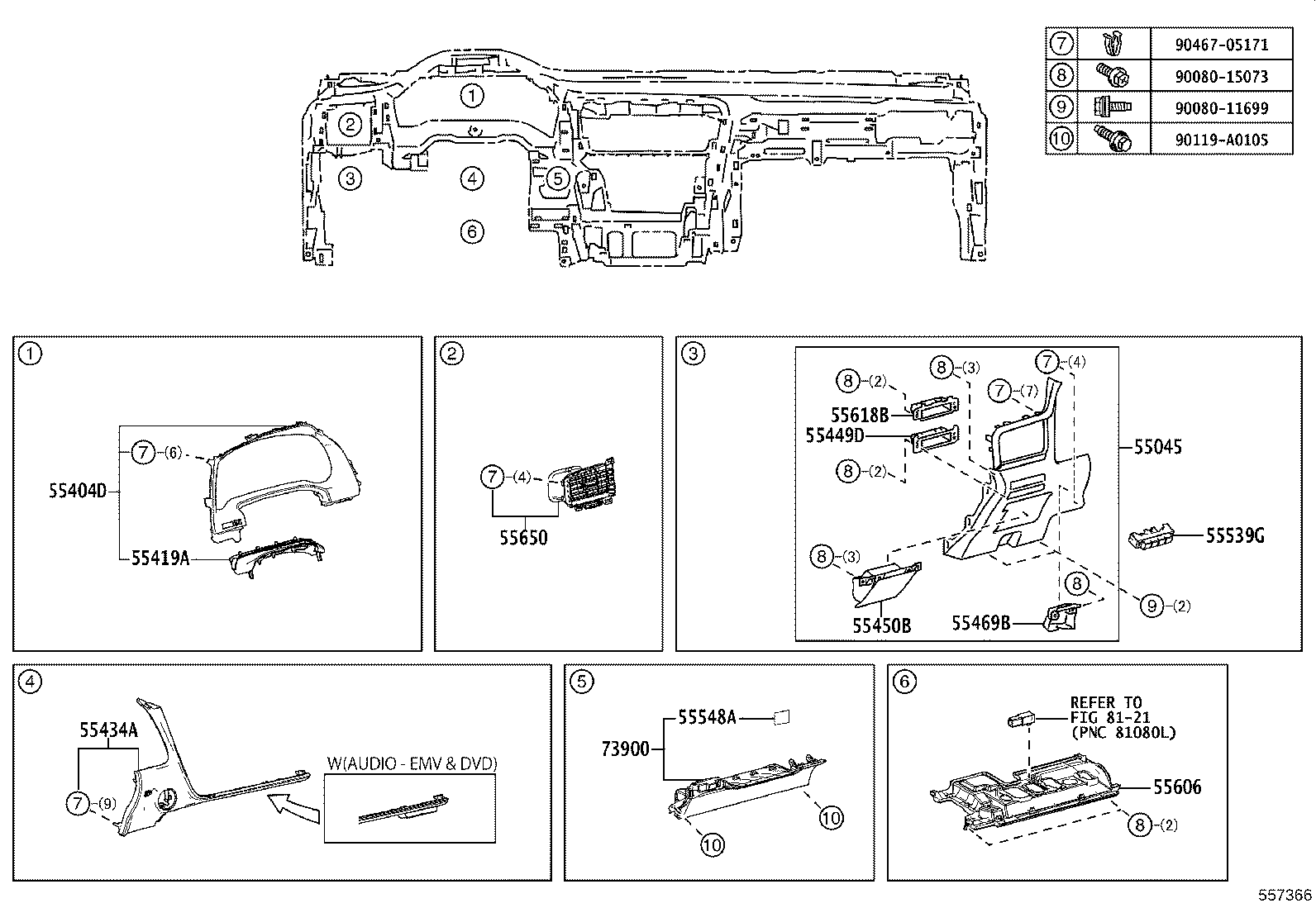

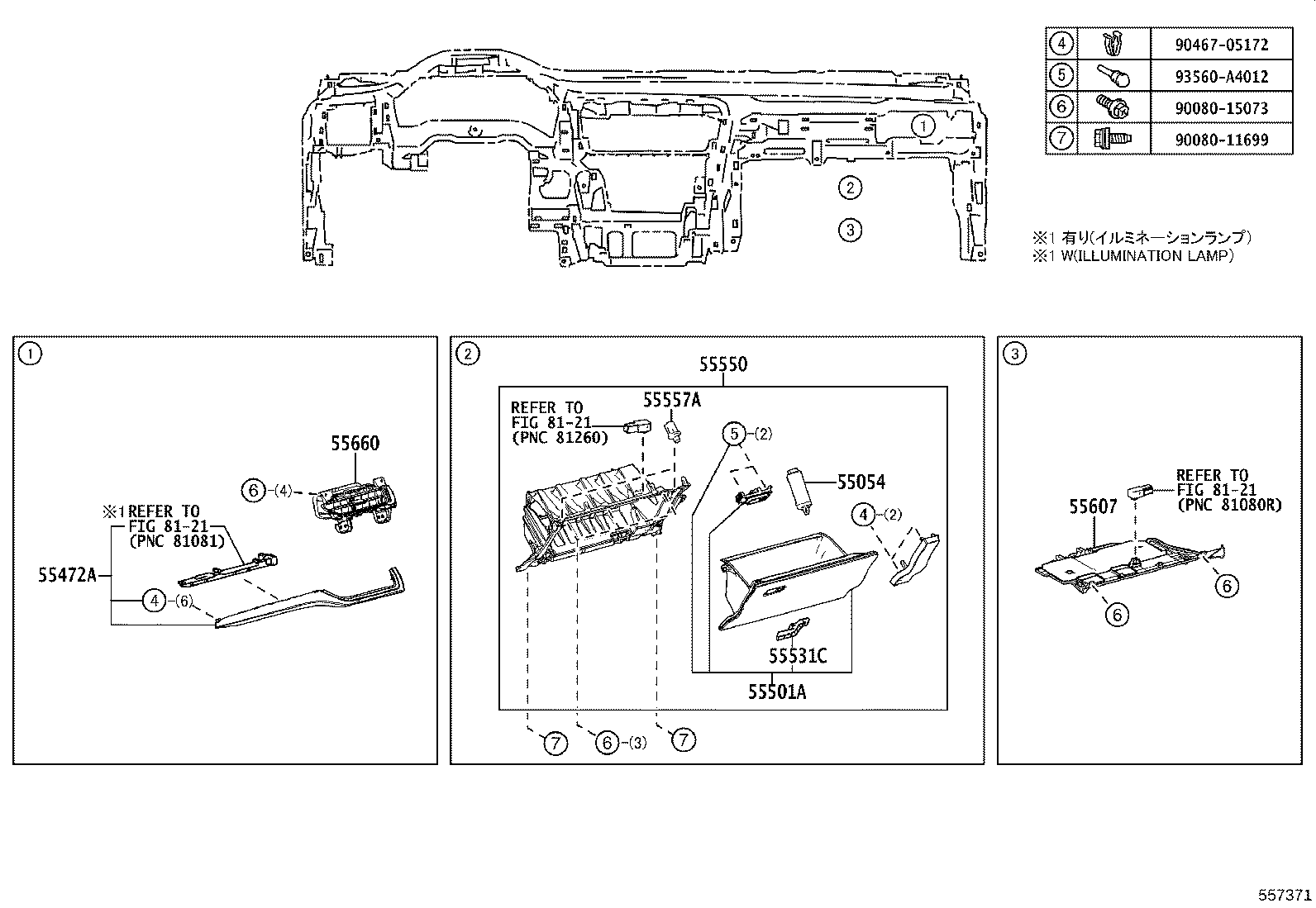

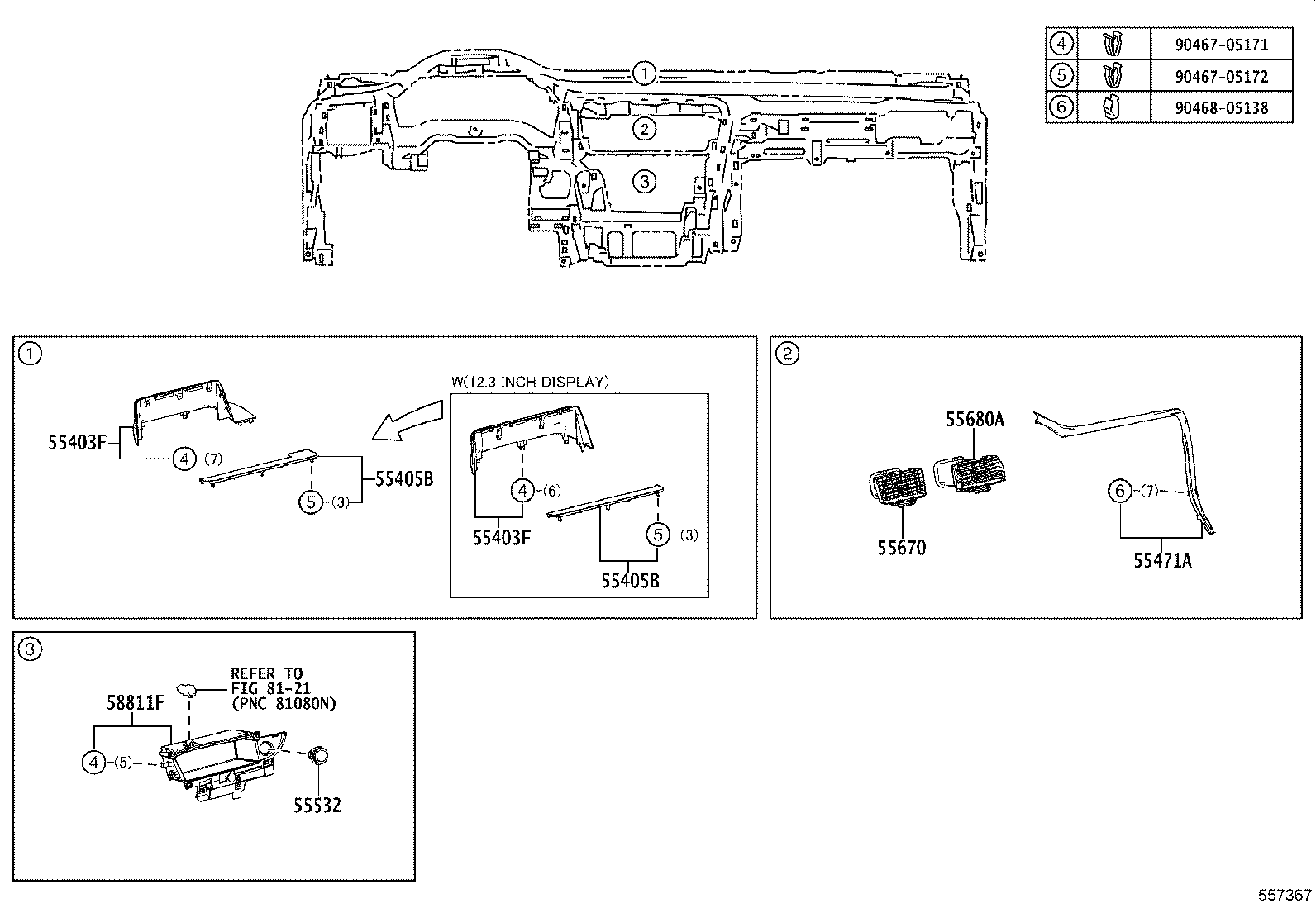

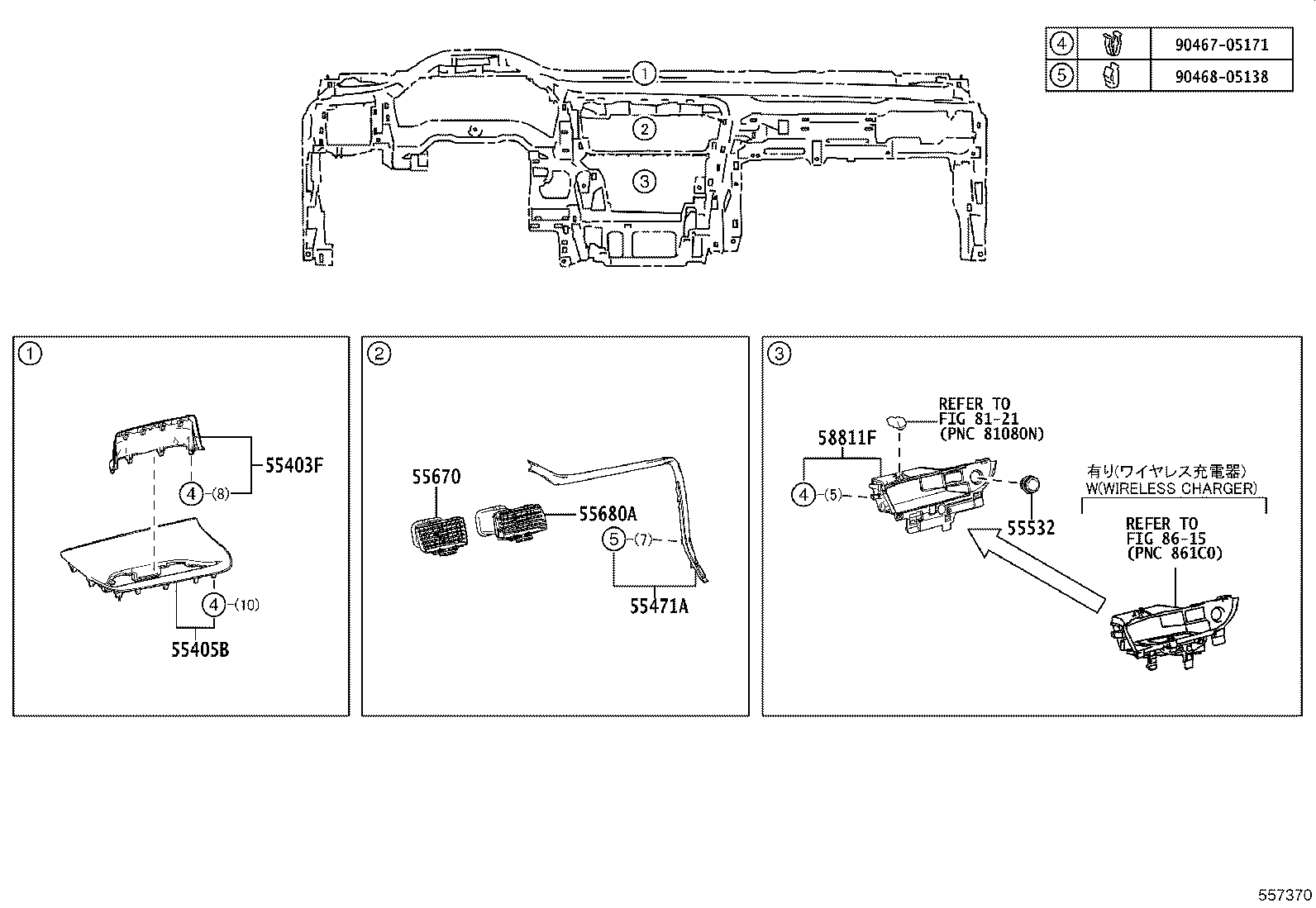

Instrument Panel & Glove Compartment
53 part groups · 10 illustrations
Part groups
| PNC | Description |
|---|---|
| 55045 | Panel Sub-assy, Instrument Panel Finish, Lower |
| 55054 | Stopper Sub-assy, Glove Compartment Door |
| 55305C | Reinforcement Sub-assy, Instrument Panel |
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55307C | Brace Sub-assy, Instrument Panel, NO.2 |
| 55308C | Bracket Sub-assy, Instrument Panel, Center |
| 55309C | Reinforcement Sub-assy, Instrument Panel, Center |
| 55328 | Pin, Instrument Panel, NO.1 |
| 55330B | Reinforcement Assy, Instrument Panel |
| 55401E | Pad Sub-assy, Instrument Panel Safety |
| 55401F | Clip(FOR SAFETY PAD) |
| 55402D | Pad Sub-assy, Instrument Panel Safety, NO.1 |
| 55403F | Panel Sub-assy, Instrument Panel Finish |
| 55404D | Panel Sub-assy, Instrument Cluster Finish |
| 55405B | Panel Sub-assy, Instrument Cluster Finish, Center |
| 55408F | Panel Sub-assy, Instrument Panel Speaker, NO.1 |
| 55408M | Clip(FOR INSTRUMENT PANEL SPEAKER PANEL) |
| 55409F | Panel Sub-assy, Instrument Panel Speaker, NO.2 |
| 55416A | Retainer, Meter Hood, NO.1 |
| 55416C | Retainer, Instrument Cluster Finish Panel |
| 55419A | Cushion, Instrument Cluster Finish Panel |
| 55434A | Panel, Instrument Finish, Lower Sub |
| 55443 | Garnish, Instrument Panel, RH |
| 55444 | Garnish, Instrument Panel, LH |
| 55449D | Base, Switch |
| 55450B | Box Assy, Coin |
| 55453A | Retainer, Radio Tuner Opening, NO.1 |
| 55453B | Retainer, Radio Tuner Opening, NO.2 |
| 55469B | Insert, Instrument Panel Lower Pad Sub |
| 55471A | Ornament, Instrument Cluster Finish Panel |
| 55472A | Moulding, Instrument Cluster, NO.2 |
| 55474A | Clip(FOR INSTRUMENT PANEL SPEAKER PANEL) |
| 55501A | Door Sub-assy, Glove Compartment |
| 55510F | Cover Assy, Speaker Opening, NO.1 |
| 55531C | Pin, Glove Door Stopper |
| 55532 | Cover, Cigar Lighter Hole |
| 55539G | Cover, Spare Switch Hole |
| 55548A | Cover, Instrument Panel Hole |
| 55550 | Door Assy, Glove Compartment |
| 55557A | Cushion, Glove Compartment Door Check |
| 55606 | Cover Sub-assy, Instrument Panel Under, NO.1 |
| 55607 | Cover Sub-assy, Instrument Panel Under, NO.2 |
| 55618B | Base, Switch Hole, NO.3 |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55670 | Register Assy, Instrument Panel, NO.3 |
| 55680A | Register Assy, Instrument Panel, NO.4 |
| 55961 | Nozzle, Side Defroster, NO.1 |
| 55962 | Nozzle, Side Defroster, NO.2 |
| 55981 | Garnish, Defroster Nozzle, NO.1 |
| 58811F | Box, Consol |
| 73900 | Airbag Assy, Instrument Panel, Lower NO.1 |
| 73960A | Airbag Assy, Instrument Panel Passenger W/O Door |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
