Toyota Lexus RX450H/350(Nap

2015-10 → present · chassis GGL2#,GYL2# · catalogue 523430 · United States

Supported model Data version 2019-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

14 part groups · 3 illustrations

Illustrations

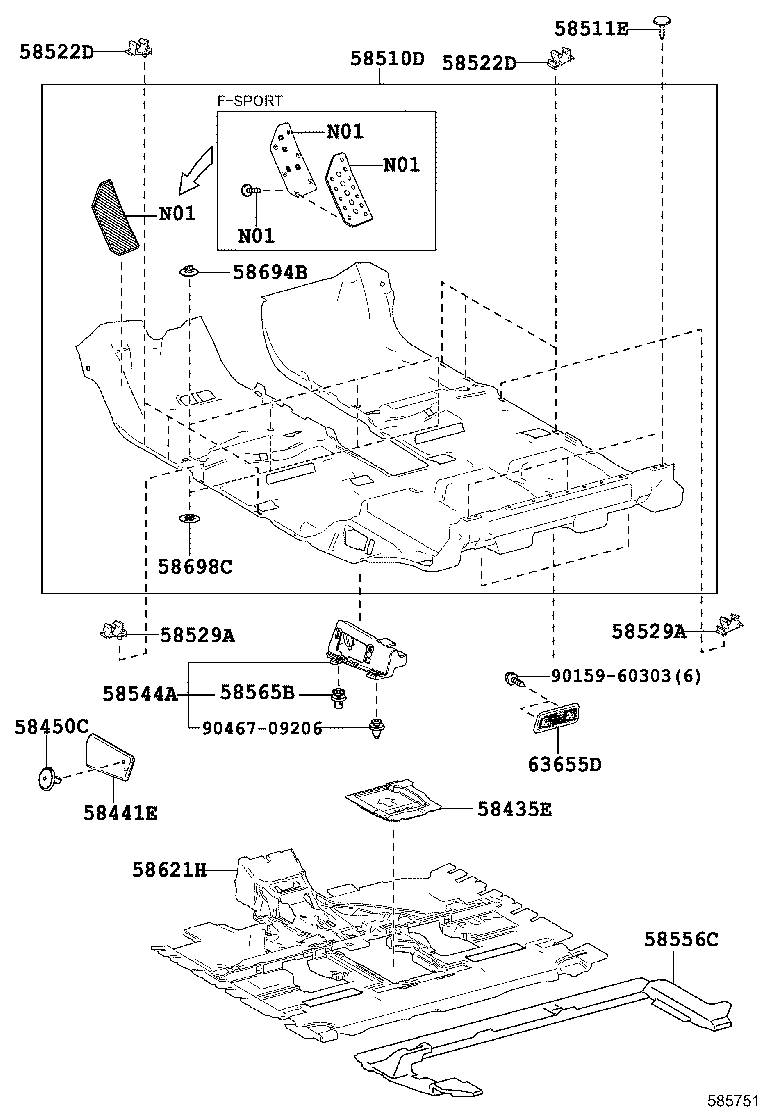

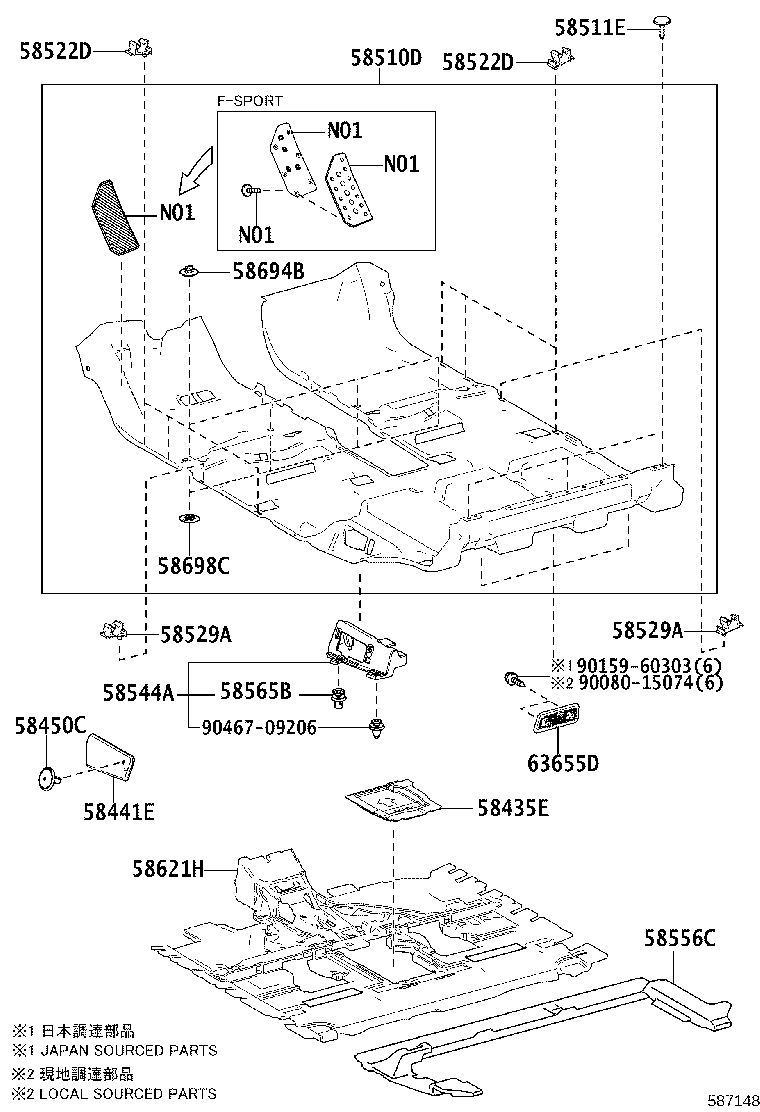

Figure 585750 585750 2015-10 → — Figure 585751 585751 2015-10 → 2019-09 Figure 587148 587148 2019-09 → —

Part groups

PNCDescription
58435E Silencer, Front Floor, Center
58441E Cover, Battery Service Hole
58450C Clip
58510D Carpet Assy, Floor, Front
58511E Clip(FOR FRONT FLOOR MAT)
58522D Hook, Floor Carpet, NO.2
58529A Hook, Floor Carpet, NO.3
58544A Bracket, Floor Carpet, LH
58556C Silencer, Rear Floor
58565B Clip
58621H Pad, Front Floor Silencer
58694B Plate, Mat Set, Upper
58698C Plate, Mat Set, Lower
63655D Cover, Air Intake
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
