Toyota Lexus RX450H/350(Nap

2015-10 → present · chassis GGL2#,GYL2# · catalogue 523430 · United States

Supported model Data version 2019-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt & Child Restraint Seat

19 part groups · 2 illustrations

Illustrations

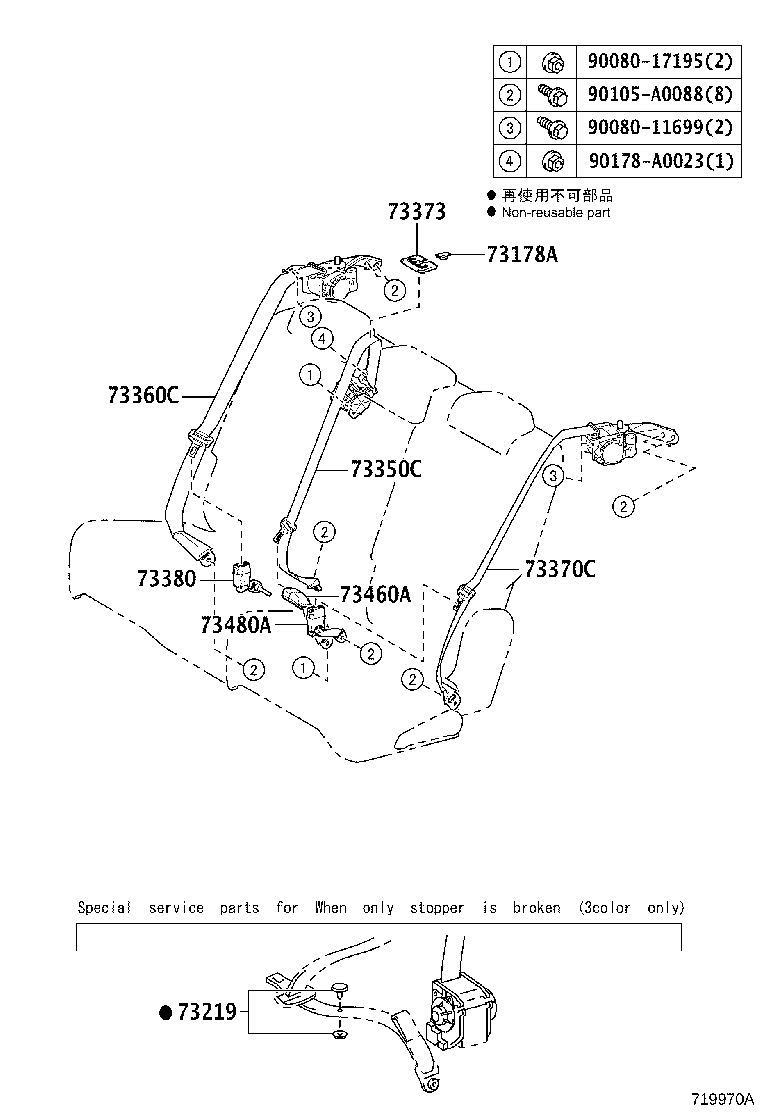

Figure 719969C 719969C 2015-10 → — Figure 719970A 719970A 2015-10 → —

Part groups

PNCDescription
73023 Plate Sub-assy, Front Shoulder Belt Anchor, RH
73024 Plate Sub-assy, Front Shoulder Belt Anchor, LH
73178A Cap, Seat Belt Anchor Cover
73200A Adjuster Assy, Front Shoulder Belt Anchor
73210 Belt Assy, Front Seat Outer, RH
73214 Plate, Front Seat Belt Anchor
73219 Stopper, Tongue Plate
73220 Belt Assy, Front Seat Outer, LH
73223B Cover, Front Seat Belt Retractor, RH
73224B Cover, Front Seat Belt Retractor, LH
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73350C Belt Assy, Rear Seat, Outer Center
73360C Belt Assy, Rear NO.1 Seat, Outer RH
73370C Belt Assy, Rear NO.1 Seat, Outer LH
73373 Cover, Rear Seat Shoulder Belt
73380 Belt Assy, Rear Seat 3 Point Type, Inner, RH
73460A Belt Assy, Rear Seat Center, Inner
73480A Belt Assy, Rear Seat, Inner LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
