Toyota Lexus RX450H/350(Nap
2015-10 → present · chassis GGL2#,GYL2# · catalogue 523430 · United States
Supported model
Data version 2019-08

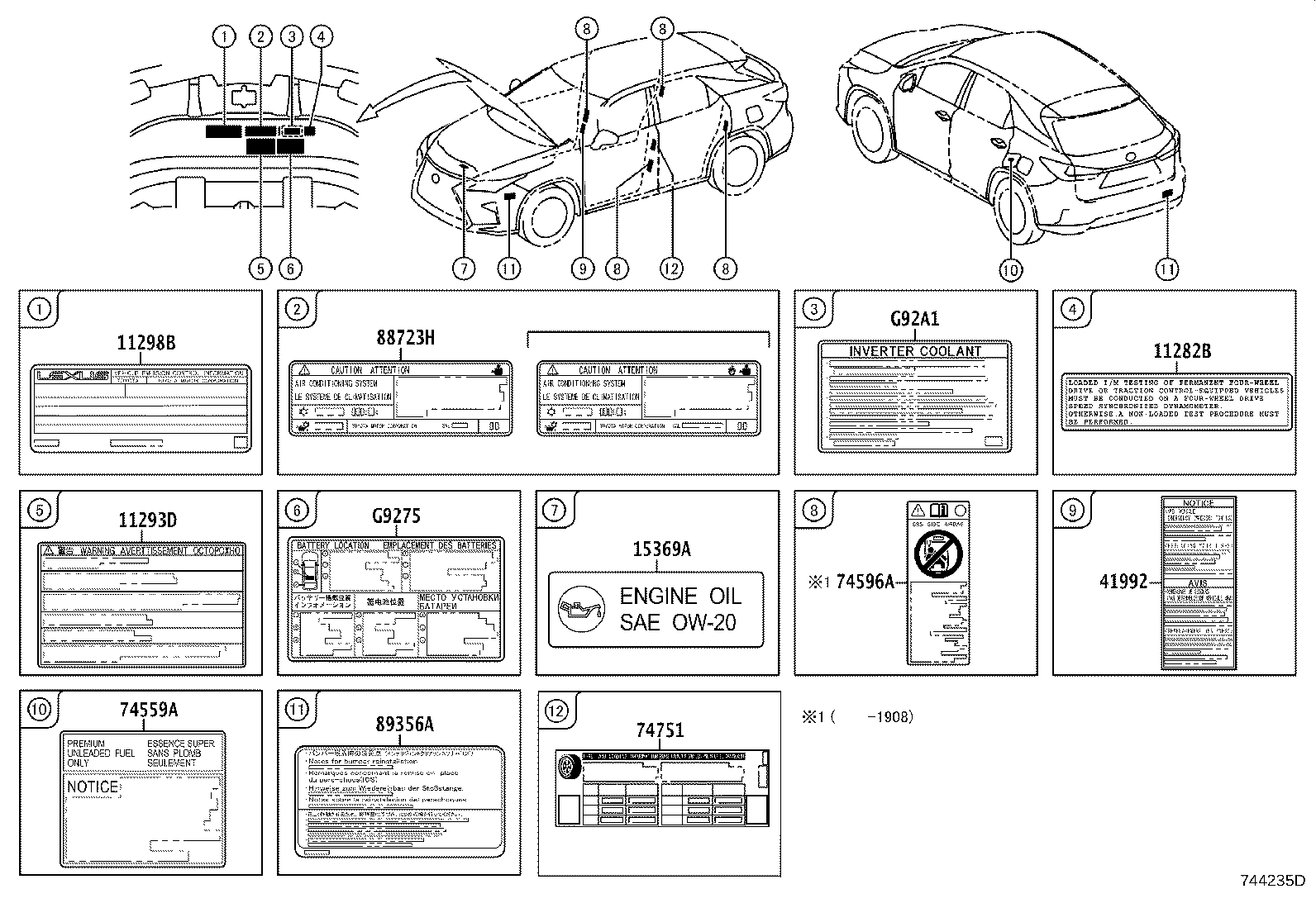

Caution Plate (EXTERIOR & INTERIOR)
21 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 11282B | Label, Loaded Testing Caution |
| 11293D | Label, Engine Caution |
| 11298B | Label, Emission Control Information |
| 15369A | Label, Engine Oil Information |
| 16793E | Label, Cooling Fan Caution |
| 28897B | Label, Battery Caution, NO.1 |
| 41991A | Plate, Caution |
| 41992 | Label, Differential Notice |
| 74528J | Label, Power Back Door Caution |
| 74541B | Plate, Compact Spare Tire Caution |
| 74559A | Plate, Fuel Caution |
| 74559B | Label, Fuel Information |
| 74572A | Label, Fuel Inlet Operational Information |
| 74596A | Label, Side Airbag Caution |
| 74599B | Label, Driver & Passenger Airbag Information |
| 74751 | Label, Tire Pressure Information |
| 88723H | Label, Cooler Service Caution |
| 89356A | Label, Clearance Warning Information |
| C6141 | Label, Back Door OR Luggage Compartment Door Information |
| G9275 | Label, Battery Caution, NO.1 |
| G92A1 | Label, Hybrid Coolant System Information |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
