Toyota Lexus RX450H/350(Nap

2015-10 → present · chassis GGL2#,GYL2# · catalogue 523430 · United States

Supported model Data version 2019-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Tank & Tube

89 part groups · 8 illustrations

Illustrations

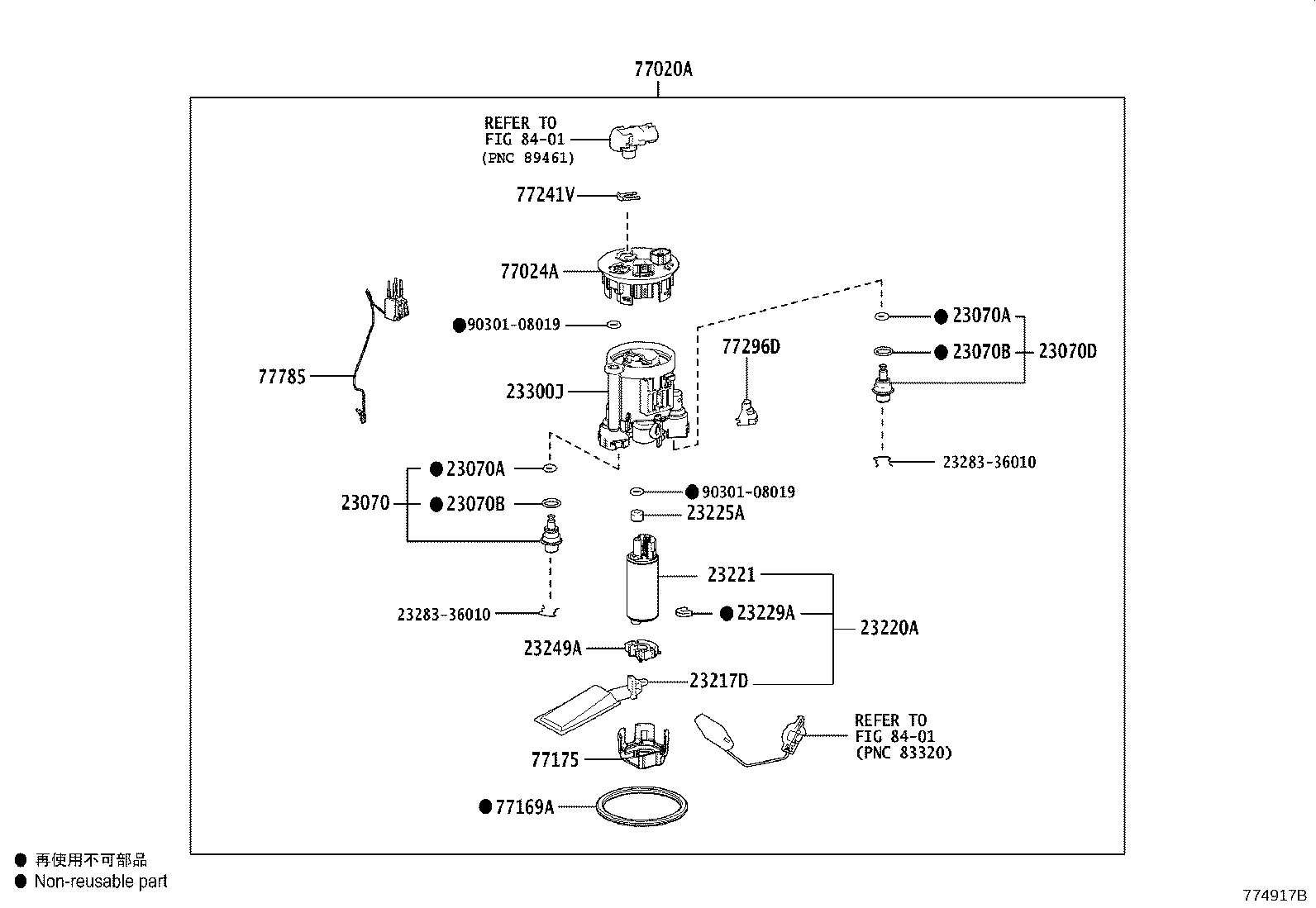

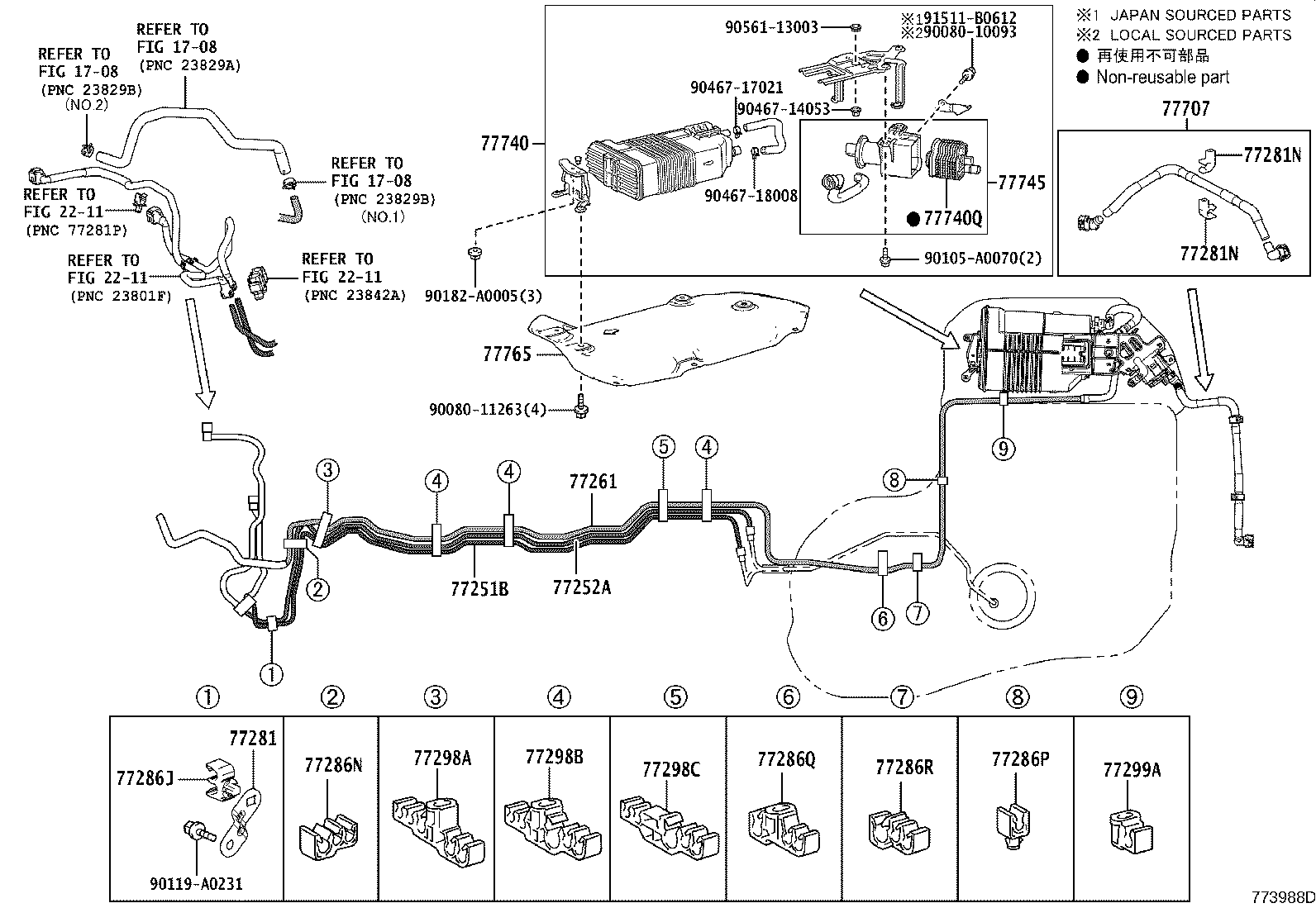

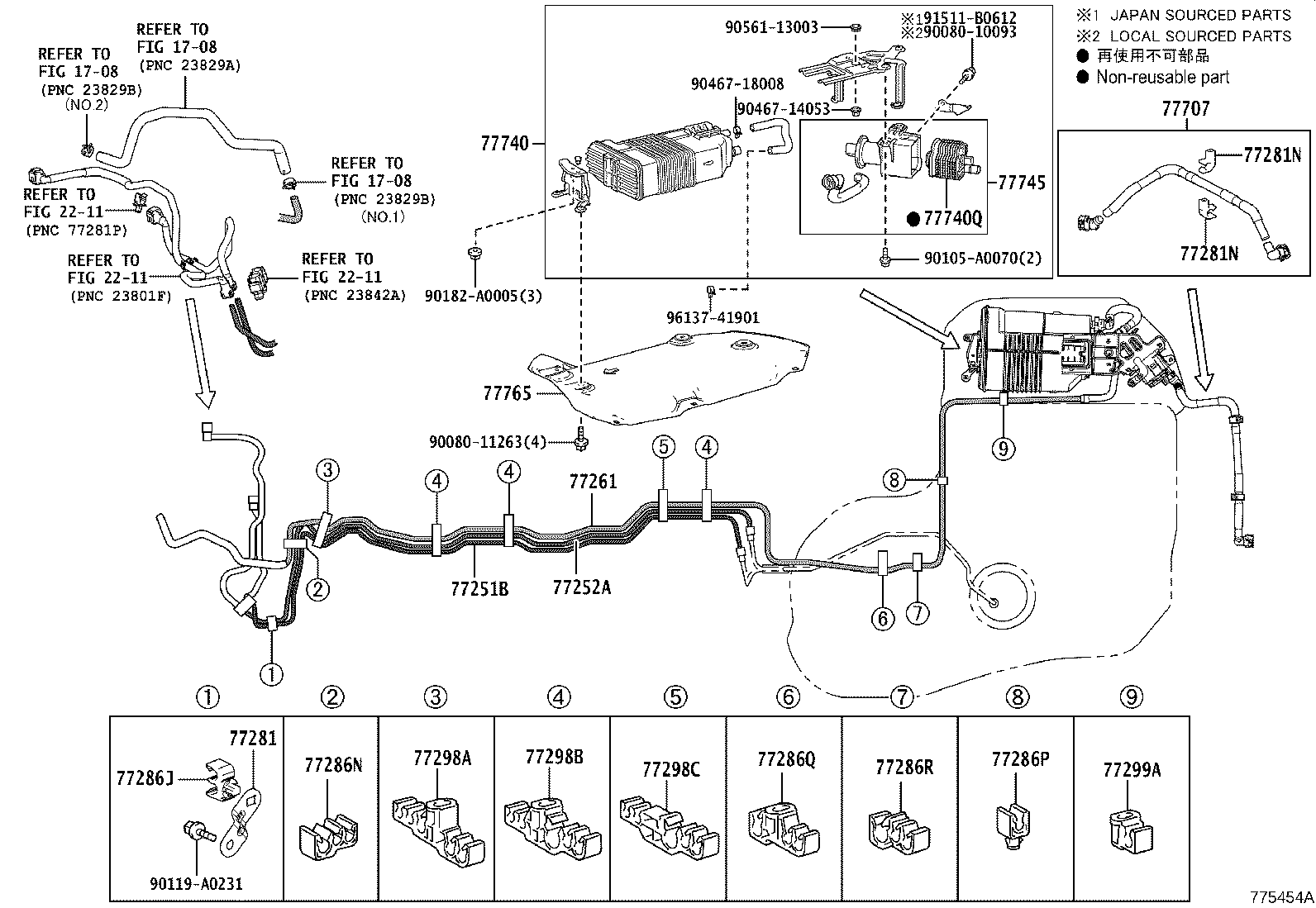

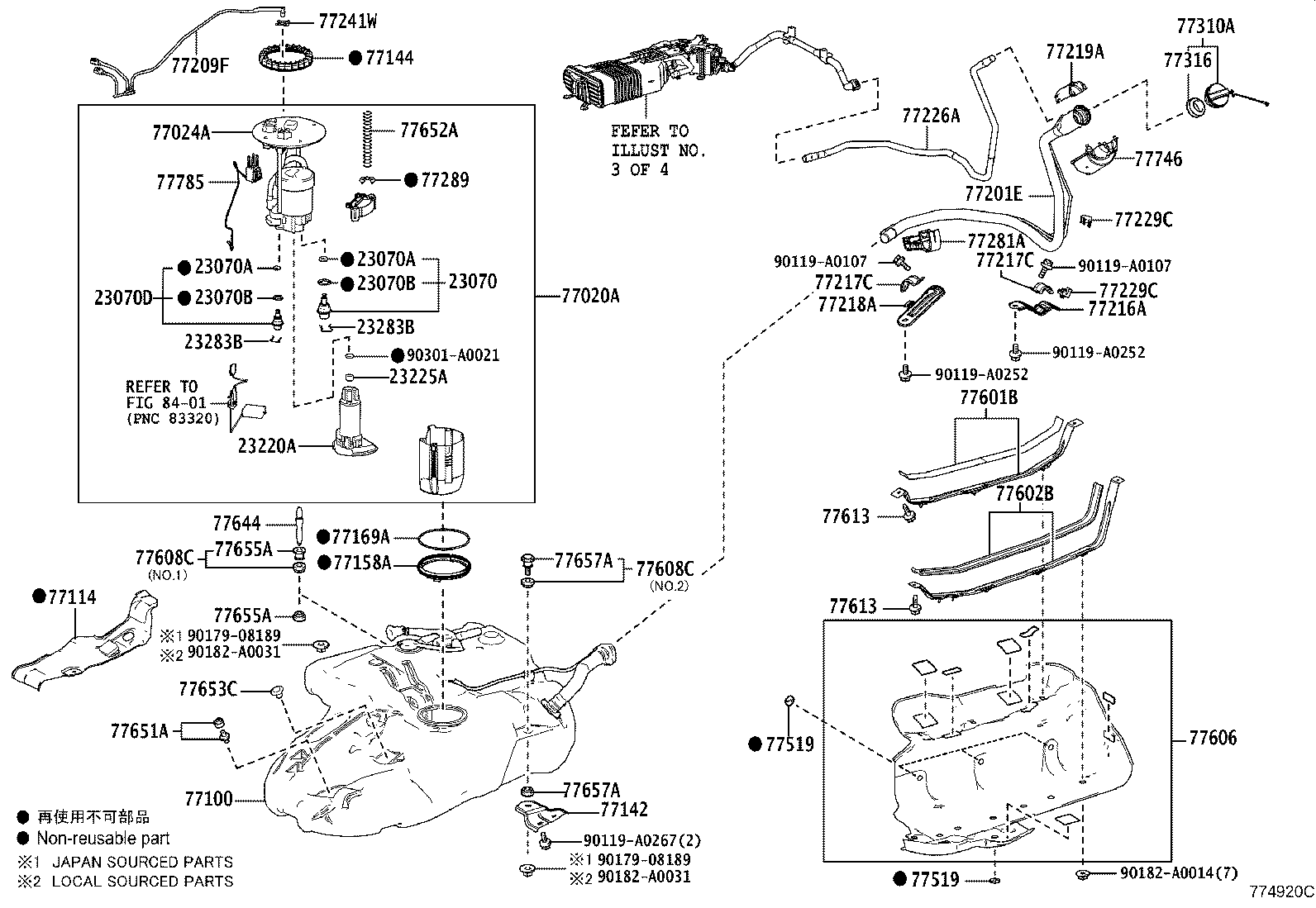

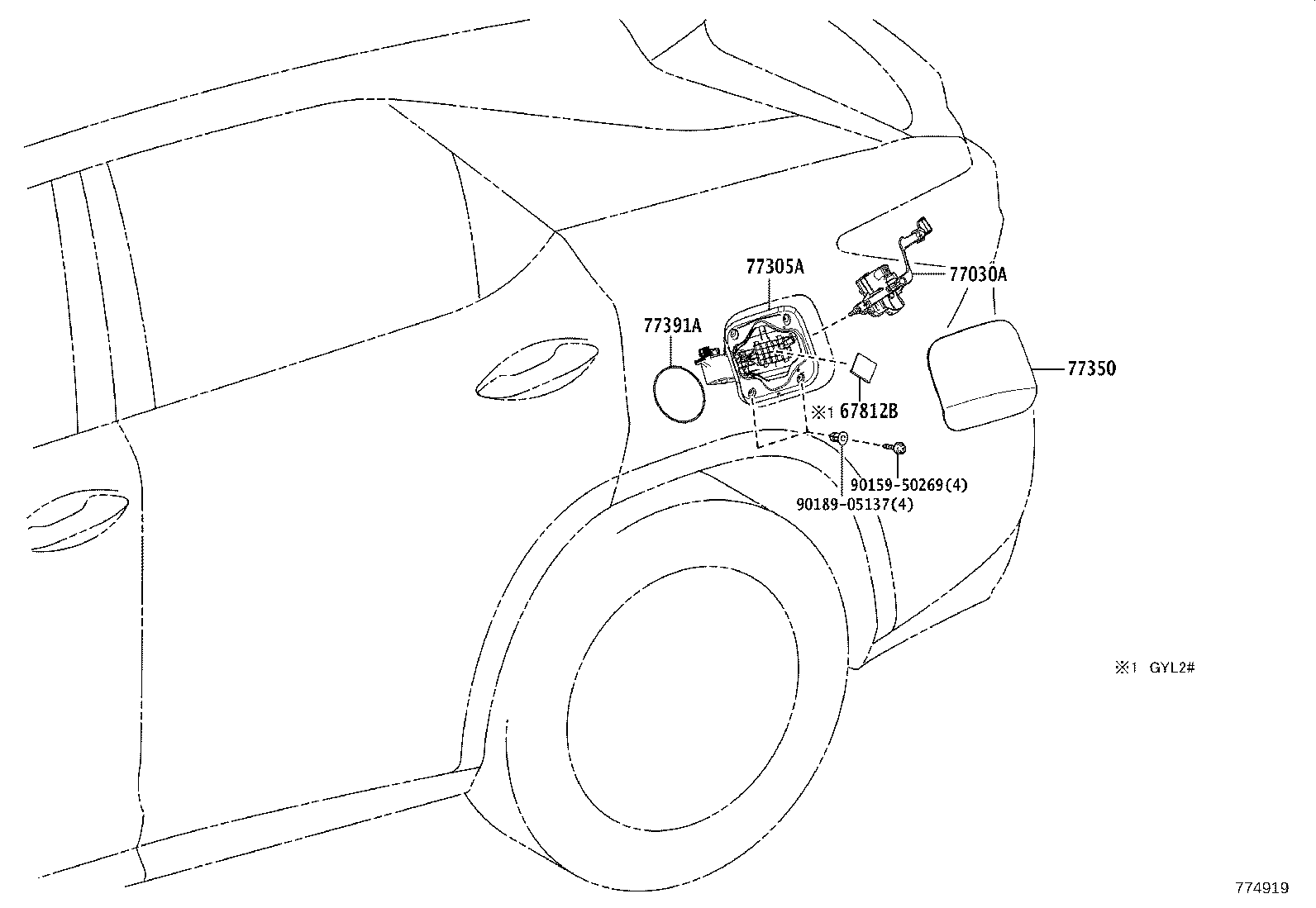

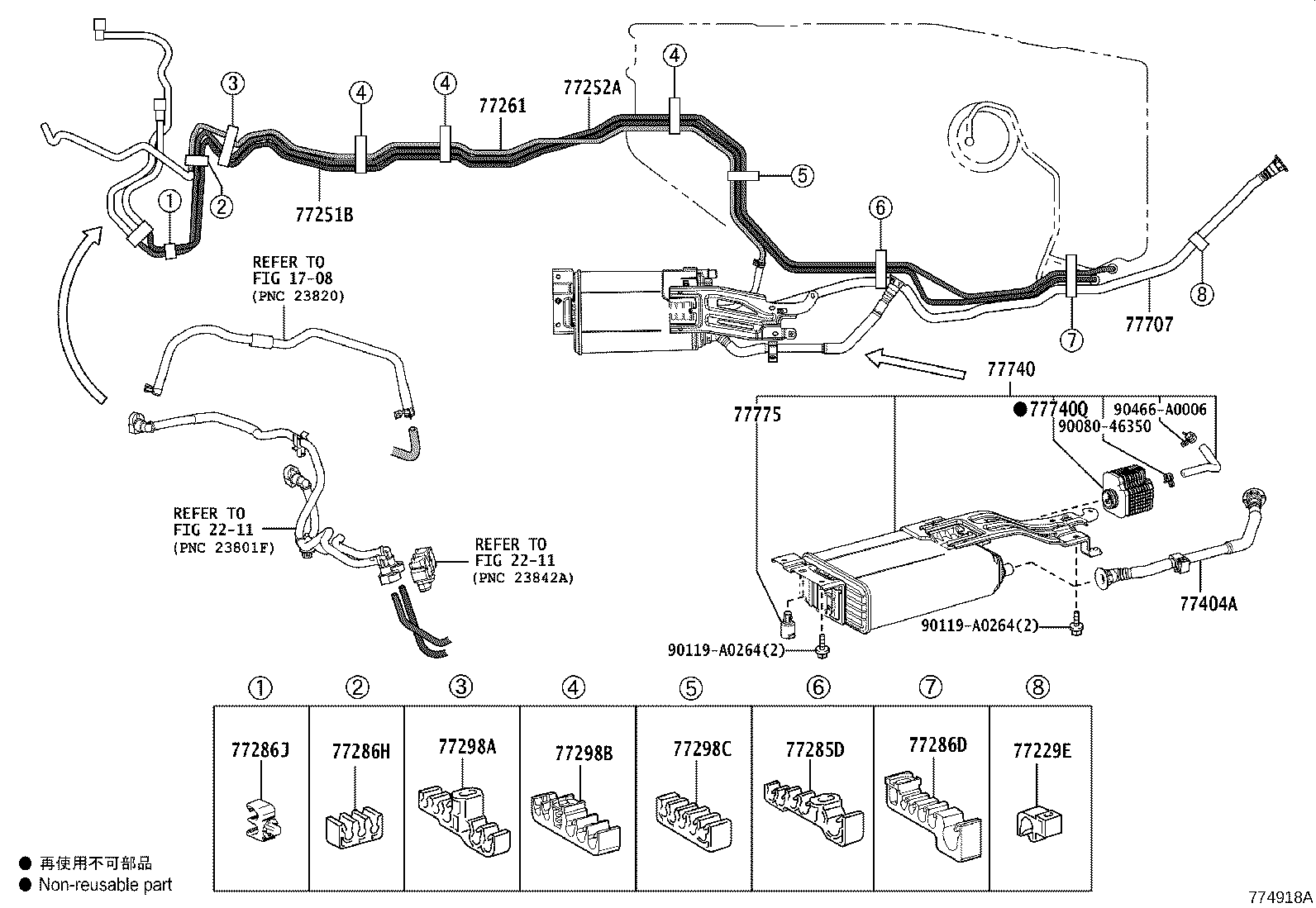

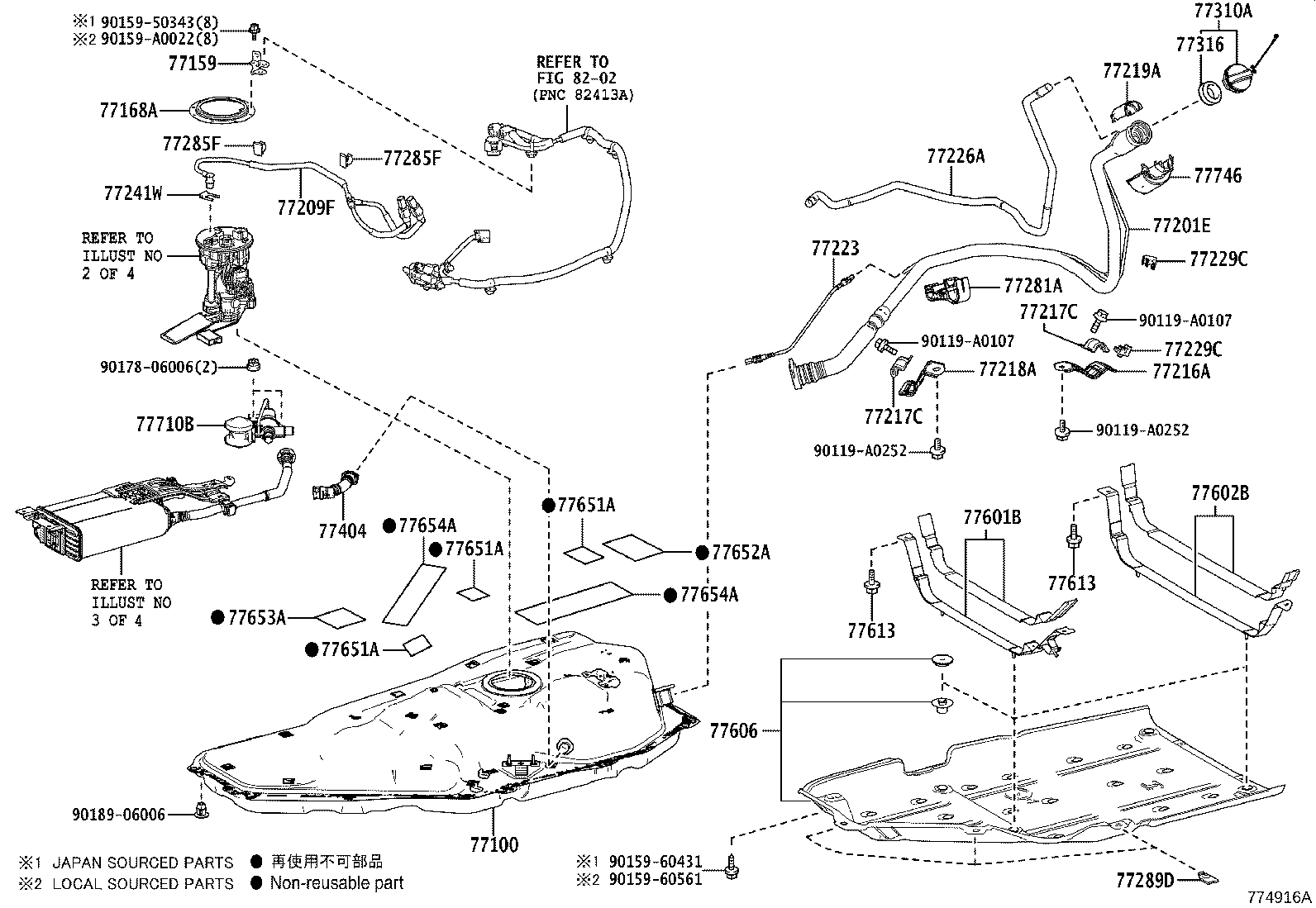

Figure 773985I 773985I 2015-10 → 2019-09 Figure 774920C 774920C 2019-09 → — Figure 774916A 774916A 2015-10 → — Figure 774917B 774917B 2015-10 → — Figure 773988D 773988D 2015-10 → 2021-03 Figure 775454A 775454A 2021-03 → — Figure 774918A 774918A 2015-10 → — Figure 774919 774919 2015-10 → —

Part groups

PNCDescription
23070 Valve Assy, Fuel Main
23070A Ring, O, NO.1(FOR FUEL MAIN VALVE)
23070B Ring, O, NO.2(FOR FUEL MAIN VALVE)
23070D Valve Assy, Fuel Main, NO.2
23217D Filter, Fuel Pump
23220A Pump Assy, Fuel W/Filter
23221 Pump, Fuel
23225A Spacer, Fuel Pump
23229A Clip(FOR FUEL PUMP FILTER)
23249A Rubber, Cushion(FOR FUEL PUMP)
23283B Holder, Fuel Pressure Regulator
23300J Filter Assy, Fuel
67812B Pad, Fuel Lid Silencer
77020A Tube Assy, Fuel Suction W/Pump & Gage
77024A Plate Sub-assy, Fuel Suction
77030A Lock Assy, Fuel Lid W/Motor
77100 Tank Assy, Fuel
77114 Plate, Fuel Tank Side, Rear
77142 Bracket, Fuel Tank Mounting, Rear
77144 Retainer, Fuel Pump Gauge
77158A Support, Tank Suction Tube
77159 Plate, Suction Tube Support
77168A Plate, Fuel Tank Vent Tube Set
77169A Gasket, Fuel Suction Tube Set
77175 Support, Fuel Suction, NO.2
77201E Pipe Sub-assy, Fuel Tank Filler
77209F Tube Sub-assy, Fuel Tank Main
77216A Support, Fuel Tank Filler Pipe, NO.1
77217C Support, Fuel Tank Filler Pipe, NO.2
77218A Support, Fuel Tank Filler Pipe, NO.3
77219A Cover, Fuel Tank Filler Pipe
77223 Tube, Fuel Tank Breather, NO.3
77226A Tube, Fuel Tank Breather, NO.6
77229C Clamp, Breather Tube
77229E Clamp, Breather Tube
77241V Clip, Tube Joint
77241W Clip, Tube Joint
77251B Tube, Fuel Main
77252A Tube, Fuel Main, NO.2
77261 Tube Sub-assy, Fuel Emission
77281 Bracket, Fuel Main Tube, NO.1
77281A Clamp, Fuel Filler Pipe
77281N Clamp, Fuel Hose
77285D Clamp, Fuel Tube, NO.1
77285F Clamp, Fuel Tube, NO.1
77286D Clamp, Fuel Tube, NO.2
77286H Clamp, Fuel Tube, NO.3
77286J Clamp, Fuel Tube, NO.4
77286N Clamp, Fuel Tube, NO.7
77286P Clamp, Fuel Tube, NO.8
77286Q Clamp, Fuel Tube, NO.9
77286R Clamp, Fuel Tube, NO.10
77289 Holder, Fuel Tank Pipe Setting
77289D Clamp, Fuel Tube, NO.5
77296D Plate, Fuel Tube Support
77298A Clamp, Fuel Tube, NO.4
77298B Clamp, Fuel Tube, NO.4
77298C Clamp, Fuel Tube, NO.4
77299A Clamp, Fuel Tube, NO.5
77305A Lid Sub-assy, Fuel Filler Opening
77310A Cap Assy, Fuel Tank
77316 Gasket, Fuel Tank Cap
77350 Lid Assy, Fuel Filler Opening
77391A Ring, Fuel Inlet Box
77404 Hose Sub-assy, Fuel Tank Vent
77404A Hose Sub-assy, Fuel Tank Vent
77519 Spacer, Fuel Tank Bracket
77601B Band Sub-assy, Fuel Tank, NO.1 RH
77602B Band Sub-assy, Fuel Tank, NO.1 LH
77606 Protector Sub-assy, Fuel Tank, NO.1
77608C Cushion Set, Fuel Tank
77613 Bolt, Fuel Tank Band Set
77644 Bolt, Fuel Tank
77651A Cushion, Fuel Tank, NO.1
77652A Cushion, Fuel Tank, NO.2
77653A Cushion, Fuel Tank, NO.3
77653C Pin, Fuel Tank Band, NO.1
77654A Cushion, Fuel Tank, NO.4
77655A Cushion, Fuel Tank, NO.5
77657A Cushion, Fuel Tank, NO.5
77707 Tube Sub-assy, Charcoal Canister Outlet
77710B Valve Assy, Fuel Tank Solenoid Main
77740 Canister Assy, Charcoal
77740Q Leak Detection Pump Sub-assy, Charcoal Canister
77745 Filter, Charcoal Canister, NO.1
77746 Filter, Charcoal Canister, NO.2
77765 Protector, Charcoal Canister
77775 Guide, Charcoal Canister Outlet
77785 Harness, Fuel Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
