Toyota Lexus RX450H/350(Nap

2015-10 → present · chassis GGL2#,GYL2# · catalogue 523430 · United States

Supported model Data version 2019-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

19 part groups · 4 illustrations

Illustrations

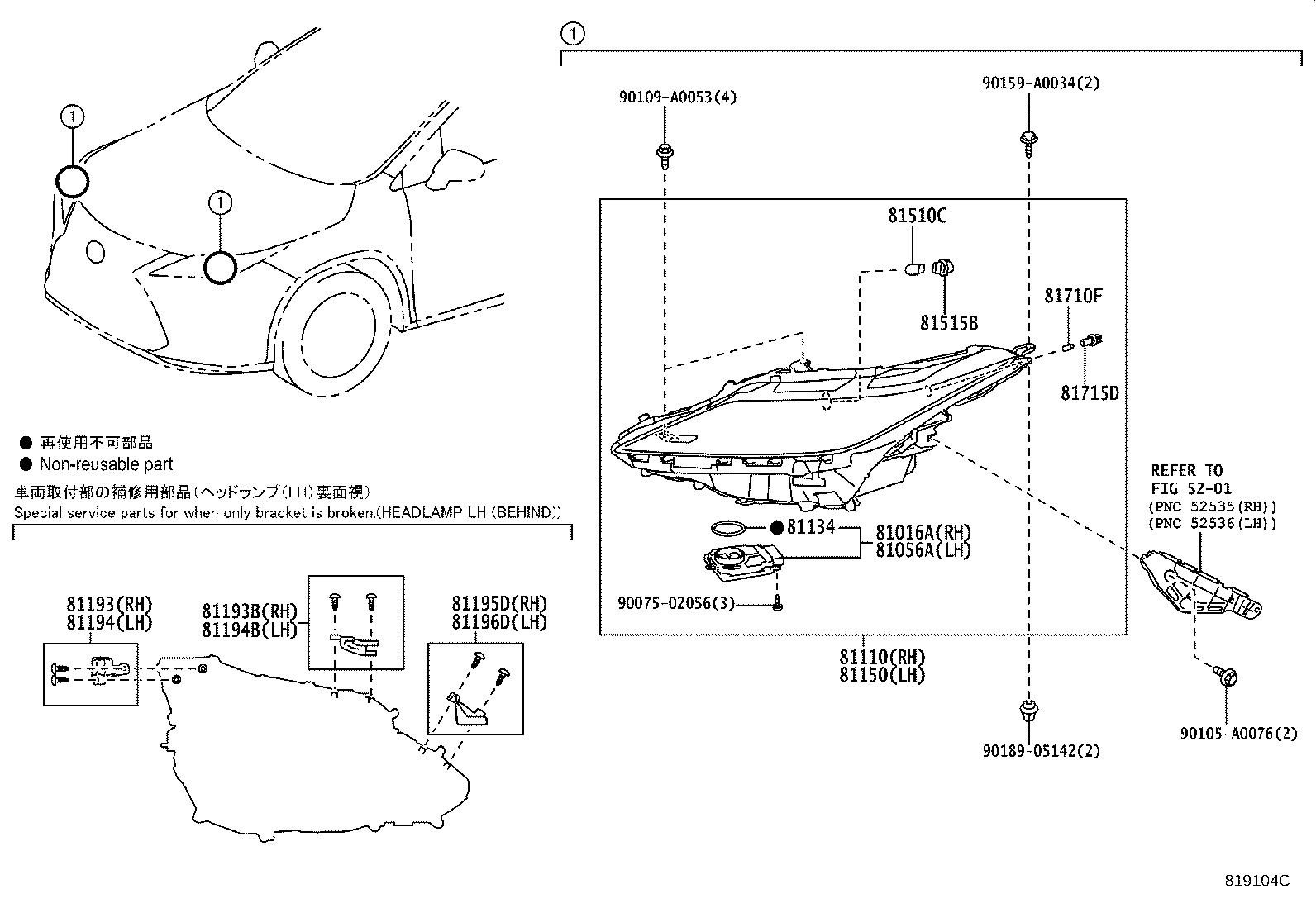

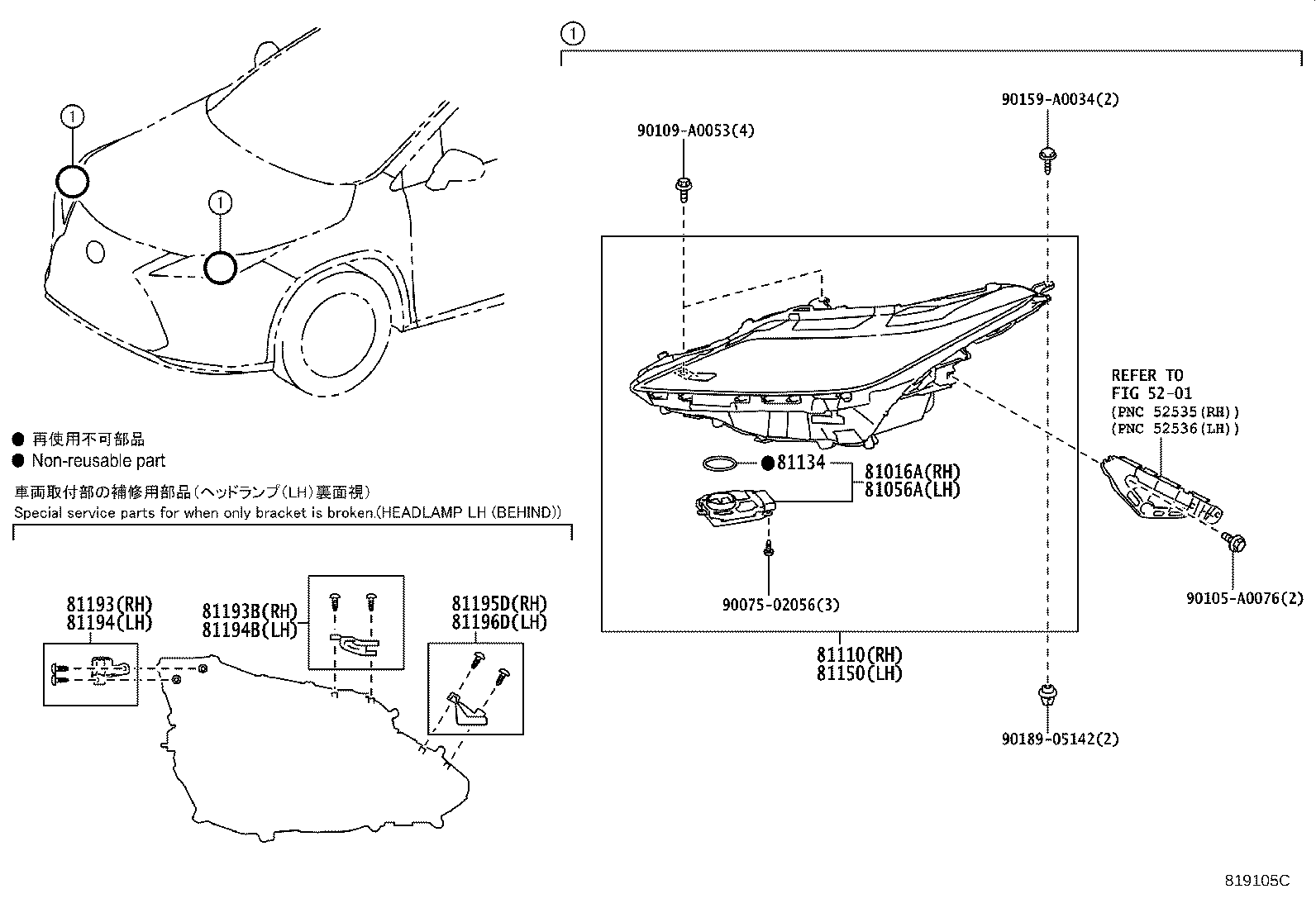

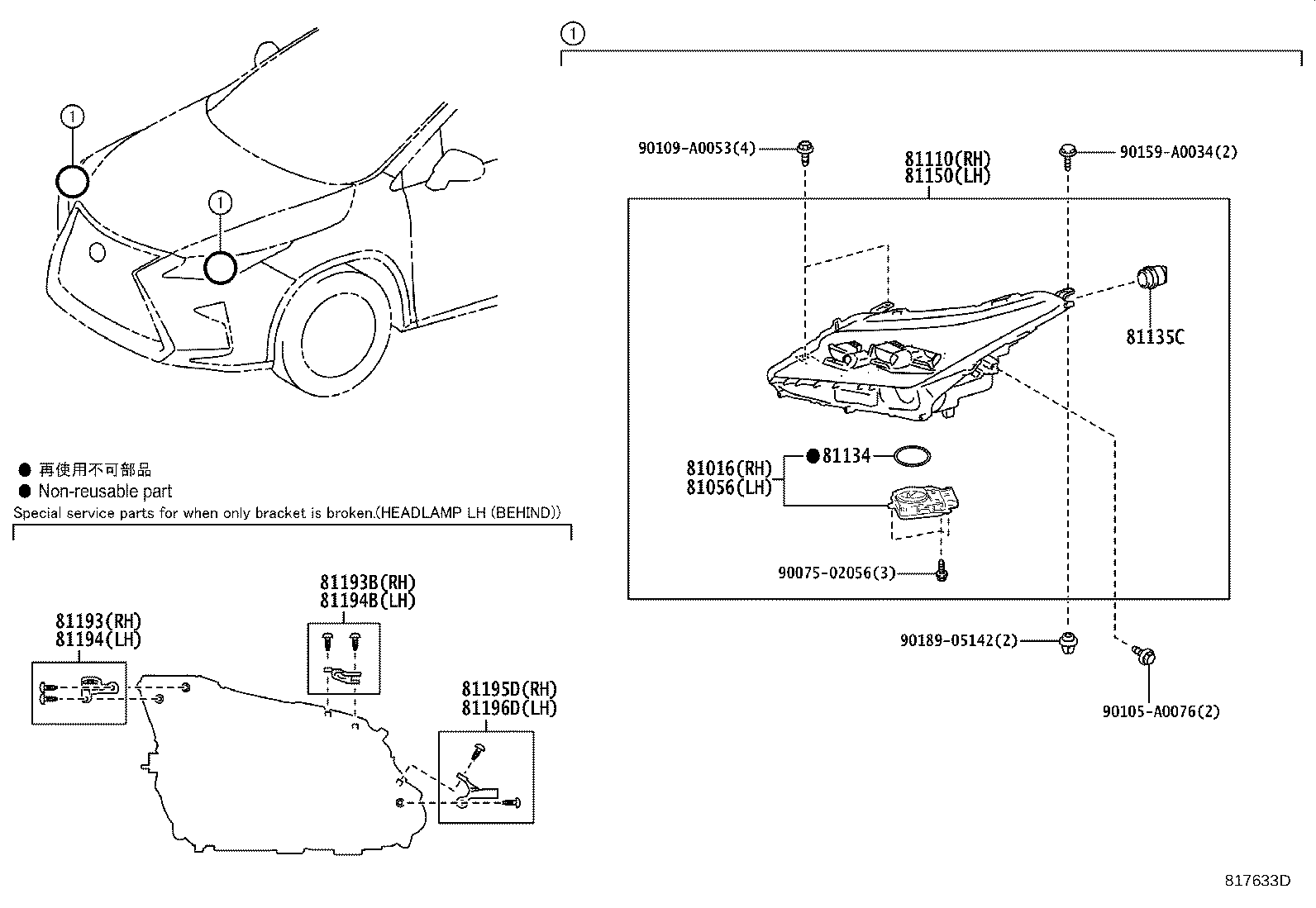

Figure 817698D 817698D 2015-10 → 2019-09 Figure 817633D 817633D 2015-10 → 2019-09 Figure 819104C 819104C 2019-09 → — Figure 819105C 819105C 2019-09 → —

Part groups

PNCDescription
81016 Computer Sub-assy, Headlamp, RH NO.1
81016A Computer Sub-assy, Headlamp, RH
81056 Computer Sub-assy, Headlamp, LH NO.1
81056A Computer Sub-assy, Headlamp, LH
81110 Headlamp Assy, RH
81134 Gasket, Headlamp
81135C Cover, Headlamp Back, NO.1
81150 Headlamp Assy, LH
81193 Retainer, Headlamp Protector, Upper RH
81193B Retainer, Headlamp Protector, Upper RH NO.2
81194 Retainer, Headlamp Protector, Upper LH
81194B Retainer, Headlamp Protector, Upper LH NO.2
81195D Retainer, Headlamp Protector, Lower RH NO.2
81196D Retainer, Headlamp Protector, Lower LH NO.2
81510C Bulb (FOR FRONT TURN SIGNAL LAMP)
81515B Socket, Front Turn Signal Lamp
81710F Bulb, Front Side Maker Lamp
81715B Socket & Wire, Front Side Marker Lamp
81715D Socket Plug, Front Marker Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
