Fog Lamp

4 part groups · 3 illustrations

Illustrations

Figure 817552A

817552A 2015-10 → 2016-09

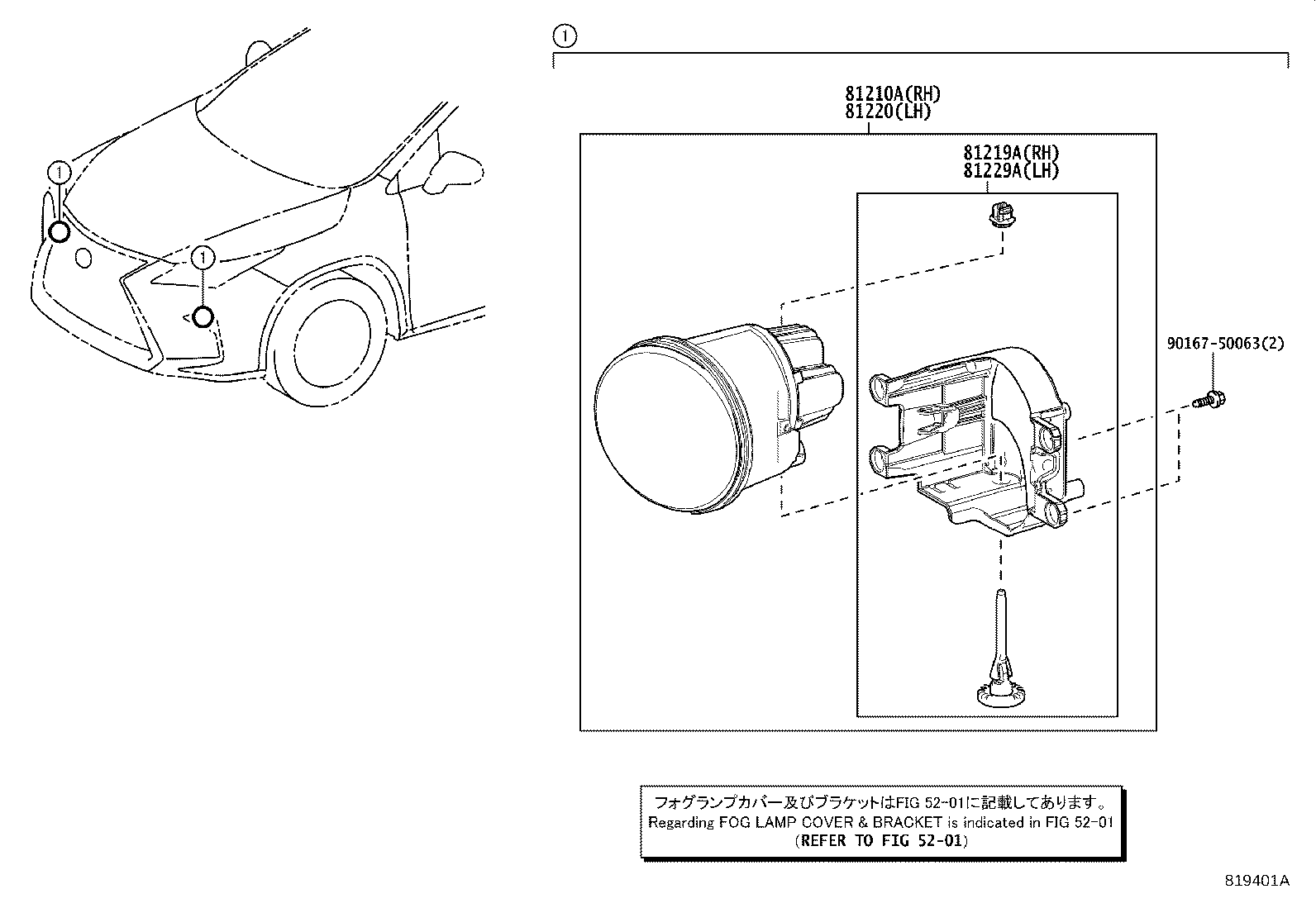

Figure 819401A

819401A 2016-09 → 2019-09

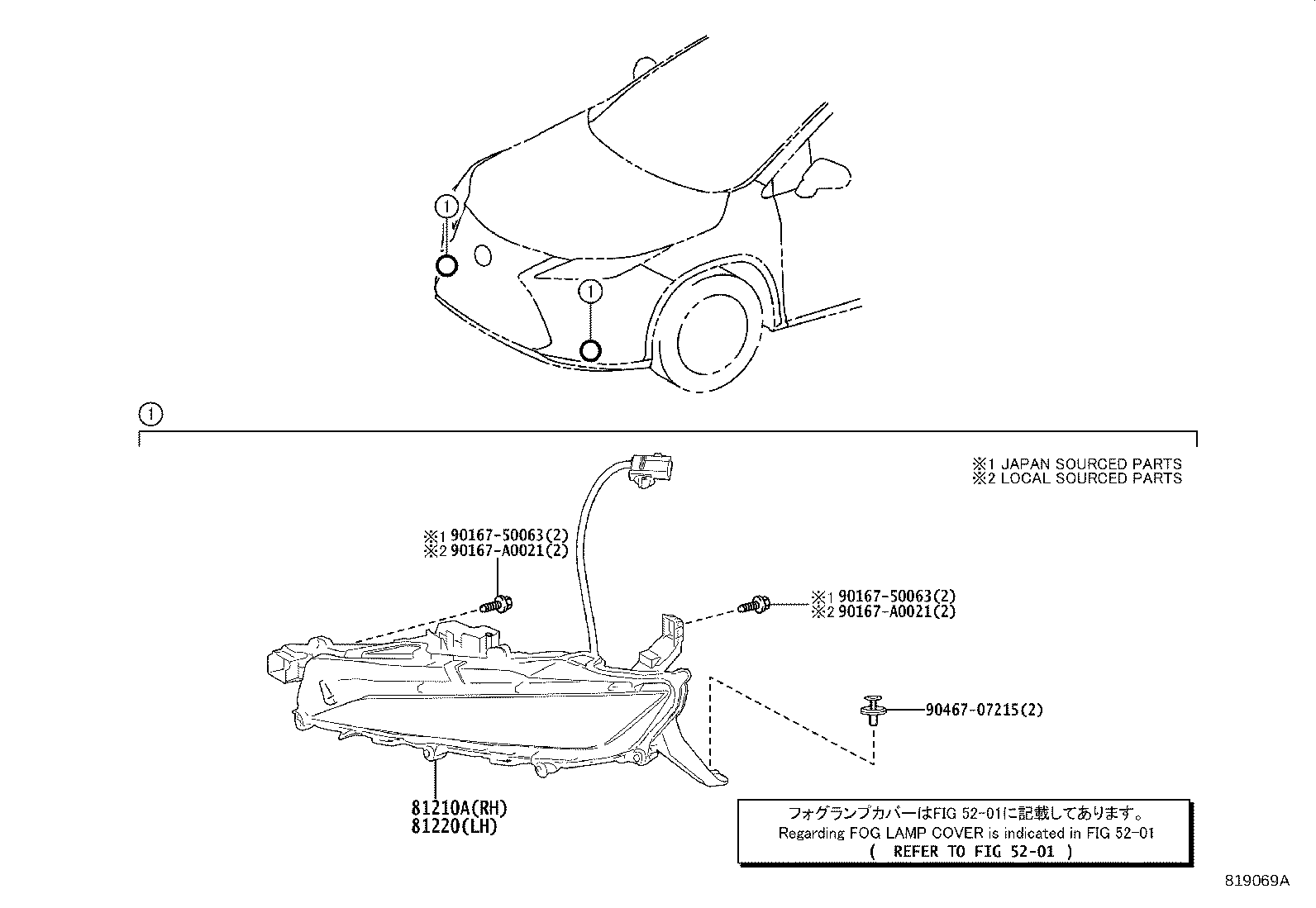

Figure 819069A

819069A 2019-09 → —

Part groups

PNC	Description
81210A	Lamp Assy, Fog, RH
81219A	Bracket, Fog Lamp, RH
81220	Lamp Assy, Fog, LH
81229A	Bracket, Fog Lamp, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
