Toyota Lexus RX450H/350(Nap

2015-10 → present · chassis GGL2#,GYL2# · catalogue 523430 · United States

Supported model Data version 2019-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

13 part groups · 5 illustrations

Illustrations

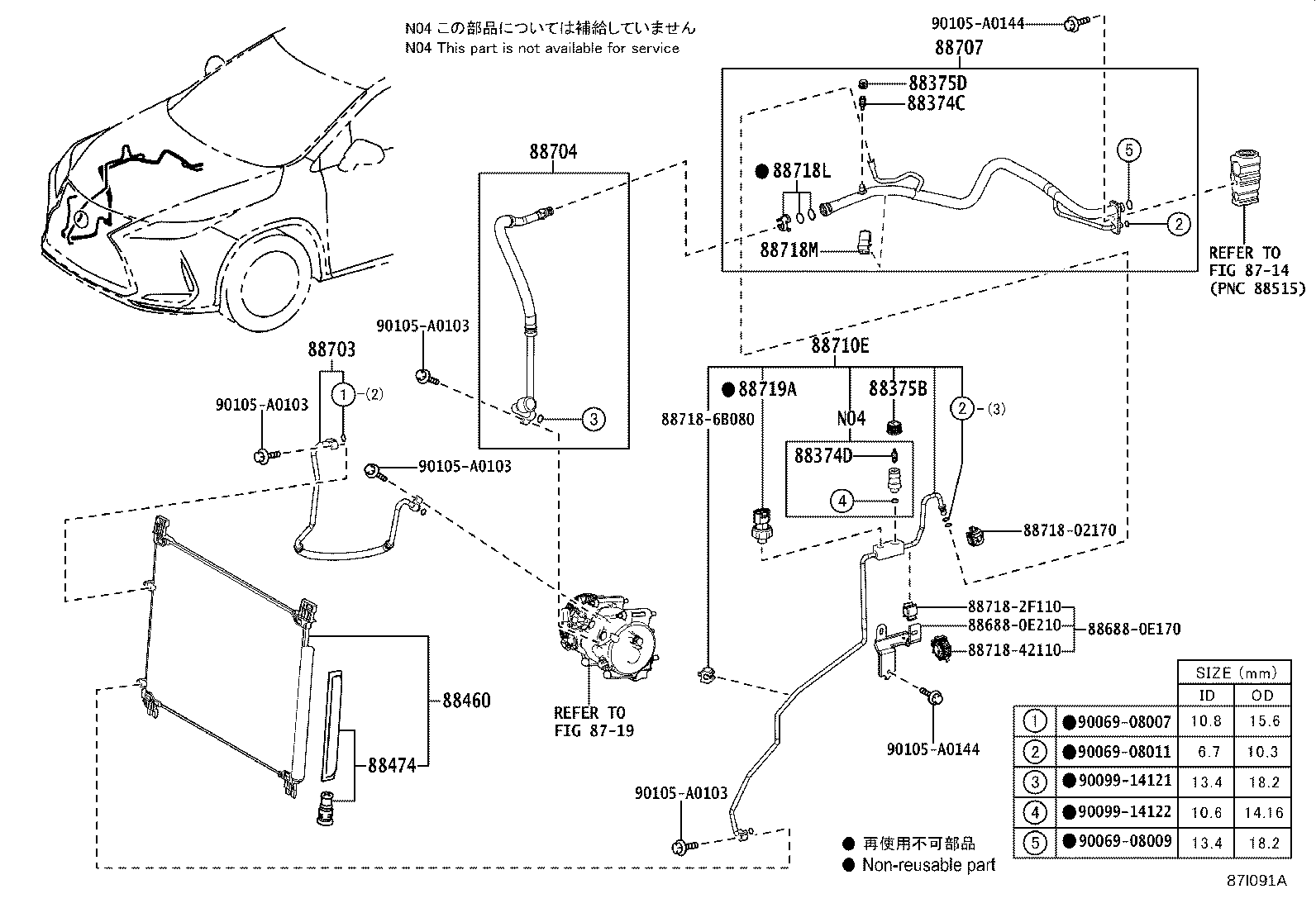

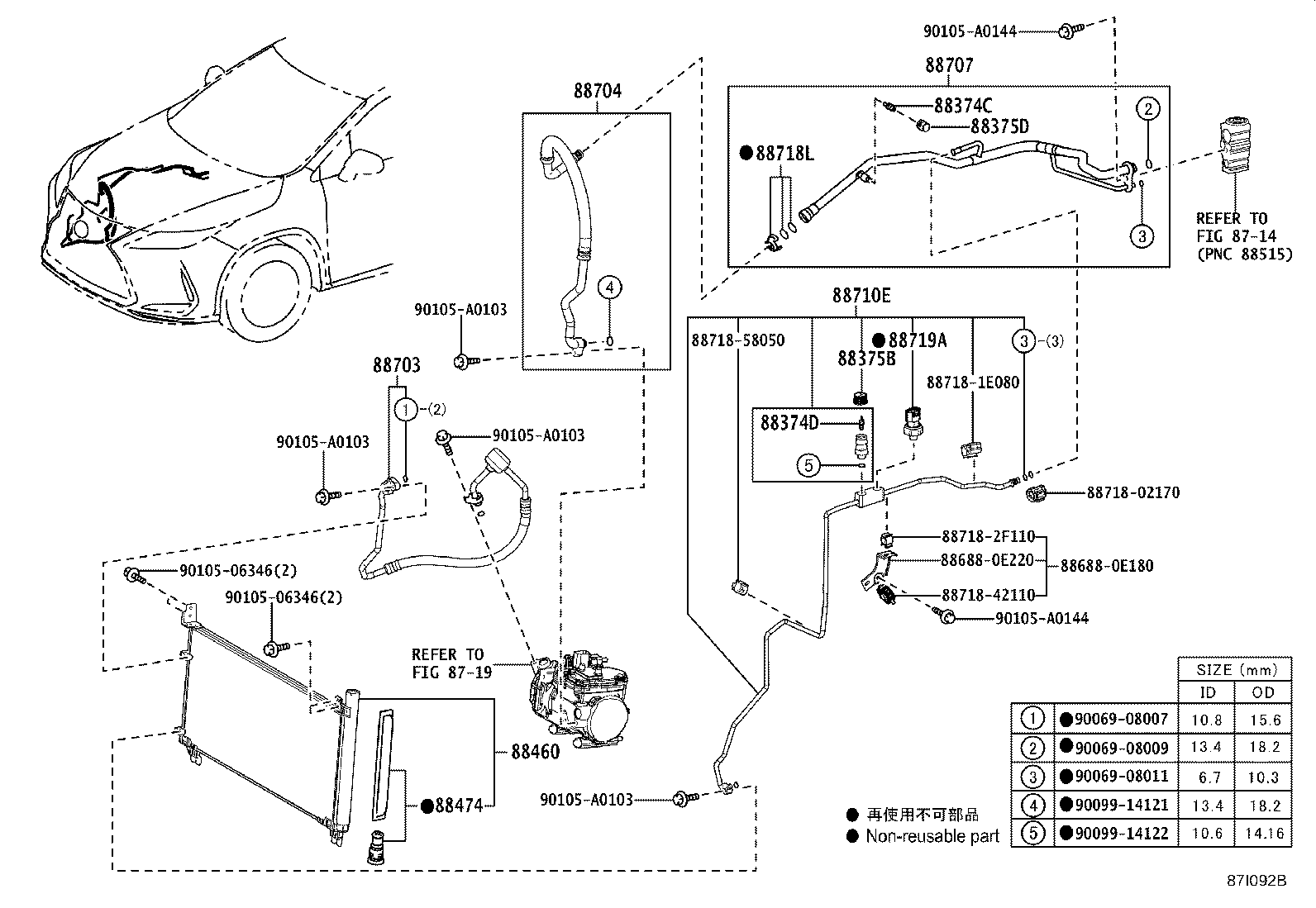

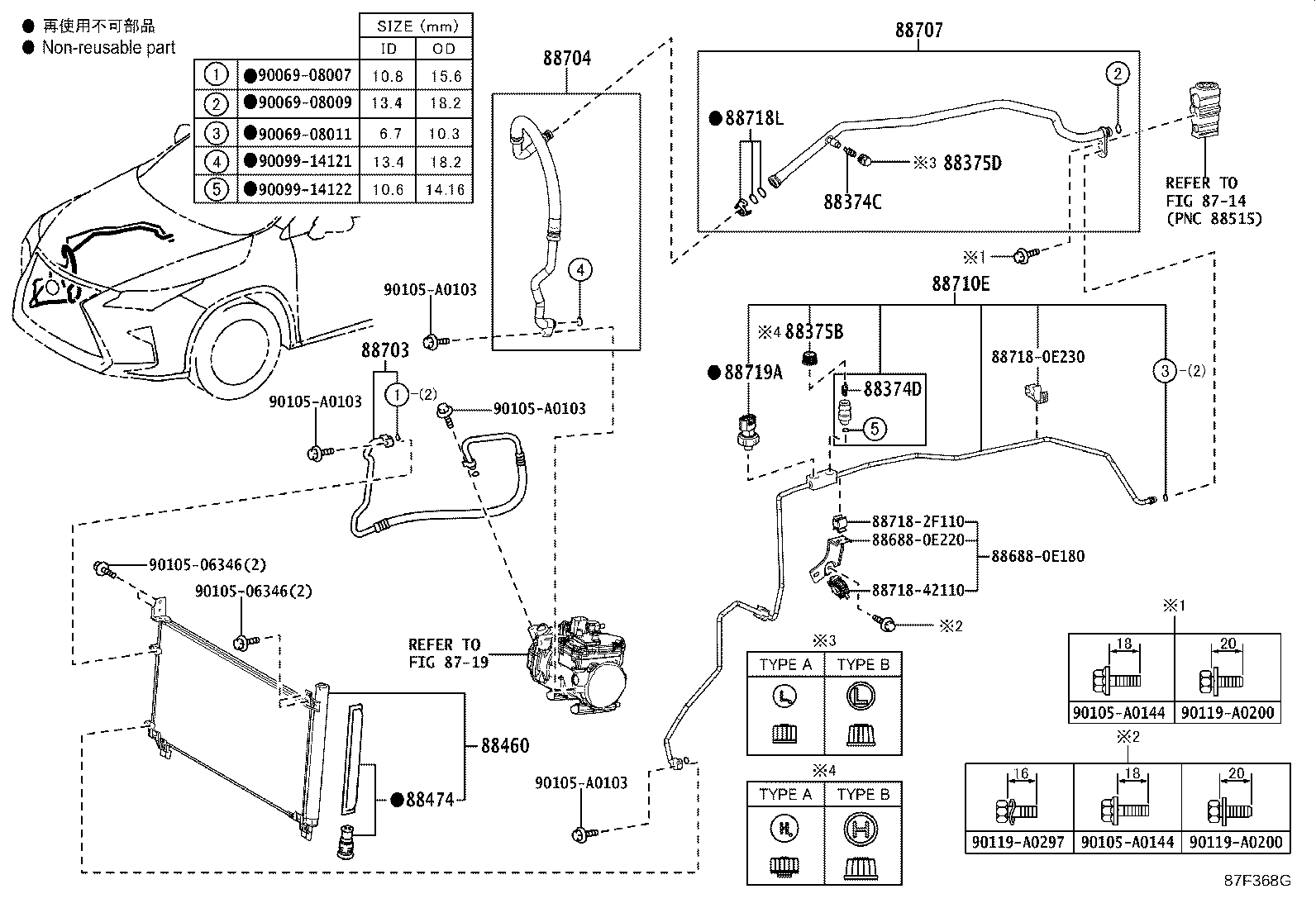

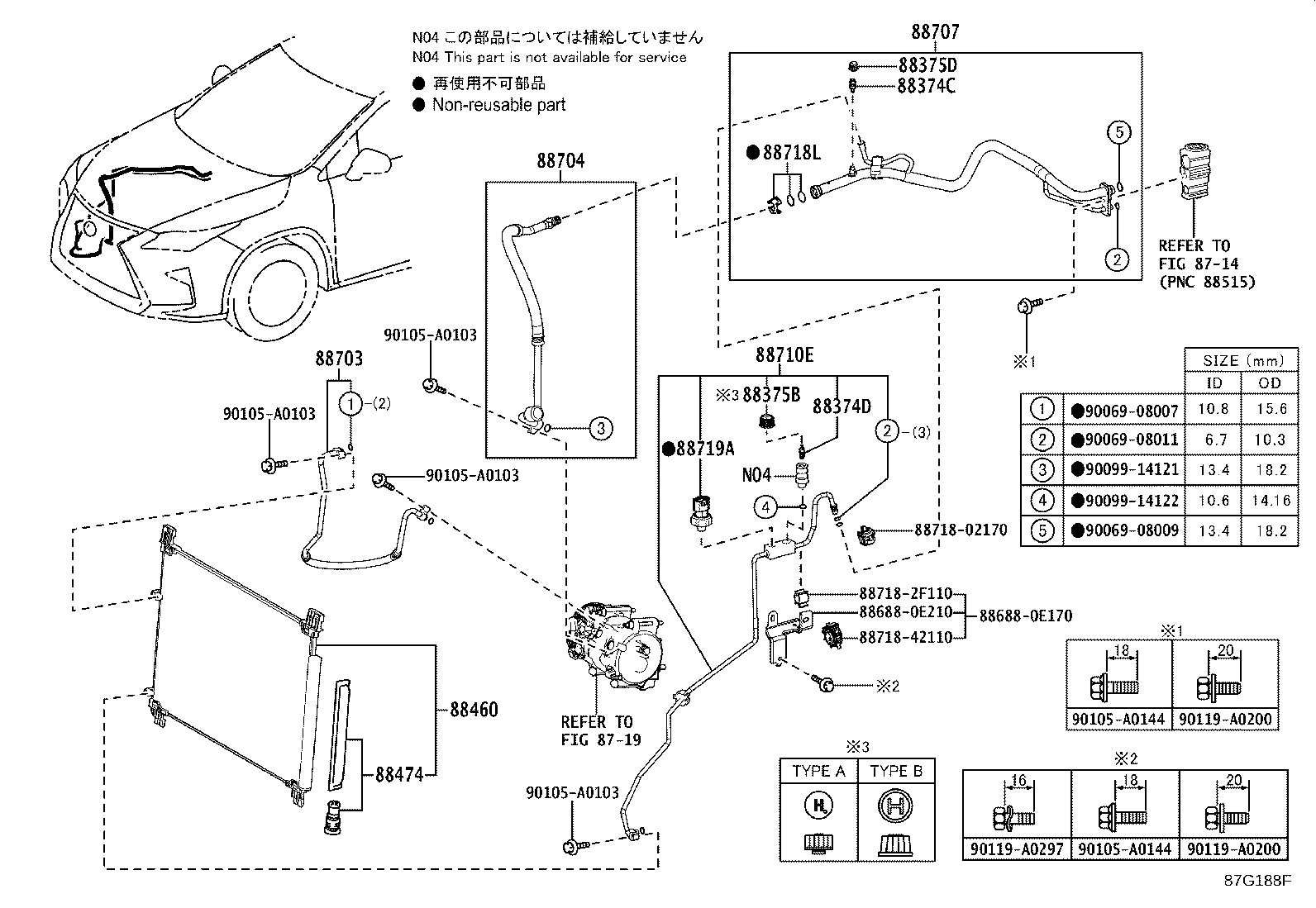

Figure 87F366G 87F366G 2015-10 → 2016-12 Figure 87G188F 87G188F 2016-12 → 2019-09 Figure 87I091A 87I091A 2019-09 → — Figure 87F368G 87F368G 2015-10 → 2019-09 Figure 87I092B 87I092B 2019-09 → —

Part groups

PNCDescription
88374C Valve, Service, NO.2
88374D Valve, Service NO.3
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88460 Condenser Assy, Cooler
88474 Dryer, Cooler
88703 Hose Sub-assy, Discharge
88704 Hose Sub-assy, Suction
88707 Pipe Sub-assy, Suction
88710E Tube & Accessory Assy, Air Conditioner
88718L Clamp, Piping
88718M Clamp, Piping
88719A Sensor, Air Conditioner Pressure
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
