Toyota Lexus RX Series(Tmmc
2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States
Supported model
Data version 2022-09

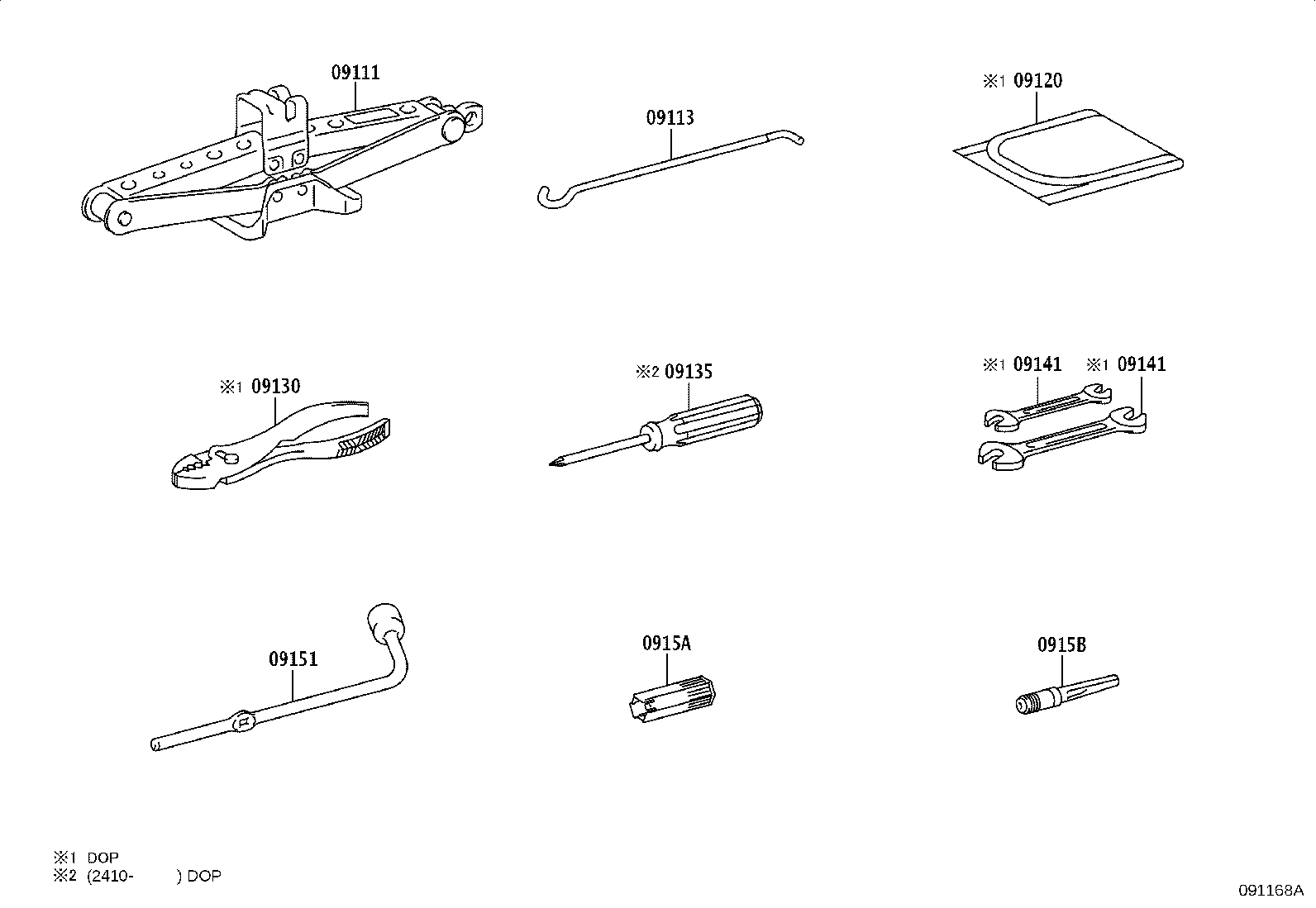

| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 09111 — Jack Sub-assy | ||||
| 09111-0E061 |
Jack Sub-assy
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 09113 — Handle, Jack | ||||
| 09113-08020 |
Handle, Jack
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 09120 — Bag, Tool | ||||
| 09120-48010 note |
Bag, Tool
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 09130 — Pliers | ||||
| 09130-50040 note |
Pliers
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 09135 — Driver, Screw | ||||
| 99915-10700 |
Driver, Screw
2022-10 → 2024-11
ended
|
AALH15,TALA1#,TALH17 | — | |
| 99915-10700 note |
Driver, Screw
2024-11 → —
|
AALH15,TALA1#,TALH17 | — | |
| 09141 — Spanner | ||||
| 09141-60010 note |
Spanner
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 09141-60020 note |
Spanner
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 09151 — Wrench, Hub Bolt Box | ||||
| 09151-F6010 |
Wrench, Hub Bolt Box
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 0915A — Socket, Hub Bolt Temporary Setting | ||||
| 0915A-F6010 |
Socket, Hub Bolt Temporary Setting
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
| 0915B — Pin, Wheel Guide | ||||
| 0915B-F6010 |
Pin, Wheel Guide
2022-10 → —
|
AALH15,TALA1#,TALH17 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
