Toyota Lexus RX Series(Tmmc
2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States
Supported model
Data version 2022-09

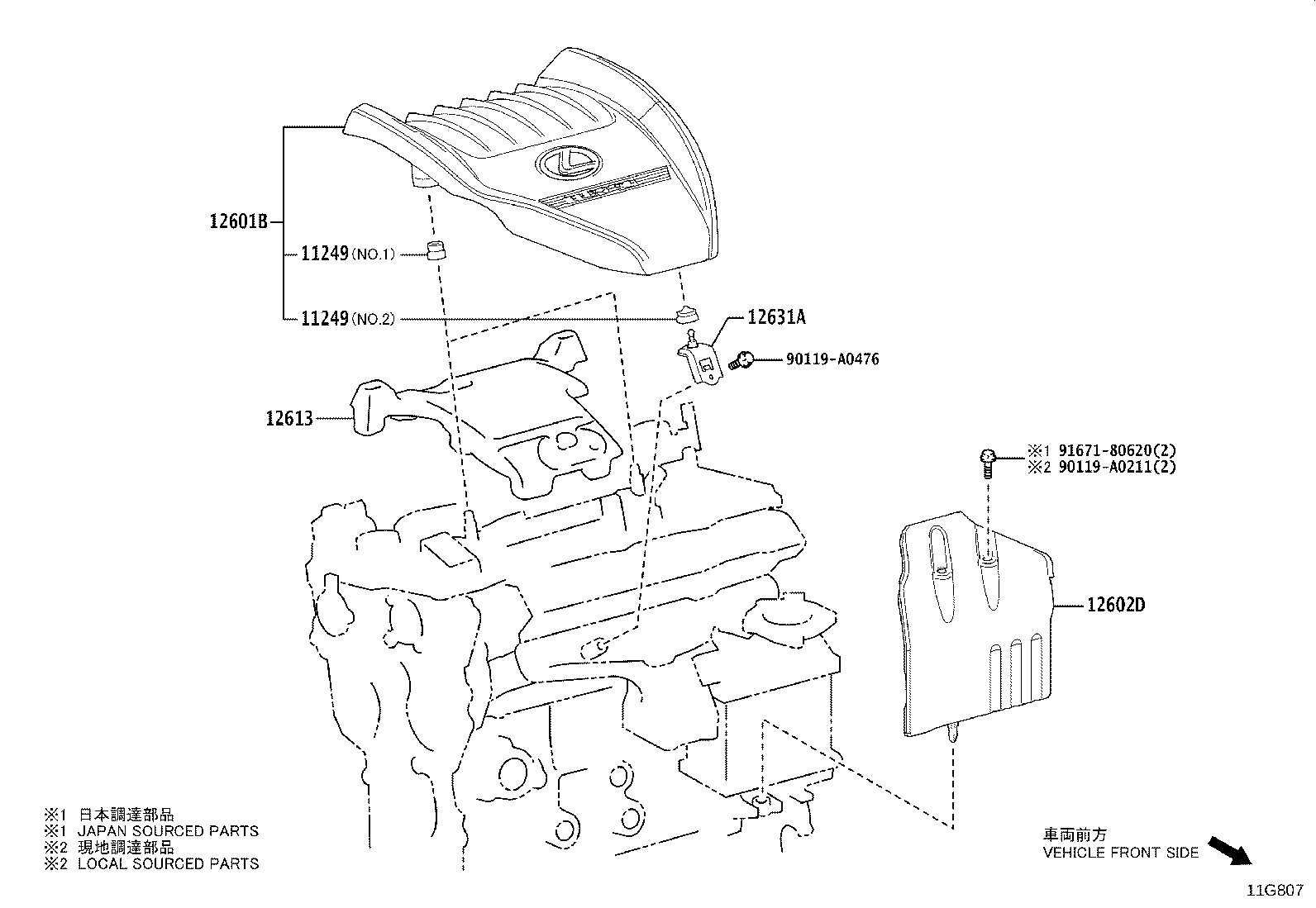

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11249 — Grommet, Cylinder Head Cover | ||||
| 90480-14027 note |
Grommet, Cylinder Head Cover
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
| 90480-22024 note |
Grommet, Cylinder Head Cover
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
| 12601B — Cover Sub-assy, Engine, NO.1 | ||||
| 12601-25140 note |
Cover Sub-assy, Engine, NO.1
2022-10 → —
|
A25AFXS AALH15 | — | |
| 12601-F0140 |
Cover Sub-assy, Engine, NO.1
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
| 12601-F0150 note |
Cover Sub-assy, Engine, NO.1
2022-10 → —
|
A25AFXS AALH15 | — | |
| 12602D — Cover Sub-assy, Engine, NO.2 | ||||
| 12602-F0020 |
Cover Sub-assy, Engine, NO.2
2022-10 → 2023-11
ended
|
T24AFTS TALA1#,TALH17 | — | |
| 12602-F0030 |
Cover Sub-assy, Engine, NO.2
2023-12 → —
|
T24AFTS TALA1#,TALH17 | — | |
| 12613 — Cover, Engine, NO.3 | ||||
| 12613-25050 |
Cover, Engine, NO.3
2022-10 → 2023-02
ended
|
T24AFTS TALA1#,TALH17 | — | |
| 12613-F0050 |
Cover, Engine, NO.3
2023-03 → —
|
T24AFTS TALA1#,TALH17 | — | |
| 12631A — Bracket, Engine Cover | ||||
| 12631-25010 |
Bracket, Engine Cover
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
