Toyota Lexus RX Series(Tmmc

2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States

Supported model Data version 2022-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

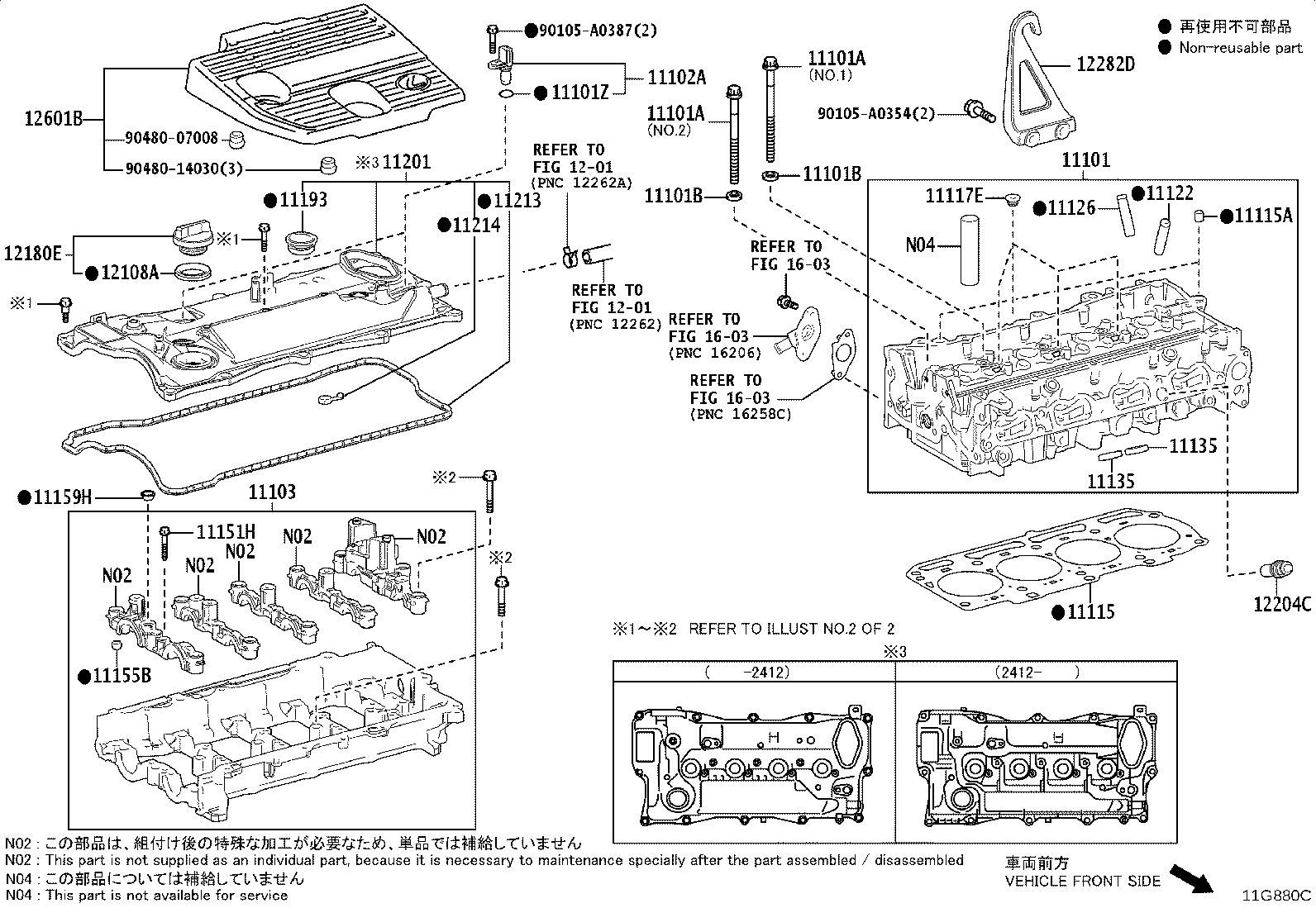

Exploded illustration 11G880C 11101A — BOLT(FOR CYLINDER HEAD SET) (6 parts) 11101A — BOLT(FOR CYLINDER HEAD SET) (6 parts) 11101 — HEAD SUB-ASSY, CYLINDER (2 parts) 11101B — WASHER, PLATE(FOR CYLINDER HEAD SET) (2 parts) 11101B — WASHER, PLATE(FOR CYLINDER HEAD SET) (2 parts) 11103 — HOUSING SUB-ASSY, CAMSHAFT (2 parts) 11115 — GASKET, CYLINDER HEAD (2 parts) 11115A — PIN, RING (2 parts) 11117E — PLUG, W/HEAD STRAIGHT SCREW, NO.1 (2 parts) 11122 — BUSH, INTAKE VALVE GUIDE (4 parts) 11126 — BUSH, EXHAUST VALVE GUIDE (4 parts) 11135 — SEAT, EXHAUST VALVE (3 parts) 11151H — BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING) (2 parts) 11155B — PIN, RING (2 parts) 11159H — GASKET, CAMSHAFT BEARING CAP OIL HOLE (2 parts) 11193 — GASKET, SPARK PLUG TUBE (3 parts) 11201 — COVER SUB-ASSY, CYLINDER HEAD (4 parts) 11213 — GASKET, CYLINDER HEAD COVER (3 parts) 11214 — GASKET, CYLINDER HEAD COVER, NO.2 (3 parts) 12180E — CAP ASSY, OIL FILLER (1 parts) 12108A — GASKET(FOR OIL FILLER CAP) (2 parts) 12204C — VALVE SUB-ASSY, VENTILATION (1 parts) 12282D — HANGER, ENGINE, NO.2 (2 parts) 90105A0387 — not listed in this catalogue 90105A0354 — not listed in this catalogue 1201 — not listed in this catalogue 1201 — not listed in this catalogue 1603 — not listed in this catalogue 1603 — not listed in this catalogue 1603 — not listed in this catalogue 11135 — SEAT, EXHAUST VALVE (3 parts) 11102A — SENSOR, CAMSHAFT POSITION (2 parts) 11101Z — O RING, CAM POSITION SENSOR (2 parts) 12601B — COVER SUB-ASSY, ENGINE, NO.1 (3 parts) 9048007008 — not listed in this catalogue 9048014030 — not listed in this catalogue
11G880C · 27 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
61 parts on this figure
Part number Description Fitment Price
11101 — Head Sub-assy, Cylinder
11101-F9002 Head Sub-assy, Cylinder
2022-10 → —
A25AFXS AALH15 —
11101-F9210 Head Sub-assy, Cylinder
2022-10 → —
T24AFTS TALA1#,TALH17 —
11101A — Bolt(FOR CYLINDER HEAD SET)
90910-02212 note Bolt(FOR CYLINDER HEAD SET)
2023-08 → —
T24AFTS TALA1#,TALH17 —
90910-02212 note Bolt(FOR CYLINDER HEAD SET)
2022-10 → 2023-08 ended
T24AFTS TALA1#,TALH17 —
90910-A2018 note Bolt(FOR CYLINDER HEAD SET)
2022-10 → —
A25AFXS AALH15 —
90910-A2018 note Bolt(FOR CYLINDER HEAD SET)
2022-10 → —
T24AFTS TALA1#,TALH17 —
90910-A2019 note Bolt(FOR CYLINDER HEAD SET)
2022-10 → —
A25AFXS AALH15 —
90910-A2024 note Bolt(FOR CYLINDER HEAD SET)
2023-08 → —
T24AFTS TALA1#,TALH17 —
11101B — Washer, Plate(FOR CYLINDER HEAD SET)
90201-12079 Washer, Plate(FOR CYLINDER HEAD SET)
2022-10 → —
T24AFTS TALA1#,TALH17 —
90201-12079 Washer, Plate(FOR CYLINDER HEAD SET)
2022-10 → —
A25AFXS AALH15 —
11101Z — O Ring, Cam Position Sensor
90301-11038 O Ring, Cam Position Sensor
2022-10 → —
A25AFXS AALH15 —
90301-11038 O Ring, Cam Position Sensor
2022-10 → —
T24AFTS TALA1#,TALH17 —
11102A — Sensor, Camshaft Position
90919-A5007 Sensor, Camshaft Position
2022-10 → —
A25AFXS AALH15 —
90919-A5007 Sensor, Camshaft Position
2022-10 → —
T24AFTS TALA1#,TALH17 —
11103 — Housing Sub-assy, Camshaft
11103-F0060 Housing Sub-assy, Camshaft
2022-10 → —
A25AFXS AALH15 —
11103-F0080 Housing Sub-assy, Camshaft
2022-10 → —
T24AFTS TALA1#,TALH17 —
11115 — Gasket, Cylinder Head
11115-F0010 Gasket, Cylinder Head
2022-10 → —
A25AFXS AALH15 —
11115-F0030 Gasket, Cylinder Head
2022-10 → —
T24AFTS TALA1#,TALH17 —
11115A — Pin, Ring
90253-12002 Pin, Ring
2022-10 → —
A25AFXS AALH15 —
90253-12002 Pin, Ring
2022-10 → —
T24AFTS TALA1#,TALH17 —
11117E — Plug, W/Head Straight Screw, NO.1
90341-27006 Plug, W/Head Straight Screw, NO.1
2022-10 → —
T24AFTS TALA1#,TALH17 —
90341-A0005 Plug, W/Head Straight Screw, NO.1
2022-10 → —
A25AFXS AALH15 —
11122 — Bush, Intake Valve Guide
11122-31090 note Bush, Intake Valve Guide
2022-10 → —
A25AFXS AALH15 —
11122-31090 note Bush, Intake Valve Guide
2022-10 → —
T24AFTS TALA1#,TALH17 —
11123-31090 note Bush, Intake Valve Guide
2022-10 → —
A25AFXS AALH15 —
11123-31090 note Bush, Intake Valve Guide
2022-10 → —
T24AFTS TALA1#,TALH17 —
11126 — Bush, Exhaust Valve Guide
11122-F0010 note Bush, Exhaust Valve Guide
2022-10 → —
A25AFXS AALH15 —
11123-F0010 note Bush, Exhaust Valve Guide
2022-10 → —
A25AFXS AALH15 —
11126-80010 note Bush, Exhaust Valve Guide
2022-10 → —
T24AFTS TALA1#,TALH17 —
11127-80010 note Bush, Exhaust Valve Guide
2022-10 → —
T24AFTS TALA1#,TALH17 —
11135 — Seat, Exhaust Valve
11135-25020 note Seat, Exhaust Valve
2022-10 → —
A25AFXS AALH15 —
11135-25030 note Seat, Exhaust Valve
2022-10 → —
T24AFTS TALA1#,TALH17 —
11136-25020 note Seat, Exhaust Valve
2022-10 → —
A25AFXS AALH15 —
11151H — Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING)
90119-A0302 Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING)
2022-10 → —
A25AFXS AALH15 —
90119-A0302 Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING)
2022-10 → —
T24AFTS TALA1#,TALH17 —
11155B — Pin, Ring
90253-11021 Pin, Ring
2022-10 → —
T24AFTS TALA1#,TALH17 —
90253-13005 Pin, Ring
2022-10 → —
A25AFXS AALH15 —
11159H — Gasket, Camshaft Bearing Cap Oil Hole
11159-31040 Gasket, Camshaft Bearing Cap Oil Hole
2022-10 → —
A25AFXS AALH15 —
11159-31040 Gasket, Camshaft Bearing Cap Oil Hole
2022-10 → —
T24AFTS TALA1#,TALH17 —
11193 — Gasket, Spark Plug Tube
11193-37030 note Gasket, Spark Plug Tube
2022-10 → 2023-05 ended
T24AFTS TALA1#,TALH17 —
11193-F0010 Gasket, Spark Plug Tube
2022-10 → —
A25AFXS AALH15 —
11193-F0010 note Gasket, Spark Plug Tube
2022-10 → —
T24AFTS TALA1#,TALH17 —
11201 — Cover Sub-assy, Cylinder Head
11201-25060 note Cover Sub-assy, Cylinder Head
2022-10 → 2023-05 ended
T24AFTS TALA1#,TALH17 —
11201-F0012 Cover Sub-assy, Cylinder Head
2022-10 → 2024-12 ended
A25AFXS AALH15 —
11201-F0040 note Cover Sub-assy, Cylinder Head
2022-10 → —
T24AFTS TALA1#,TALH17 —
11201-F0060 Cover Sub-assy, Cylinder Head
2024-12 → —
A25AFXS AALH15 —
11213 — Gasket, Cylinder Head Cover
11213-25020 Gasket, Cylinder Head Cover
2022-10 → —
A25AFXS AALH15 —
11213-25050 note Gasket, Cylinder Head Cover
2022-10 → 2023-05 ended
T24AFTS TALA1#,TALH17 —
11213-F0020 note Gasket, Cylinder Head Cover
2022-10 → —
T24AFTS TALA1#,TALH17 —
11214 — Gasket, Cylinder Head Cover, NO.2
11213-31080 Gasket, Cylinder Head Cover, NO.2
2022-10 → —
A25AFXS AALH15 —
11214-25020 note Gasket, Cylinder Head Cover, NO.2
2022-10 → 2023-05 ended
T24AFTS TALA1#,TALH17 —
11214-F0020 note Gasket, Cylinder Head Cover, NO.2
2022-10 → —
T24AFTS TALA1#,TALH17 —
12108A — Gasket(FOR OIL FILLER CAP)
90430-35001 Gasket(FOR OIL FILLER CAP)
2022-10 → —
A25AFXS AALH15 —
90430-35001 Gasket(FOR OIL FILLER CAP)
2022-10 → —
T24AFTS TALA1#,TALH17 —
12180E — Cap Assy, Oil Filler
12180-38010 Cap Assy, Oil Filler
2022-10 → —
A25AFXS AALH15 —
12204C — Valve Sub-assy, Ventilation
12204-25010 Valve Sub-assy, Ventilation
2022-10 → —
A25AFXS AALH15 —
12282D — Hanger, Engine, NO.2
12282-25010 Hanger, Engine, NO.2
2022-10 → —
A25AFXS AALH15 —
12282-25060 Hanger, Engine, NO.2
2022-10 → —
T24AFTS TALA1#,TALH17 —
12601B — Cover Sub-assy, Engine, NO.1
12601-25140 note Cover Sub-assy, Engine, NO.1
2022-10 → —
A25AFXS AALH15 —
12601-F0140 Cover Sub-assy, Engine, NO.1
2022-10 → —
T24AFTS TALA1#,TALH17 —
12601-F0150 note Cover Sub-assy, Engine, NO.1
2022-10 → —
A25AFXS AALH15 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
