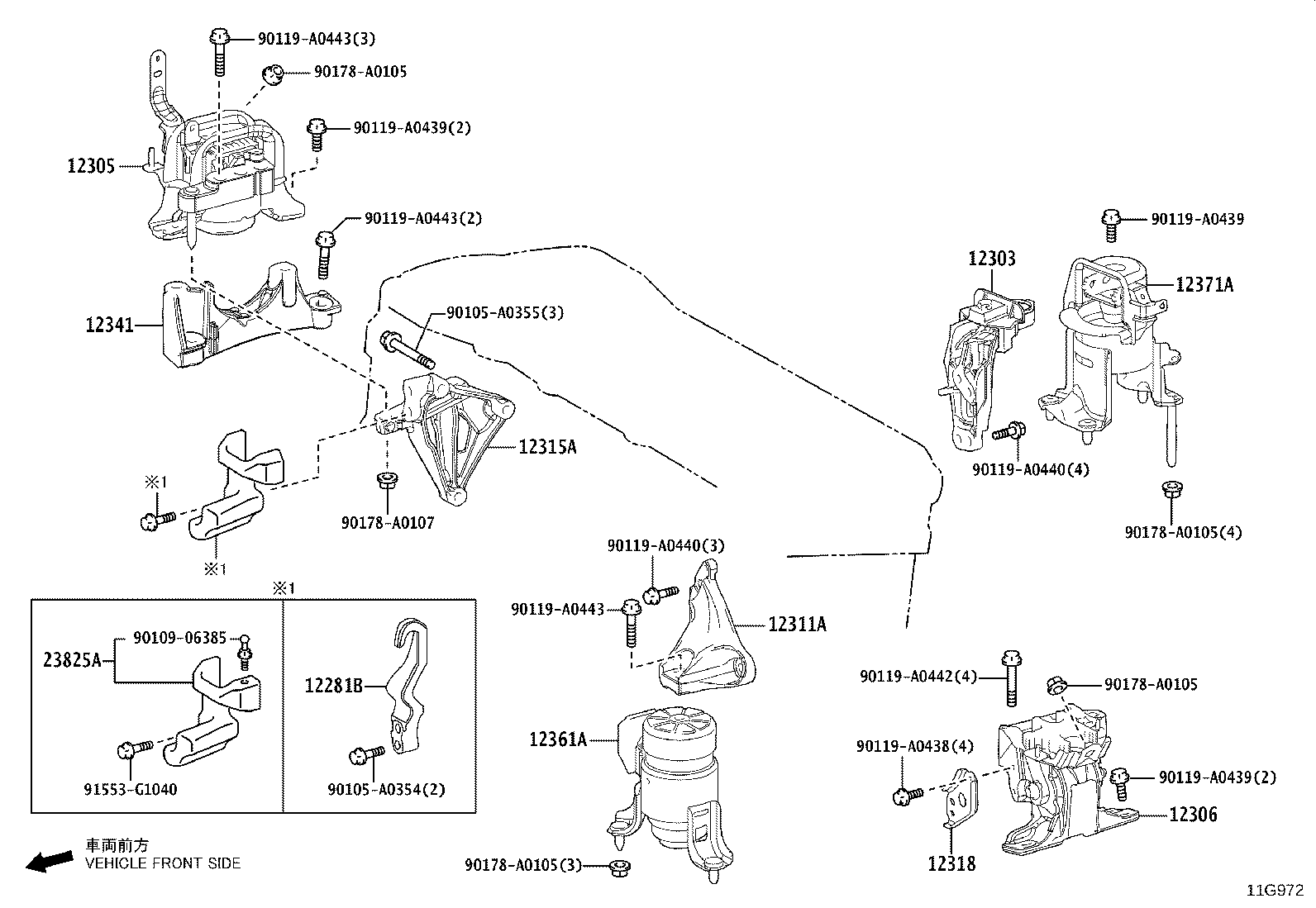

Toyota Lexus RX Series(Tmmc
2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States
Supported model
Data version 2022-09
Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 12281B — Hanger, Engine, NO.1 | ||||
| 12281-25030 |
Hanger, Engine, NO.1
2022-10 → —
|
A25AFXS AALH15 | — | |
| 12281-25080 |
Hanger, Engine, NO.1
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
| 12303 — Bracket Sub-assy, Engine Mounting, Rear | ||||
| 12303-F0140 |
Bracket Sub-assy, Engine Mounting, Rear
2022-10 → —
|
A25AFXS AALH15 | — | |
| 12305 — Insulator Sub-assy, Engine Mounting, RH | ||||
| 12305-F0150 |
Insulator Sub-assy, Engine Mounting, RH
2022-10 → —
|
A25AFXS AALH15 | — | |
| 12306 — Insulator Sub-assy, Engine Mounting, LH | ||||
| 12306-F0080 |
Insulator Sub-assy, Engine Mounting, LH
2022-10 → —
|
A25AFXS AALH15 | — | |
| 12311A — Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE) | ||||
| 12311-25120 note |
Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2022-10 → —
|
A25AFXS AALH15 | — | |
| 12311-25140 |
Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2022-10 → —
|
T24AFTS TALH17 | — | |
| 12311-F0120 note |
Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2022-10 → 2023-06
ended
|
A25AFXS AALH15 | — | |
| 12311-F0160 |
Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2022-10 → —
|
T24AFTS TALA1# | — | |
| 12315A — Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-25031 |
Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2022-10 → —
|
A25AFXS AALH15 | — | |
| 12315-25070 |
Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
| 12318 — Stay, Engine Mounting, LH | ||||
| 12318-25050 |
Stay, Engine Mounting, LH
2022-10 → —
|
T24AFTS TALH17 | — | |
| 12318-F0110 |
Stay, Engine Mounting, LH
2022-10 → —
|
A25AFXS AALH15 | — | |
| 12341 — Spacer, Engine Mounting | ||||
| 12341-F0010 |
Spacer, Engine Mounting
2022-10 → —
|
A25AFXS AALH15 | — | |
| 12341-F0010 |
Spacer, Engine Mounting
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
| 12361A — Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE) | ||||
| 12361-F0210 |
Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2022-10 → —
|
A25AFXS AALH15 | — | |
| 12371A — Insulator, Engine Mounting, Rear | ||||
| 12371-25140 |
Insulator, Engine Mounting, Rear
2022-10 → 2023-08
ended
|
T24AFTS TALH17 | — | |
| 12371-F0210 |
Insulator, Engine Mounting, Rear
2022-10 → —
|
A25AFXS AALH15 | — | |
| 12371-F0260 |
Insulator, Engine Mounting, Rear
2022-10 → —
|
T24AFTS TALA10 | — | |
| 12371-F0270 |
Insulator, Engine Mounting, Rear
2022-10 → —
|
T24AFTS TALA15 | — | |
| 12371-V2040 |
Insulator, Engine Mounting, Rear
2023-09 → —
|
T24AFTS TALH17 | — | |
| 23825A — Guard, Fuel Delivery | ||||
| 23825-25030 |
Guard, Fuel Delivery
2022-10 → —
|
A25AFXS AALH15 | — | |
| 23835-25010 |
Guard, Fuel Delivery
2022-10 → —
|
T24AFTS TALH17 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
