Toyota Lexus RX Series(Tmmc
2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States
Supported model
Data version 2022-09

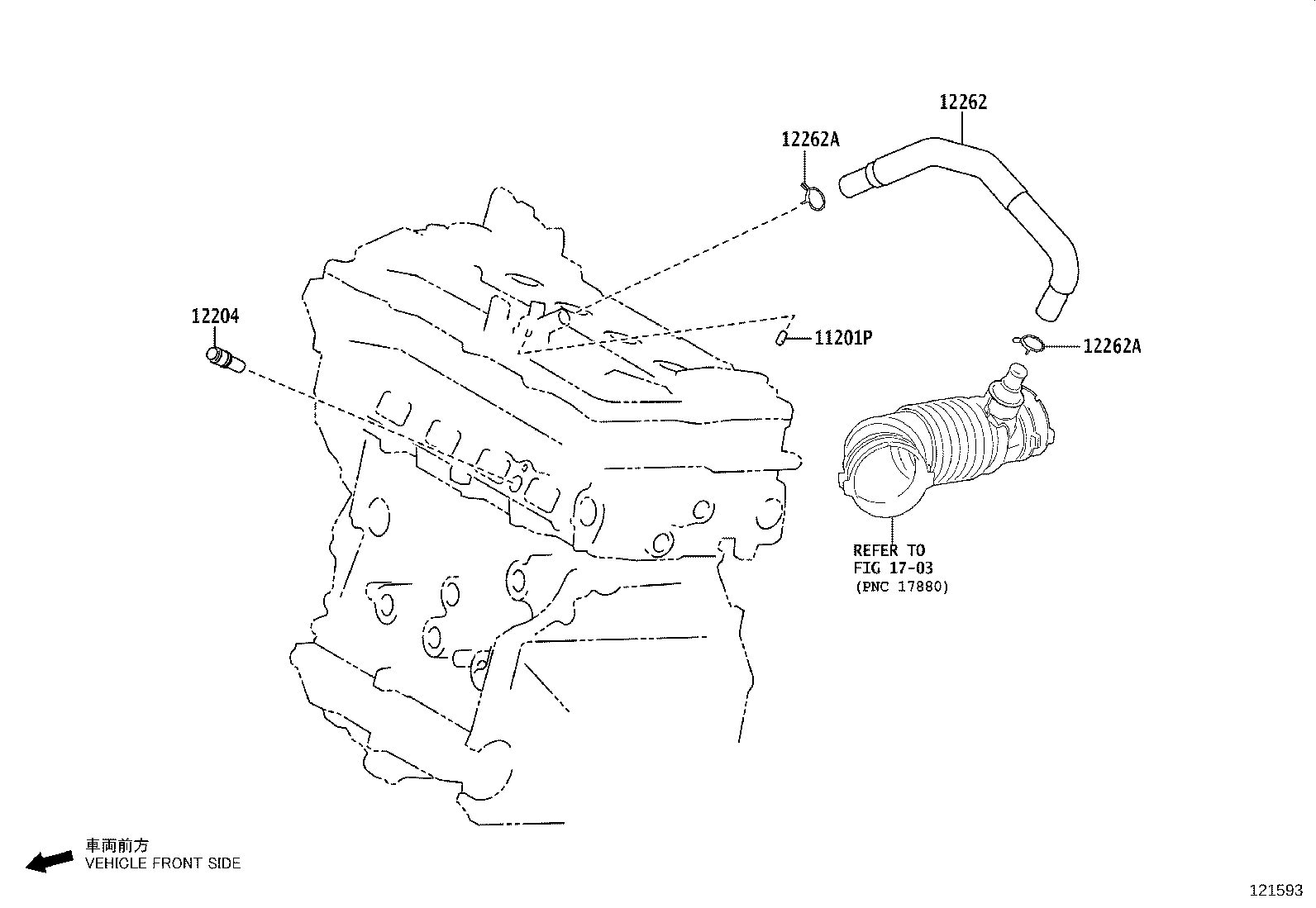

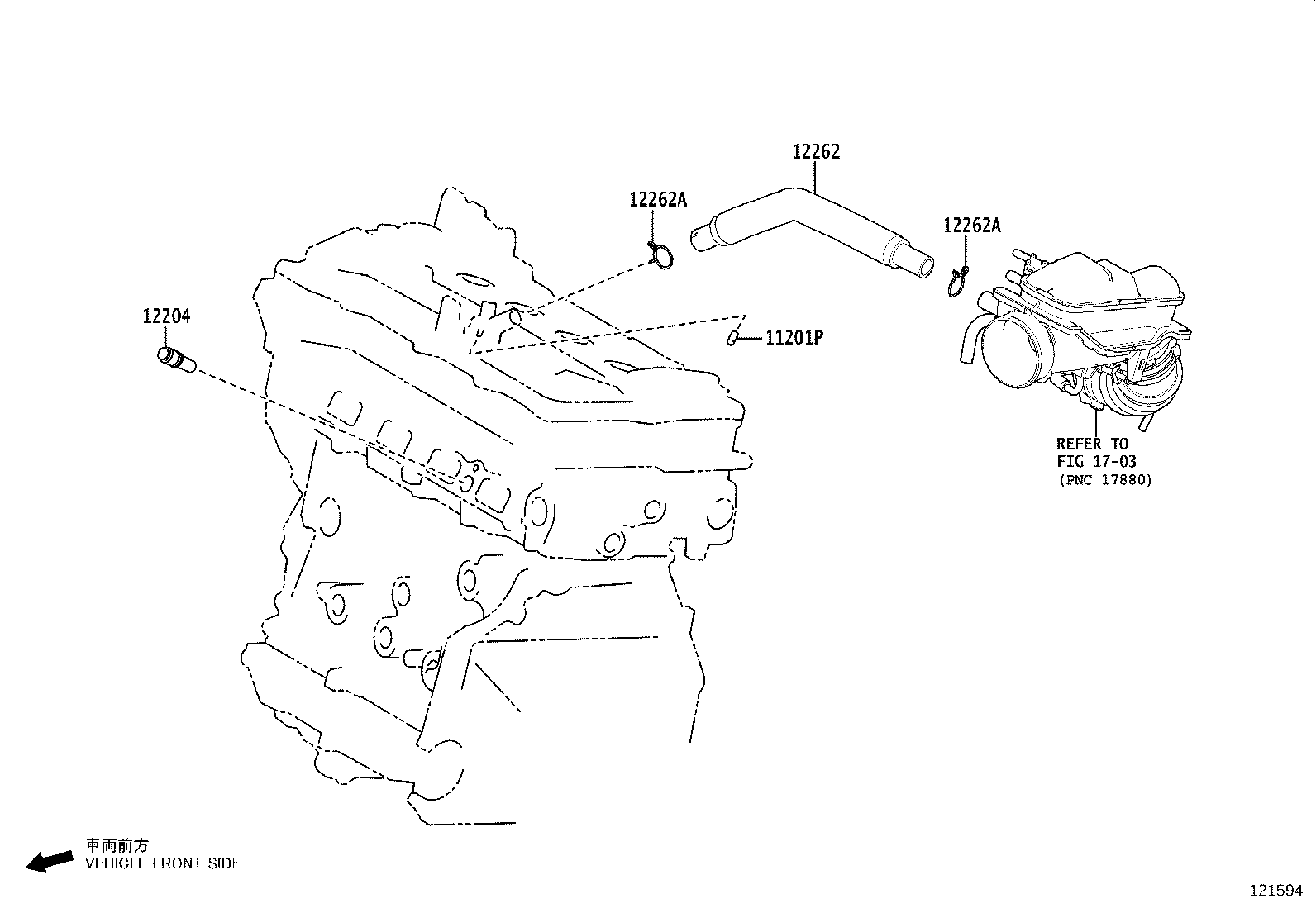

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11201P — Plug(FOR CYLINDER HEAD COVER) | ||||
| 90339-03017 note |
Plug(FOR CYLINDER HEAD COVER)
2022-10 → —
|
T24AFTS TALA15,TALH17 | — | |
| 12204 — Valve Sub-assy, Ventilation | ||||
| 12204-25030 |
Valve Sub-assy, Ventilation
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
| 12262 — Hose, Ventilation, NO.2 | ||||
| 12260-25020 |
Hose, Ventilation, NO.2
2022-10 → —
|
T24AFTS TALH17 | — | |
| 12260-F0010 |
Hose, Ventilation, NO.2
2022-10 → —
|
T24AFTS TALA1# | — | |
| 12262-25070 note |
Hose, Ventilation, NO.2
2022-10 → —
|
T24AFTS TALH17 | — | |
| 12262-25080 |
Hose, Ventilation, NO.2
2022-10 → —
|
A25AFXS AALH15 | — | |
| 12262-25100 note |
Hose, Ventilation, NO.2
2022-10 → —
|
T24AFTS TALA15 | — | |
| 12262A — Clip(FOR VENTILATION HOSE NO.2) | ||||
| 90466-A0028 |
Clip(FOR VENTILATION HOSE NO.2)
2022-10 → —
|
A25AFXS AALH15 | — | |
| 90467-23002 |
Clip(FOR VENTILATION HOSE NO.2)
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
