Toyota Lexus RX Series(Tmmc
2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States
Supported model
Data version 2022-09

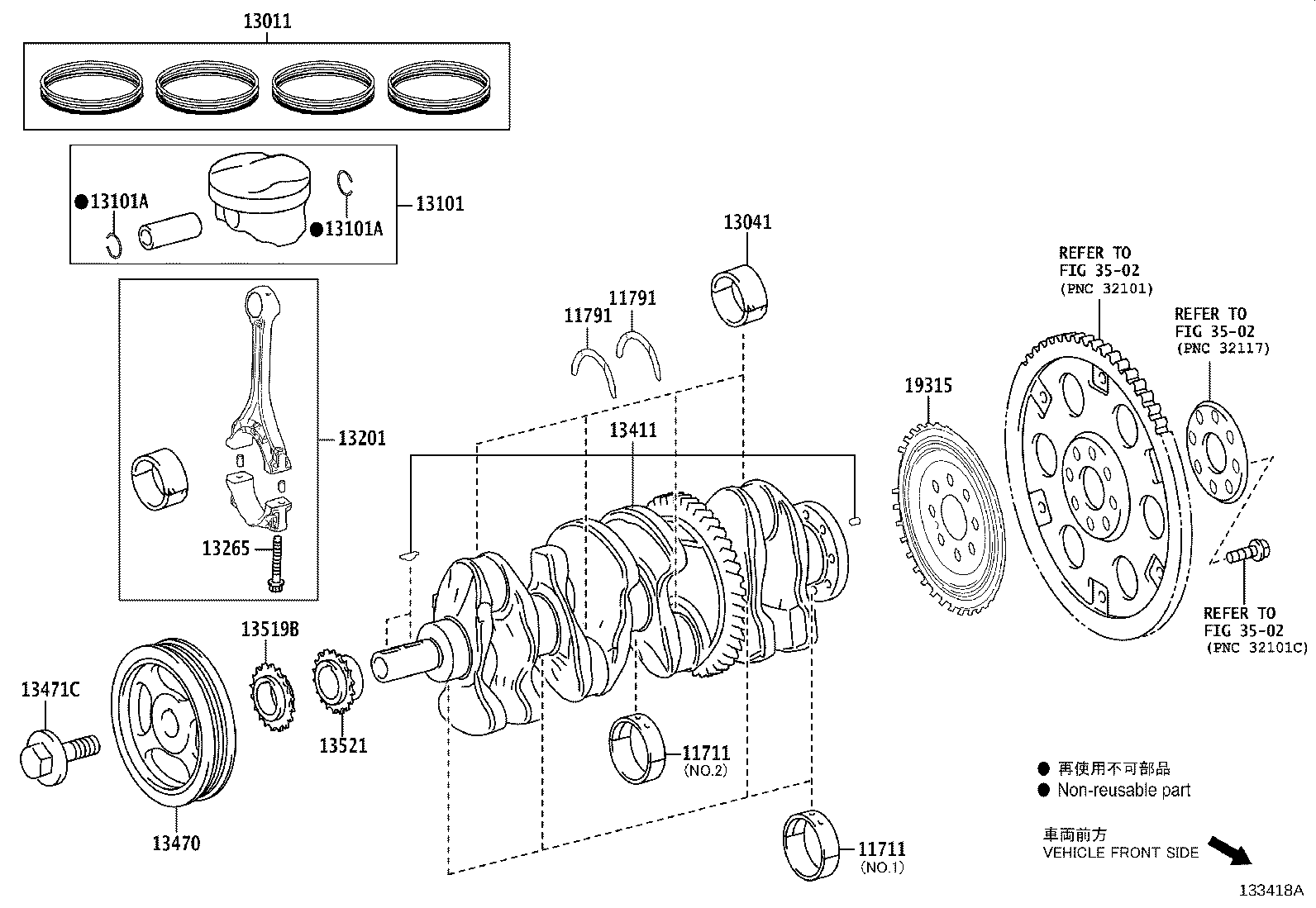

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11711 — Bearing, Crankshaft | ||||
| 11701-F0010-01 note |
Bearing, Crankshaft
2022-10 → —
|
A25AFXS AALH15 | — | |
| 11701-F0010-02 note |
Bearing, Crankshaft
2022-10 → —
|
A25AFXS AALH15 | — | |
| 11701-F0010-03 note |
Bearing, Crankshaft
2022-10 → —
|
A25AFXS AALH15 | — | |
| 11701-F0010-04 note |
Bearing, Crankshaft
2022-10 → —
|
A25AFXS AALH15 | — | |
| 11701-F0010-05 note |
Bearing, Crankshaft
2022-10 → —
|
A25AFXS AALH15 | — | |
| 11701-F0050-01 note |
Bearing, Crankshaft
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
| 11701-F0050-02 note |
Bearing, Crankshaft
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
| 11701-F0050-03 note |
Bearing, Crankshaft
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
| 11701-F0050-04 note |
Bearing, Crankshaft
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
| 11701-F0060-01 note |
Bearing, Crankshaft
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
| 11701-F0060-02 note |
Bearing, Crankshaft
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
| 11701-F0060-03 note |
Bearing, Crankshaft
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
| 11701-F0060-04 note |
Bearing, Crankshaft
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
| 11791 — Washer, Crankshaft Thrust, Upper | ||||
| 11791-F0040 note |
Washer, Crankshaft Thrust, Upper
2022-10 → —
|
A25AFXS AALH15 | — | |
| 11791-F0040 note |
Washer, Crankshaft Thrust, Upper
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
| 13011 — Ring Set, Piston | ||||
| 13011-F0040 note |
Ring Set, Piston
2022-10 → —
|
A25AFXS AALH15 | — | |
| 13011-F0080 note |
Ring Set, Piston
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
| 13041 — Bearing, Connecting Rod | ||||
| 13041-F0010-01 note |
Bearing, Connecting Rod
2022-10 → —
|
A25AFXS AALH15 | — | |
| 13041-F0010-02 note |
Bearing, Connecting Rod
2022-10 → —
|
A25AFXS AALH15 | — | |
| 13041-F0010-03 note |
Bearing, Connecting Rod
2022-10 → —
|
A25AFXS AALH15 | — | |
| 13041-F0030-01 note |
Bearing, Connecting Rod
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
| 13041-F0030-02 note |
Bearing, Connecting Rod
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
| 13041-F0030-03 note |
Bearing, Connecting Rod
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
| 13101 — Piston Sub-assy, W/Pin | ||||
| 13101-F0020 note |
Piston Sub-assy, W/Pin
2022-10 → —
|
A25AFXS AALH15 | — | |
| 13101-F0080 note |
Piston Sub-assy, W/Pin
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
| 13101A — Ring, Hole Snap(FOR PISTON PIN) | ||||
| 90520-21024 |
Ring, Hole Snap(FOR PISTON PIN)
2022-10 → —
|
A25AFXS AALH15 | — | |
| 90520-25090 |
Ring, Hole Snap(FOR PISTON PIN)
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
| 13201 — Rod Sub-assy, Connecting | ||||
| 13201-F9000-A0 note |
Rod Sub-assy, Connecting
2022-10 → —
|
A25AFXS AALH15 | — | |
| 13201-F9000-B0 note |
Rod Sub-assy, Connecting
2022-10 → —
|
A25AFXS AALH15 | — | |
| 13201-F9000-C0 note |
Rod Sub-assy, Connecting
2022-10 → —
|
A25AFXS AALH15 | — | |
| 13201-F9100-A0 note |
Rod Sub-assy, Connecting
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
| 13201-F9100-B0 note |
Rod Sub-assy, Connecting
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
| 13201-F9100-C0 note |
Rod Sub-assy, Connecting
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
| 13265 — Bolt, Connecting Rod | ||||
| 13265-F0010 |
Bolt, Connecting Rod
2022-10 → —
|
A25AFXS AALH15 | — | |
| 13265-F0010 |
Bolt, Connecting Rod
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
| 13411 — Crankshaft | ||||
| 13401-F0010 |
Crankshaft
2022-10 → —
|
A25AFXS AALH15 | — | |
| 13401-F0050 |
Crankshaft
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
| 13470 — Pulley Assy, Crankshaft | ||||
| 13470-25020 |
Pulley Assy, Crankshaft
2022-10 → —
|
A25AFXS AALH15 | — | |
| 13470-25050 |
Pulley Assy, Crankshaft
2022-10 → —
|
T24AFTS TALA1# | — | |
| 13470-25060 |
Pulley Assy, Crankshaft
2022-10 → —
|
T24AFTS TALH17 | — | |
| 13471C — Bolt(FOR CRANKSHAFT PULLEY SET) | ||||
| 90119-A0265 |
Bolt(FOR CRANKSHAFT PULLEY SET)
2022-10 → —
|
A25AFXS AALH15 | — | |
| 90119-A0265 |
Bolt(FOR CRANKSHAFT PULLEY SET)
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
| 13519B — Sprocket, Oil Pump Drive | ||||
| 13519-F0010 |
Sprocket, Oil Pump Drive
2022-10 → —
|
A25AFXS AALH15 | — | |
| 13519-F0040 |
Sprocket, Oil Pump Drive
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
| 13521 — Gear OR Sprocket, Crankshaft Timing | ||||
| 13521-F0010 |
Gear OR Sprocket, Crankshaft Timing
2022-10 → —
|
A25AFXS AALH15 | — | |
| 13521-F0030 |
Gear OR Sprocket, Crankshaft Timing
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
| 19315 — Plate, Crank Angle Sensor, NO.1 | ||||
| 19315-F0011 |
Plate, Crank Angle Sensor, NO.1
2022-10 → —
|
A25AFXS AALH15 | — | |
| 19315-F0030 |
Plate, Crank Angle Sensor, NO.1
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
