Toyota Lexus RX Series(Tmmc
2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States
Supported model
Data version 2022-09

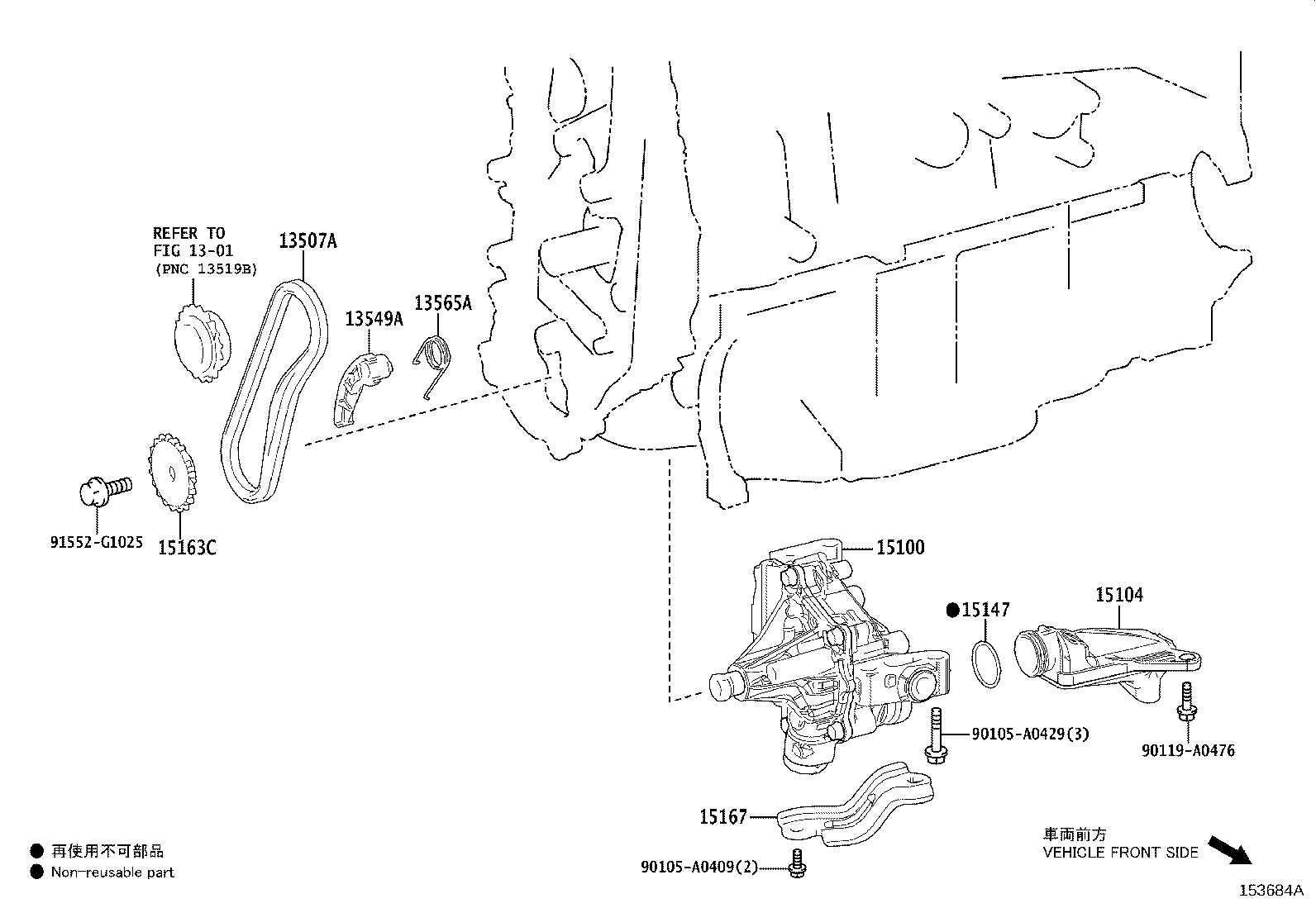

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 13507A — Chain Sub-assy, Oil Pump Drive | ||||
| 13507-F0010 |
Chain Sub-assy, Oil Pump Drive
2022-10 → —
|
A25AFXS AALH15 | — | |
| 13507-F0030 |
Chain Sub-assy, Oil Pump Drive
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
| 13549A — Plate, Chain Tensioner | ||||
| 13549-F0010 |
Plate, Chain Tensioner
2022-10 → —
|
A25AFXS AALH15 | — | |
| 13549-F0010 |
Plate, Chain Tensioner
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
| 13565A — Spring, Chain Damper | ||||
| 13565-F0010 |
Spring, Chain Damper
2022-10 → —
|
A25AFXS AALH15 | — | |
| 13565-F0010 |
Spring, Chain Damper
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
| 15100 — Pump Assy, Oil | ||||
| 15100-F0011 |
Pump Assy, Oil
2022-10 → —
|
A25AFXS AALH15 | — | |
| 15100-F0040 |
Pump Assy, Oil
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
| 15104 — Strainer Sub-assy, Oil | ||||
| 15104-F0010 |
Strainer Sub-assy, Oil
2022-10 → —
|
A25AFXS AALH15 | — | |
| 15104-F0030 |
Strainer Sub-assy, Oil
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
| 15147 — Gasket, Oil Strainer | ||||
| 15147-25010 |
Gasket, Oil Strainer
2022-10 → —
|
A25AFXS AALH15 | — | |
| 15147-25030 |
Gasket, Oil Strainer
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
| 15163C — Sprocket, Oil Pump Drive Shaft | ||||
| 15163-F0010 |
Sprocket, Oil Pump Drive Shaft
2022-10 → —
|
A25AFXS AALH15 | — | |
| 15163-F0020 |
Sprocket, Oil Pump Drive Shaft
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
| 15167 — Bracket, Oil Pump | ||||
| 15167-25011 |
Bracket, Oil Pump
2022-10 → —
|
A25AFXS AALH15 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
