Toyota Lexus RX Series(Tmmc
2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States
Supported model
Data version 2022-09

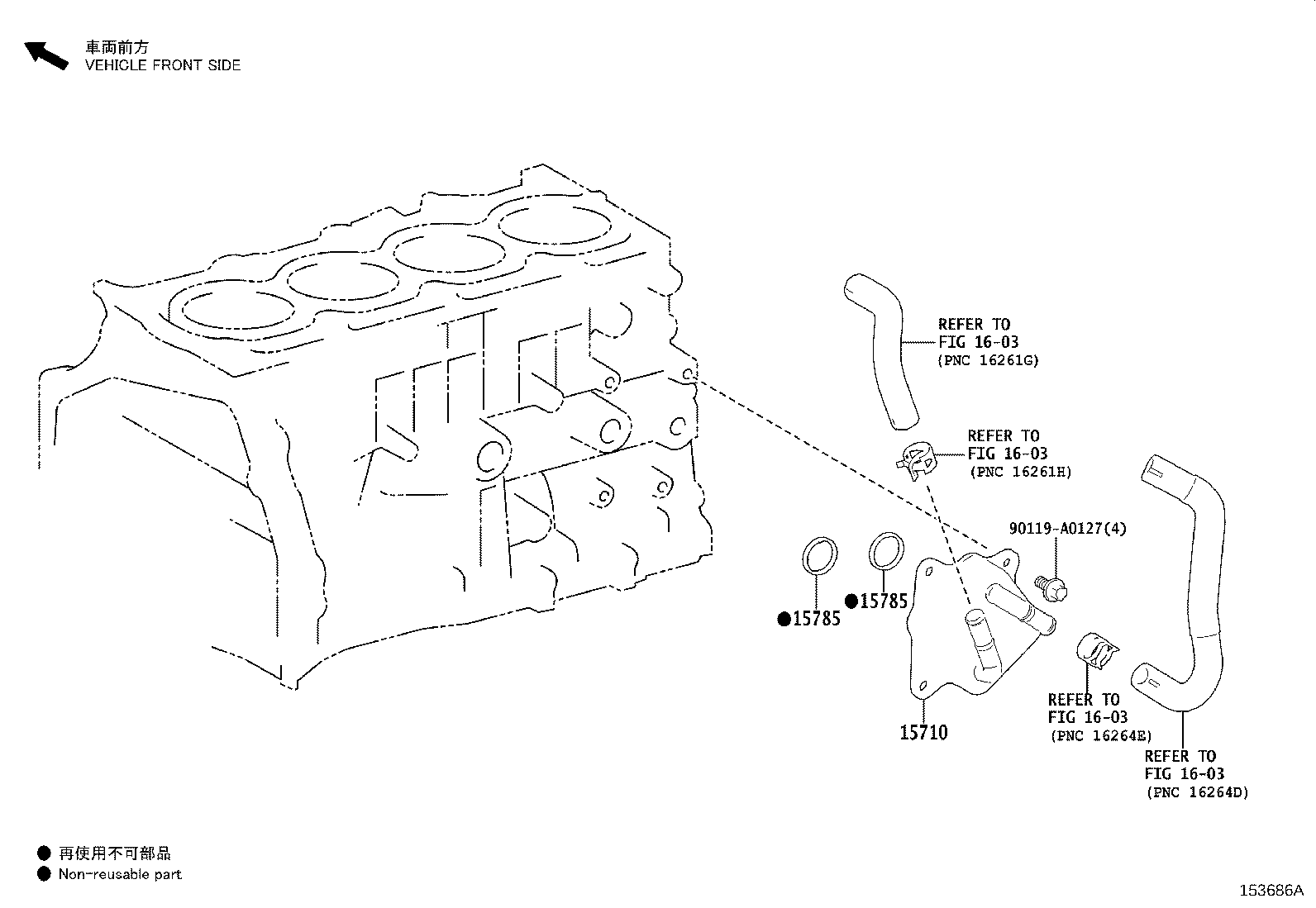

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 15710 — Cooler Assy, Oil | ||||
| 15710-F0010 |
Cooler Assy, Oil
2022-10 → —
|
A25AFXS AALH15 | — | |
| 15710-F0020 |
Cooler Assy, Oil
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
| 15785 — Gasket, Oil Cooler | ||||
| 15785-25010 |
Gasket, Oil Cooler
2022-10 → —
|
A25AFXS AALH15 | — | |
| 15785-25020 |
Gasket, Oil Cooler
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
