Toyota Lexus RX Series(Tmmc
2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States
Supported model
Data version 2022-09

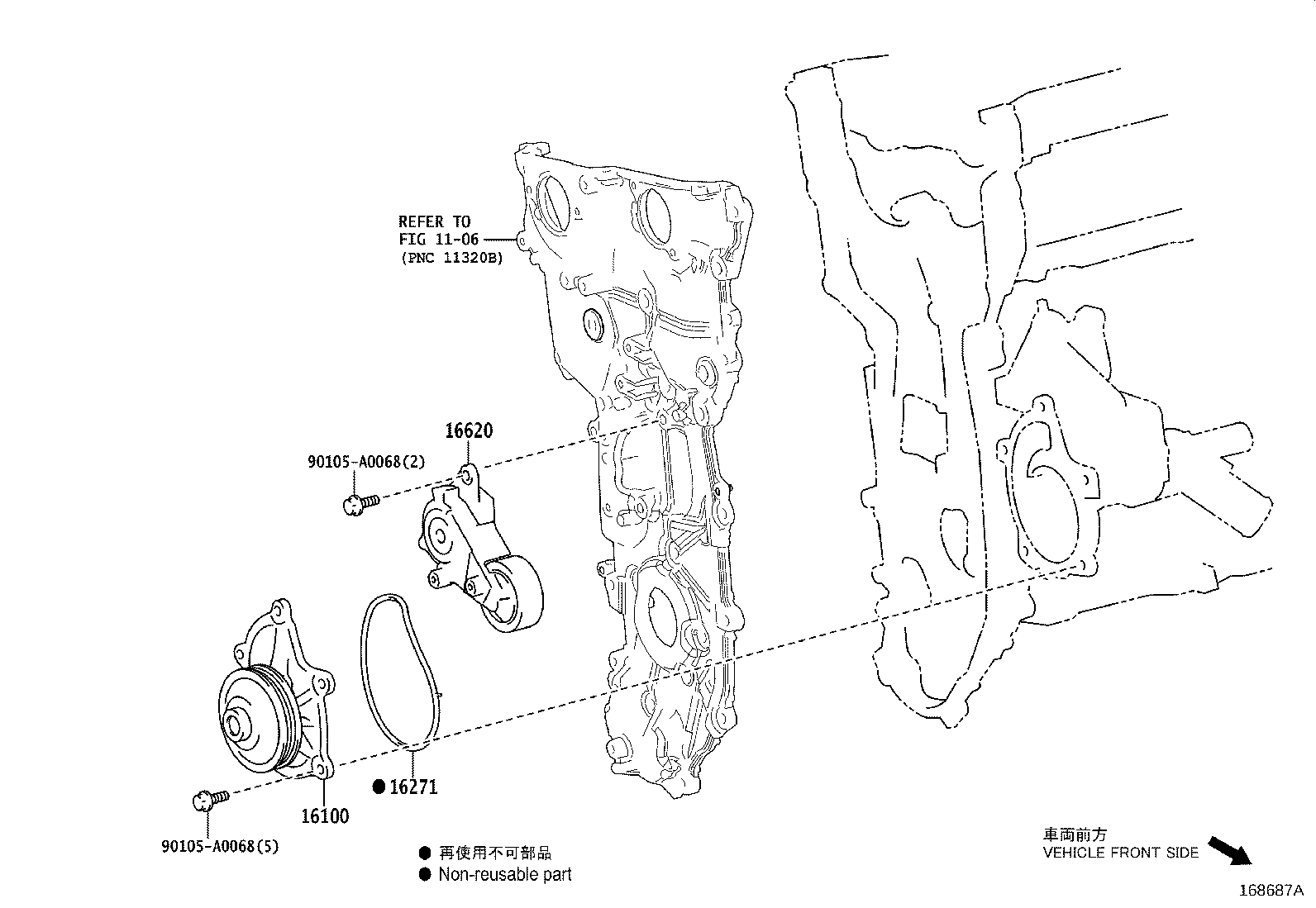

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 16100 — Pump Assy, Engine Water | ||||
| 16100-25040 |
Pump Assy, Engine Water
2022-10 → —
|
T24AFTS TALH17 | — | |
| 16100-F0010 |
Pump Assy, Engine Water
2022-10 → —
|
T24AFTS TALA1# | — | |
| 16271 — Gasket, Water Pump | ||||
| 16271-25020 |
Gasket, Water Pump
2022-10 → —
|
T24AFTS TALA1# | — | |
| 16271-25030 |
Gasket, Water Pump
2022-10 → —
|
T24AFTS TALH17 | — | |
| 16620 — Tensioner Assy, V-ribbed Belt | ||||
| 16620-25030 |
Tensioner Assy, V-ribbed Belt
2022-10 → —
|
T24AFTS TALH17 | — | |
| 16620-F0040 |
Tensioner Assy, V-ribbed Belt
2022-10 → —
|
T24AFTS TALA1# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
