Toyota Lexus RX Series(Tmmc
2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States
Supported model
Data version 2022-09

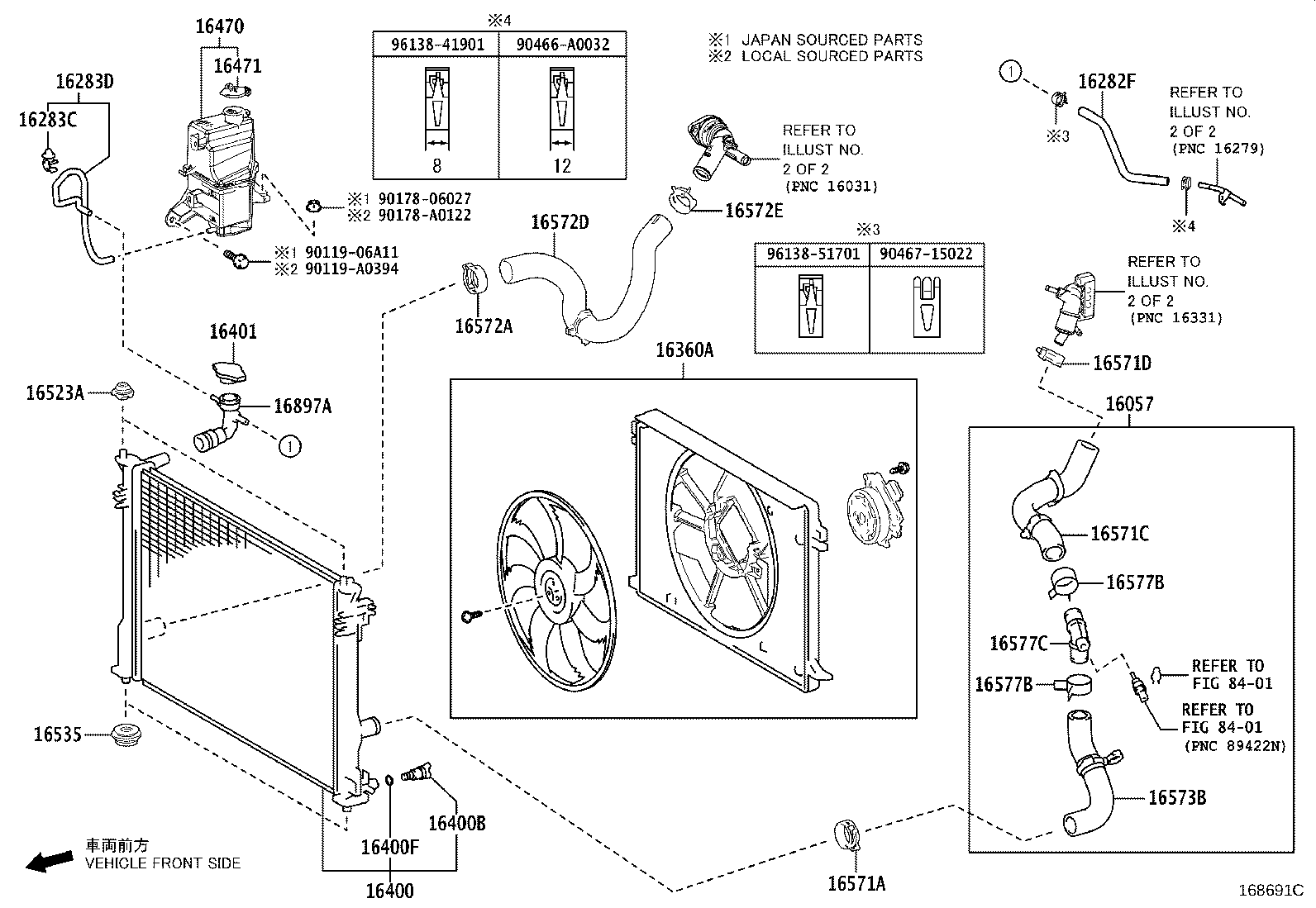

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 16057 — Hose Sub-assy, Radiator | ||||
| 16057-F0070 |
Hose Sub-assy, Radiator
2022-10 → —
|
A25AFXS AALH15 | — | |
| 16057-F0141 |
Hose Sub-assy, Radiator
2022-10 → —
|
T24AFTS TALA1# | — | |
| 16282F — Hose, Water By-pass, NO.5 | ||||
| 16282-F0280 |
Hose, Water By-pass, NO.5
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
| 16282-F0300 |
Hose, Water By-pass, NO.5
2022-10 → —
|
A25AFXS AALH15 | — | |
| 16283C — Clamp OR Clip(FOR WATER BY-PASS HOSE) | ||||
| 90469-12014 |
Clamp OR Clip(FOR WATER BY-PASS HOSE)
2022-10 → —
|
A25AFXS AALH15 | — | |
| 90469-12014 |
Clamp OR Clip(FOR WATER BY-PASS HOSE)
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
| 16283D — Hose, Water By-pass, NO.6 | ||||
| 16283-F0160 |
Hose, Water By-pass, NO.6
2022-10 → —
|
A25AFXS AALH15 | — | |
| 16283-F0160 |
Hose, Water By-pass, NO.6
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
| 16360A — Fan Assy, W/Motor | ||||
| 16360-F0240 |
Fan Assy, W/Motor
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
| 16360-F0280 |
Fan Assy, W/Motor
2022-10 → —
|
A25AFXS AALH15 | — | |
| 16400 — Radiator Assy | ||||
| 16400-F0110 |
Radiator Assy
2022-10 → —
|
A25AFXS AALH15 | — | |
| 16400-F0180 |
Radiator Assy
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
| 16400B — Plug, Radiator Drain Cock | ||||
| 16417-0C180 |
Plug, Radiator Drain Cock
2022-10 → —
|
A25AFXS AALH15 | — | |
| 16417-0C180 |
Plug, Radiator Drain Cock
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
| 16400F — Packing(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
Packing(FOR RADIATOR DRAIN COCK)
2022-10 → —
|
A25AFXS AALH15 | — | |
| 16492-21050 |
Packing(FOR RADIATOR DRAIN COCK)
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
| 16401 — Cap Sub-assy, Radiator | ||||
| 16401-36030 |
Cap Sub-assy, Radiator
2022-10 → —
|
A25AFXS AALH15 | — | |
| 16401-36030 |
Cap Sub-assy, Radiator
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
| 16470 — Tank Assy, Radiator Reserve | ||||
| 16470-0P130 |
Tank Assy, Radiator Reserve
2022-10 → —
|
A25AFXS AALH15 | — | |
| 16470-0P130 |
Tank Assy, Radiator Reserve
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
| 16471 — Cap Sub-assy, Reserve Tank | ||||
| 16405-F0030 |
Cap Sub-assy, Reserve Tank
2022-10 → —
|
A25AFXS AALH15 | — | |
| 16405-F0030 |
Cap Sub-assy, Reserve Tank
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
| 16523A — Cushion, Radiator Support | ||||
| 16523-F0020 |
Cushion, Radiator Support
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
| 16523-F0020 |
Cushion, Radiator Support
2022-10 → —
|
A25AFXS AALH15 | — | |
| 16535 — Support, Radiator, Lower | ||||
| 16535-0H030 |
Support, Radiator, Lower
2022-10 → —
|
A25AFXS AALH15 | — | |
| 16535-0V010 |
Support, Radiator, Lower
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
| 16571A — Clamp OR Clip, Hose(FOR RADIATOR INLET) | ||||
| 90466-39002 note |
Clamp OR Clip, Hose(FOR RADIATOR INLET)
2022-10 → —
|
A25AFXS AALH15 | — | |
| 90466-A0038 note |
Clamp OR Clip, Hose(FOR RADIATOR INLET)
2022-10 → —
|
A25AFXS AALH15 | — | |
| 16571C — Hose, Radiator, NO.1 | ||||
| 16571-F0240 |
Hose, Radiator, NO.1
2022-10 → —
|
A25AFXS AALH15 | — | |
| 16571-F0390 |
Hose, Radiator, NO.1
2022-10 → —
|
T24AFTS TALH17 | — | |
| 16571D — Clip, Radiator Hose, NO.1 | ||||
| 90466-43002 note |
Clip, Radiator Hose, NO.1
2022-10 → —
|
A25AFXS AALH15 | — | |
| 90466-A0037 note |
Clip, Radiator Hose, NO.1
2022-10 → —
|
A25AFXS AALH15 | — | |
| 90466-A0038 |
Clip, Radiator Hose, NO.1
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
| 16572A — Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-39002 note |
Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
2022-10 → —
|
A25AFXS AALH15 | — | |
| 90466-A0038 note |
Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
2022-10 → —
|
A25AFXS AALH15 | — | |
| 16572D — Hose, Radiator, NO.2 | ||||
| 16572-F0150 |
Hose, Radiator, NO.2
2022-10 → —
|
A25AFXS AALH15 | — | |
| 16572-F0270 |
Hose, Radiator, NO.2
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
| 16572E — Clip, Radiator Hose, NO.2 | ||||
| 90466-43002 note |
Clip, Radiator Hose, NO.2
2022-10 → —
|
A25AFXS AALH15 | — | |
| 90466-A0037 note |
Clip, Radiator Hose, NO.2
2022-10 → —
|
A25AFXS AALH15 | — | |
| 90466-A0038 |
Clip, Radiator Hose, NO.2
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
| 16573B — Hose, Radiator, NO.3 | ||||
| 16573-F0130 |
Hose, Radiator, NO.3
2022-10 → —
|
A25AFXS AALH15 | — | |
| 16577B — Clamp OR Clip, Hose(FOR RADIATOR PIPE) | ||||
| 90466-A0037 |
Clamp OR Clip, Hose(FOR RADIATOR PIPE)
2022-10 → —
|
A25AFXS AALH15 | — | |
| 90466-A0038 |
Clamp OR Clip, Hose(FOR RADIATOR PIPE)
2022-10 → —
|
T24AFTS TALA1# | — | |
| 16577C — Pipe, Radiator | ||||
| 16577-F0050 |
Pipe, Radiator
2022-10 → —
|
A25AFXS AALH15 | — | |
| 16897A — Neck, Filler | ||||
| 16897-F0180 |
Neck, Filler
2022-10 → —
|
A25AFXS AALH15 | — | |
| 16897-F0180 |
Neck, Filler
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
