Toyota Lexus RX Series(Tmmc
2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States
Supported model
Data version 2022-09
Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|

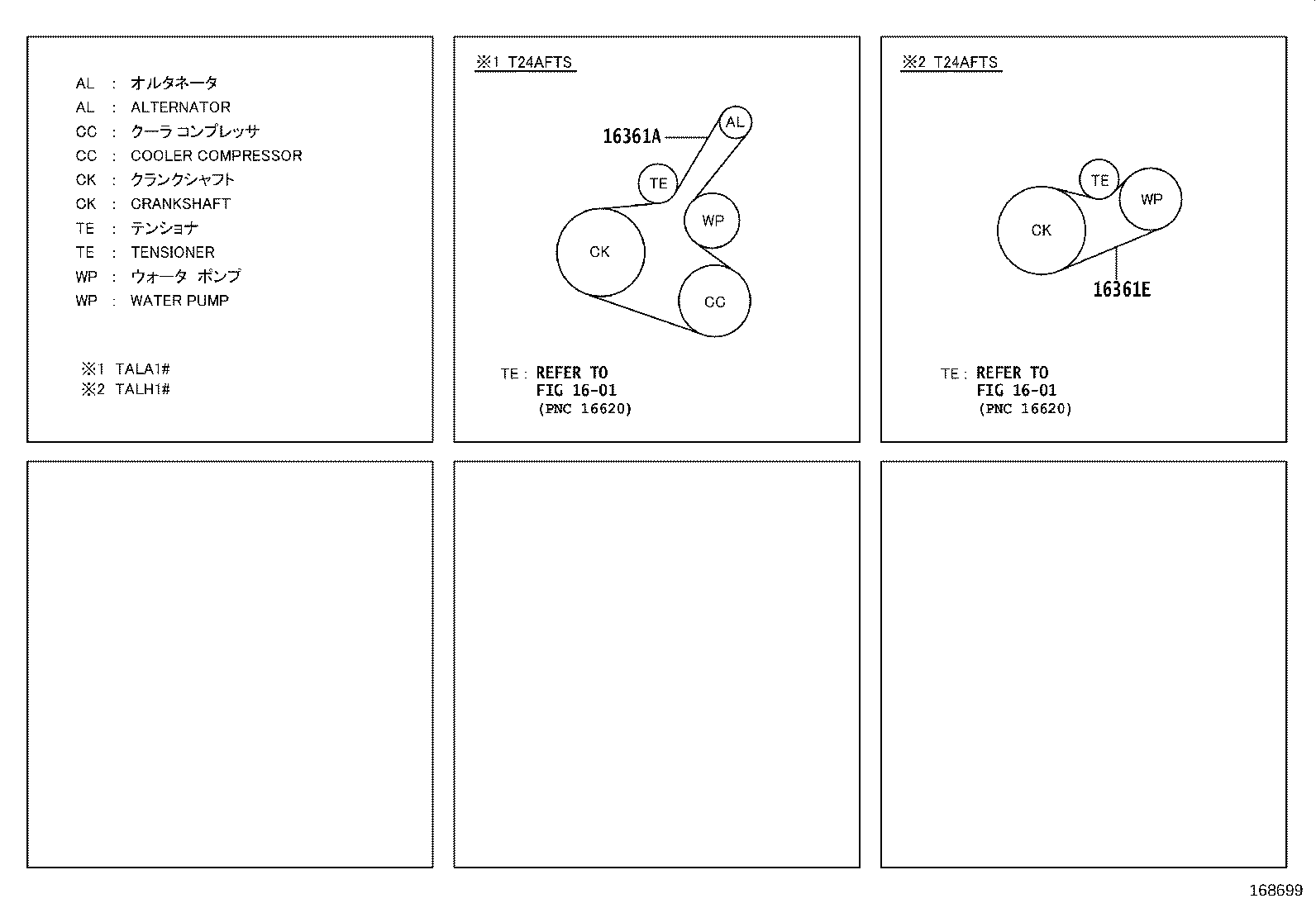

| 16361A — Belt, V(FOR FAN & ALTERNATOR) | ||||
| 90916-A2030 |
Belt, V(FOR FAN & ALTERNATOR)
2022-10 → —
|
T24AFTS TALA1# | — | |
| 16361E — Belt, V(FOR WATER PUMP & CRANKSHAFT PULLEY) | ||||
| 90916-02781 |
Belt, V(FOR WATER PUMP & CRANKSHAFT PULLEY)
2022-10 → —
|
T24AFTS TALH17 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
