Toyota Lexus RX Series(Tmmc
2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States
Supported model
Data version 2022-09

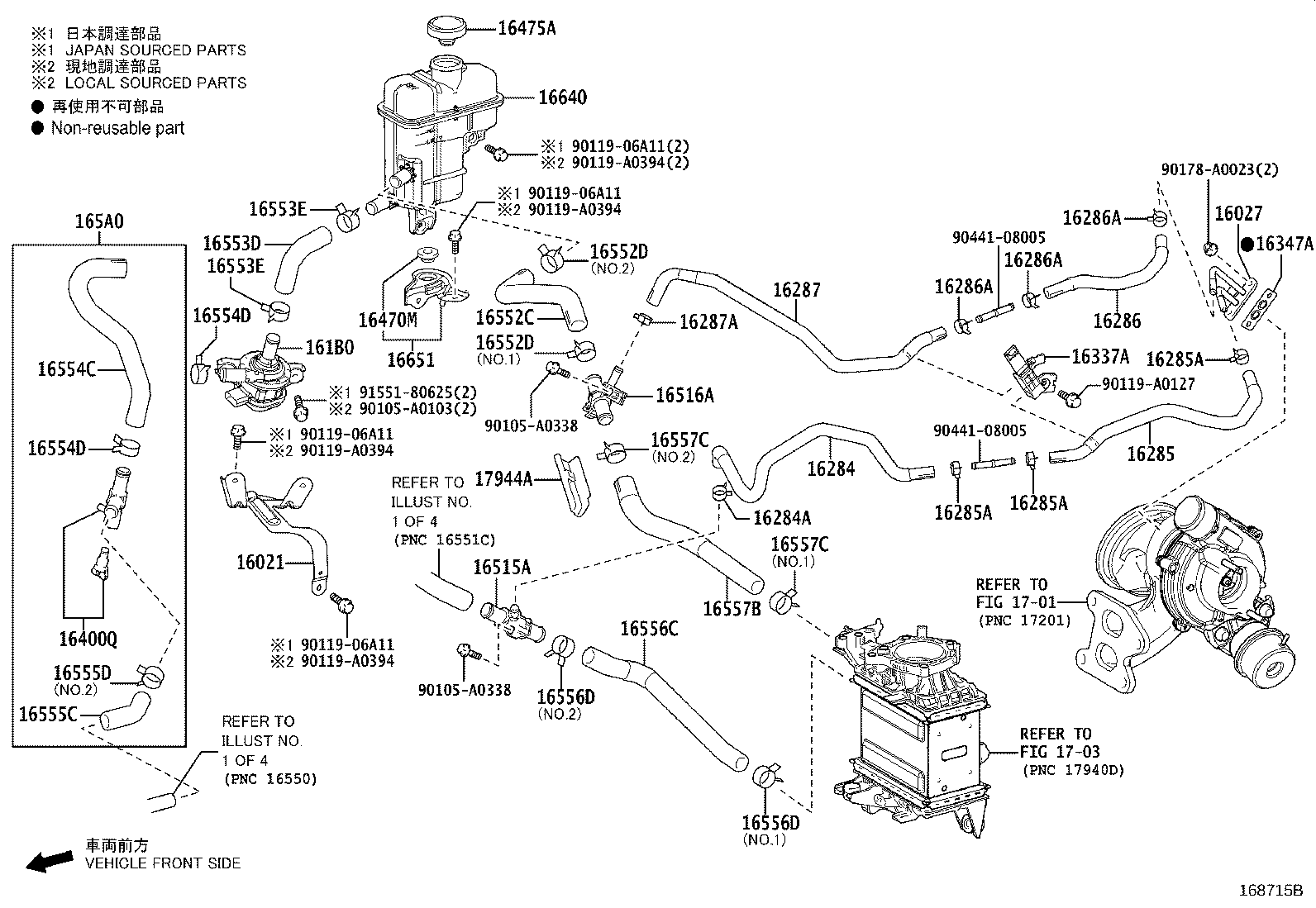

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 16021 — Bracket Sub-assy, Water Pump | ||||
| 16021-F0020 |
Bracket Sub-assy, Water Pump
2022-10 → —
|
T24AFTS TALA1# | — | |
| 16027 — Pipe Sub-assy, Turbo Water, NO.1 | ||||
| 16027-25010 |
Pipe Sub-assy, Turbo Water, NO.1
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
| 161B0 — Pump Assy, Electric Water | ||||
| 161B0-47010 |
Pump Assy, Electric Water
2022-10 → —
|
T24AFTS TALA1# | — | |
| 16284 — Hose, Turbo Water, NO.1 | ||||
| 16284-25010 |
Hose, Turbo Water, NO.1
2022-10 → —
|
T24AFTS TALA1# | — | |
| 16284A — Clip(FOR TURBO WATER HOSE NO.1) | ||||
| 96137-41701 |
Clip(FOR TURBO WATER HOSE NO.1)
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
| 16285 — Hose, Turbo Water, NO.2 | ||||
| 16285-25010 |
Hose, Turbo Water, NO.2
2022-10 → —
|
T24AFTS TALA1# | — | |
| 16285-25020 |
Hose, Turbo Water, NO.2
2022-10 → —
|
T24AFTS TALH17 | — | |
| 16285A — Clip(FOR TURBO WATER HOSE NO.2) | ||||
| 96138-41501 |
Clip(FOR TURBO WATER HOSE NO.2)
2022-10 → —
|
T24AFTS TALH17 | — | |
| 96138-41501 |
Clip(FOR TURBO WATER HOSE NO.2)
2022-10 → —
|
T24AFTS TALA1# | — | |
| 16286 — Hose, Turbo Water, NO.3 | ||||
| 16286-25010 |
Hose, Turbo Water, NO.3
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
| 16286A — Clip(FOR TURBO WATER HOSE NO.3) | ||||
| 96138-41501 |
Clip(FOR TURBO WATER HOSE NO.3)
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
| 16287 — Hose, Turbo Water, NO.4 | ||||
| 16287-25010 |
Hose, Turbo Water, NO.4
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
| 16287A — Clip(FOR TURBO WATER HOSE NO.4) | ||||
| 96137-41701 |
Clip(FOR TURBO WATER HOSE NO.4)
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
| 16337A — Stay, Water Outlet | ||||
| 16337-F0010 |
Stay, Water Outlet
2022-10 → —
|
T24AFTS TALA1# | — | |
| 16347A — Gasket(FOR TURBO WATER PIPE) | ||||
| 16347-36020 |
Gasket(FOR TURBO WATER PIPE)
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
| 16400Q — Cock Assy, Drain | ||||
| 90910-09134 |
Cock Assy, Drain
2022-10 → —
|
T24AFTS TALA1# | — | |
| 16470M — Grommet | ||||
| 90480-18010 |
Grommet
2022-10 → —
|
T24AFTS TALA1# | — | |
| 16475A — Cap, Reserve Tank | ||||
| 16475-28140 |
Cap, Reserve Tank
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
| 16515A — Pipe, Intercooler Cooling Water, NO.1 | ||||
| 16515-25010 |
Pipe, Intercooler Cooling Water, NO.1
2022-10 → —
|
T24AFTS TALA1# | — | |
| 16515-25020 |
Pipe, Intercooler Cooling Water, NO.1
2022-10 → —
|
T24AFTS TALH17 | — | |
| 16516A — Pipe, Intercooler Cooling Water, NO.2 | ||||
| 16516-25010 |
Pipe, Intercooler Cooling Water, NO.2
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
| 16552C — Hose, Intercooler Cooling Water, NO.2 | ||||
| 16552-F0020 |
Hose, Intercooler Cooling Water, NO.2
2022-10 → —
|
T24AFTS TALA1# | — | |
| 16552D — Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.2) | ||||
| 90466-A0029 note |
Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.2)
2022-10 → —
|
T24AFTS TALA1# | — | |
| 96138-42701 note |
Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.2)
2022-10 → —
|
T24AFTS TALA1# | — | |
| 16553D — Hose, Intercooler Cooling Water, NO.3 | ||||
| 16553-F0020 |
Hose, Intercooler Cooling Water, NO.3
2022-10 → —
|
T24AFTS TALA1# | — | |
| 16553E — Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.3) | ||||
| 90466-A0029 |
Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.3)
2022-10 → —
|
T24AFTS TALA1# | — | |
| 16554C — Hose, Intercooler Cooling Water, NO.4 | ||||
| 16554-F0020 |
Hose, Intercooler Cooling Water, NO.4
2022-10 → —
|
T24AFTS TALA1# | — | |
| 16554D — Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.4) | ||||
| 90466-A0029 |
Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.4)
2022-10 → —
|
T24AFTS TALA1# | — | |
| 16555C — Hose, Intercooler Cooling Water, NO.5 | ||||
| 16555-F0010 |
Hose, Intercooler Cooling Water, NO.5
2022-10 → —
|
T24AFTS TALA1# | — | |
| 16555D — Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.5) | ||||
| 90466-A0029 note |
Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.5)
2022-10 → —
|
T24AFTS TALA1# | — | |
| 96138-42701 note |
Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.5)
2022-10 → —
|
T24AFTS TALA1# | — | |
| 16556C — Hose, Intercooler Cooling Water, NO.6 | ||||
| 16551-F0040 |
Hose, Intercooler Cooling Water, NO.6
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
| 16556D — Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.6) | ||||
| 90466-A0029 note |
Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.6)
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
| 96138-42701 note |
Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.6)
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
| 16557B — Hose, Intercooler Cooling Water, NO.7 | ||||
| 16552-F0030 |
Hose, Intercooler Cooling Water, NO.7
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
| 16557C — Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.7) | ||||
| 90466-A0029 note |
Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.7)
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
| 96138-42701 note |
Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.7)
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
| 165A0 — Hose Assy, Intercooler Cooling Water, NO.1 | ||||
| 165A0-25030 |
Hose Assy, Intercooler Cooling Water, NO.1
2022-10 → —
|
T24AFTS TALH17 | — | |
| 165A0-F0010 |
Hose Assy, Intercooler Cooling Water, NO.1
2022-10 → —
|
T24AFTS TALA1# | — | |
| 16640 — Tank Assy, Intercooler Reserve | ||||
| G910G-0E020 |
Tank Assy, Intercooler Reserve
2022-10 → —
|
T24AFTS TALH17 | — | |
| G910G-0R010 |
Tank Assy, Intercooler Reserve
2022-10 → —
|
T24AFTS TALA1# | — | |
| 16651 — Bracket, Intercooler Reserve Tank | ||||
| G91H2-0R010 |
Bracket, Intercooler Reserve Tank
2022-10 → —
|
T24AFTS TALA1# | — | |
| G91H2-48010 |
Bracket, Intercooler Reserve Tank
2022-10 → —
|
T24AFTS TALH17 | — | |
| 17944A — Protector, Intercooler Pipe | ||||
| 17944-25010 |
Protector, Intercooler Pipe
2022-10 → —
|
T24AFTS TALA1# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
