Toyota Lexus RX Series(Tmmc
2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States
Supported model
Data version 2022-09

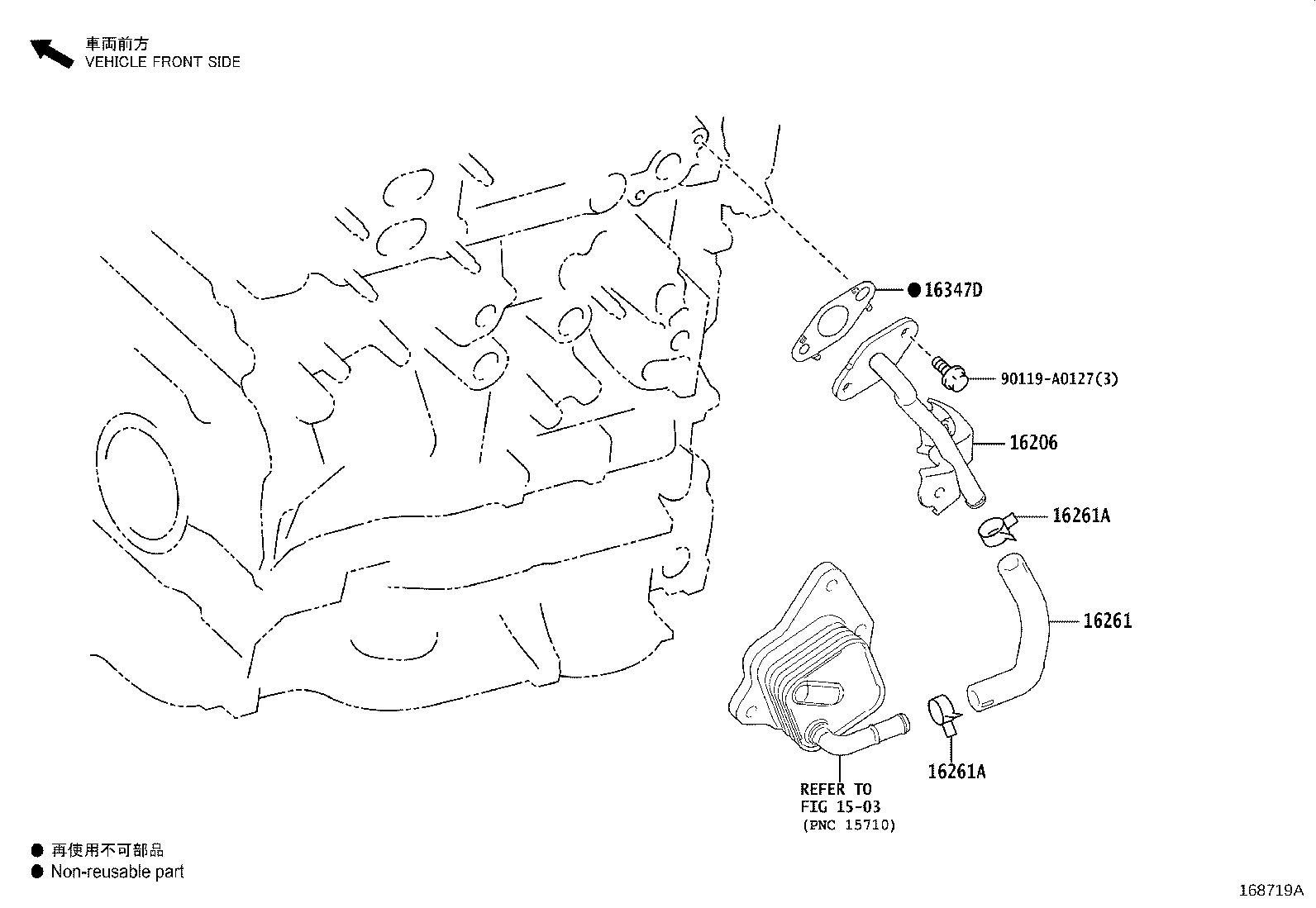

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 16206 — Pipe Sub-assy, Water By-pass | ||||
| 16206-25030 |
Pipe Sub-assy, Water By-pass
2022-10 → —
|
A25AFXS AALH15 | — | |
| 16206-25040 |
Pipe Sub-assy, Water By-pass
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
| 16261 — Hose, Water By-pass | ||||
| 16261-25090 |
Hose, Water By-pass
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
| 16261A — Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE) | ||||
| 96138-42101 |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
| 16347D — Gasket, Water By-pass | ||||
| 16347-F0010 |
Gasket, Water By-pass
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
