Toyota Lexus RX Series(Tmmc

2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States

Supported model Data version 2022-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

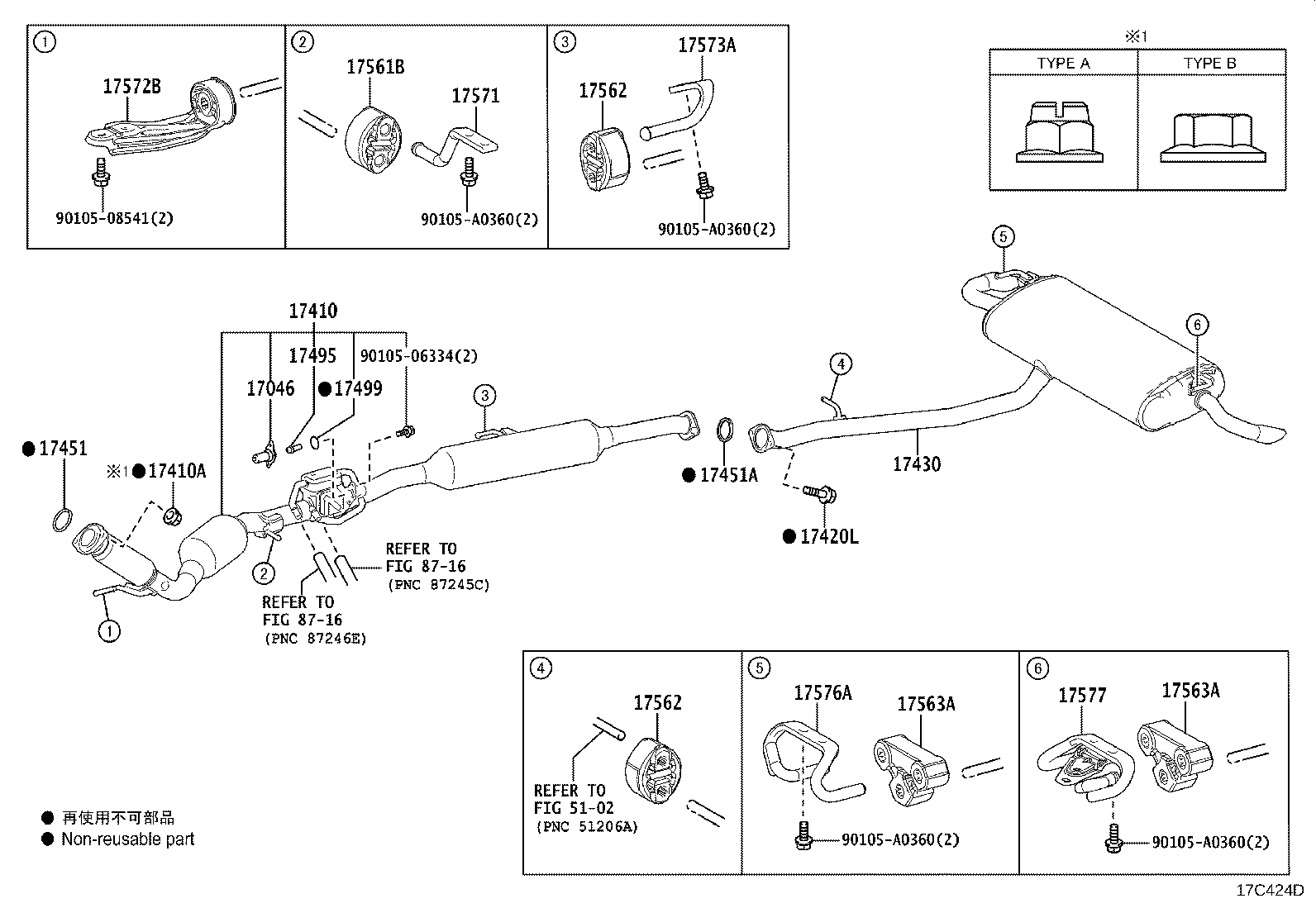

Exploded illustration 17C424D 5102 — not listed in this catalogue 8716 — not listed in this catalogue 8716 — not listed in this catalogue 17430 — PIPE ASSY, EXHAUST, TAIL (4 parts) 17451A — GASKET, EXHAUST PIPE, NO.2 (4 parts) 17420L — BOLT, FLANGE(FOR EXHAUST PIPE) (1 parts) 17572B — BRACKET, EXHAUST PIPE SUPPORT, NO.2 (2 parts) 17561B — SUPPORT, EXHAUST PIPE, NO.1 (2 parts) 17562 — SUPPORT, EXHAUST PIPE, NO.2 (2 parts) 17571 — BRACKET, EXHAUST PIPE SUPPORT, NO.1 (1 parts) 17573A — BRACKET, EXHAUST PIPE SUPPORT, NO.3 (1 parts) 90105A0360 — not listed in this catalogue 90105A0360 — not listed in this catalogue 90105A0360 — not listed in this catalogue 90105A0360 — not listed in this catalogue 17562 — SUPPORT, EXHAUST PIPE, NO.2 (2 parts) 17577 — BRACKET, EXHAUST PIPE SUPPORT, NO.7 (2 parts) 17576A — BRACKET, EXHAUST PIPE SUPPORT, NO.6 (2 parts) 17563A — SUPPORT, EXHAUST PIPE, NO.3 (1 parts) 17563A — SUPPORT, EXHAUST PIPE, NO.3 (1 parts) 17410 — PIPE ASSY, EXHAUST, FRONT (3 parts) 17410A — NUT, EXHAUST PIPE SET STUD BOLT (2 parts) 17451 — GASKET, EXHAUST PIPE (2 parts) 17495 — ACTUATOR, EXHAUST PIPE GAS CONTROL (1 parts) 17499 — GASKET, EXHAUST PIPE GAS CONTROL ACTUATOR (1 parts) 17046 — ACTUATOR SUB-ASSY, EXHAUST PIPE GAS CONTROL (1 parts) 9010506334 — not listed in this catalogue 9010508541 — not listed in this catalogue
17C424D · 19 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
32 parts on this figure
Part number Description Fitment Price
17046 — Actuator Sub-assy, Exhaust Pipe Gas Control
17046-24010 Actuator Sub-assy, Exhaust Pipe Gas Control
2022-10 → —
A25AFXS AALH15 —
17410 — Pipe Assy, Exhaust, Front
17410-F0500 Pipe Assy, Exhaust, Front
2022-10 → 2022-11 ended
T24AFTS TALA1#,TALH17 —
17410-F0501 Pipe Assy, Exhaust, Front
2022-11 → —
T24AFTS TALA1#,TALH17 —
17410-F0510 Pipe Assy, Exhaust, Front
2022-10 → 2025-10 ended
A25AFXS AALH15 —
17410A — Nut, Exhaust Pipe Set Stud Bolt
90177-10005 note Nut, Exhaust Pipe Set Stud Bolt
2022-10 → —
A25AFXS,T24AFTS AALH15,TALA1#,TALH17 —
90177-A0021 note Nut, Exhaust Pipe Set Stud Bolt
2022-10 → —
A25AFXS,T24AFTS AALH15,TALA1#,TALH17 —
17420L — Bolt, Flange(FOR EXHAUST PIPE)
90105-A0369 Bolt, Flange(FOR EXHAUST PIPE)
2022-10 → —
A25AFXS,T24AFTS AALH15,TALA1#,TALH17 —
17430 — Pipe Assy, Exhaust, Tail
17430-F0450 Pipe Assy, Exhaust, Tail
2022-10 → 2024-01 ended
T24AFTS TALA1#,TALH17 —
17430-F0451 Pipe Assy, Exhaust, Tail
2024-02 → —
T24AFTS TALA1#,TALH17 —
17430-F0460 Pipe Assy, Exhaust, Tail
2022-10 → 2024-01 ended
A25AFXS AALH15 —
17430-F0461 Pipe Assy, Exhaust, Tail
2024-02 → —
A25AFXS AALH15 —
17451 — Gasket, Exhaust Pipe
90917-A6001 Gasket, Exhaust Pipe
2022-10 → —
T24AFTS TALA1#,TALH17 —
90917-A6002 Gasket, Exhaust Pipe
2022-10 → —
A25AFXS AALH15 —
17451A — Gasket, Exhaust Pipe, NO.2
17451-25040 note Gasket, Exhaust Pipe, NO.2
2022-10 → —
A25AFXS AALH15 —
17451-25100 note Gasket, Exhaust Pipe, NO.2
2022-10 → —
T24AFTS TALA1#,TALH17 —
17451-F0100 note Gasket, Exhaust Pipe, NO.2
2022-10 → —
A25AFXS AALH15 —
17451-F0120 note Gasket, Exhaust Pipe, NO.2
2022-10 → —
T24AFTS TALA1#,TALH17 —
17495 — Actuator, Exhaust Pipe Gas Control
17495-24010 Actuator, Exhaust Pipe Gas Control
2022-10 → —
A25AFXS AALH15 —
17499 — Gasket, Exhaust Pipe Gas Control Actuator
17499-24010 Gasket, Exhaust Pipe Gas Control Actuator
2022-10 → —
A25AFXS AALH15 —
17561B — Support, Exhaust Pipe, NO.1
17565-0P041 Support, Exhaust Pipe, NO.1
2022-10 → —
A25AFXS AALH15 —
17565-F0020 Support, Exhaust Pipe, NO.1
2022-10 → —
T24AFTS TALA1#,TALH17 —
17562 — Support, Exhaust Pipe, NO.2
17565-F0020 Support, Exhaust Pipe, NO.2
2022-10 → —
T24AFTS TALA1#,TALH17 —
17565-F0020 Support, Exhaust Pipe, NO.2
2022-10 → —
A25AFXS AALH15 —
17563A — Support, Exhaust Pipe, NO.3
17566-F0010 Support, Exhaust Pipe, NO.3
2022-10 → —
A25AFXS,T24AFTS AALH15,TALA1#,TALH17 —
17571 — Bracket, Exhaust Pipe Support, NO.1
17571-F0070 Bracket, Exhaust Pipe Support, NO.1
2022-10 → —
A25AFXS AALH15 —
17572B — Bracket, Exhaust Pipe Support, NO.2
17572-F0040 Bracket, Exhaust Pipe Support, NO.2
2022-10 → —
A25AFXS AALH15 —
17572-F0100 Bracket, Exhaust Pipe Support, NO.2
2022-10 → —
T24AFTS TALA1#,TALH17 —
17573A — Bracket, Exhaust Pipe Support, NO.3
17573-F0150 Bracket, Exhaust Pipe Support, NO.3
2022-10 → —
A25AFXS,T24AFTS AALH15,TALA1#,TALH17 —
17576A — Bracket, Exhaust Pipe Support, NO.6
17576-F0090 Bracket, Exhaust Pipe Support, NO.6
2022-10 → 2024-01 ended
A25AFXS,T24AFTS AALH15,TALA1#,TALH17 —
17576-F0091 Bracket, Exhaust Pipe Support, NO.6
2024-02 → —
A25AFXS,T24AFTS AALH15,TALA1#,TALH17 —
17577 — Bracket, Exhaust Pipe Support, NO.7
17577-F0110 Bracket, Exhaust Pipe Support, NO.7
2022-10 → 2024-01 ended
A25AFXS,T24AFTS AALH15,TALA1#,TALH17 —
17577-F0111 Bracket, Exhaust Pipe Support, NO.7
2024-02 → —
A25AFXS,T24AFTS AALH15,TALA1#,TALH17 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
