Toyota Lexus RX Series(Tmmc

2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States

Supported model Data version 2022-09

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

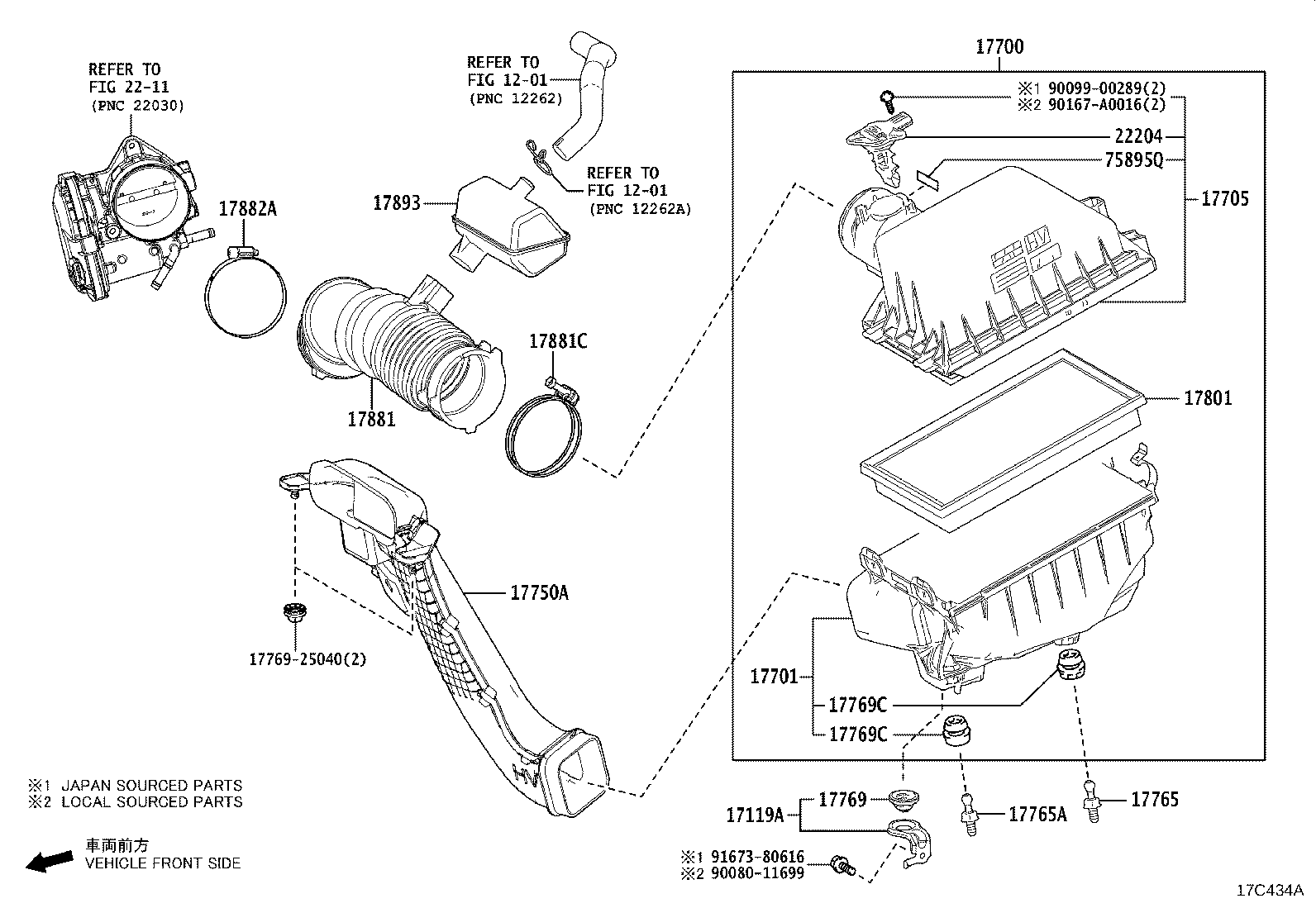

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

40 parts on this figure

Part number	Description	Fitment	Price
17119A — Bracket, Air Cleaner
17119-25050	Bracket, Air Cleaner 2022-10 → —	T24AFTS TALH17	—
17119-F0010	Bracket, Air Cleaner 2022-10 → —	A25AFXS AALH15	—
17119-F0010	Bracket, Air Cleaner 2022-10 → —	T24AFTS TALA1#	—
17700 — Cleaner Assy, Air
17700-F0330	Cleaner Assy, Air 2022-10 → —	A25AFXS AALH15	—
17700-F0360	Cleaner Assy, Air 2022-10 → —	T24AFTS TALA1#	—
17700-F0370	Cleaner Assy, Air 2022-10 → —	T24AFTS TALH17	—
17701 — Case Sub-assy, Air Cleaner
17701-F0110	Case Sub-assy, Air Cleaner 2022-10 → —	A25AFXS AALH15	—
17701-F0200	Case Sub-assy, Air Cleaner 2022-10 → —	T24AFTS TALA1#	—
17701-F0230	Case Sub-assy, Air Cleaner 2022-10 → —	T24AFTS TALH17	—
17705 — Cap Sub-assy, Air Cleaner
17705-F0200	Cap Sub-assy, Air Cleaner 2022-10 → —	T24AFTS TALA1#	—
17705-F0240	Cap Sub-assy, Air Cleaner 2022-10 → —	A25AFXS AALH15	—
17705-F0260	Cap Sub-assy, Air Cleaner 2022-10 → —	T24AFTS TALH17	—
17750A — Inlet Assy, Air Cleaner
17750-25130	Inlet Assy, Air Cleaner 2022-10 → —	T24AFTS TALH17	—
17750-25140	Inlet Assy, Air Cleaner 2022-10 → —	A25AFXS AALH15	—
17750-F0300	Inlet Assy, Air Cleaner 2022-10 → —	T24AFTS TALA1#	—
17765 — Stay, Air Cleaner, NO.1
17765-25010	Stay, Air Cleaner, NO.1 2022-10 → —	T24AFTS TALH17	—
17765-25010	Stay, Air Cleaner, NO.1 2022-10 → —	A25AFXS AALH15	—
17765A — Stay, Air Cleaner, NO.1
17765-25010	Stay, Air Cleaner, NO.1 2022-10 → —	A25AFXS AALH15	—
17769 — Support, Air Cleaner
17769-25020	Support, Air Cleaner 2022-10 → —	A25AFXS AALH15	—
17769-25020	Support, Air Cleaner 2022-10 → —	T24AFTS TALA1#,TALH17	—
17769C — Support, Air Cleaner, NO.1
17769-25020	Support, Air Cleaner, NO.1 2022-10 → —	T24AFTS TALA1#	—
17769-25030	Support, Air Cleaner, NO.1 2022-10 → —	A25AFXS AALH15	—
17769-25030	Support, Air Cleaner, NO.1 2022-10 → —	T24AFTS TALH17	—
17801 — Element Sub-assy, Air Cleaner Filter
17801-15090 note	Element Sub-assy, Air Cleaner Filter 2022-10 → —	T24AFTS TALH17	—
17801-25020 note	Element Sub-assy, Air Cleaner Filter 2022-10 → —	T24AFTS TALA1#	—
17801-77050 note	Element Sub-assy, Air Cleaner Filter 2022-10 → —	A25AFXS AALH15	—
17801-F0020 note	Element Sub-assy, Air Cleaner Filter 2022-10 → —	A25AFXS AALH15	—
17801-F0050 note	Element Sub-assy, Air Cleaner Filter 2022-10 → —	T24AFTS TALA1#	—
17801-F0080 note	Element Sub-assy, Air Cleaner Filter 2022-10 → —	T24AFTS TALH17	—
17881 — Hose, Air Cleaner, NO.1
17881-25080	Hose, Air Cleaner, NO.1 2022-10 → 2024-03 ended	T24AFTS TALH17	—
17881-25081	Hose, Air Cleaner, NO.1 2024-04 → —	T24AFTS TALH17	—
17881-F0080	Hose, Air Cleaner, NO.1 2022-10 → —	A25AFXS AALH15	—
17881C — Clamp(FOR AIR CLEANER HOSE, NO.1)
96111-10850	Clamp(FOR AIR CLEANER HOSE, NO.1) 2022-10 → —	A25AFXS AALH15	—
17882A — Clamp(FOR AIR CLEANER HOSE, NO.2)
17891-31010	Clamp(FOR AIR CLEANER HOSE, NO.2) 2022-10 → —	A25AFXS AALH15	—
96111-10670	Clamp(FOR AIR CLEANER HOSE, NO.2) 2022-10 → —	T24AFTS TALH17	—
17893 — Resonator, Intake Air
17893-F0140	Resonator, Intake Air 2022-10 → —	A25AFXS AALH15	—
22204 — Meter Sub-assy, Intake Air Flow
22204-75040	Meter Sub-assy, Intake Air Flow 2022-10 → —	A25AFXS AALH15	—
22204-75040	Meter Sub-assy, Intake Air Flow 2022-10 → —	T24AFTS TALA1#,TALH17	—
75895Q — Tape, Moulding, NO.1
75895-52050	Tape, Moulding, NO.1 2022-10 → —	AALH15	—
75895-52050	Tape, Moulding, NO.1 2022-10 → —	TALA1#	—

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
