Toyota Lexus RX Series(Tmmc
2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States
Supported model
Data version 2022-09

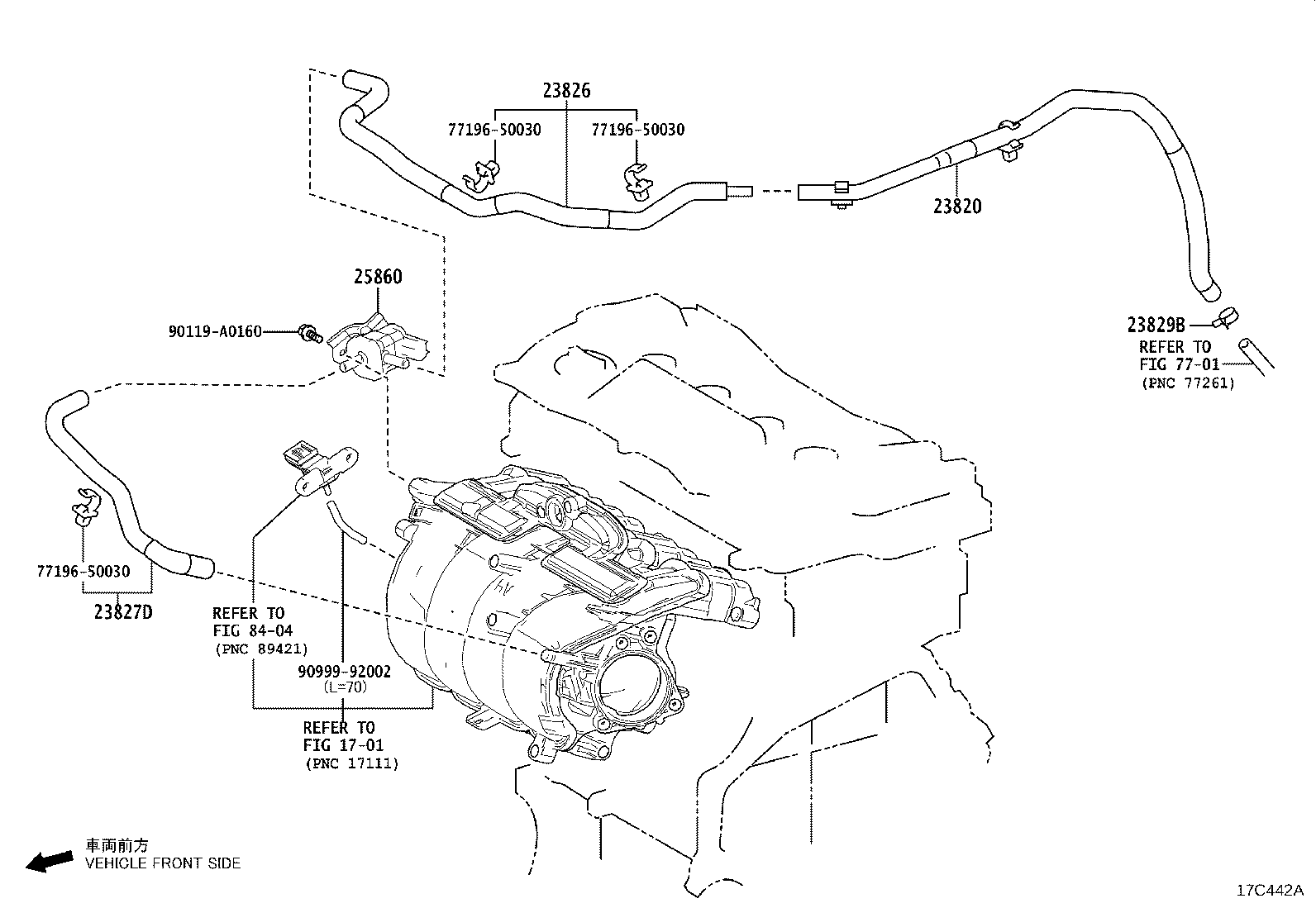

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 23820 — Hose Assy, Fuel Vapor Feed | ||||
| 23820-F0370 |
Hose Assy, Fuel Vapor Feed
2022-10 → —
|
T24AFTS TALA1# | — | |
| 23820-F0380 |
Hose Assy, Fuel Vapor Feed
2022-10 → —
|
A25AFXS AALH15 | — | |
| 23820-F0480 |
Hose Assy, Fuel Vapor Feed
2022-10 → —
|
T24AFTS TALH17 | — | |
| 23826 — Hose, Fuel Vapor Feed, NO.1 | ||||
| 23820-F0081 |
Hose, Fuel Vapor Feed, NO.1
2022-10 → —
|
A25AFXS AALH15 | — | |
| 23827D — Hose, Fuel Vapor Feed, NO.2 | ||||
| 23820-F0150 |
Hose, Fuel Vapor Feed, NO.2
2022-10 → —
|
A25AFXS AALH15 | — | |
| 23827-25160 |
Hose, Fuel Vapor Feed, NO.2
2022-10 → —
|
T24AFTS TALH17 | — | |
| 23827-F0190 |
Hose, Fuel Vapor Feed, NO.2
2022-10 → —
|
T24AFTS TALA1# | — | |
| 23829B — Clip(FOR FUEL VAPOR FEED HOSE) | ||||
| 90466-A0032 |
Clip(FOR FUEL VAPOR FEED HOSE)
2022-10 → —
|
A25AFXS AALH15 | — | |
| 90466-A0032 |
Clip(FOR FUEL VAPOR FEED HOSE)
2022-10 → —
|
T24AFTS TALA1# | — | |
| 25860 — Valve Assy, Vacuum Switching, NO.1 | ||||
| 25860-25080 |
Valve Assy, Vacuum Switching, NO.1
2022-10 → —
|
T24AFTS TALA1# | — | |
| 25860-F0020 |
Valve Assy, Vacuum Switching, NO.1
2022-10 → —
|
A25AFXS AALH15 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
