Toyota Lexus RX Series(Tmmc
2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States
Supported model
Data version 2022-09

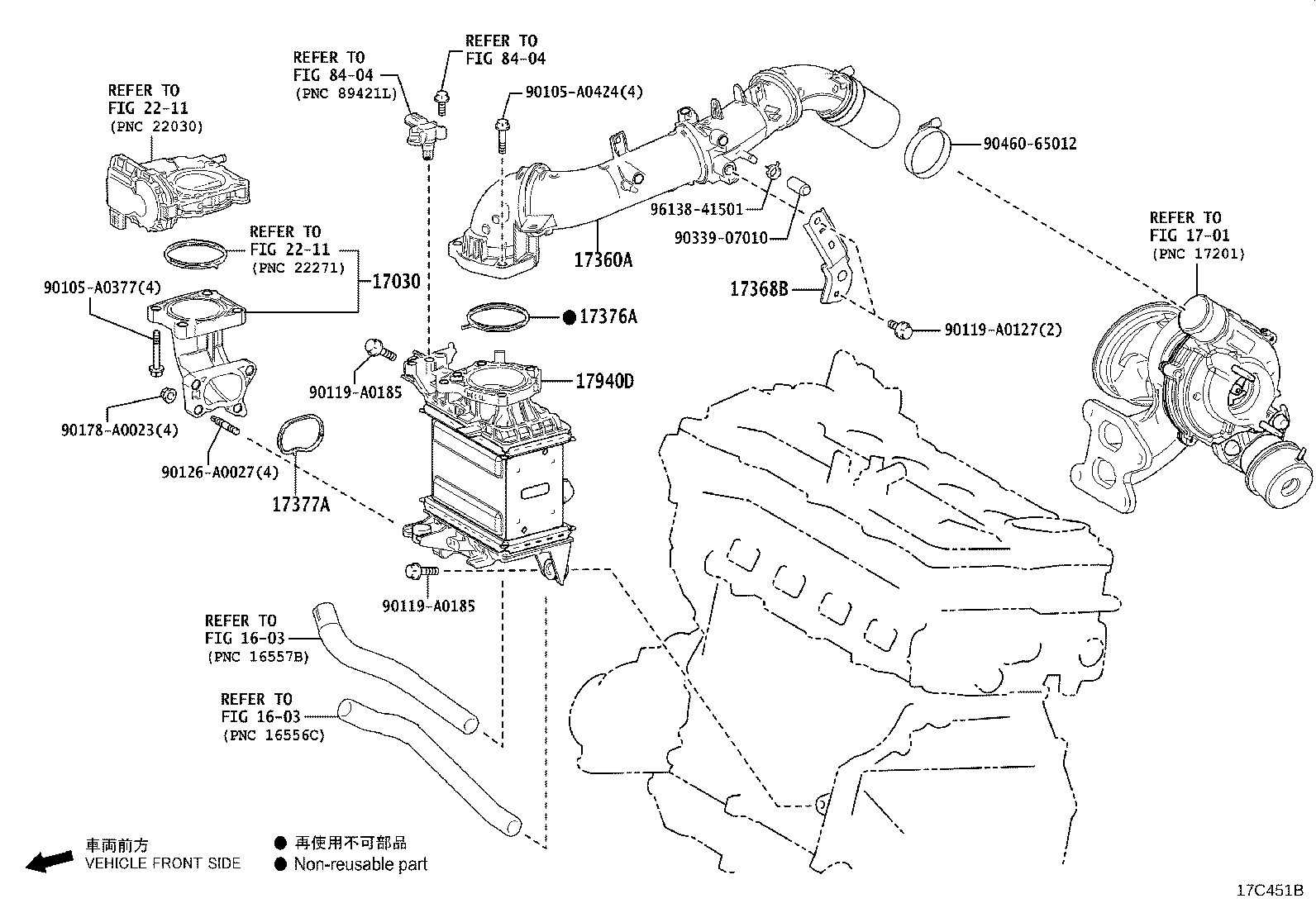

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17030 — Hose Assy, Air | ||||
| 17030-F0010 |
Hose Assy, Air
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
| 17360A — Tube Assy, Air | ||||
| 17360-25010 |
Tube Assy, Air
2022-10 → —
|
T24AFTS TALH17 | — | |
| 17360-25030 |
Tube Assy, Air
2022-10 → —
|
T24AFTS TALA1# | — | |
| 17368B — Support, Air Tube | ||||
| 17368-F0010 |
Support, Air Tube
2022-10 → —
|
T24AFTS TALA1# | — | |
| 17376A — Gasket, Air Tube | ||||
| 17376-F0010 |
Gasket, Air Tube
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
| 17377A — Gasket, Air Tube, NO.2 | ||||
| 17377-F0010 |
Gasket, Air Tube, NO.2
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
| 17940D — Intercooler Assy | ||||
| 17940-F0010 |
Intercooler Assy
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
