Toyota Lexus RX Series(Tmmc
2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States
Supported model
Data version 2022-09

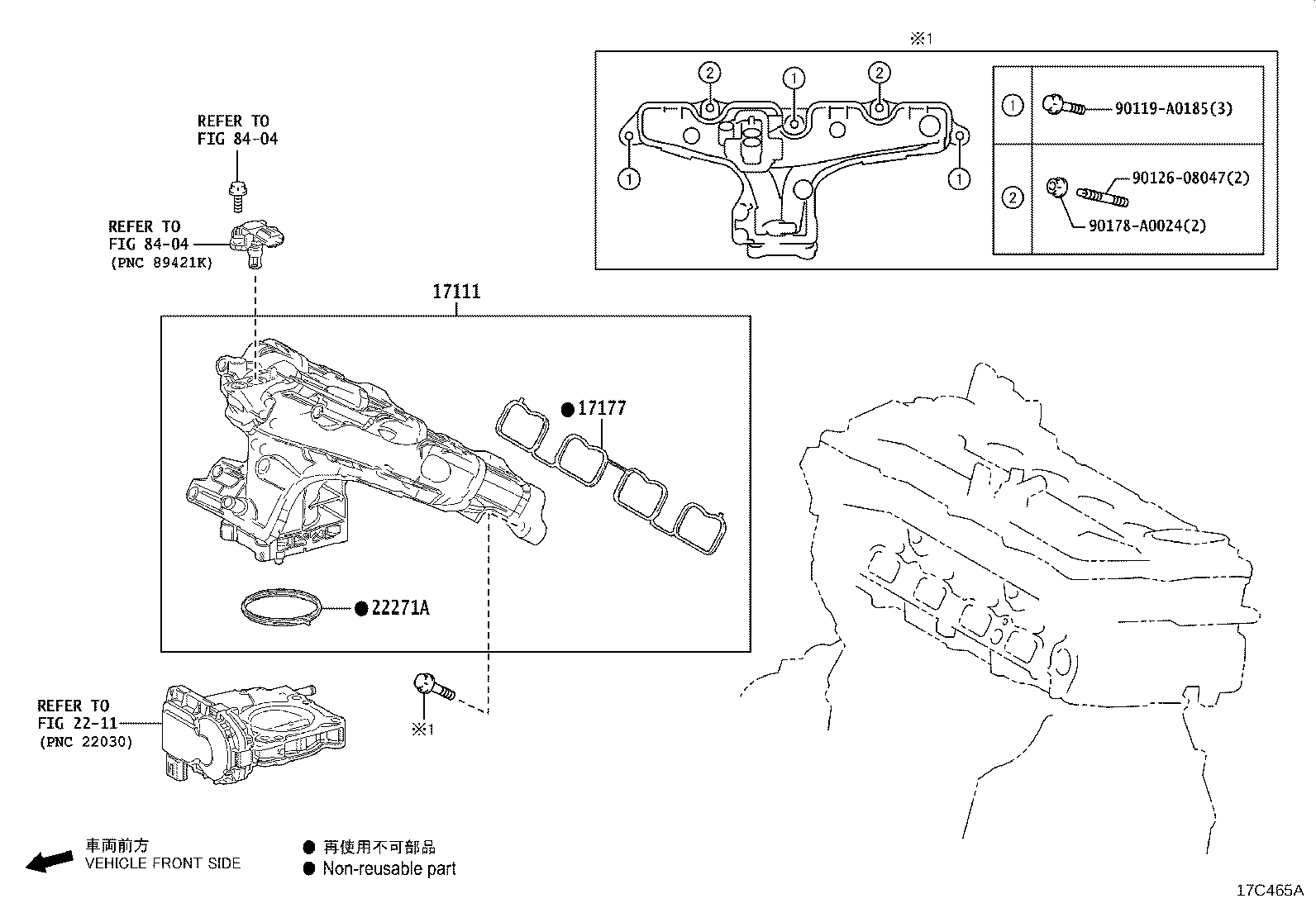

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17111 — Manifold, Intake | ||||
| 17120-F0020 |
Manifold, Intake
2022-10 → —
|
A25AFXS AALH15 | — | |
| 17120-F0100 |
Manifold, Intake
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
| 17177 — Gasket, Intake Manifold TO Head, NO.1 | ||||
| 17171-25010 |
Gasket, Intake Manifold TO Head, NO.1
2022-10 → —
|
A25AFXS AALH15 | — | |
| 17177-25040 |
Gasket, Intake Manifold TO Head, NO.1
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
| 22271A — Gasket, Throttle Body | ||||
| 22271-25030 |
Gasket, Throttle Body
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
