Toyota Lexus RX Series(Tmmc
2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States
Supported model
Data version 2022-09

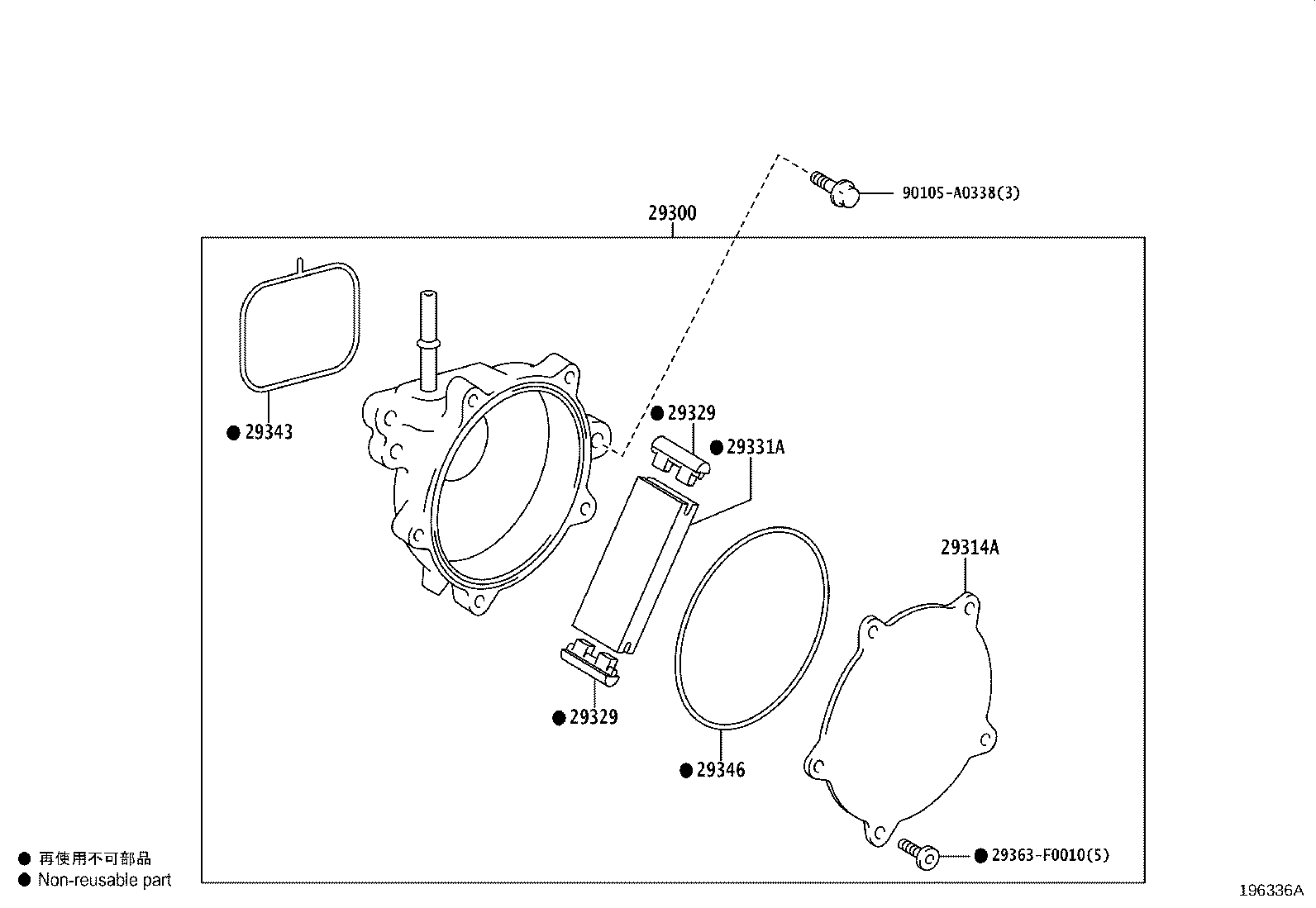

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 29300 — Pump Assy, Vacuum | ||||
| 29300-F0012 |
Pump Assy, Vacuum
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
| 29314A — Cover, End | ||||
| 29314-F0010 |
Cover, End
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
| 29329 — Cap, Vacuum Pump Vane | ||||
| 29329-F0011 |
Cap, Vacuum Pump Vane
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
| 29331A — Vane, Vacuum Pump | ||||
| 29331-F0010 |
Vane, Vacuum Pump
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
| 29343 — Ring, O Vacuum Pump, NO.1 | ||||
| 29343-F0010 |
Ring, O Vacuum Pump, NO.1
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
| 29346 — Ring, O Vacuum Pump Cover | ||||
| 29346-F0010 |
Ring, O Vacuum Pump Cover
2022-10 → —
|
T24AFTS TALA1#,TALH17 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
