Toyota Lexus RX Series(Tmmc

2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States

Supported model Data version 2022-09

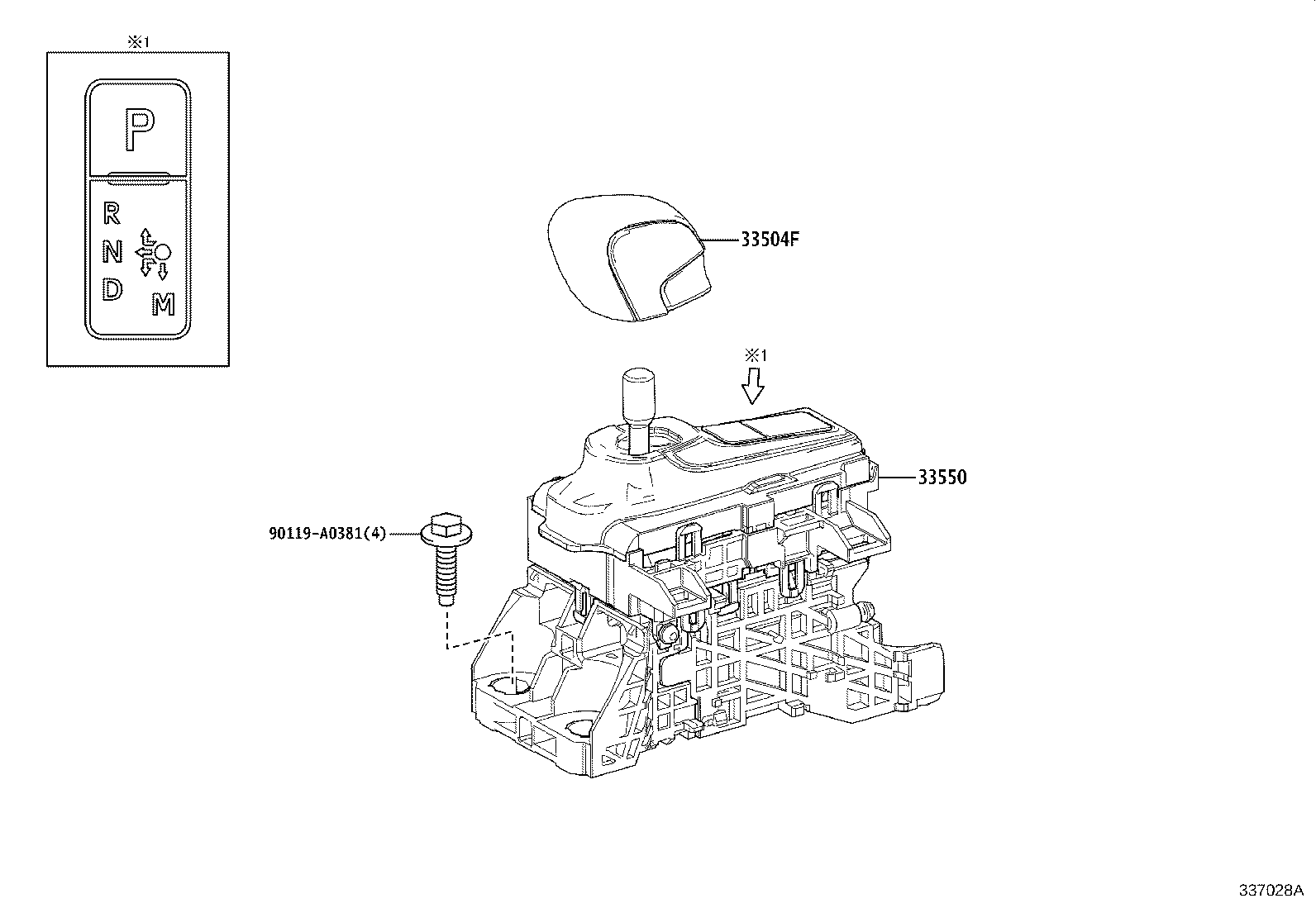

337028A · 2 callouts, 1 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
13 parts on this figure
Part number Description Fitment Price
33504F — Knob Sub-assy, Shift Lever
33504-48140-C0 note Knob Sub-assy, Shift Lever
2022-10 → 2024-11 ended
AALH15,TALA1# —
33504-78010-C0 note Knob Sub-assy, Shift Lever
2022-10 → —
AALH15,TALA1# —
33504-78020-C0 note Knob Sub-assy, Shift Lever
2022-10 → —
TALH17 —
33504-78020-C0 note Knob Sub-assy, Shift Lever
2022-10 → —
TALA15 —
33504-78030-C0 note Knob Sub-assy, Shift Lever
2022-10 → —
AALH15,TALA1# —
33550 — Floor Shift Assy, Transmission
33550-0E250 note Floor Shift Assy, Transmission
2022-10 → —
TALA1# —
33550-0E260 note Floor Shift Assy, Transmission
2022-10 → —
AALH15 —
33550-0E270 note Floor Shift Assy, Transmission
2022-10 → —
TALH17 —
33550-0E450 note Floor Shift Assy, Transmission
2023-09 → —
TALA1# —
33550-0E450 note Floor Shift Assy, Transmission
2023-09 → —
TALA1# —
33550-0E450 note Floor Shift Assy, Transmission
2023-09 → —
TALA1# —
33550-0E450 note Floor Shift Assy, Transmission
2023-09 → —
TALA1# —
33550-0E450 note Floor Shift Assy, Transmission
2023-09 → —
TALA15 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
