Toyota Lexus RX Series(Tmmc

2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States

Supported model Data version 2022-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

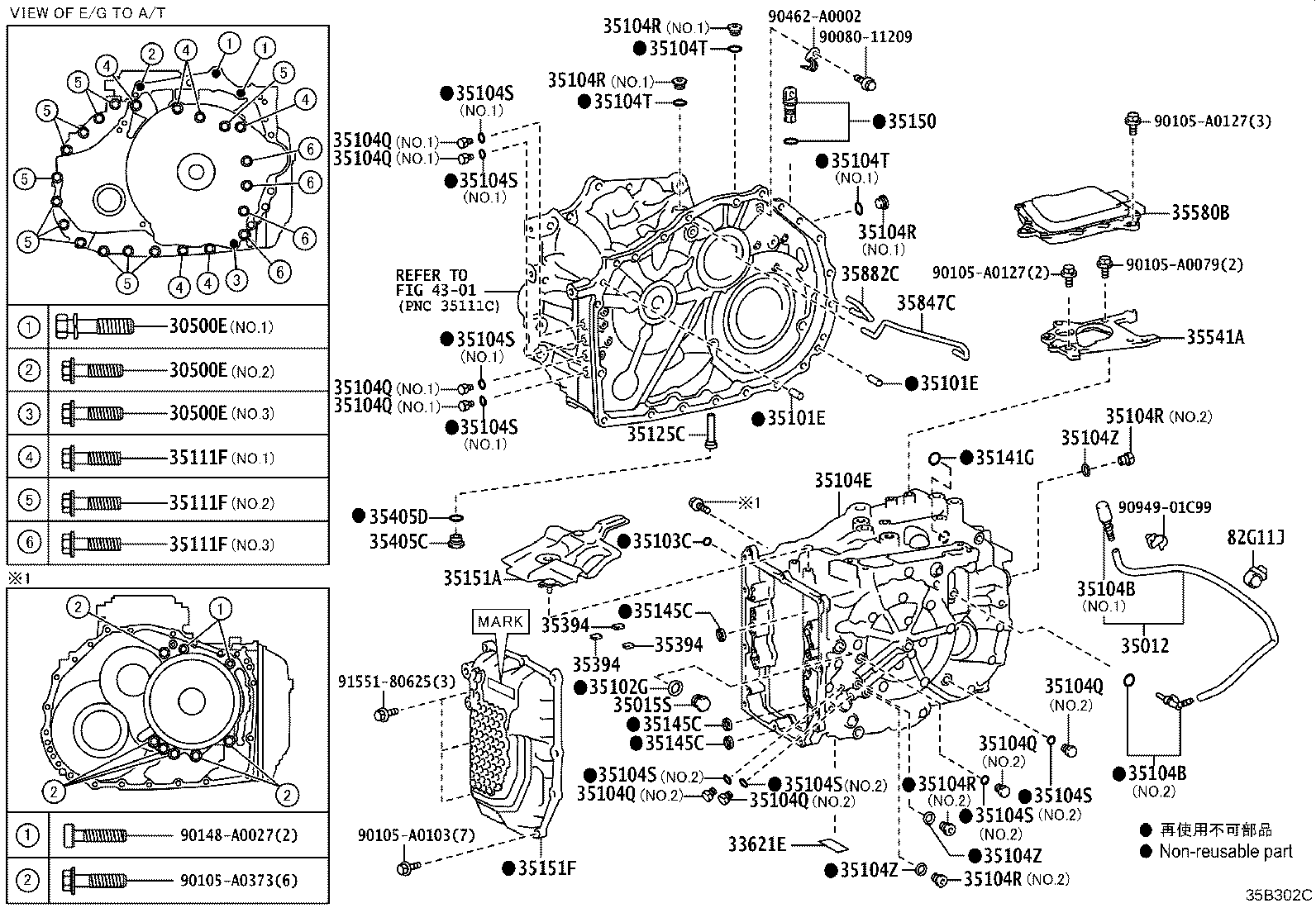

Exploded illustration 35B302C 35150 — PLUG ASSY, TRANSMISSION CASE (1 parts) 35847C — TUBE, TRANSMISSION LUBE APPLY (1 parts) 35882C — TUBE, DIFFERENTIAL GEAR LUBE APPLY (1 parts) 35104S — RING, O (FOR TRANSAXLE CASE PLUG NO.1) (1 parts) 35104S — RING, O (FOR TRANSAXLE CASE PLUG NO.1) (1 parts) 35104S — RING, O (FOR TRANSAXLE CASE PLUG NO.1) (1 parts) 35104S — RING, O (FOR TRANSAXLE CASE PLUG NO.1) (1 parts) 35104S — RING, O (FOR TRANSAXLE CASE PLUG NO.1) (1 parts) 35104Q — PLUG, NO.1 (FOR TRANSAXLE CASE) (1 parts) 35104R — PLUG, NO.2 (FOR TRANSAXLE CASE) (1 parts) 35104R — PLUG, NO.2 (FOR TRANSAXLE CASE) (1 parts) 35104E — CASE SUB-ASSY, AUTOMATIC TRANSAXLE (1 parts) 35145C — GASKET, TRANSAXLE CASE (1 parts) 35145C — GASKET, TRANSAXLE CASE (1 parts) 35104T — RING, O (FOR TRANSAXLE CASE PLUG NO.2) (1 parts) 35104T — RING, O (FOR TRANSAXLE CASE PLUG NO.2) (1 parts) 35104R — PLUG, NO.2 (FOR TRANSAXLE CASE) (1 parts) 35104T — RING, O (FOR TRANSAXLE CASE PLUG NO.2) (1 parts) 35104Q — PLUG, NO.1 (FOR TRANSAXLE CASE) (1 parts) 35104Q — PLUG, NO.1 (FOR TRANSAXLE CASE) (1 parts) 35104Q — PLUG, NO.1 (FOR TRANSAXLE CASE) (1 parts) 35125C — TUBE, TRANSMISSION OIL FILLER, NO.1 (1 parts) 35151F — COVER, TRANSMISSION CASE, SIDE (2 parts) 35405C — PLUG SUB-ASSY, W/HEAD STRAIGHT SCREW (1 parts) 35151A — COVER, TRANSAXLE CASE, UPPER (1 parts) 35405D — RING, O (FOR STRAIGHT SCREW PLUG) (1 parts) 35141G — RING, O (FOR AUTOMATIC TRANSMISSION CASE) (1 parts) 35541A — BRACKET, SHIFT CONTROL ACTUATOR (1 parts) 35580B — ACTUATOR ASSY, SHIFT CONTROL (2 parts) 35104B — PLUG, BREATHER, NO.1 (ATM) (2 parts) 35104B — PLUG, BREATHER, NO.1 (ATM) (2 parts) 35394 — MAGNET, OIL CLEANER (FOR TRANSMISSION) (1 parts) 35394 — MAGNET, OIL CLEANER (FOR TRANSMISSION) (1 parts) 35101E — PIN, STRAIGHT (FOR AUTOMATIC TRANSMISSION CASE) (1 parts) 35394 — MAGNET, OIL CLEANER (FOR TRANSMISSION) (1 parts) 90462A0002 — not listed in this catalogue 9094901C99 — not listed in this catalogue 90105A0127 — not listed in this catalogue 90105A0079 — not listed in this catalogue 9008011209 — not listed in this catalogue 9155180625 — not listed in this catalogue 90105A0373 — not listed in this catalogue 90148A0027 — not listed in this catalogue 35101E — PIN, STRAIGHT (FOR AUTOMATIC TRANSMISSION CASE) (1 parts) 35103C — RING, O (1 parts) 35015S — PLUG, STRAIGHT(FOR TRANSMISSION CASE ADAPTER) (1 parts) 35102G — GASKET (FOR TRANSAXLE REAR COVER ) (1 parts) 35104Q — PLUG, NO.1 (FOR TRANSAXLE CASE) (1 parts) 35104S — RING, O (FOR TRANSAXLE CASE PLUG NO.1) (1 parts) 35104R — PLUG, NO.2 (FOR TRANSAXLE CASE) (1 parts) 35104R — PLUG, NO.2 (FOR TRANSAXLE CASE) (1 parts) 82G11J — CLAMP, WIRING HARNESS (1 parts) 35104R — PLUG, NO.2 (FOR TRANSAXLE CASE) (1 parts) 35104Z — GASKET (FOR TRANSAXLE CASE) (1 parts) 35104Z — GASKET (FOR TRANSAXLE CASE) (1 parts) 35104Z — GASKET (FOR TRANSAXLE CASE) (1 parts) 35104S — RING, O (FOR TRANSAXLE CASE PLUG NO.1) (1 parts) 35104S — RING, O (FOR TRANSAXLE CASE PLUG NO.1) (1 parts) 35104Q — PLUG, NO.1 (FOR TRANSAXLE CASE) (1 parts) 35104Q — PLUG, NO.1 (FOR TRANSAXLE CASE) (1 parts) 35104Q — PLUG, NO.1 (FOR TRANSAXLE CASE) (1 parts) 33621E — LABEL, TRANSAXLE OIL NOTICE (2 parts) 35012 — HOSE SUB-ASSY, TRANSMISSION BREATHER (1 parts) 30500E — BOLT(FOR TRANSAXLE & ENGINE SETTING) (3 parts) 30500E — BOLT(FOR TRANSAXLE & ENGINE SETTING) (3 parts) 30500E — BOLT(FOR TRANSAXLE & ENGINE SETTING) (3 parts) 35111F — BOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING) (3 parts) 35111F — BOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING) (3 parts) 35111F — BOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING) (3 parts) 90105A0127 — not listed in this catalogue 35145C — GASKET, TRANSAXLE CASE (1 parts) 4301 — not listed in this catalogue 90105A0103 — not listed in this catalogue
35B302C · 62 callouts, 11 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
37 parts on this figure
Part number Description Fitment Price
30500E — Bolt(FOR TRANSAXLE & ENGINE SETTING)
90105-A0225 note Bolt(FOR TRANSAXLE & ENGINE SETTING)
2022-10 → —
TALA1# —
90105-A0269 note Bolt(FOR TRANSAXLE & ENGINE SETTING)
2022-10 → —
TALA1# —
90105-A0393 note Bolt(FOR TRANSAXLE & ENGINE SETTING)
2022-10 → —
TALA1# —
33621E — Label, Transaxle Oil Notice
33621-28021 Label, Transaxle Oil Notice
2022-10 → 2024-05 ended
TALA10 —
33621-28021 Label, Transaxle Oil Notice
2022-10 → —
TALA15 —
35012 — Hose Sub-assy, Transmission Breather
35012-78010 Hose Sub-assy, Transmission Breather
2022-10 → —
TALA1# —
35015S — Plug, Straight(FOR TRANSMISSION CASE ADAPTER)
90341-A0003 Plug, Straight(FOR TRANSMISSION CASE ADAPTER)
2022-10 → —
TALA1# —
35101E — Pin, Straight (FOR AUTOMATIC TRANSMISSION CASE)
90250-10017 Pin, Straight (FOR AUTOMATIC TRANSMISSION CASE)
2022-10 → —
TALA1# —
35102G — Gasket (FOR TRANSAXLE REAR COVER )
90430-A0003 Gasket (FOR TRANSAXLE REAR COVER )
2022-10 → —
TALA1# —
35103C — Ring, O
90301-06021 Ring, O
2022-10 → —
TALA1# —
35104B — Plug, Breather, NO.1 (ATM)
90930-03216 note Plug, Breather, NO.1 (ATM)
2022-10 → —
TALA1# —
90930-A3009 Plug, Breather, NO.1 (ATM)
2022-10 → —
TALA1# —
35104E — Case Sub-assy, Automatic Transaxle
35104-0E010 Case Sub-assy, Automatic Transaxle
2022-10 → —
TALA1# —
35104Q — Plug, NO.1 (FOR TRANSAXLE CASE)
90341-A0001 note Plug, NO.1 (FOR TRANSAXLE CASE)
2022-10 → —
TALA1# —
35104R — Plug, NO.2 (FOR TRANSAXLE CASE)
90341-A0005 note Plug, NO.2 (FOR TRANSAXLE CASE)
2022-10 → —
TALA1# —
35104S — Ring, O (FOR TRANSAXLE CASE PLUG NO.1)
90080-30105 note Ring, O (FOR TRANSAXLE CASE PLUG NO.1)
2022-10 → —
TALA1# —
35104T — Ring, O (FOR TRANSAXLE CASE PLUG NO.2)
90430-14008 Ring, O (FOR TRANSAXLE CASE PLUG NO.2)
2022-10 → —
TALA1# —
35104Z — Gasket (FOR TRANSAXLE CASE)
90430-14008 Gasket (FOR TRANSAXLE CASE)
2022-10 → —
TALA1# —
35111F — Bolt (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)
90105-A0367 note Bolt (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)
2022-10 → —
TALA1# —
91551-00835 note Bolt (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)
2022-10 → —
TALA1# —
91551-00840 note Bolt (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)
2022-10 → —
TALA1# —
35125C — Tube, Transmission Oil Filler, NO.1
35125-06130 Tube, Transmission Oil Filler, NO.1
2022-10 → —
TALA1# —
35141G — Ring, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-A0016 Ring, O (FOR AUTOMATIC TRANSMISSION CASE)
2022-10 → —
TALA1# —
35145C — Gasket, Transaxle Case
35145-33020 Gasket, Transaxle Case
2022-10 → —
TALA1# —
35150 — Plug Assy, Transmission Case
35150-45010 Plug Assy, Transmission Case
2022-10 → —
TALA1# —
35151A — Cover, Transaxle Case, Upper
35151-78010 Cover, Transaxle Case, Upper
2022-10 → —
TALA1# —
35151F — Cover, Transmission Case, Side
35151-06010 Cover, Transmission Case, Side
2022-10 → 2023-10 ended
TALA1# —
35151-33161 note Cover, Transmission Case, Side
2023-10 → —
TALA1# —
35394 — Magnet, Oil Cleaner (FOR TRANSMISSION)
35394-08010 Magnet, Oil Cleaner (FOR TRANSMISSION)
2022-10 → —
TALA1# —
35405C — Plug Sub-assy, W/Head Straight Screw
90341-18023 Plug Sub-assy, W/Head Straight Screw
2022-10 → —
TALA1# —
35405D — Ring, O (FOR STRAIGHT SCREW PLUG)
90430-A0003 Ring, O (FOR STRAIGHT SCREW PLUG)
2022-10 → —
TALA1# —
35541A — Bracket, Shift Control Actuator
35541-78020 Bracket, Shift Control Actuator
2022-10 → —
TALA1# —
35580B — Actuator Assy, Shift Control
35580-78012 Actuator Assy, Shift Control
2022-10 → 2023-07 ended
TALA1# —
35580-78013 Actuator Assy, Shift Control
2023-08 → —
TALA1# —
35847C — Tube, Transmission Lube Apply
35847-06010 Tube, Transmission Lube Apply
2022-10 → —
TALA1# —
35882C — Tube, Differential Gear Lube Apply
35882-06030 Tube, Differential Gear Lube Apply
2022-10 → —
TALA1# —
82G11J — Clamp, Wiring Harness
82711-2D350 Clamp, Wiring Harness
2022-10 → —
TALA1# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
