Toyota Lexus RX Series(Tmmc
2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States
Supported model
Data version 2022-09

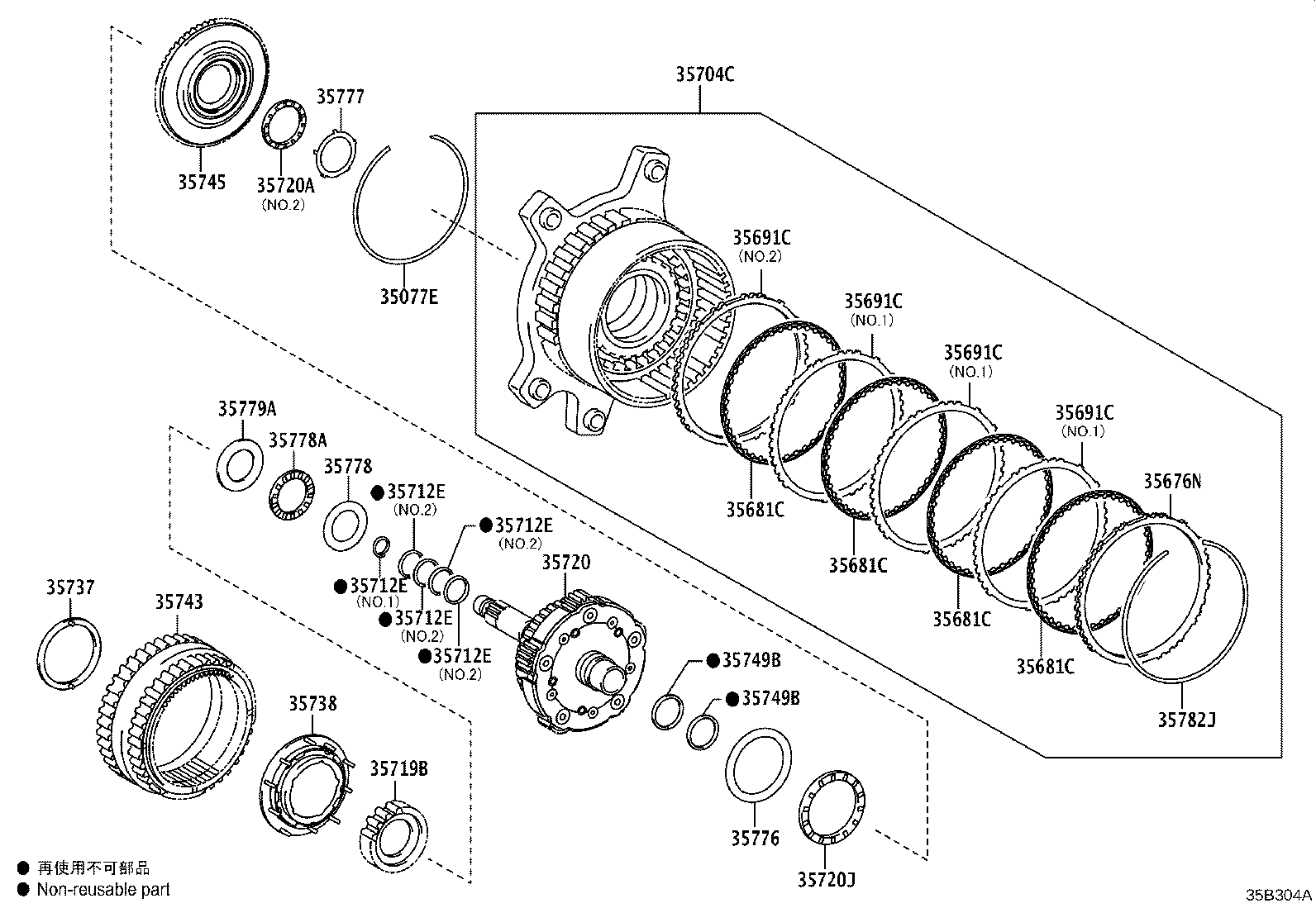

| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 35077E — Ring, Snap (FOR REAR PLANETARY RING GEAR FLANGE) | ||||
| 90520-99176 |
Ring, Snap (FOR REAR PLANETARY RING GEAR FLANGE)
2022-10 → —
|
TALA1# | — | |
| 35676N — Flange, Brake, NO.1 | ||||
| 35676-06230 note |
Flange, Brake, NO.1
2022-10 → —
|
TALA1# | — | |
| 35676-06240 note |
Flange, Brake, NO.1
2022-10 → —
|
TALA1# | — | |
| 35676-06250 note |
Flange, Brake, NO.1
2022-10 → —
|
TALA1# | — | |
| 35676-06260 note |
Flange, Brake, NO.1
2022-10 → —
|
TALA1# | — | |
| 35676-06270 note |
Flange, Brake, NO.1
2022-10 → —
|
TALA1# | — | |
| 35676-06280 note |
Flange, Brake, NO.1
2022-10 → —
|
TALA1# | — | |
| 35676-06290 note |
Flange, Brake, NO.1
2022-10 → —
|
TALA1# | — | |
| 35681C — Disc, Brake, NO.1 | ||||
| 35681-06040 |
Disc, Brake, NO.1
2022-10 → —
|
TALA1# | — | |
| 35691C — Plate, Brake, NO.1 | ||||
| 35691-06050 note |
Plate, Brake, NO.1
2022-10 → —
|
TALA1# | — | |
| 35691-06060 note |
Plate, Brake, NO.1
2022-10 → —
|
TALA1# | — | |
| 35704C — Gear Sub-assy, Counter Drive | ||||
| 35704-0E020 |
Gear Sub-assy, Counter Drive
2022-10 → —
|
TALA1# | — | |
| 35712E — Ring, Input Shaft Oil Seal | ||||
| 35712-48020 note |
Ring, Input Shaft Oil Seal
2022-10 → —
|
TALA1# | — | |
| 35712-48030 note |
Ring, Input Shaft Oil Seal
2022-10 → —
|
TALA1# | — | |
| 35719B — Gear, Planetary Sun | ||||
| 35719-06020 |
Gear, Planetary Sun
2022-10 → 2023-09
ended
|
TALA1# | — | |
| 35719-06021 |
Gear, Planetary Sun
2023-09 → —
|
TALA1# | — | |
| 35720 — Gear Assy, Front Planetary | ||||
| 35720-0E010 |
Gear Assy, Front Planetary
2022-10 → —
|
TALA1# | — | |
| 35720A — Bearing, Thrust Needle Roller (FOR FRONT PLANETARY GEAR) | ||||
| 90374-39009 note |
Bearing, Thrust Needle Roller (FOR FRONT PLANETARY GEAR)
2022-10 → —
|
TALA1# | — | |
| 90374-A0063 note |
Bearing, Thrust Needle Roller (FOR FRONT PLANETARY GEAR)
2022-10 → —
|
TALA1# | — | |
| 35720J — Bearing, Thrust Needle Roller(FOR PLANETARY GEAR FRONT) | ||||
| 90374-58005 |
Bearing, Thrust Needle Roller(FOR PLANETARY GEAR FRONT)
2022-10 → —
|
TALA1# | — | |
| 35737 — Washer, Planetary Carrier Thrust | ||||
| 35737-48050 |
Washer, Planetary Carrier Thrust
2022-10 → —
|
TALA1# | — | |
| 35738 — Washer, Planetary Carrier Thrust, NO.2 | ||||
| 35738-48040 |
Washer, Planetary Carrier Thrust, NO.2
2022-10 → —
|
TALA1# | — | |
| 35743 — Gear, Front Planetary Ring | ||||
| 35743-48020 |
Gear, Front Planetary Ring
2022-10 → —
|
TALA1# | — | |
| 35745 — Flange, Front Planetary Ring Gear | ||||
| 35745-48020 |
Flange, Front Planetary Ring Gear
2022-10 → —
|
TALA1# | — | |
| 35749B — Ring, Input Shaft Oil Seal, Rear | ||||
| 35749-48020 |
Ring, Input Shaft Oil Seal, Rear
2022-10 → —
|
TALA1# | — | |
| 35776 — Gear, Primary Reduction Driven | ||||
| 35776-78010 |
Gear, Primary Reduction Driven
2022-10 → —
|
TALA1# | — | |
| 35777 — Race, Thrust Bearing, NO.7 | ||||
| 35777-48040 |
Race, Thrust Bearing, NO.7
2022-10 → —
|
TALA1# | — | |
| 35778 — Race, Thrust Bearing, NO.8 | ||||
| 35778-48020 |
Race, Thrust Bearing, NO.8
2022-10 → —
|
TALA1# | — | |
| 35778A — Bearing, Thrust Needle Roller | ||||
| 90374-31012 |
Bearing, Thrust Needle Roller
2022-10 → —
|
TALA1# | — | |
| 35779A — Race, Thrust Bearing, NO.9 | ||||
| 35779-48020 |
Race, Thrust Bearing, NO.9
2022-10 → —
|
TALA1# | — | |
| 35782J — Ring, Snap | ||||
| 90520-A0077 |
Ring, Snap
2022-10 → —
|
TALA1# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
