Toyota Lexus RX Series(Tmmc

2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States

Supported model Data version 2022-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

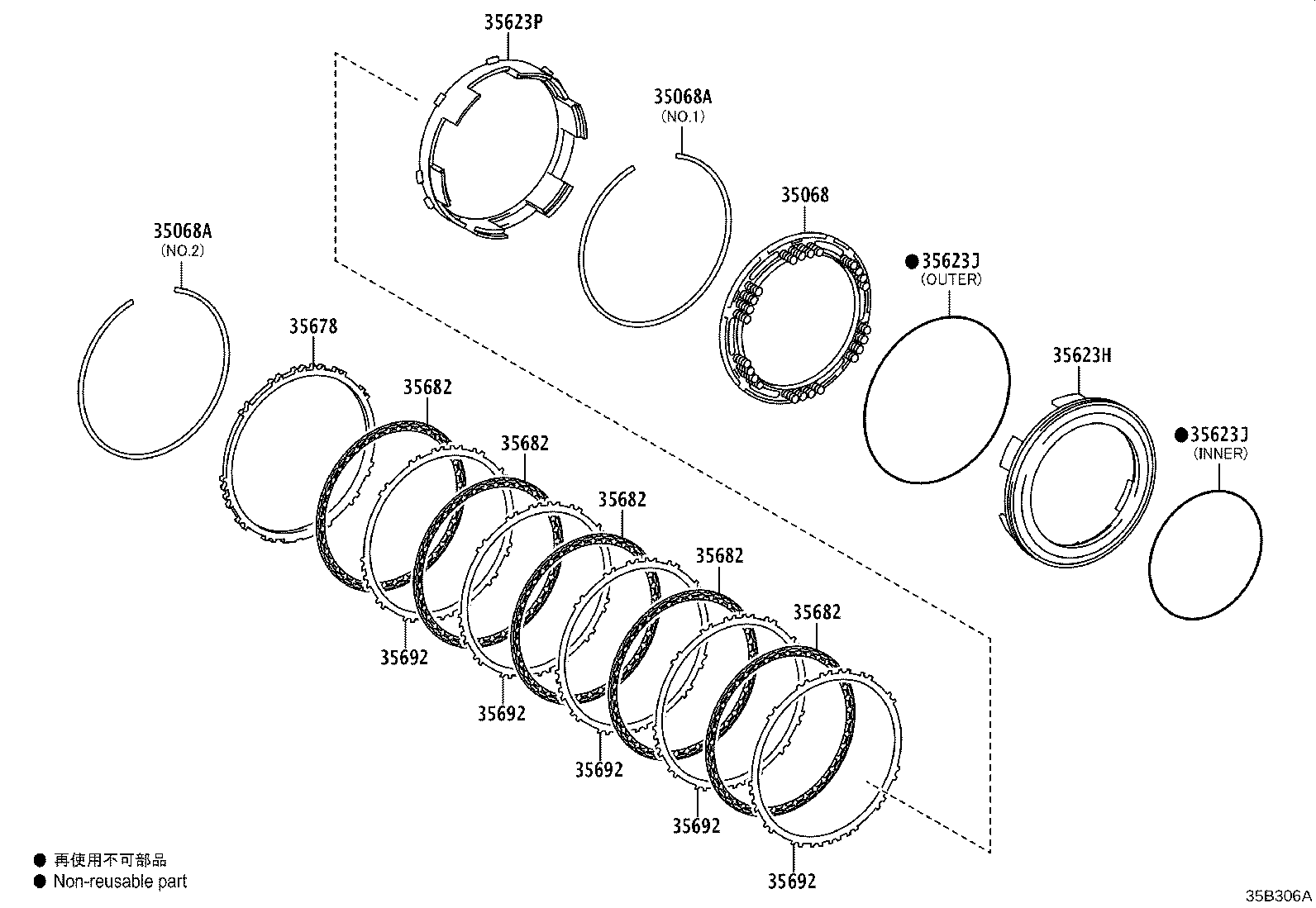

Exploded illustration 35B306A 35692 — PLATE, BRAKE(FOR 2ND BRAKE) (1 parts) 35692 — PLATE, BRAKE(FOR 2ND BRAKE) (1 parts) 35692 — PLATE, BRAKE(FOR 2ND BRAKE) (1 parts) 35692 — PLATE, BRAKE(FOR 2ND BRAKE) (1 parts) 35068 — SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN (1 parts) 35068A — RING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING) (2 parts) 35068A — RING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING) (2 parts) 35623J — RING, O (FOR 1ST & REVERSE BRAKE) (2 parts) 35623J — RING, O (FOR 1ST & REVERSE BRAKE) (2 parts) 35623H — PISTON, 1ST & REVERSE BRAKE (1 parts) 35623P — PISTON, 1ST & REVERSE BRAKE, NO.2 (1 parts) 35682 — DISC, BRAKE(FOR 2ND BRAKE) (1 parts) 35678 — FLANGE, BRAKE(FOR 2ND BRAKE) (7 parts) 35682 — DISC, BRAKE(FOR 2ND BRAKE) (1 parts) 35682 — DISC, BRAKE(FOR 2ND BRAKE) (1 parts) 35682 — DISC, BRAKE(FOR 2ND BRAKE) (1 parts) 35682 — DISC, BRAKE(FOR 2ND BRAKE) (1 parts) 35692 — PLATE, BRAKE(FOR 2ND BRAKE) (1 parts)
35B306A · 18 callouts Full size ↗
16 parts on this figure
Part number Description Fitment Price
35068 — Spring Sub-assy, 1ST & Reverse Brake Return
35068-48020 Spring Sub-assy, 1ST & Reverse Brake Return
2022-10 → —
TALA1# —
35068A — Ring, Shaft Snap (FOR 1ST & REVERSE BRAKE RETURN SPRING)
90520-99174 note Ring, Shaft Snap (FOR 1ST & REVERSE BRAKE RETURN SPRING)
2022-10 → —
TALA1# —
90520-A0075 note Ring, Shaft Snap (FOR 1ST & REVERSE BRAKE RETURN SPRING)
2022-10 → —
TALA1# —
35623H — Piston, 1ST & Reverse Brake
35623-48040 Piston, 1ST & Reverse Brake
2022-10 → —
TALA1# —
35623J — Ring, O (FOR 1ST & REVERSE BRAKE)
90301-99209 note Ring, O (FOR 1ST & REVERSE BRAKE)
2022-10 → —
TALA1# —
90301-99210 note Ring, O (FOR 1ST & REVERSE BRAKE)
2022-10 → —
TALA1# —
35623P — Piston, 1ST & Reverse Brake, NO.2
35624-48020 Piston, 1ST & Reverse Brake, NO.2
2022-10 → —
TALA1# —
35678 — Flange, Brake(FOR 2ND BRAKE)
35678-0E010 note Flange, Brake(FOR 2ND BRAKE)
2022-10 → —
TALA1# —
35678-0E020 note Flange, Brake(FOR 2ND BRAKE)
2022-10 → —
TALA1# —
35678-0E030 note Flange, Brake(FOR 2ND BRAKE)
2022-10 → —
TALA1# —
35678-0E040 note Flange, Brake(FOR 2ND BRAKE)
2022-10 → —
TALA1# —
35678-0E050 note Flange, Brake(FOR 2ND BRAKE)
2022-10 → —
TALA1# —
35678-0E060 note Flange, Brake(FOR 2ND BRAKE)
2022-10 → —
TALA1# —
35678-0E070 note Flange, Brake(FOR 2ND BRAKE)
2022-10 → —
TALA1# —
35682 — Disc, Brake(FOR 2ND BRAKE)
35682-0E010 Disc, Brake(FOR 2ND BRAKE)
2022-10 → —
TALA1# —
35692 — Plate, Brake(FOR 2ND BRAKE)
35692-06030 Plate, Brake(FOR 2ND BRAKE)
2022-10 → —
TALA1# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
