Toyota Lexus RX Series(Tmmc
2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States
Supported model
Data version 2022-09

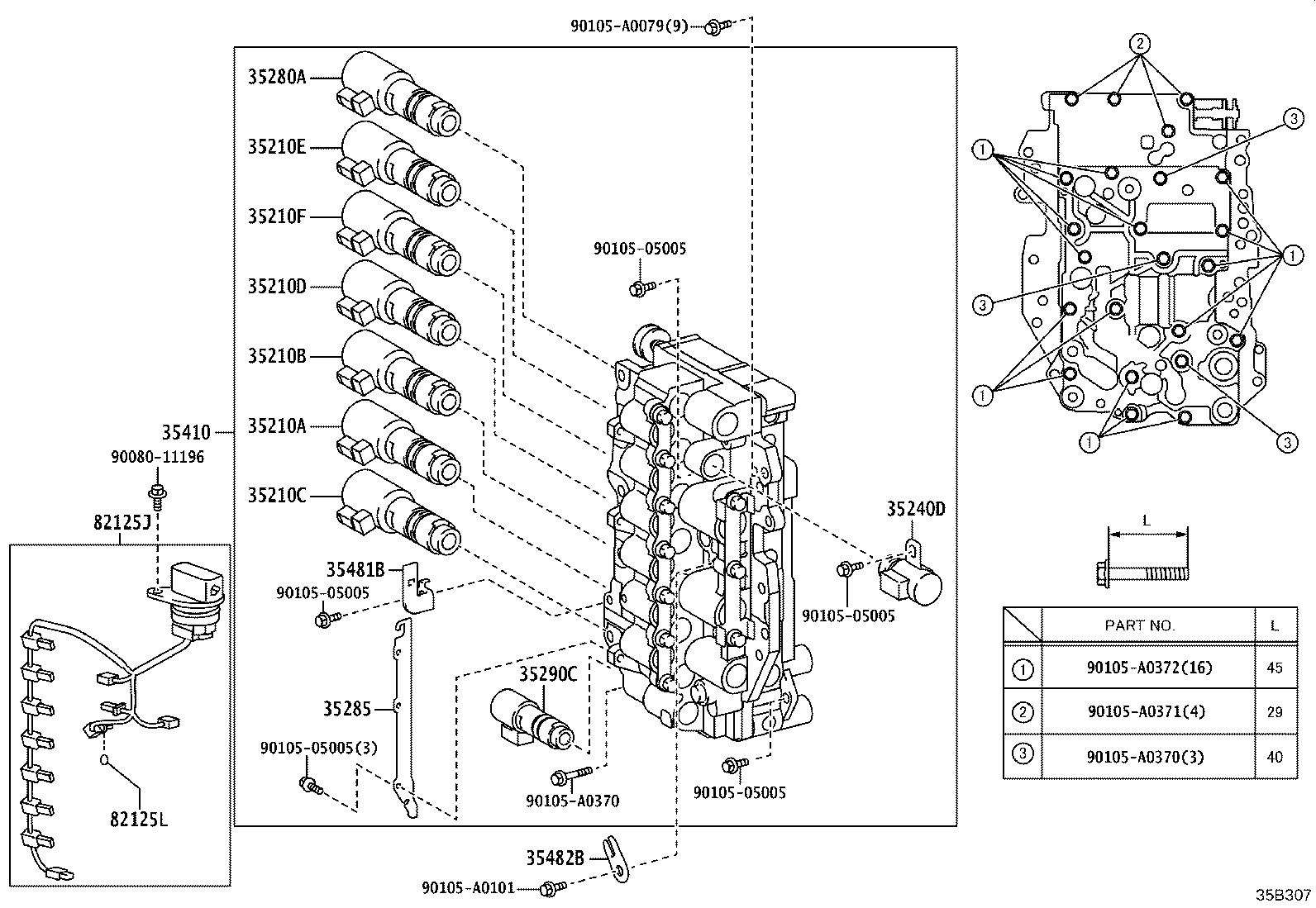

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 35210A — Valve, Solenoid(SL1) | ||||
| 35210-06020 |
Valve, Solenoid(SL1)
2022-10 → —
|
TALA1# | — | |
| 35210B — Valve, Solenoid(SL3) | ||||
| 35210-06020 |
Valve, Solenoid(SL3)
2022-10 → —
|
TALA1# | — | |
| 35210C — Valve, Solenoid(SL2) | ||||
| 35210-06020 |
Valve, Solenoid(SL2)
2022-10 → —
|
TALA1# | — | |
| 35210D — Valve, Solenoid(SL4) | ||||
| 35210-06020 |
Valve, Solenoid(SL4)
2022-10 → —
|
TALA1# | — | |
| 35210E — Valve, Solenoid(SL5) | ||||
| 35210-06020 |
Valve, Solenoid(SL5)
2022-10 → —
|
TALA1# | — | |
| 35210F — Valve, Solenoid(SL6) | ||||
| 35210-06020 |
Valve, Solenoid(SL6)
2022-10 → —
|
TALA1# | — | |
| 35240D — Valve, Solenoid(SL) | ||||
| 35240-48020 |
Valve, Solenoid(SL)
2022-10 → —
|
TALA1# | — | |
| 35280A — Valve, Solenoid(SLU) | ||||
| 35280-06020 |
Valve, Solenoid(SLU)
2022-10 → —
|
TALA1# | — | |
| 35285 — Plate, Solenoid Lock | ||||
| 35285-06020 |
Plate, Solenoid Lock
2022-10 → —
|
TALA1# | — | |
| 35290C — Valve, Solenoid(SLT) | ||||
| 35290-06010 |
Valve, Solenoid(SLT)
2022-10 → —
|
TALA1# | — | |
| 35410 — Body Assy, Transmission Valve | ||||
| 35410-0E010 |
Body Assy, Transmission Valve
2022-10 → —
|
TALA1# | — | |
| 35481B — Clamp, Valve Body Wire Harness | ||||
| 35481-48020 |
Clamp, Valve Body Wire Harness
2022-10 → —
|
TALA1# | — | |
| 35482B — Clamp, Temperature Sensor | ||||
| 35482-73010 |
Clamp, Temperature Sensor
2022-10 → —
|
TALA1# | — | |
| 82125J — Wire, Transmission | ||||
| 82125-33211 |
Wire, Transmission
2022-10 → —
|
TALA1# | — | |
| 82125L — Ring, O(FOR TRANSMISSION WIRE) | ||||
| 90301-06025 |
Ring, O(FOR TRANSMISSION WIRE)
2022-10 → —
|
TALA1# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
