Toyota Lexus RX Series(Tmmc

2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States

Supported model Data version 2022-09

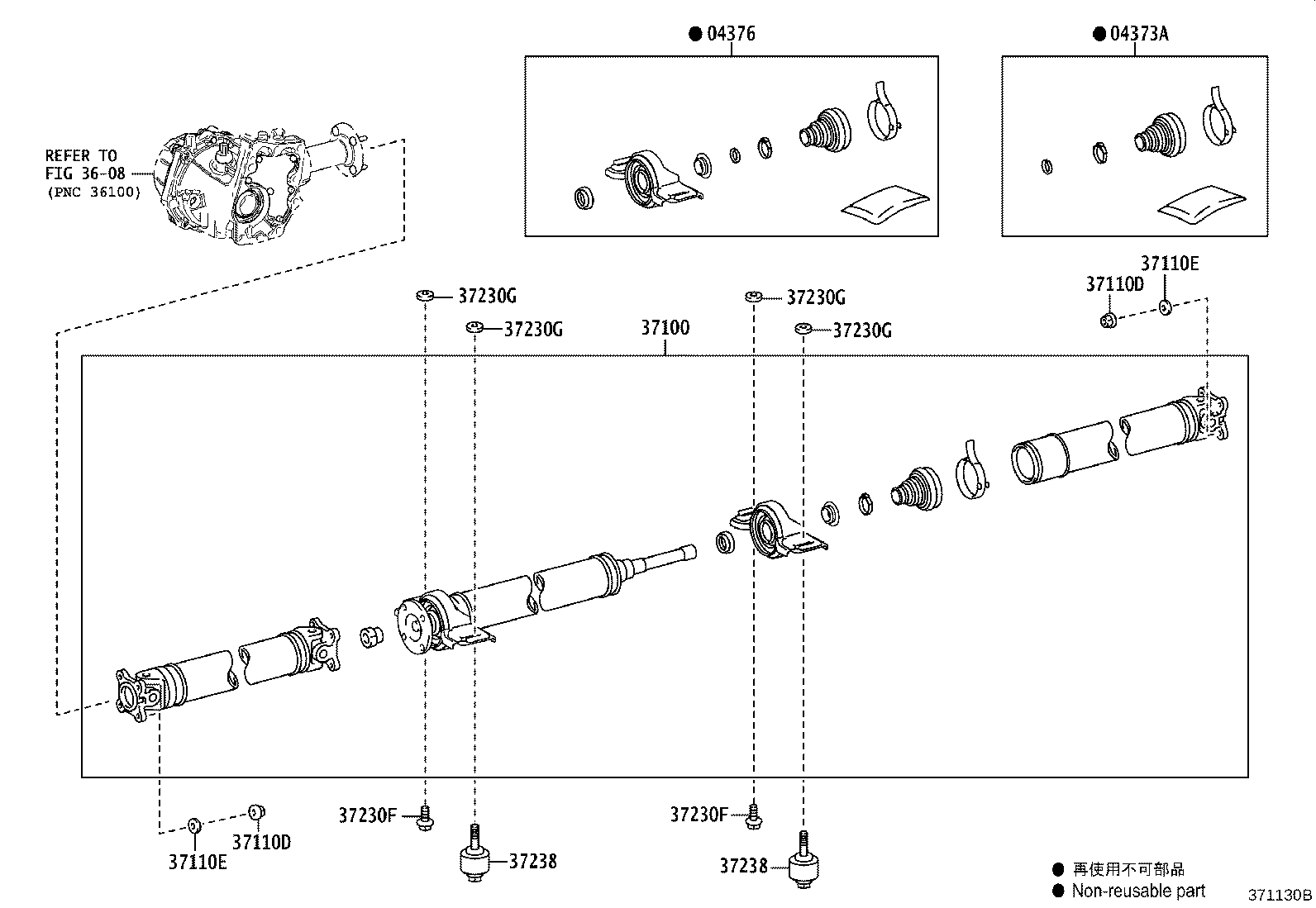

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

15 parts on this figure

Part number	Description	Fitment	Price
04373A — Boot Kit, Universal
04373-48010	Boot Kit, Universal 2022-10 → 2024-11 ended	TALA15	—
04373-48011	Boot Kit, Universal 2024-12 → —	TALA15	—
04376 — Bearing Kit, Center Support
04376-48010	Bearing Kit, Center Support 2022-10 → 2024-11 ended	TALA15	—
04376-48011	Bearing Kit, Center Support 2024-12 → —	TALA15	—
37100 — Shaft Assy, Propeller W/Center Bearing
37100-48080	Shaft Assy, Propeller W/Center Bearing 2022-10 → —	TALA15	—
37110D — Nut (FOR PROPELLER SHAFT)
90178-10007 note	Nut (FOR PROPELLER SHAFT) 2022-10 → —	TALA15	—
90178-A0124 note	Nut (FOR PROPELLER SHAFT) 2022-10 → —	TALA15	—
37110E — Washer (FOR PROPELLER SHAFT)
90560-10102	Washer (FOR PROPELLER SHAFT) 2022-10 → —	TALA15	—
37230F — Bolt, NO.1 (FOR CENTER SUPPORT BEARING)
90119-10444 note	Bolt, NO.1 (FOR CENTER SUPPORT BEARING) 2022-10 → —	TALA15	—
90119-A0246 note	Bolt, NO.1 (FOR CENTER SUPPORT BEARING) 2022-10 → —	TALA15	—
37230G — Washer, NO.2 (FOR CENTER SUPPORT BEARING)
90201-10081 note	Washer, NO.2 (FOR CENTER SUPPORT BEARING) 2022-10 → —	TALA15	—
90201-10083 note	Washer, NO.2 (FOR CENTER SUPPORT BEARING) 2022-10 → —	TALA15	—
90201-10084 note	Washer, NO.2 (FOR CENTER SUPPORT BEARING) 2022-10 → —	TALA15	—
90201-10123 note	Washer, NO.2 (FOR CENTER SUPPORT BEARING) 2022-10 → —	TALA15	—
37238 — Damper, Center Support Bearing
37209-10010	Damper, Center Support Bearing 2022-10 → —	TALA15	—

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
