Toyota Lexus RX Series(Tmmc
2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States
Supported model
Data version 2022-09

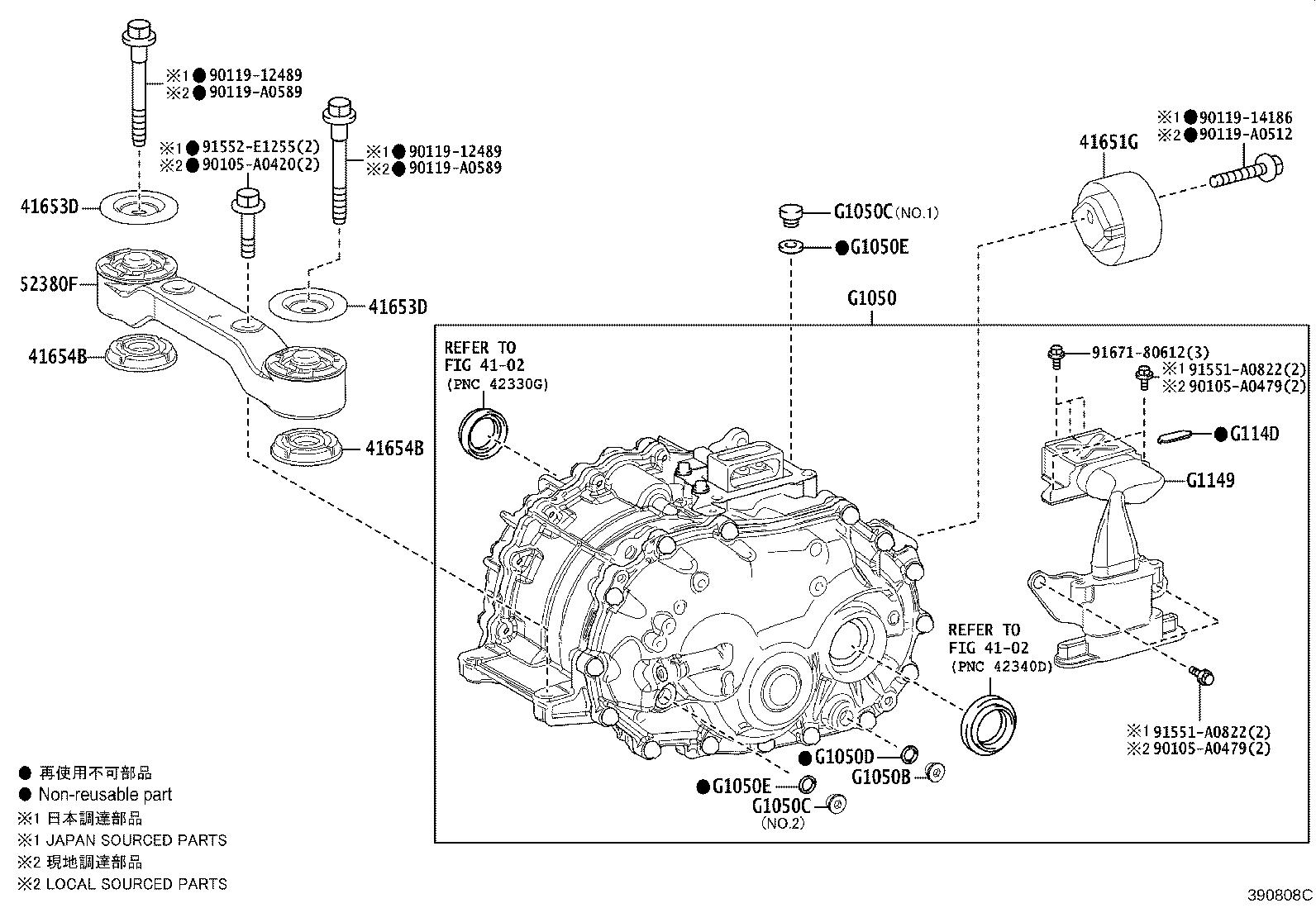

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 41651G — Cushion, Differential Mount | ||||
| 41651-0R080 |
Cushion, Differential Mount
2022-10 → —
|
AALH15 | — | |
| 41653D — Stopper, Differential Mount,Upper | ||||
| 41653-0R020 |
Stopper, Differential Mount,Upper
2022-10 → —
|
AALH15 | — | |
| 41654B — Stopper, Differential Mount,Lower | ||||
| 41654-0R020 |
Stopper, Differential Mount,Lower
2022-10 → —
|
AALH15 | — | |
| 52380F — Support Assy, Differential, Front | ||||
| 52380-48130 |
Support Assy, Differential, Front
2022-10 → —
|
AALH15 | — | |
| G1050 — Motor Assy, RR Traction W/Transaxle | ||||
| G1050-F6010 note |
Motor Assy, RR Traction W/Transaxle
2022-10 → —
|
AALH15 | — | |
| G1050B — Plug, Drain(FOR REAR TRACTION MOTOR) | ||||
| 90341-18016 |
Plug, Drain(FOR REAR TRACTION MOTOR)
2022-10 → —
|
TALH17 | — | |
| 90341-18051 |
Plug, Drain(FOR REAR TRACTION MOTOR)
2022-10 → —
|
AALH15 | — | |
| G1050C — Plug, Filler(FOR REAR TRACTION MOTOR) | ||||
| 90341-18023 note |
Plug, Filler(FOR REAR TRACTION MOTOR)
2022-10 → —
|
AALH15 | — | |
| 90341-18090 |
Plug, Filler(FOR REAR TRACTION MOTOR)
2022-10 → —
|
TALH17 | — | |
| 90341-A0009 note |
Plug, Filler(FOR REAR TRACTION MOTOR)
2022-10 → —
|
AALH15 | — | |
| G1050D — Gasket, Drain Plug(FOR REAR TRACTION MOTOR) | ||||
| 90430-18008 |
Gasket, Drain Plug(FOR REAR TRACTION MOTOR)
2022-10 → —
|
AALH15,TALH17 | — | |
| G1050E — Gasket, Filler Plug(FOR REAR TRACTION MOTOR) | ||||
| 90430-18008 |
Gasket, Filler Plug(FOR REAR TRACTION MOTOR)
2022-10 → —
|
AALH15,TALH17 | — | |
| G1149 — Cable(FOR REAR TRACTION MOTOR) | ||||
| G1149-42010 |
Cable(FOR REAR TRACTION MOTOR)
2022-10 → —
|
AALH15 | — | |
| G114D — Cap, Motor Cable Terminal | ||||
| G114D-47021 |
Cap, Motor Cable Terminal
2022-10 → —
|
AALH15 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
