Toyota Lexus RX Series(Tmmc
2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States
Supported model
Data version 2022-09

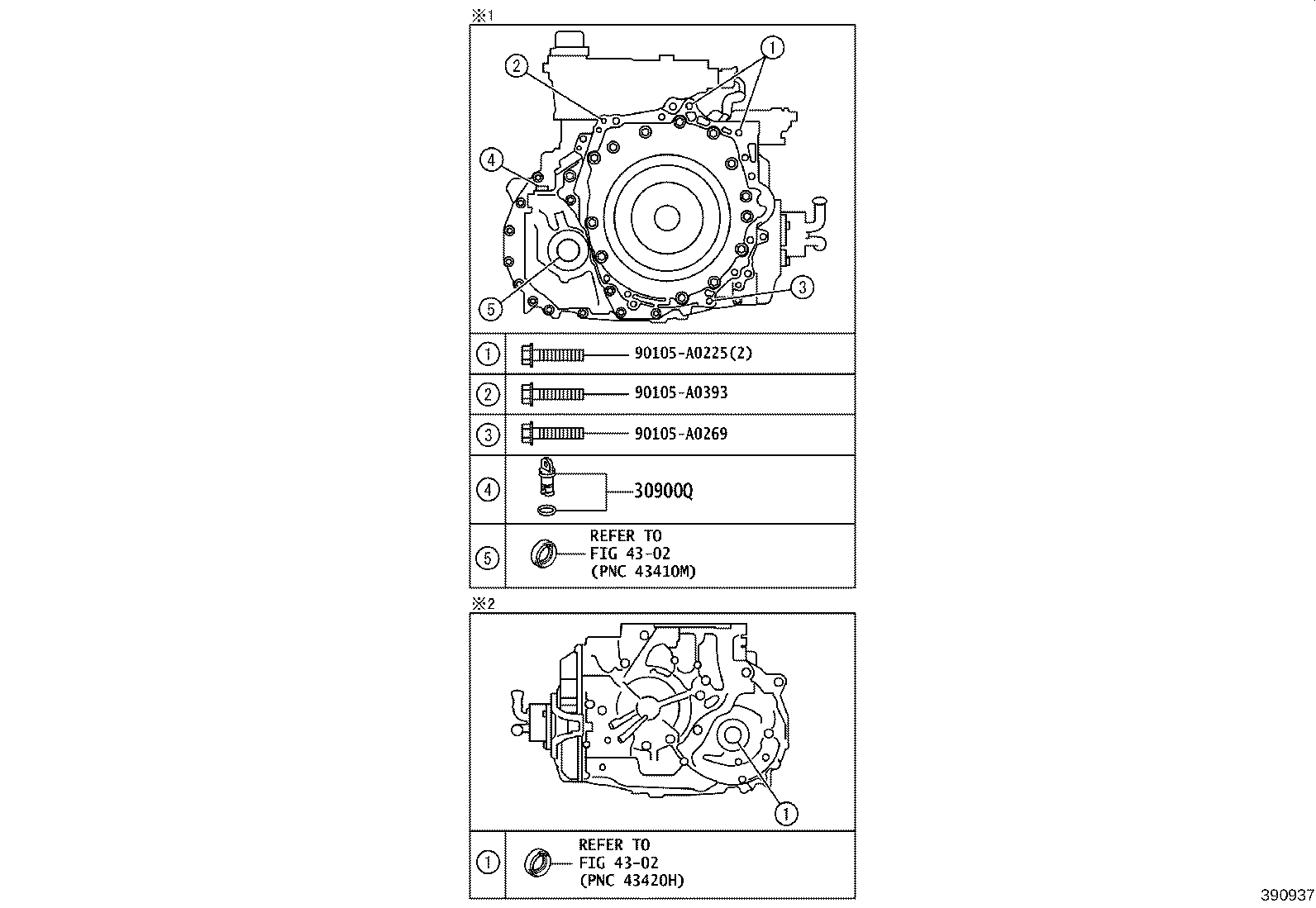

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 30900Q — Plug, Filler(HEV) | ||||
| 35150-45010 |
Plug, Filler(HEV)
2022-10 → —
|
TALH17 | — | |
| 90341-18016 |
Plug, Filler(HEV)
2022-10 → —
|
AALH15 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
