Toyota Lexus RX Series(Tmmc
2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States
Supported model
Data version 2022-09

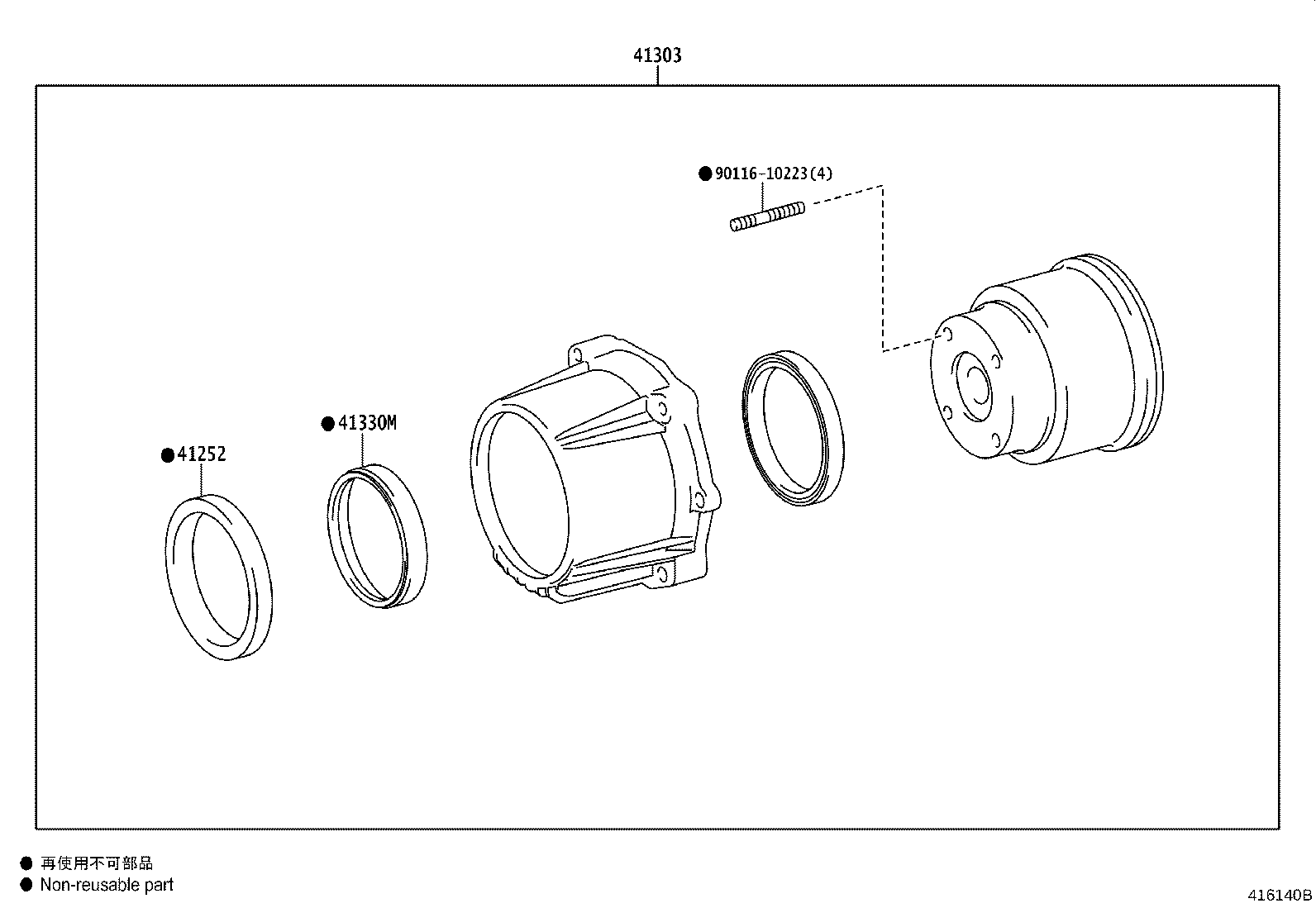

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 41252 — Deflector, Dust (FOR REAR DIFFERENTIAL) | ||||
| 41252-42013 |
Deflector, Dust (FOR REAR DIFFERENTIAL)
2022-10 → —
|
TALA15 | — | |
| 41303 — Coupling Sub-assy, Electro Magnetic Control | ||||
| 41303-48050 |
Coupling Sub-assy, Electro Magnetic Control
2022-10 → —
|
TALA15 | — | |
| 41330M — Seal, Dust (FOR TRANSMISSION COUPLING) | ||||
| 90304-94005 |
Seal, Dust (FOR TRANSMISSION COUPLING)
2022-10 → —
|
TALA15 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
