Toyota Lexus RX Series(Tmmc
2022-10 → present · chassis AALH15,TALA1#,TALH17 · catalogue 523440 · United States
Supported model
Data version 2022-09

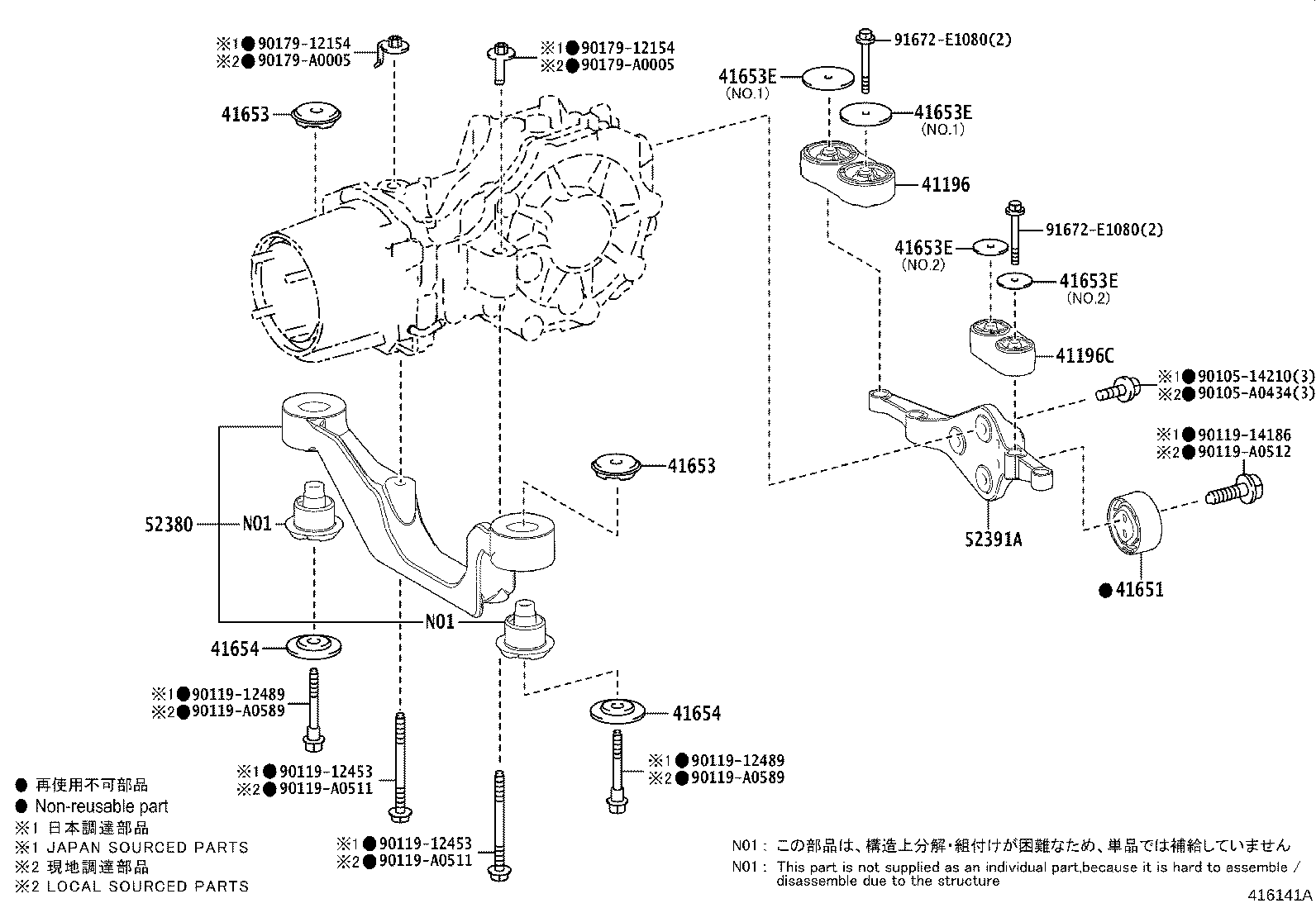

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 41196 — Damper, Rear Differential Dynamic | ||||
| 41196-78010 |
Damper, Rear Differential Dynamic
2022-10 → —
|
TALA15 | — | |
| 41196C — Damper, Rear Differential Dynamic, NO.2 | ||||
| 41196-0E020 |
Damper, Rear Differential Dynamic, NO.2
2022-10 → —
|
TALA15 | — | |
| 41651 — Cushion, Rear Differential Mount, NO.1 | ||||
| 41651-0E090 |
Cushion, Rear Differential Mount, NO.1
2022-10 → —
|
TALA15 | — | |
| 41653 — Stopper, Rear Differential Mount, Upper | ||||
| 41653-0E120 note |
Stopper, Rear Differential Mount, Upper
2022-10 → —
|
TALA15 | — | |
| 41653E — Stopper, Rear Differential Mount | ||||
| 41653-0E050 note |
Stopper, Rear Differential Mount
2022-10 → —
|
TALA15 | — | |
| 41653-78010 note |
Stopper, Rear Differential Mount
2022-10 → —
|
TALA15 | — | |
| 41654 — Stopper, Rear Differential Mount, Lower | ||||
| 41653-0R020 |
Stopper, Rear Differential Mount, Lower
2022-10 → —
|
TALA15 | — | |
| 52380 — Support, Rear Differential, NO.1 | ||||
| 52380-0E090 |
Support, Rear Differential, NO.1
2022-10 → —
|
TALA15 | — | |
| 52391A — Support, Rear Differential | ||||
| 52391-0E150 |
Support, Rear Differential
2022-10 → —
|
TALA15 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
